Specifications
Equipped With
GENERAL SPECIFICATIONS:

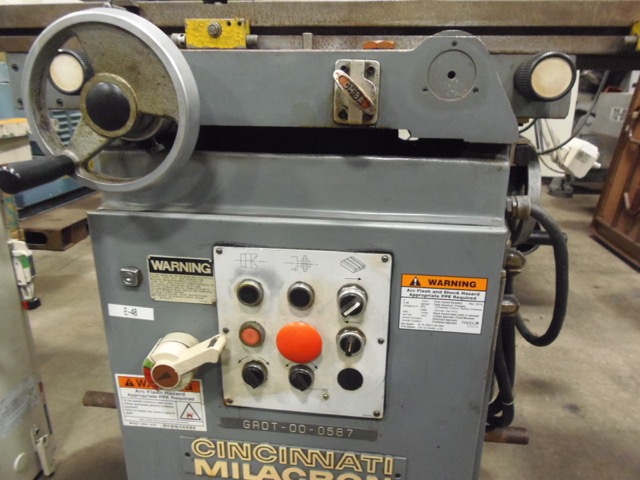

MANUFACTURER.......................... CINCINNATI
MODEL................................. 2 MT

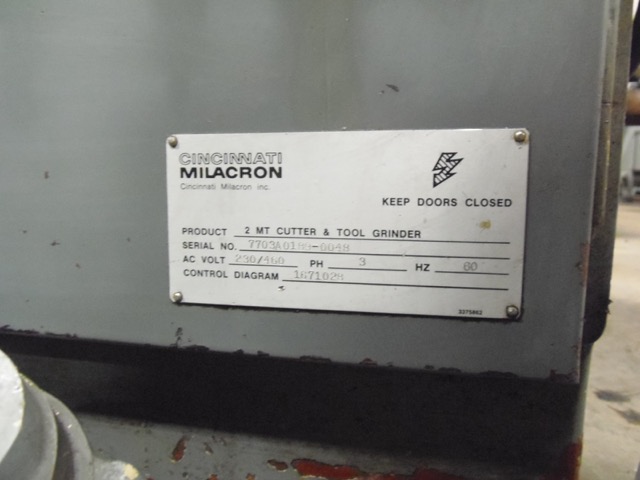

SERIAL #.............................. 7703A0189-0048
NEW (APPROX.)......................... 1989
SWING OVER TABLE...................... 10"
DISTANCE BETWEEN CENTERS.............. 27"
TRAVEL (LONGITUDINAL)................. 16"
TRAVEL (CROSS)........................ 10"

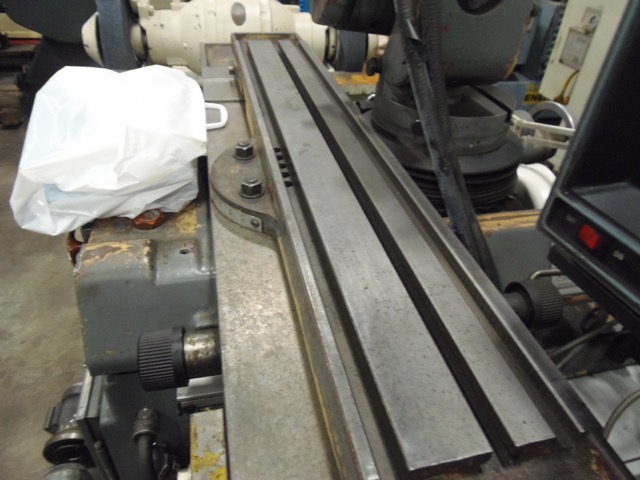

TABLE SWIVEL.......................... 180 DEG.
TABLE GRADUATIONS..................... 90 DEG.
VERT. MOVEMENT OF GRINDING WHEEL...... 10-1/2"

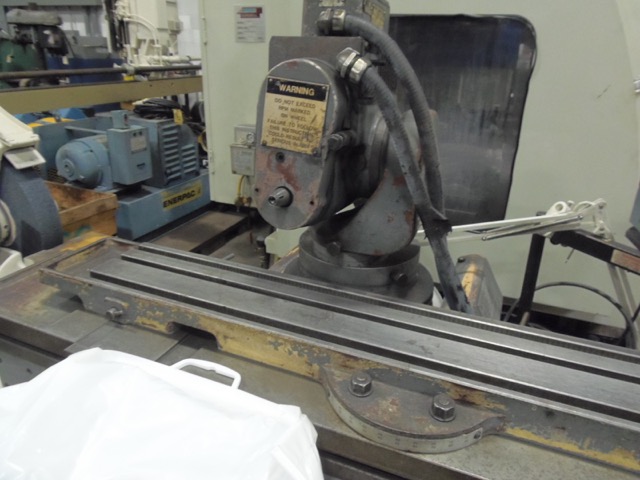

SWIVEL MOVEMENT OF GRINDING WHEEL..... 360 DEG.
MAX. DIST. SPDL CENTER TO TABLE TOP... 13-1/2"
SPINDLE MOTOR......................... 1 HP
ELECTRICS............................. 440/3 PH
DIMENSIONS (APPROX.).................. 56" x 68-1/2"
WEIGHT (APPROX)....................... 1,875 LBS.
EQUIPPED WITH:

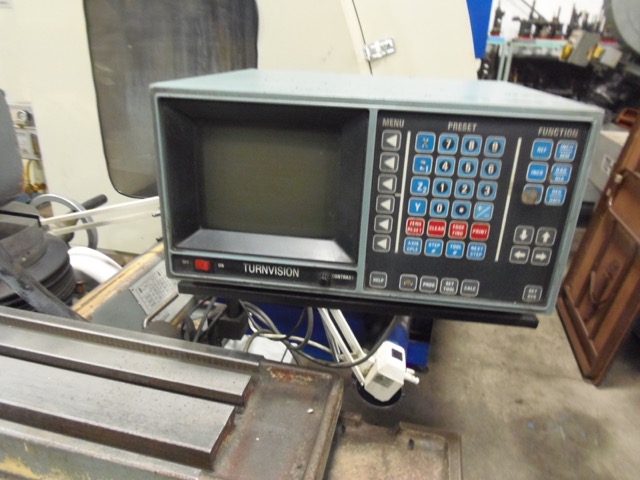

ACCURITE TURNVISION DIGITAL READOUT
The TurnVision has the ability to write
programs, has a 4 function calculator, RPM calculator, and taper
calculator, and also features single and multiple interval error
compensation.
POWER CROSS FEED
POWER LONGITUDINAL FEED
