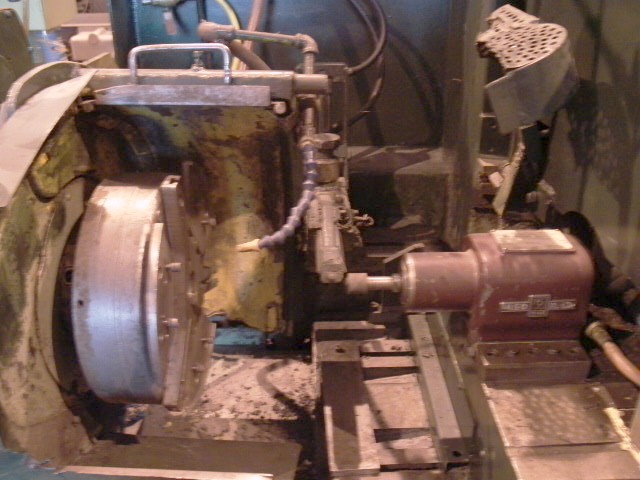

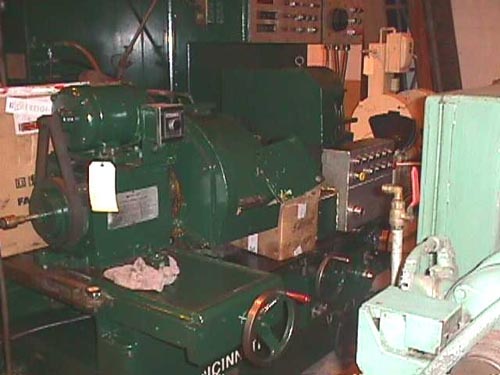

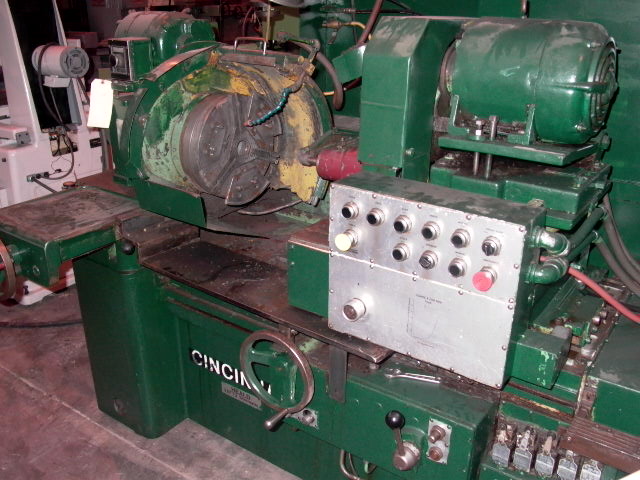

Specifications
Equipped With
GENERAL SPECIFICATIONS;
SERIAL 47047
NEW APPROXIMATELY 1974
SWING OVER TABLE (MAX.) 23-1/2"
SWING INSIDE COOLANT GUARD (MAX.) 20"
WORKHEAD SWIVEL ANGLE (MAX) 90 DEGREES
SWING WITH WORKHEAD AT 90 DEGREES 13"
GRINDING STROKE MAX. 16"
MIN. 3/16"
TABLE LONGITUDINAL TRAVEL 20"
TABLE LONGITUDINAL FEEDS 0-18 FPM
WHEELHEAD CROSS SLIDE TRAVEL 1.5"
WORKHEAD CROSS SLIDE TRAVEL 17.5"
WORKHEAD SPEEDS (VARIABLE) 0-500 RPM
WHEELHEAD INTERNAL GRINDING SPINDLE SPEED 11,000 RPM MAX.
WORKHEAD DRIVE MOTOR 1.5 HP 230/460/3/60
WHEELHEAD DRIVE MOTOR 5 HP 230/460/3/60
OVERALL DIMENSIONS 5'7" W X 10'6" LX
6'8" HIGH
WEIGHT 9,500 LBS.
EQUIPPED WITH:
AUTO WHEEL DRESSING
AUTO PICK FEED IN OR OUT/BOTH
0-90 DEGREES SINE BAR
P.B. CONTROL
