Specifications
Equipped With
GENERAL SPECIFICATIONS:

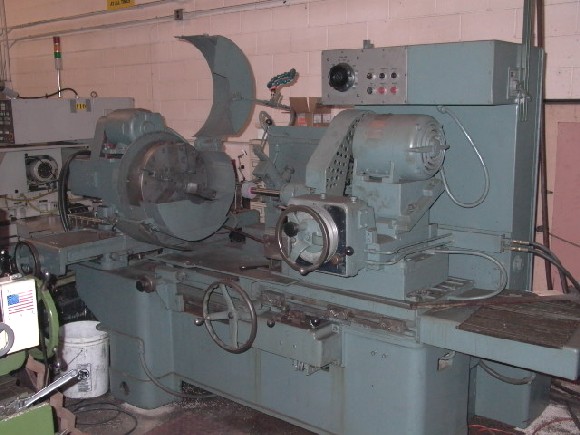

MANUFACTURER........................ CINCINNATI MILICRON HEALD
MODEL............................... 272
CAPACITIES:
SWING OVER TABLE................. 27"
SWING INSIDE GUARD............... 18"
LENGTH OF GRIND HOLE............. 3/8" - 9"
DIA. OF HOLE:
MIN........................... 1/8"
MAX........................... 9-3/4"
TABLE TRAVEL..................... 20"
WORKHEAD CROSS SLIDE TRAVEL...... 9"
DIST. WORKHEAD FLANGE FACE
& WORKHEAD.................... 2" MIN. THRU 36" MAX.
WHEELHEAD CARRIAGE CROSS
MOVEMENT (RED HEAD)........... 9-3/8"
RED HEAD CROSS MOVEMENT
ON T-SLOTS.................... 8"
GRINDING STROKE..................... 0.375" - 8"
SPEEDS & FEEDS:
TBL GRINDING (INFINITELY VARI.).. 0 THRU 18 FPM
TABLE RAPID TRAVERSE............. 35 FPM
WORKHEAD (INFINITELY VARI.)...... 50 - 500 RPM
MAX. POWER CROSS FEED............ 0.042" ON DIA.
WORKHEAD:
SPINDLE HOLE DIA................. 1-1/2"
SWIVEL ANGLE ADJ. TO MAX......... 35 DEG.
SPEED RANGE...................... 41 THRU 123 RPM
INTERNAL SPINDLE:
RED HEAD......................... 10,000 RPM
SIZE............................. 2" DIA. X 10" LONG
MOTOR DRIVE:
WORKHEAD......................... 10 HP, 220/440
HYD. PUMP........................ 2 HP, 220/440
COOLANT SYSTEM................... 2 HP, 220/440
CONTROLS WIRED...................... 120/1 PH
EQUIPPED WITH:
18" AIR CHUCK
ADJ. STONE DRESSER W/DIAMOND
FOUR POSITION TURRET STOP ON TABLE
COOLANT
CROSS SLIDING HEAD
SWIVEL HEAD
