Specifications
Equipped With
GENERAL SPECIFICATIONS:

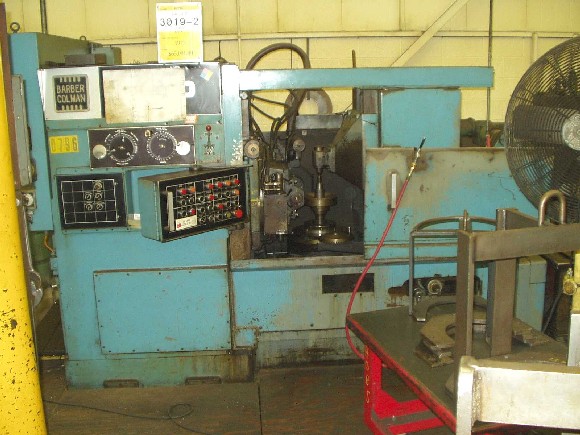

MANUFACTURER BARBER COLMAN
MODEL 25-15
NEW (APPROX.) 1974
CUTTING SPEEDS OF HOB 40-440 RPM
DIAMETER OF HOB 4 - 7-1/2"
LOW RANGE FEEDS 0.51 - .090 IPR
MIDDLE FEED RANGE .040 - .240 IPR
HIGH FEED RANGE .060 - .360 IPR
TABLE SIZE 22" DIA.
T-SLOTS 6
SPINGLE TAPER #40
HEIGHT UNDER TAILSTOCK SUPPORT 25" MAX.
MAX. SWING OF PART 27" DIA.
MACHINE DIMENSIONS (APPROX.) 140"LR x 67"FB x 89"H
COOLANT SYSTEM DIMENSIONS (APPROX.) 86"LR x 28"FB x 25"H
TOOLING SKID DIMENSIONS (APPROX.) 30"LR x 49"FB x 23"H
EQUIPPED WITH:
FULL WORK ENCLOSURE GUARDING
COOLANT PUMP & TANK SYSTEM
CONTROL LUBRICATION SYSTEM
