Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER CINCINNATI
MODEL 220-8 RK SERIES
NEW (APPROX.) 1993
WORKPIECE DIAMETER MIN. .060"
WORKPIECE DIAMETER MAX. 4.5"
GRINDING WHEEL DIAMETER MAX. 24"
GRINDING WHEEL WIDTH 10"
GRINDING WHEEL MOUNTING HOLE 12"
GRINDING WHEEL SPEED 8,500 FT/MIN.@ 1352 RPM MAX.
GRINDING WHEEL DRIVE MOTOR 20 HP
REGULATING WHEEL DIAMETER 14" MAX.
REGULATING WHEEL WIDTH 8" MAX.
REGULATING WHEEL MOUNTING HOLE 6"
REGULATING WHEEL SPEED 1,100 FT/MIN MAX.
WEIGHT (APPROX.) 23,000 LBS.
EQUIPPED WITH:
SERVO DRIVEN DIAMOND DRESSER ON GRINDING AND REG. WHEEL
RAPID ADVANCE RETRACT ON INFEED

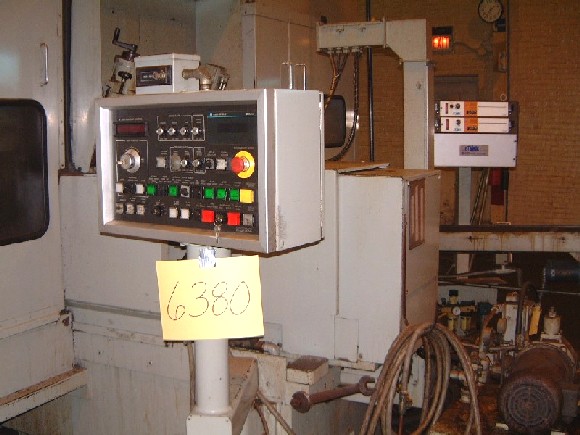

CINCINNATI RK SERIES DMC CONTROLS

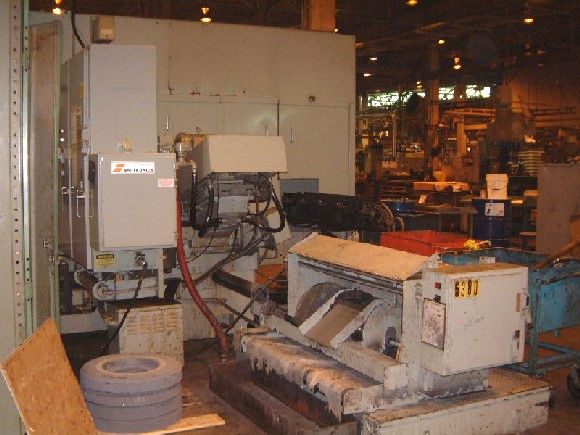

AUTO LOADER
EXIT CONVEYOR
FULL ENCLOSURE
COOLANT FILTRATION SYSTEM
