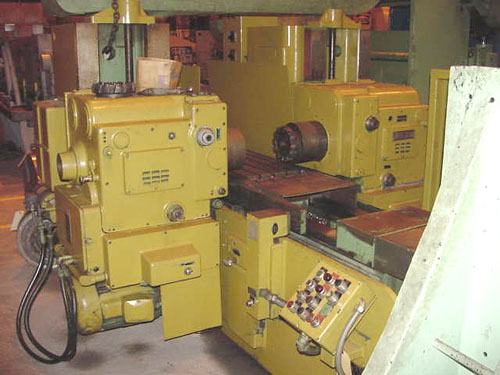

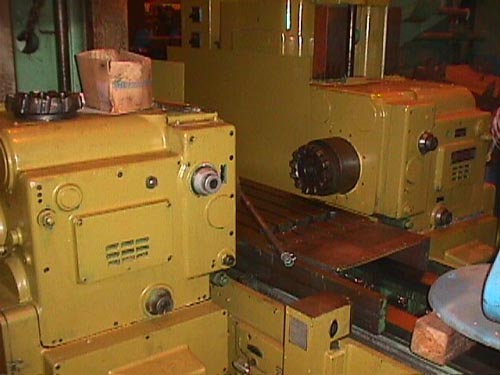

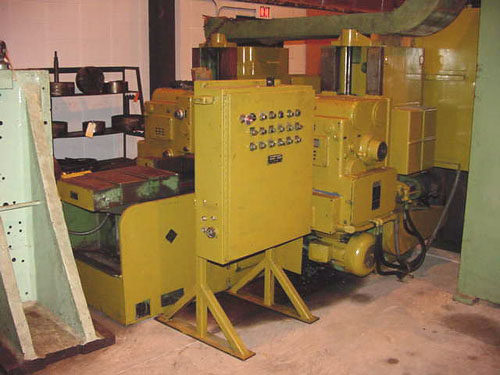

NO. 2036 K & T, 20" x 58" TBL, 900 RPM. GEARS, 20 HP, 1974

GENERAL SPECIFICATIONS:
SERIAL 1865009
NEW APPROXIMATELY 1974
WORKING SURFACE 20" X 58"
FEED RANGE 36"
FEEDS (24) 1/2-150 IPM
RAPID TRAVERSE RATE 300 IPM
QUILL DIAMETER 9-1/2"
QUILL ADJUSTMENT 7"
SPINDLE SPEED RANGE (16) 22-900 RPM
VERTICAL ADJUSTMENT (HAND) 15"
PER SPINDLE HORSEPOWER 20
APPROXIMATE WEIGHT 15,000 LBS.

EQUIPPED WITH:
2 SETS OF SPEED CHANGE GEARS
AUTO QUILL RETRACTION
COOLANT
1 SET FEED CHANGE GEARS
