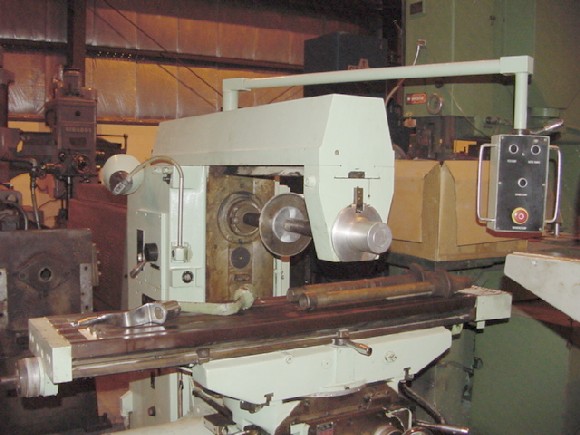

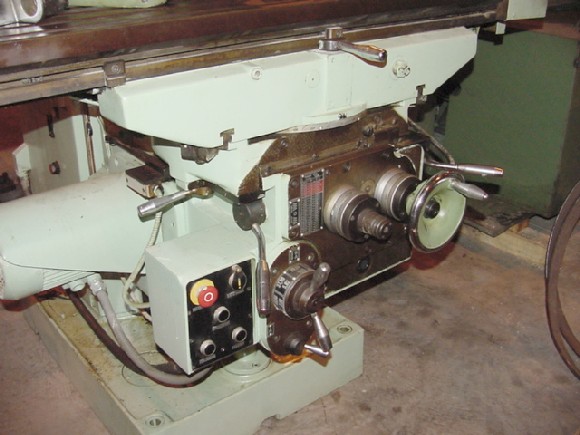

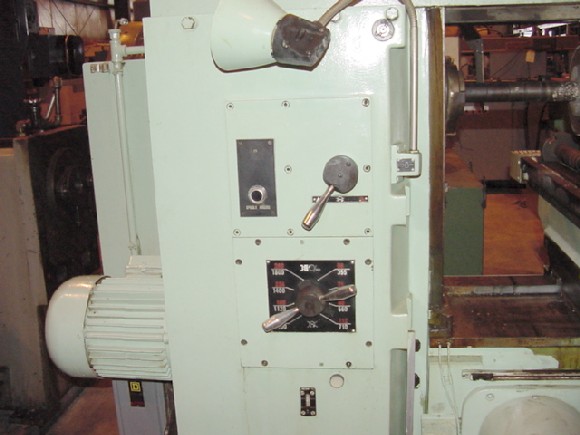

NO. 2 JAFO, MDL FWF-32, 12.5" x 51" TBL W/5 SLOTS, 17" DIST BETWEEN TBL SURFACE

GENERAL SPECIFICATIONS:
MANUFACTURER JAFO
MODEL FWF-32
SERIAL # 1979
TABLE SIZE 12.5" x 51"
# OF SLOTS 5
TABLE SWIVEL 45 DEG.
TABLE TRAVERSE (LONGITUDINAL) 33.5"
TABLE TRAVERSE (CROSS) 10"
TABLE TRAVERSE (VERTICAL) 17"
SPINDLE TAPER ISO 50
SPEEDS (HORIZ. RANGE) (16) 56 - 1800 RPM
DIST. BETWEEN TBL SURFACE 0" - 17"
# OF FEEDS 21
FEEDS (LONGITUDINAL) 0.5 - 44 IPM
FEEDS (CROSS) 0.375 - 35 IPM
FEEDS (VERTICAL) 0.1875 - 18 IPM
RAPID TRAVERSE (LONGITUDINAL) 126 IPM
RAPID TRAVERSE (CROSS) 98 IPM
RAPID TRAVERSE (VERTICAL) 50 IPM
MOTOR HORIZONTAL SPINDLE 7.5 HP
FEED DRIVE MOTOR 2 HP
DIMENSIONS (APPROX.) 70" x 77" x 83"
WEIGHT (APPROX.) 5,850 LBS.
