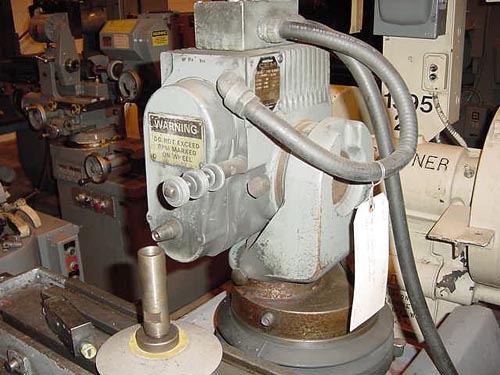

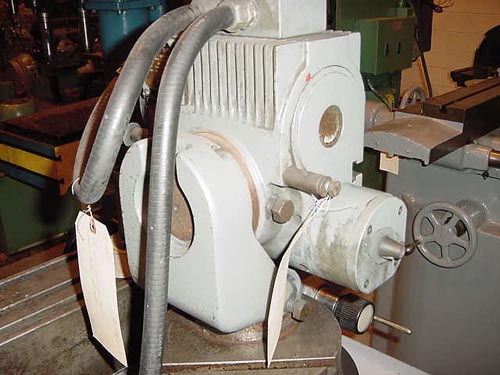

No. 2 CINCINNATI,MODEL MT, 10" X 16", 360 DEGREE, 1974

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1974
SERIAL 1D2F1ABF314
SWING OVER TABLE 10"
DISTANCE BETWEEN CENTERS 27"
TRAVELS: LONGITUDINAL 16"
CROSS 10"
TABLE SWIVEL 180 DEGREES
TABLE GRADUATIONS 90 DEGREES
VERTICAL MOVEMENT OF GRINDING WHEEL 10-1/2"
SWIVEL MOVEMENT OF GRINDING WHEEL 360 DEGREES
MAX. DISTANCE SPINDLE CENTER TO TABLE TOP 13-1/2"
SPINDLE MOTOR 1 HP
DIMENSIONS 56" X 68-1/2"
WEIGHT 1875 LBS
ELECTRICS 440/3 PHZ
