GENERAL SPECIFICATIONS:

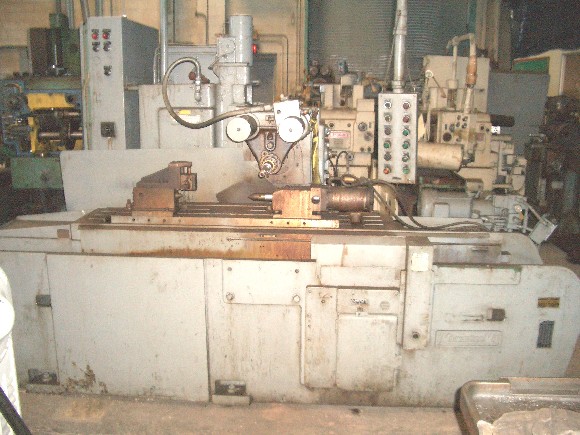

MANUFACTURER KEARNEY & TRECKER
MODEL 1536A
NEW (APPROX.) 1973
WORKING SURFACE OF TABLE 15" x 58"
LONGITUDINAL TABLE TRAVEL 36"
VERTICAL TRAVEL OF SPINDLE CARRIER 11"
QUILL ADJUSTMENT 5"
MAX. HEIGHT SPINDLE TO TABLE 14-5/16"
MIN. HEIGHT SPINDLE TO TABLE 2-11/16"
TABLE FEED RATES (24) .50 - 150 IPM
RAPID TRAVERSE RATE 300 IPM
SPINDLE SPEEDS 30 - 1200 RPM
FEED & RAPID TRAVERSE MOTOR 5 HP
SPINDLE TAPER #50 NST
QUILL DIAMETER 8"
MOTOR 10 HP
DIMENSIONS (APPROX.) 120" x 62" x 92"H
WEIGHT (APPROX.) 12,000 LBS.
EQUIPPED WITH:
RISE & FASLL TO SPINDLE CARRIER
COOLANT SYSTEM
ARBOR SUPPORT BRACKET
