Specifications
Equipped With
GENERAL SPECIFICATIONS:

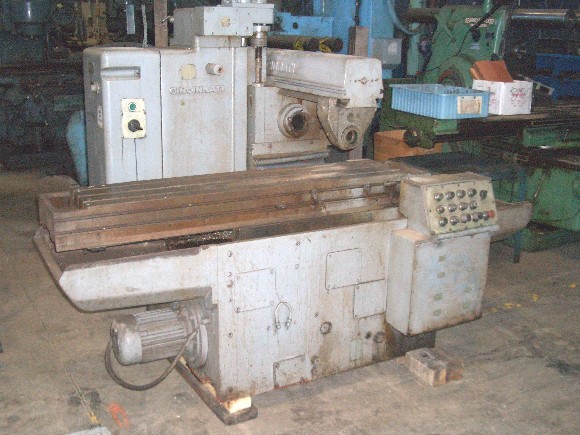

MANUFACTURER CINCINNATI
MODEL 101-122
TYPE POWERMATIC
NEW (APPROX.) 1965
WORKING SURFACE OF TABLE 54"
OVERALL SIZE 63-1/4" x 12"
T-SLOTS (3) 11/16"
DISTANCE BETWEEN SLOTS 3-1/2"
TABLE TRAVEL 24"
VERTICAL ADJ. OF SPINDLE CARRIER 10"
CENTER OF TBL TO SPINDLE CARRIER 10"
TOP OF TBL TO CENTERLINE OF SPDL MAX. 13-1/4"
TOP OF TBL TO CENTERLINE OF SPDL MIN. 3-1/4"
TOTAL QUILL ADJUSTMENT 3"
DIAMETER OF QUILL 6"
SPEED RANGE 50 - 2000 RPM
TABLE FEED INCHES/MINUTE 1/2" - 60"
NUMBER OF FEEDS 16
POWER RAPID TRAVERSE 300"/MIN.
SPINDLE (INFINITELY VARIABLE) 1/2" - 40"
SPINLDE CARRIER (RADPID TRAVERSE) 80"/MIN.
FEED DRIVE MOTOR 2 HP
SPINDLE DRIVE MOTOR 7.5 HP
DIMENSIONS (APPROX.) 90" x 72" x 72"
WEIGHT (APPROX.) 6,050 LBS.
EQUIPPED WITH:
COOLANT SYSTEM
RISE & FALL
2-WAY SPINDLE CARRIER FEEDS
QUILL RETRACTION
