NISSIN NK-4 TWIN, 8" BED, 13" CROSS SLIDE, NISSIN FANUC 2-SPDL 4-AXIS CTRL, 12" 3-JAW CHK, 1987, MT 7 TAPER

GENERAL SPECIFICATIONS:
MANUFACTURER NISSIN
MODEL NK-4 TWIN
NEW (APPROX.) 1987
SWING OVER BED 18.90"
SWING OVER CROSS SLIDE 13.58"
MAX. TURNING DIA. OVER BED 12.60"
MAX. TURNING DIA. OVER CROSS SLIDE 12.60"
CROSS SLIDE TRAVEL 67.89"
CARRIAGE TRAVEL 12.60"
RAPID TRAVERSE CROSS SLIDE 196.85 IPM
RAPID TRAVERSE CARRIAGE 393.70 IPM
SPINDLE BORE 3.03"
SPINDLE NOSE ASA A2 8"
SPINDLE TAPER MT 7
SPINDLE SPEED 20 - 3200 RPM
MOTOR 35 HP
DIMENSIONS (APPROX.) 199" x 85" x 91"
WEIGHT (APPROX.) 20,900 LBS.

EQUIPPED WITH:

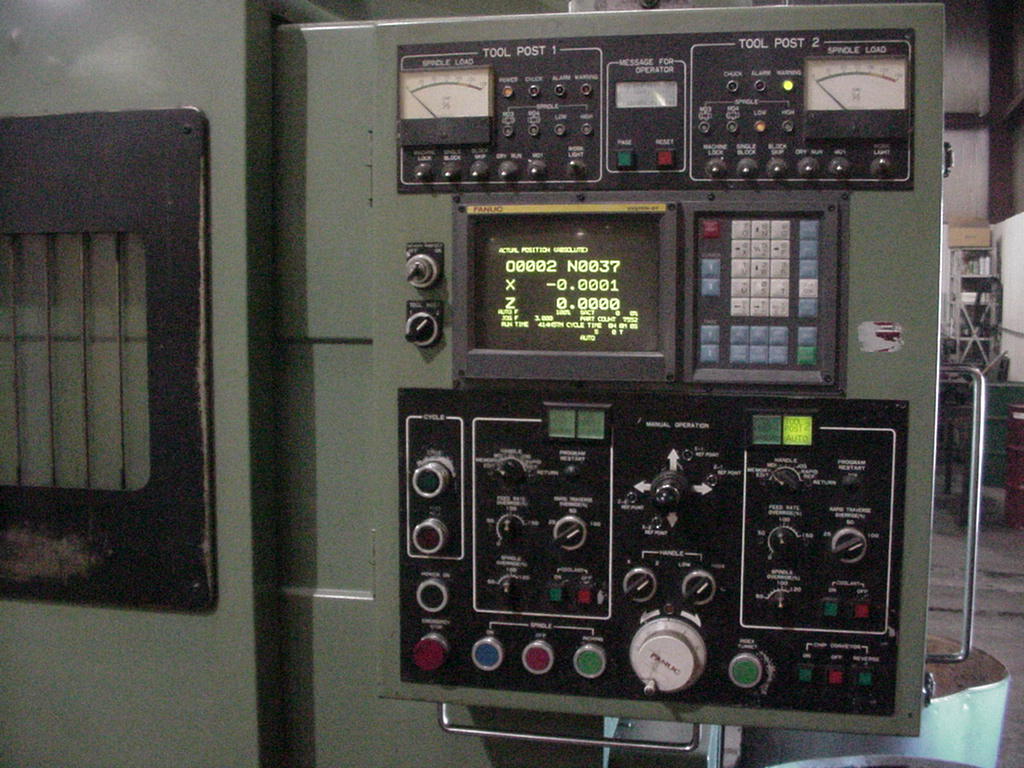

NISSIN-FANUC 2-SPINDLES 4-AXIS CONTROL

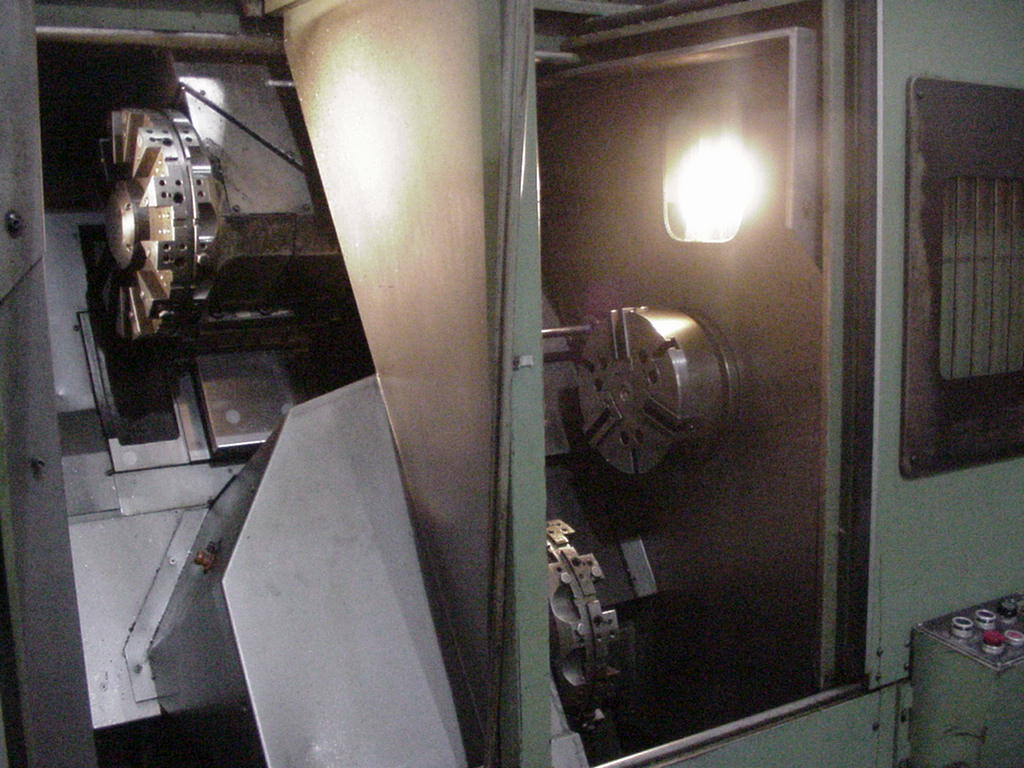

TURRET HEADS
COOLANT EQUIPMENT

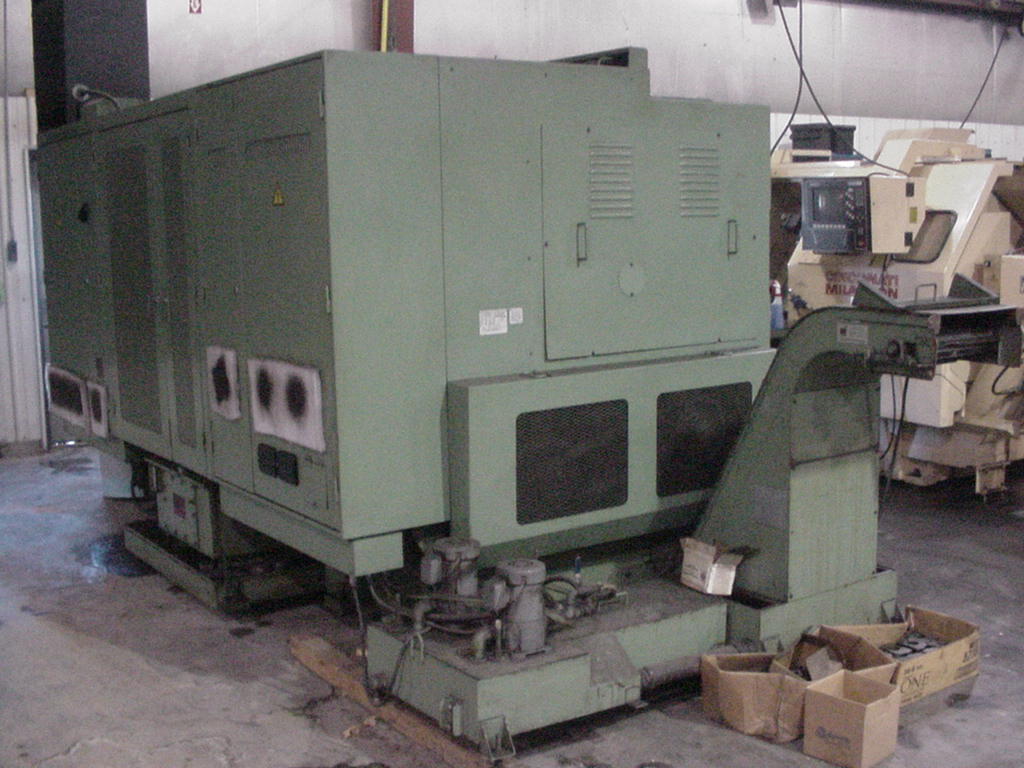

CHIP CONVEYOR
12" 3-JAW CHUCK
