Specifications
Equipped With
MANUFACTURER....................NILES
MODEL...........................ZSTZ 25
SERIAL NUMBER...................53/09/03
AGE.............................1990
REFURBISHED BY FACTORY REP......2000

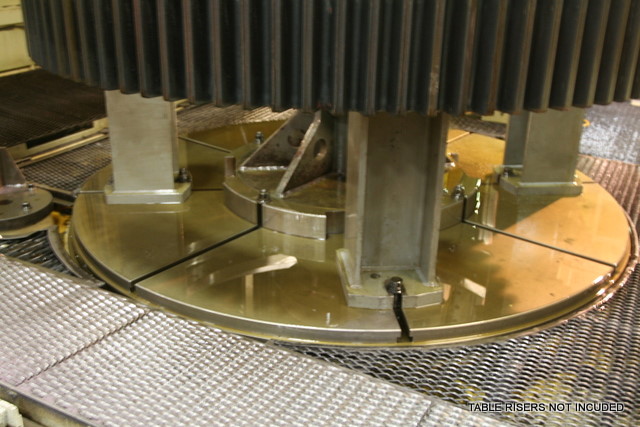

ROUND TABLE DIAMETER............2000 MM (78.74")
MAX. WORKPIECE DIAMETER.........2500 MM (98.4")
MIN WORKPIECE DIAMETER..........250MM (9.84")
MAX TABLE LOAD..................30,000 KG (66,000 LB)
MODULE MIN/MAX..................4/25
NUMBER OF TEETH MIN/MAX.........16-600
HELIX ANGLE MAX.................35 DEG.
GRINDING WORM DIA. MIN/MAX......300/400 MM
GRINDING WORM WIDTH.............127 MM
GRINDING WORM DRIVE.............24 KW
EQUIPPED WITH

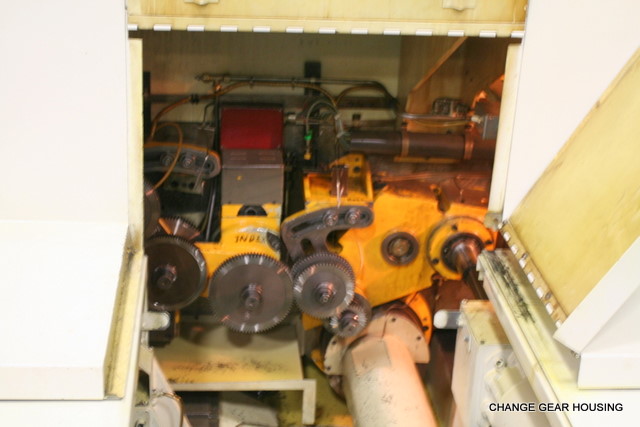

LARGE QUANTITY OF CHANGE GEARS
GRINDING WHEEL DRESSER
COOLANT SYSTEM
PROFESSIONALLY DISMANTLED FOR SHIPPING
VIDEO OF MACHINE UNDER POWER IS AVAILABLE
INSPECTION REPORT IS AVAILABLE
FULL GUARDING
MACHINE WAS HOLDING CLASS 12 GEARS WHEN REMOVED
IN 2000 THE MACHINE WAS INSPECTED AND REFURBISHED AS NEEDED TO KEEP IT A EXTREMELY ACCURATE TOOL
SPECIFICATIONS SUBJECT TO VERIFICATION
