Specifications
Equipped With
GENERAL SPECIFICATIONS:

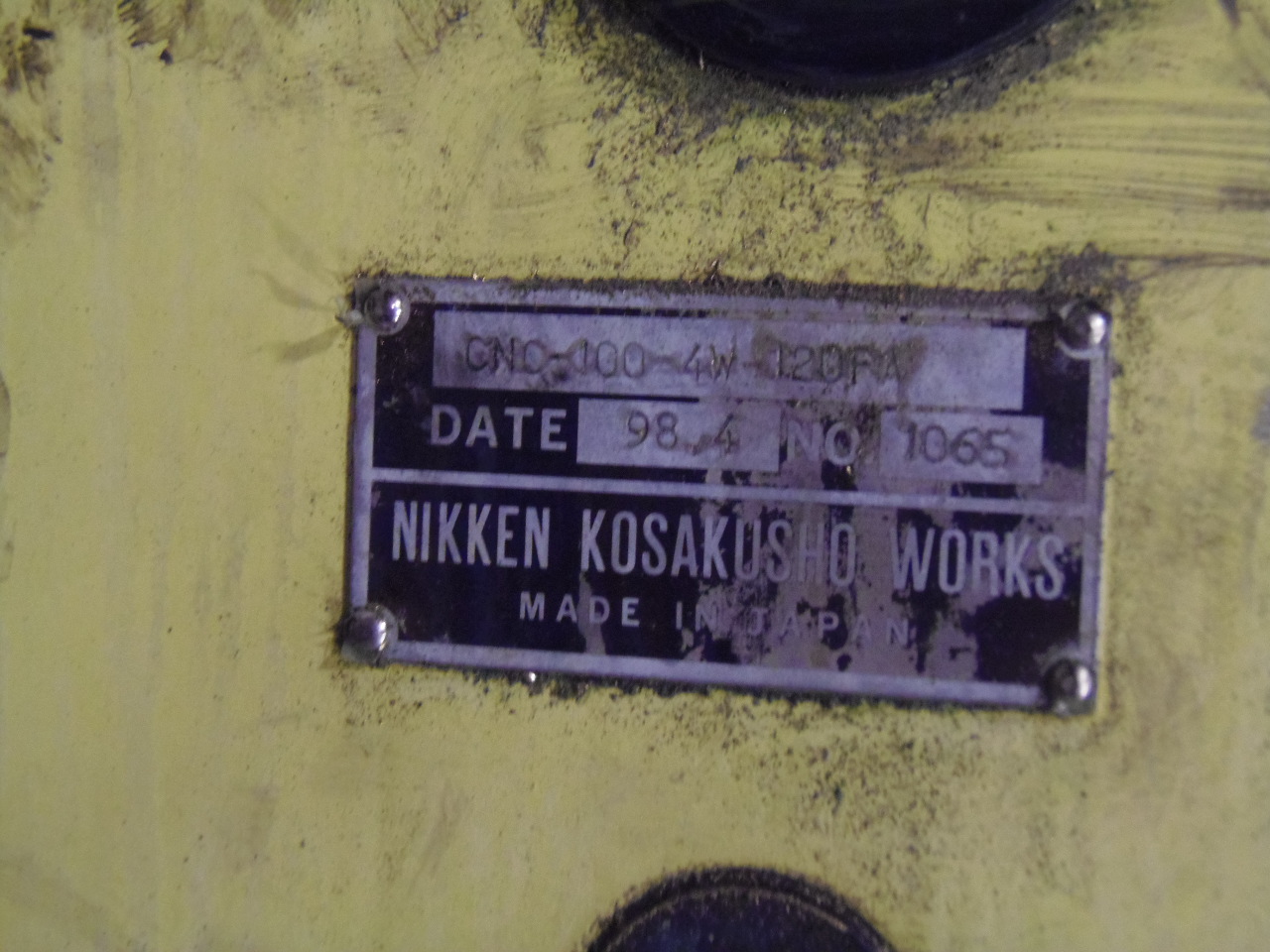

MAKE.......................... NIKKEN
MODEL......................... CNC-100-4W-120FA
SERIAL NUMBER................. 1065
AGE (YEAR).................... 1998

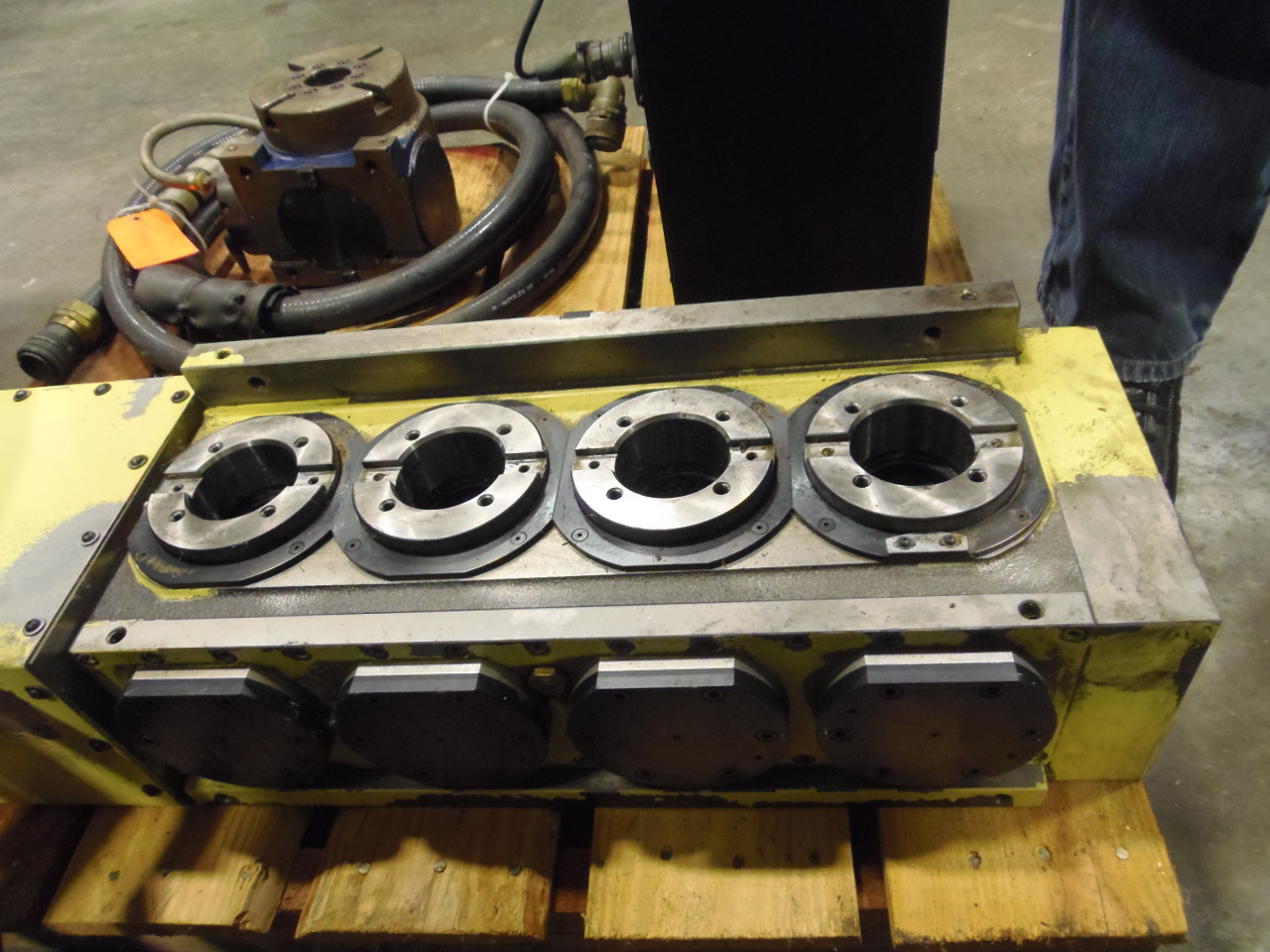

SPINDLE HEADS................. 4
DIAMETER OF TABLE............. 105 MM
DIAMETER OF SPINDLE HOLE...... 60H7 X 30
CENTER HEIGHT................. 105 MM
WIDTH OF T-SLOT............... 16 MM
CLAMPING SYSTEM............... AIR
MIN. INCREMENT................ 0.001 DEG
MAX WORK LOAD OF TABLE (VERT). 15 KG
MAX WORK LOAD OF TABLE (HORZ). 30 KG
EQUIPPED WITH:

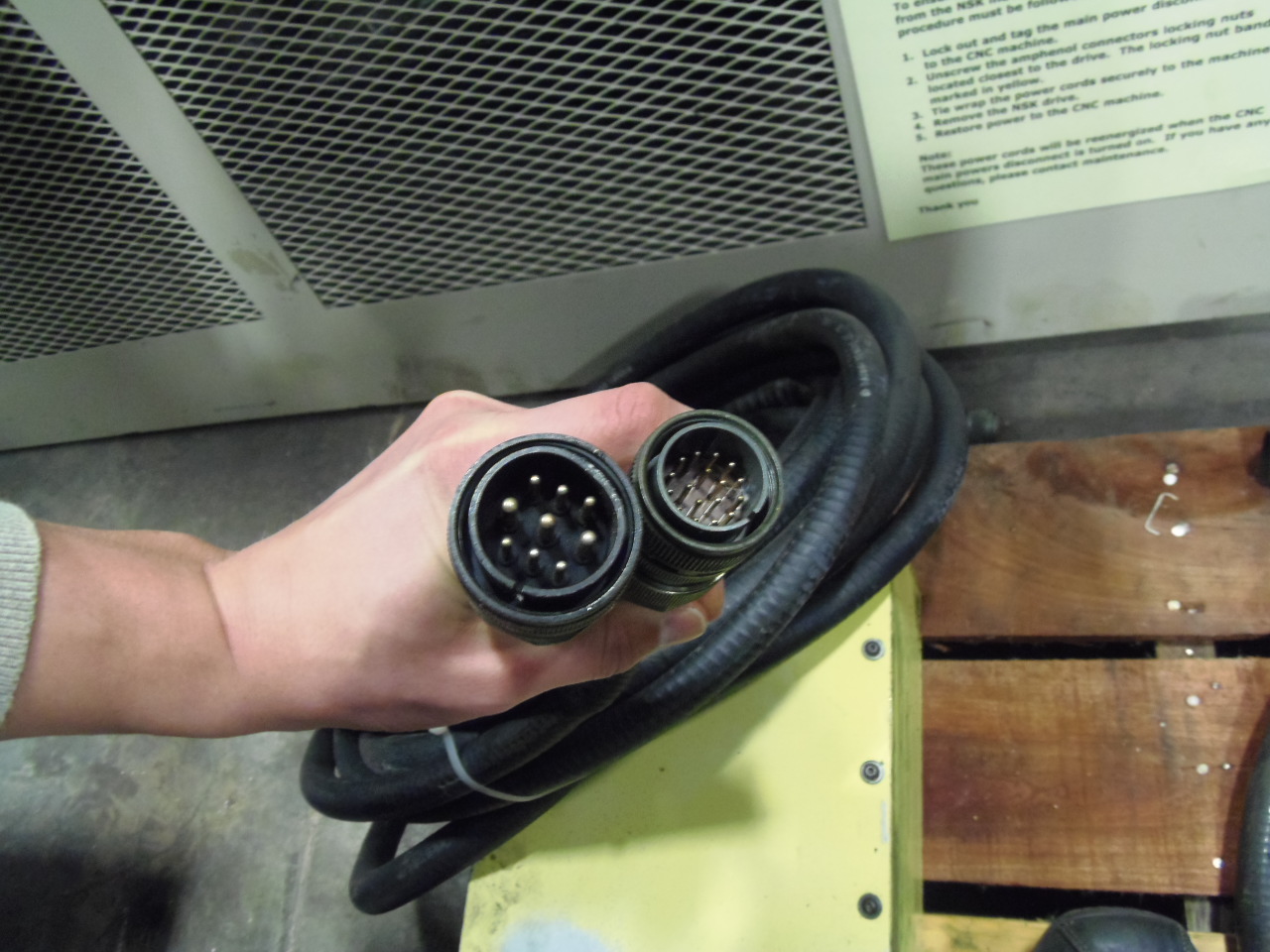

SET OF 2 CABLES
SPECIFICATIONS SUBJECT TO VERIFICATION
