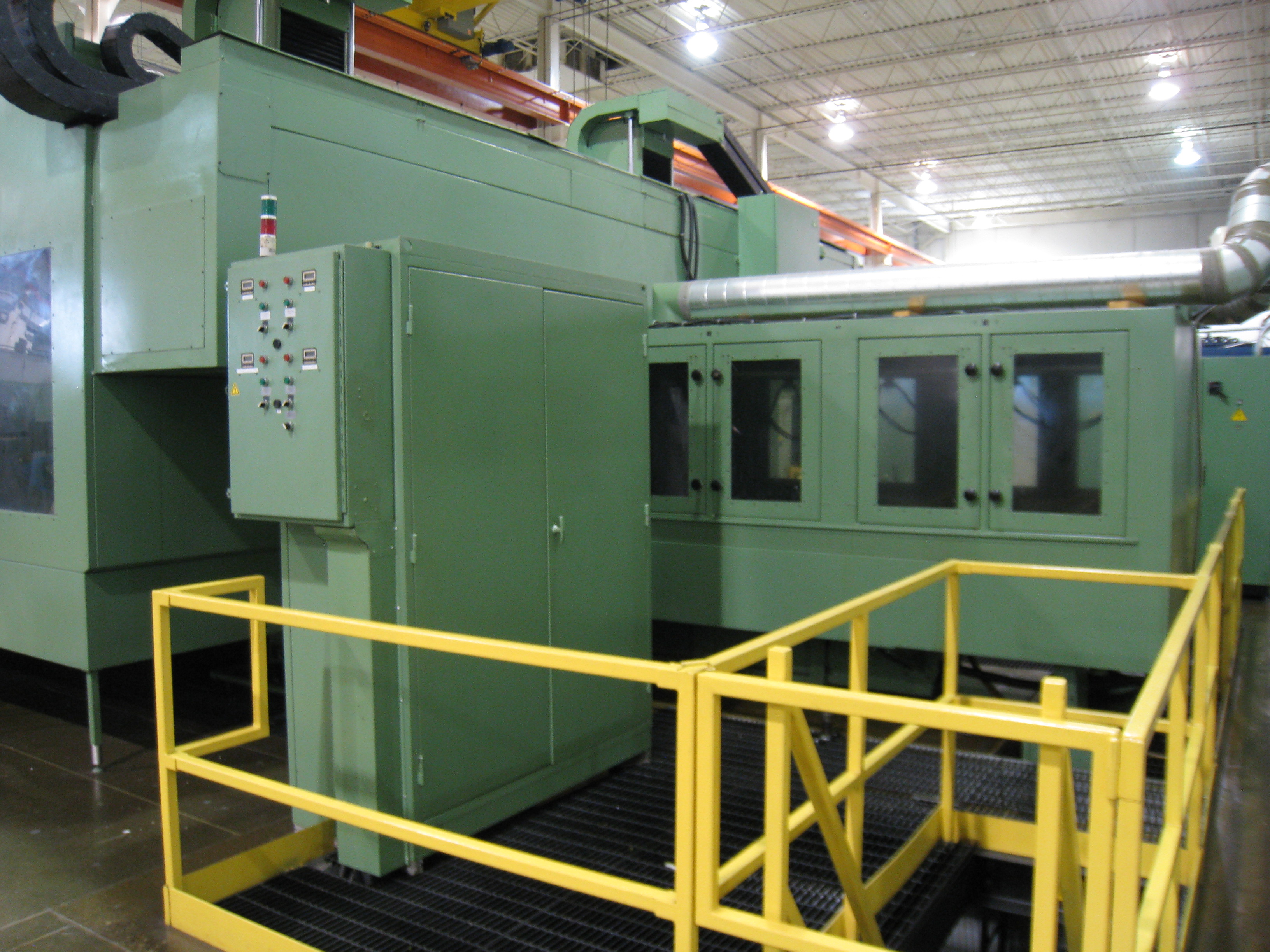

NICOLAS CORREA MODEL FP-30/30, 138" X 70" X 31.5", 60 ATC, 50 TAPER, 4,000 RPM, HEIDENHAIN CONTROL, COOLANT THRU, 1996

GENERAL SPECIFICATIONS
MANUFACTURER............................. NICOLAS CORREA

MODEL...................................  FP-30/40

AGE...................................... 1996

CONTROL.................................. HEIDENHAIN  3 AXIS CNC

SPINDLE TAPER............................ 50

TOOL CHANGER SIZE........................ 60 ATC

TRAVELS..................................   X-137.79
                                            Y-70.87
                                            Z-31.49

TABLE SIZE............................... 157.48  X  49.21.0”

DISTANCE BETWEEN COLUMNS................. 68.5”

MAX RPM.................................. 4,000

EQUIPPED WITH:

FULLY INDEPENDENT BRUSHLESS TYPE AC FEED & MAIN SPINDLE DRIVE

COOLANT THRU SPINDLE

SYSTEM 30HP

DUAL CHIP CONVEYORS

BUILT IN HYDRO-MECHANICAL TOOL CLAMP
