Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER NICOLAS CORREA

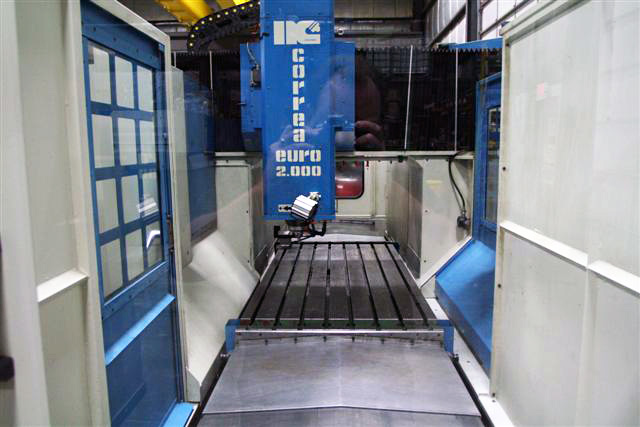

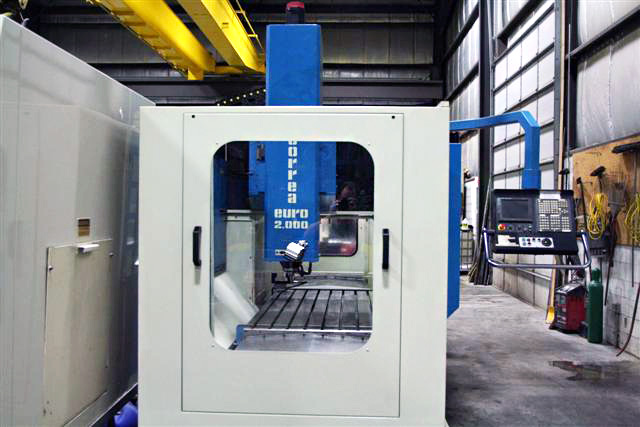

MODEL EURO 2000
AGE 2001
SERIAL NUMBER 900058

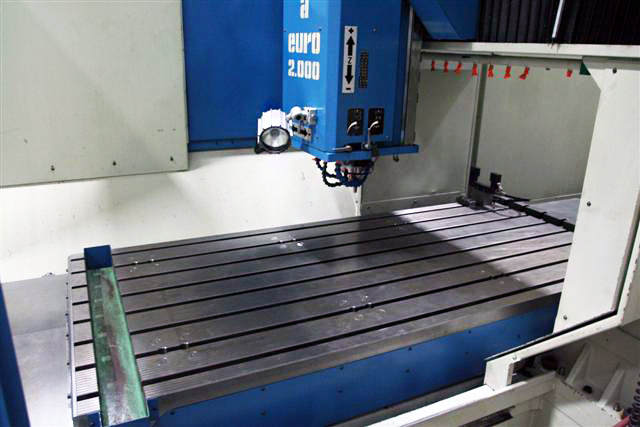

TABLE SIZE 78.7" X 39.3" (2,000 X 1000MM)
X AXIS TRAVEL 78.7" (2.000mm)
Y AXIS TRAVEL 49.21" (1.250mm)
Z AXIS TRAVEL 25.5" (650mm)
DISTANCE BETWEEN COLUMNS 49.21" (1.250mm)
MAX. WORK ENVELOPE 90.5" X 48.8" X 31.5" (2,300x1.240x800mm)
SPINDLE NOSE HSK-63
MAX RPM 12.000 RPM
MAX FEEDRATE 788 IPM (20 m/min)
MAX. TABLE LOAD 11,000 LBS (5.000 kg)
MACHINE WEIGHT 31,000 LBS (14.000 kg)
TOOLCHANGER SIZE 24
MAIN MOTOR 26 HP (20 KW)
EQUIPPED WITH

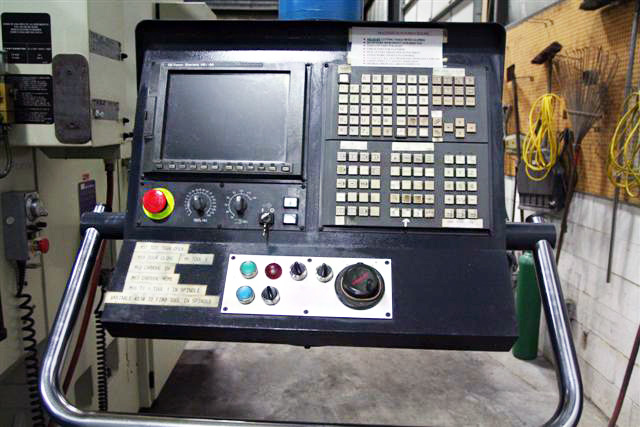

FANUC 16i-M CNC CONTROL
600 LINE LOOK AHEAD ON THE CONTROL
HARD DISC DRIVE SERVER
PART PROBE
THRU SPINDLE COOLANT
SPARE 12,000 RPM SPINDLE (WITH BEARING CHANGE 18000 RPM)
TOOL LENGTH OFFSET
WIRELESS PARTS PROBE
SPINDLE CHILLER
MISC MANUALS

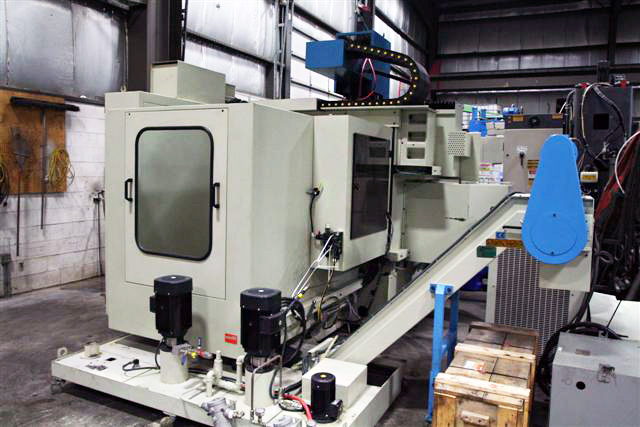

CHIP CONVEYOR
LESS THAN 11,000 CUTTING HOURS
