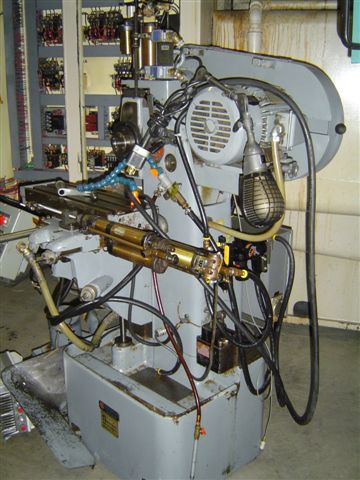

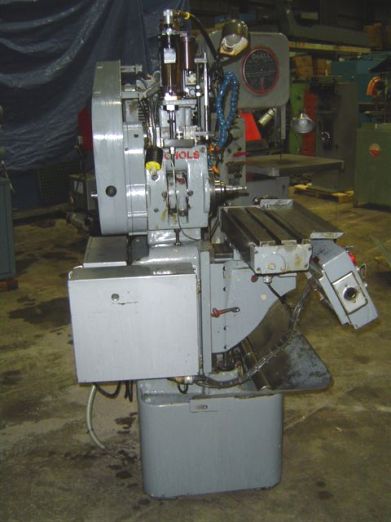

NICHOLS MILL, 2 HP, 7 X 24 TABLE, 40 TAPER, 2875 RPM, 1972

GENERAL SPECIFICATIONS:
MANUFACTURER NICHOLS
MODEL NO. 8
SERIAL # 10L9076
TABLE SIZE 7" X 24"
X TABLE TRAVEL 8"
Y TABLE TRAVEL 6"
VERTICAL KNEE TRAVEL 11"
DISTANCE TABLE TO SPINDLE CENTER 11 1/4"
SPINDLE SPEEDS 60-2875 RPM
SPINDLE TAPER 40
WEIGHT (APPROX.) 1,500 LBS

EQUIPPED WITH:
LONGITUDINAL PNEUMATIC TABLE FEED
PNEUMATIC VERTICAL SPINDLE FEED
3 AUTO CYCLES
HEAD DOWN/TABLE FEED/HEAD UP/TABLE RETURN
HEAD DOWN/HEAD UP
TABLE FEED/TABLE RETURN
PUSH BUTTON CONTROL STATION
COOLANT
CHIP PAN
LUBE SYSTEM
