GENERAL SPECIFICATIONS
MANUFACTURER..................... MORI SEIKI

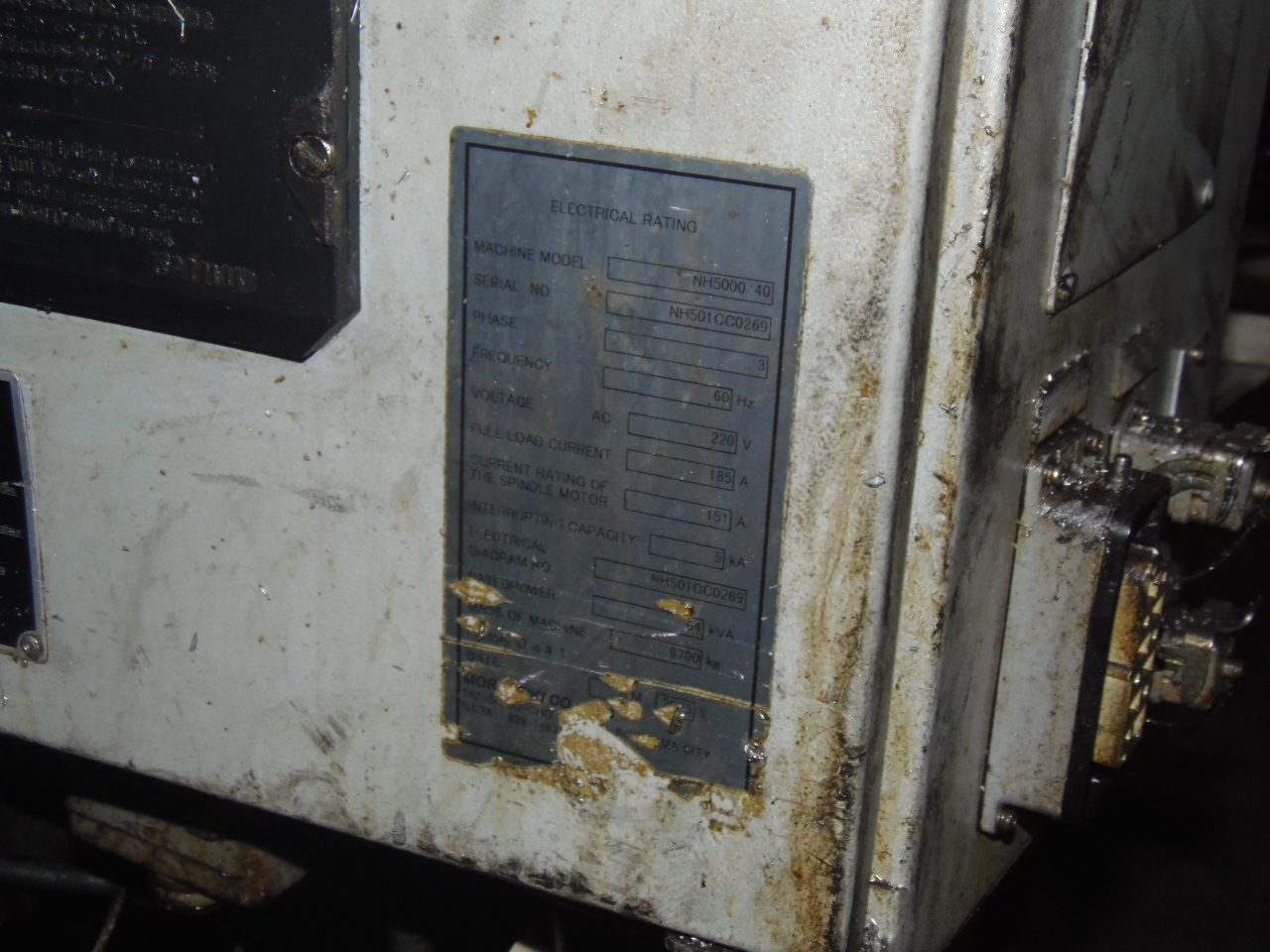

SERIAL NUMBER.................... NH501CC0269
AGE.............................. 2003
MODEL............................ NH5000/40
X-Axis Travel ................... 24.8"
Y-Axis Travel ................... 23.62"
Z-Axis Travel ................... 26.38"
Number of Pallets ............... 2
Pallet Size ..................... 19.69" x 19.69"
Pallet Indexing ................. 1 DEGREE
Spindle Speed ................... 14,000 RPM
Tool Changer Capacity............ 60 ATC
Spindle Taper ................... BT 40
Spindle Drive Motor ............. 40 HP AC
Rapid Traverse (X,Y,Z) .......... 1200 IPM
Tool Change Time ................ 2.6 Seconds
Dimensions....................... 190" x 94" x 110" H
Weight (approx).................. 23,000 lbs.
Equipped with:

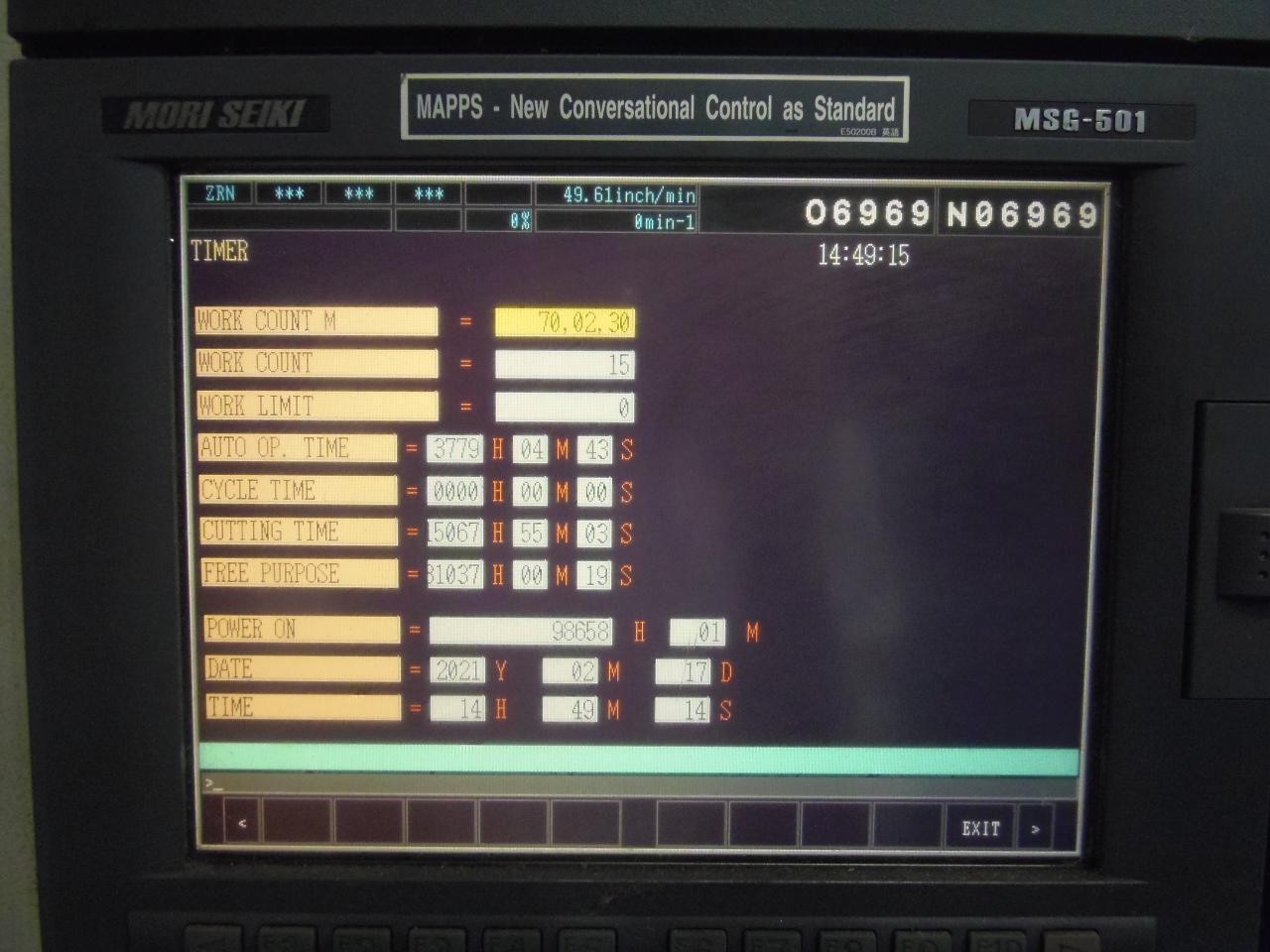

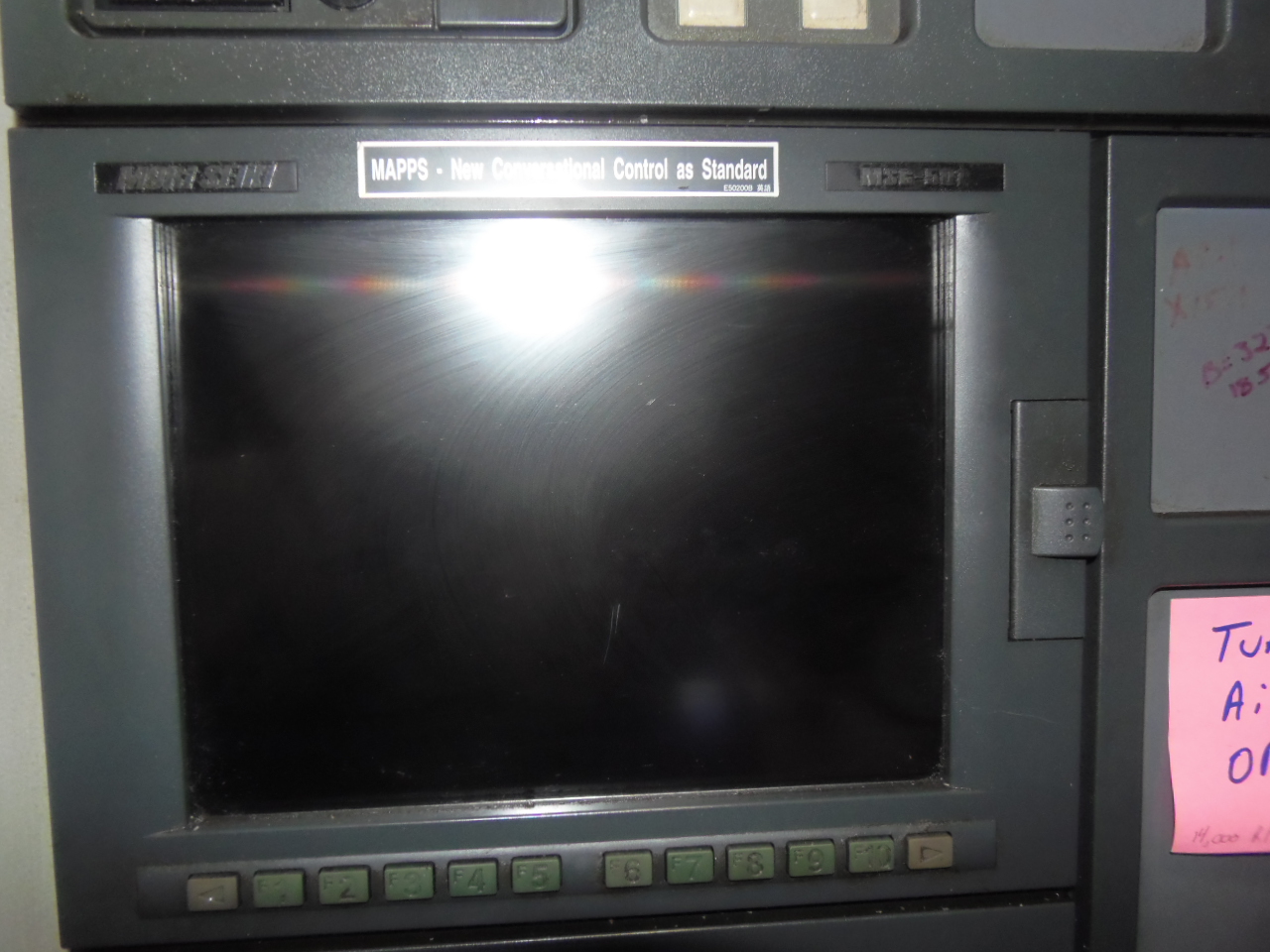

MSC-501 control with MAPPS Conversational software with custom macro B
1000 PSI Thru spindle coolant
