GENERAL SPECIFICATIONS:

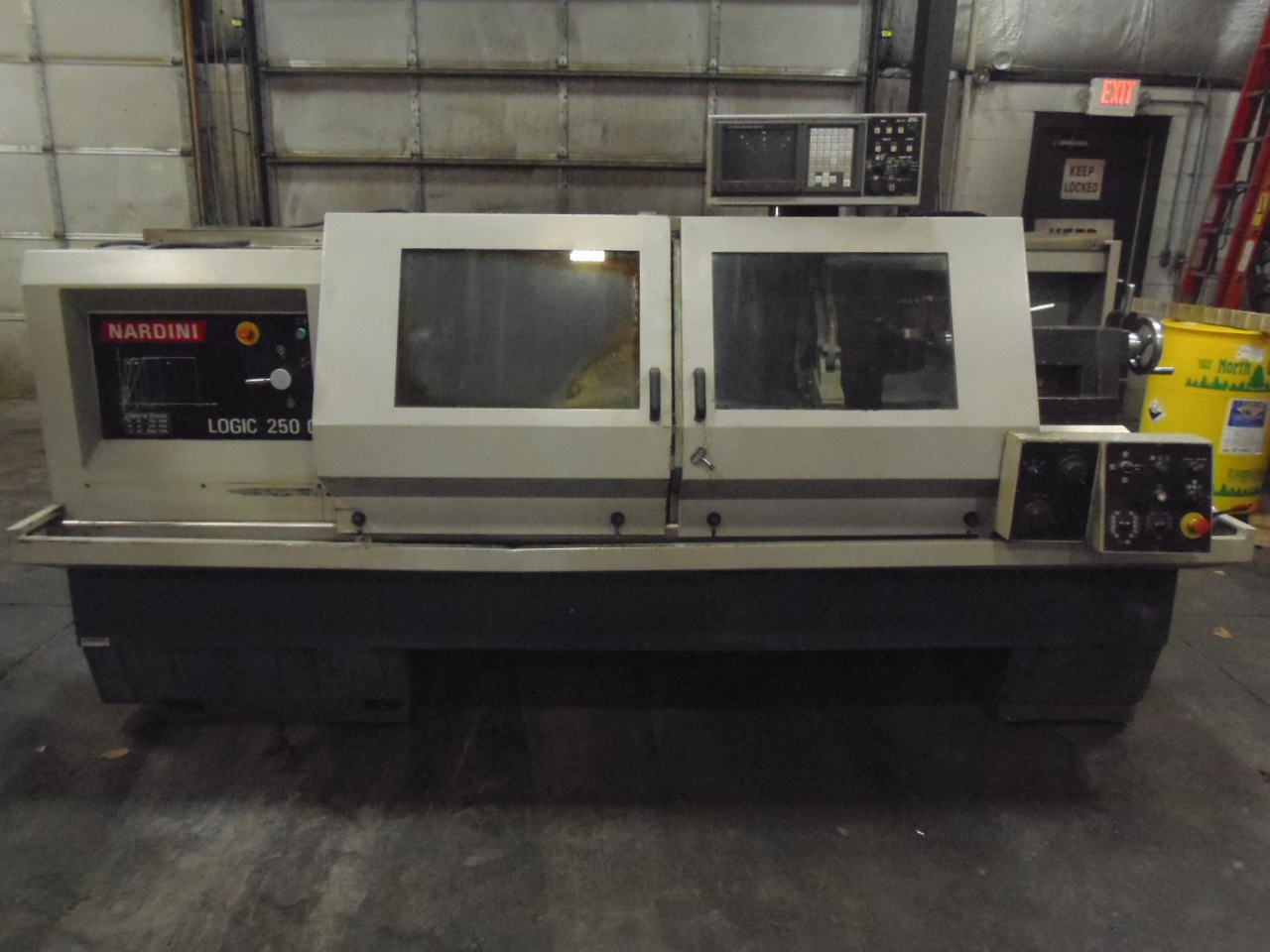

MANUFACTURER.......................... NARDINI

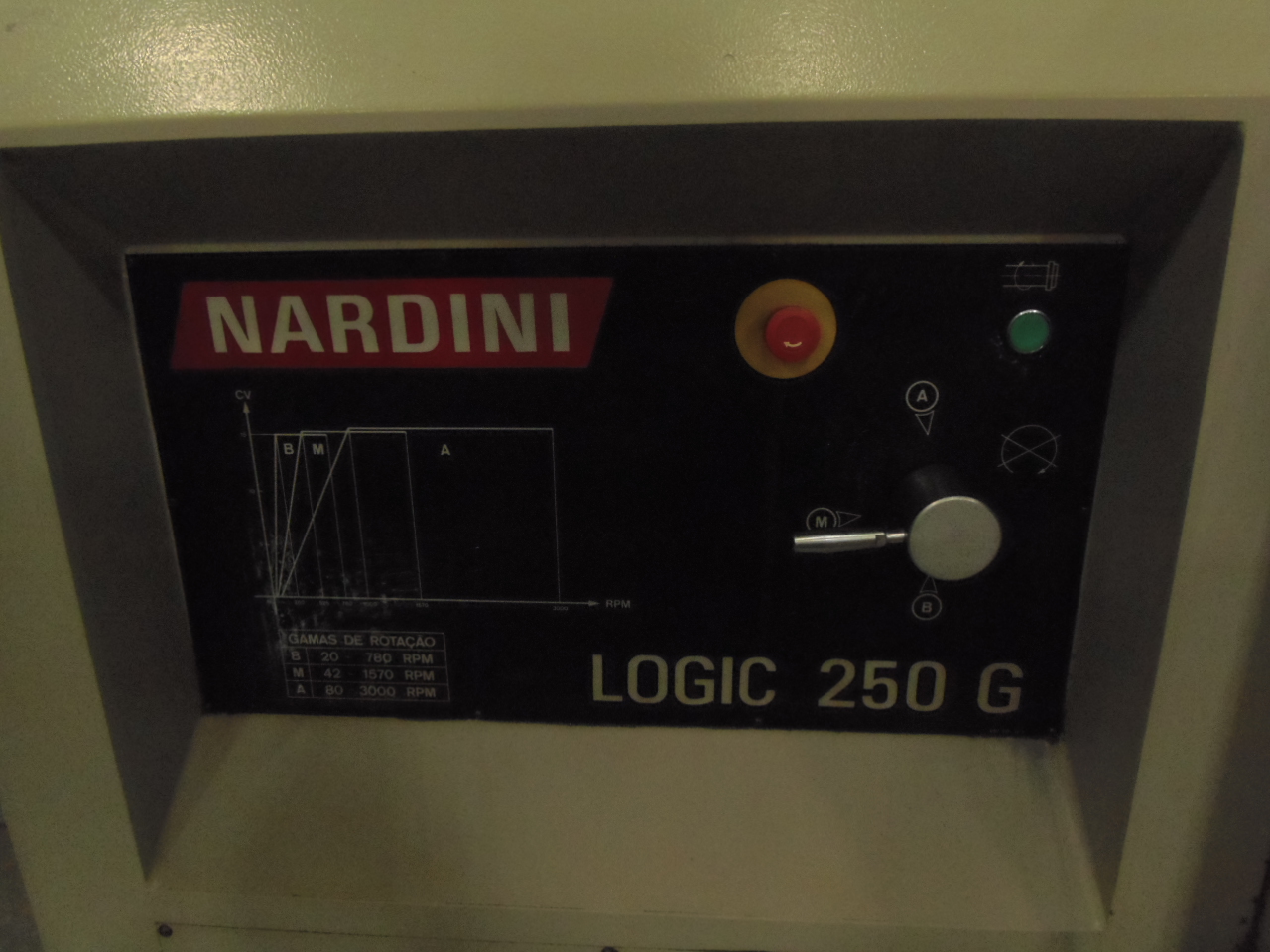

MODEL................................. LOGIC 250G

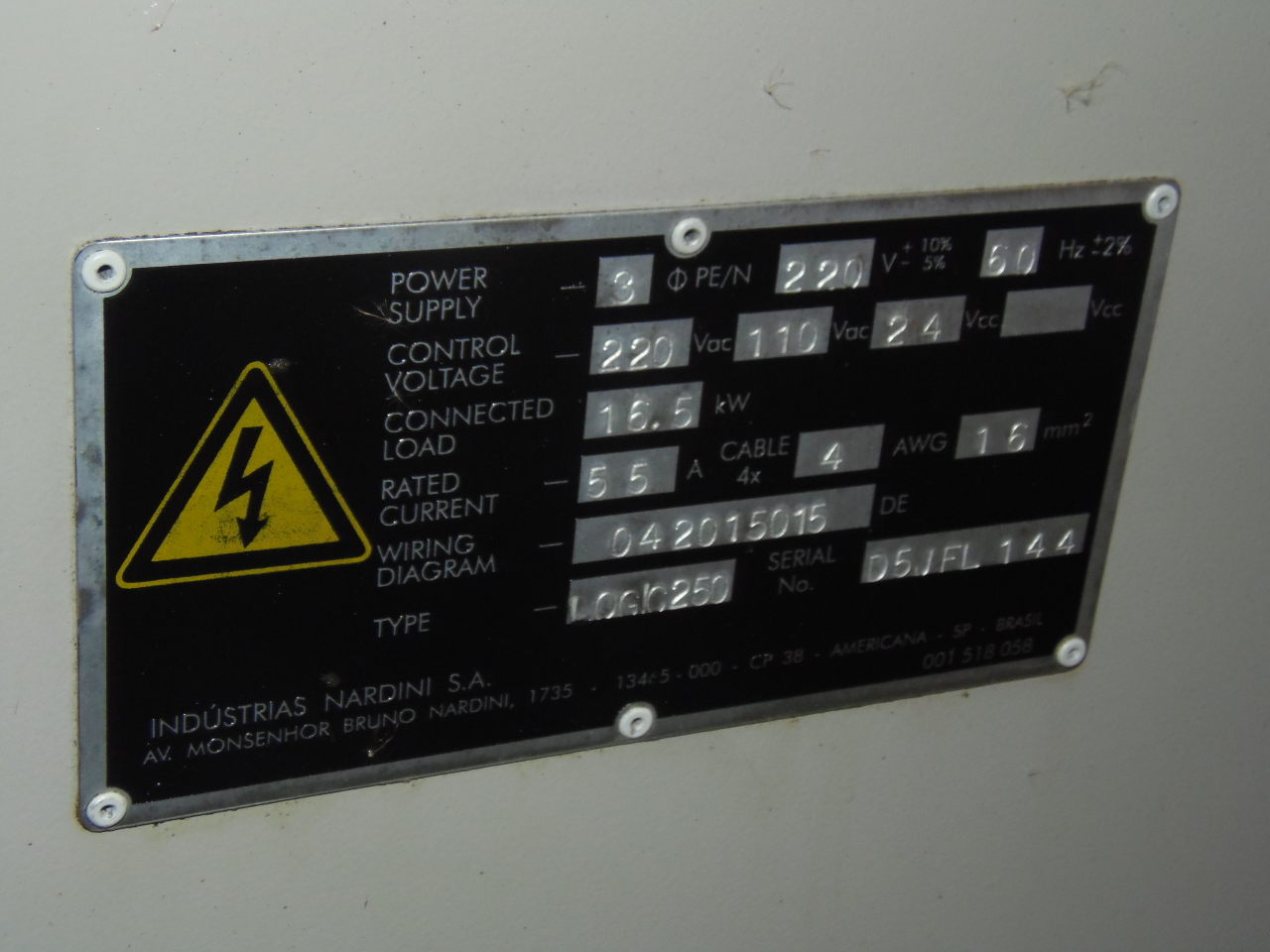

SERIAL#............................... D5JFL144
YEAR OF MFG........................... 1995
SWING OVER BED........................ 20"
SWING OVER SADDLE WINGS............... 17.7"
SWING OVER CROSS SLIDE................ 10.23"
DISTANCE BETWEEN CENTERS.............. 60"
CHUCK SIZE............................ 12"
BAR CAPACITY.......................... 3.05"
SPINDLE NOSE.......................... A2-8
SPINDLE BORE.......................... 3.125"
SPINDLE SPEED (HIGH / LOW GEAR)....... 20 - 3500 RPM
SPINDLE MOTOR......................... 15 HP
WIGHT APPROX.......................... 10,000 LBS.
EQUIPPED WITH:

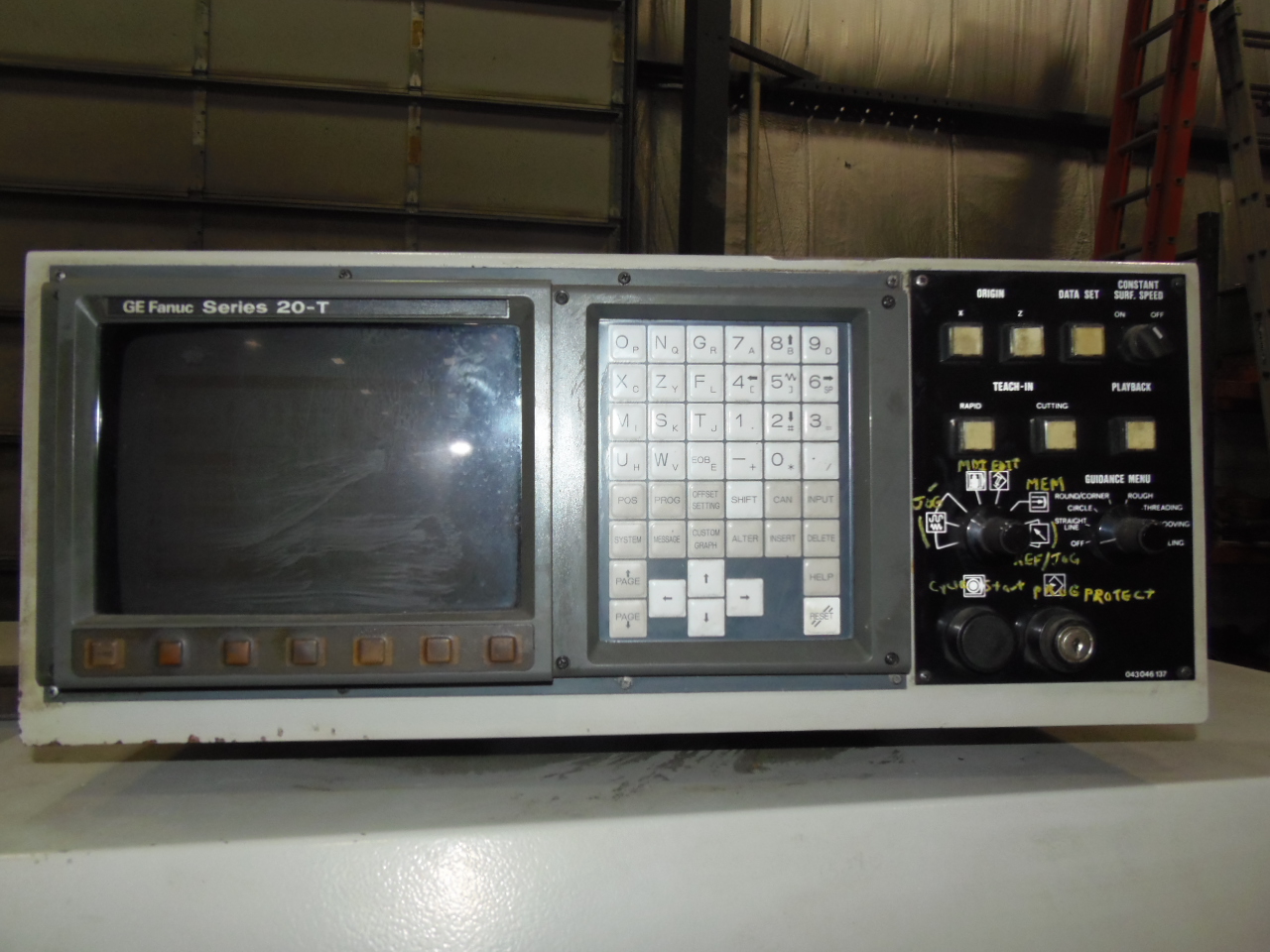

FANUC 20T WITH TEACH MODE
ALORIS STYLE TOOL POST WITH HOLDERS

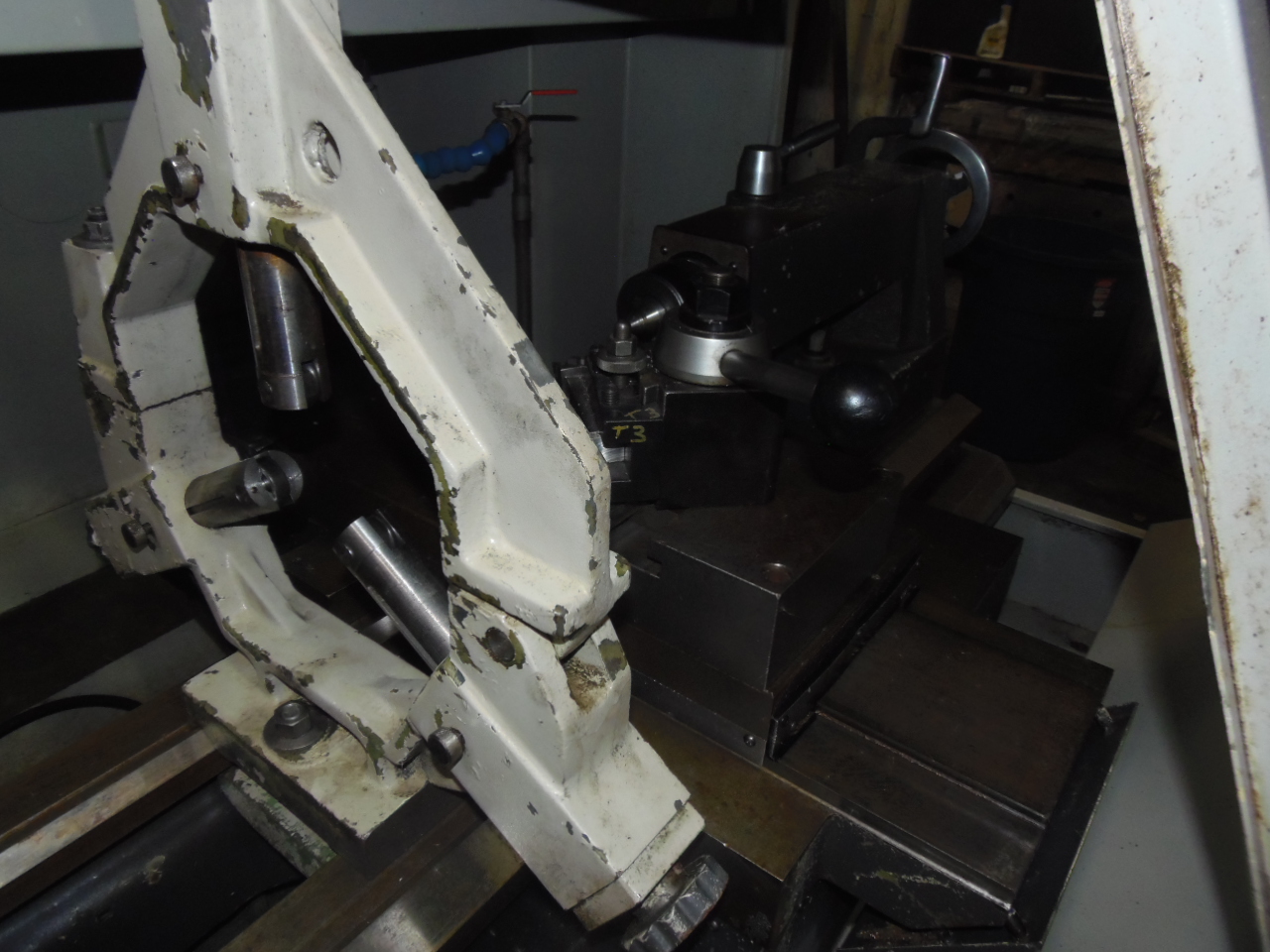

ROLLER STEADY REST

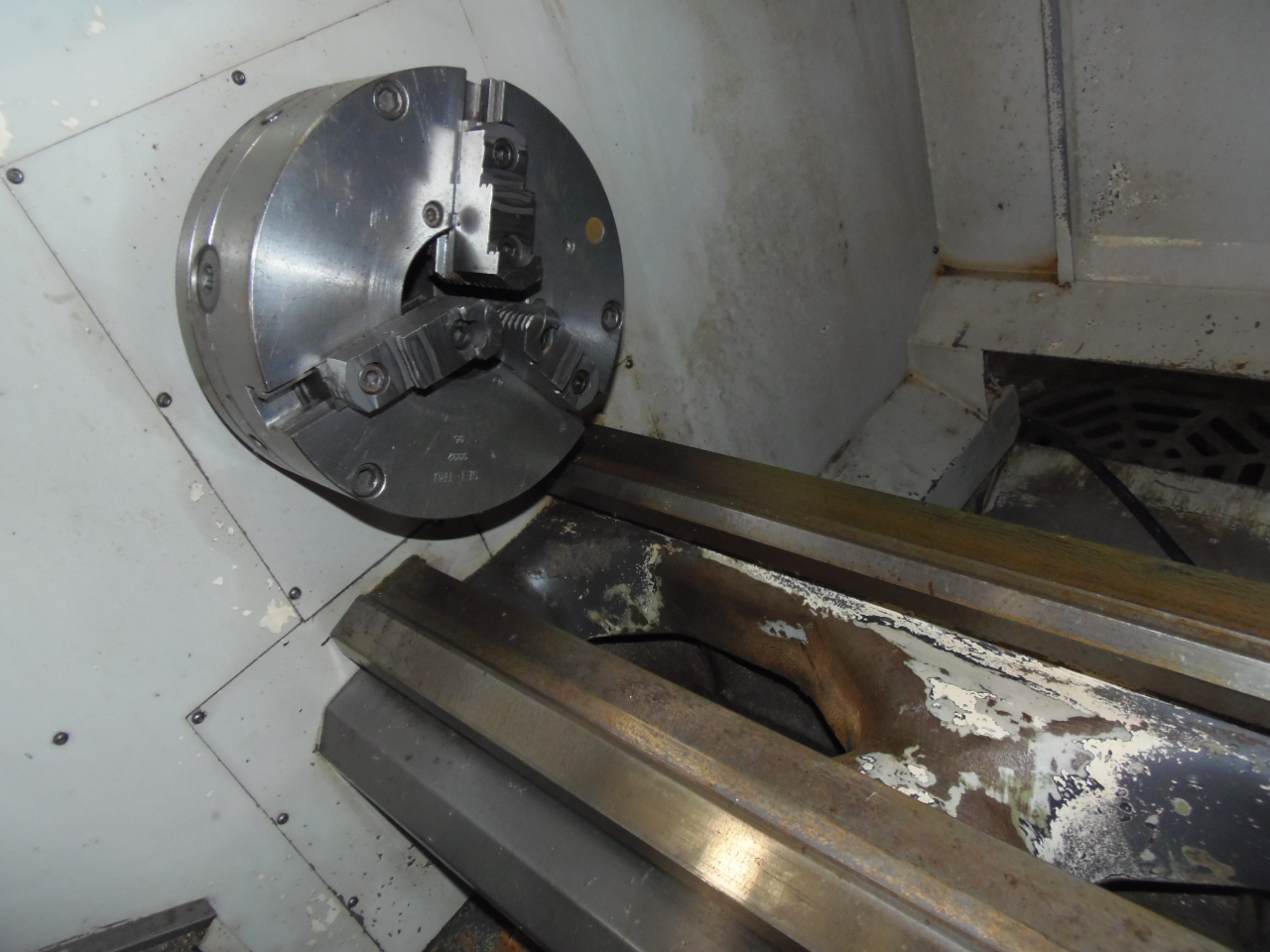

12" 3 JAW CHUCK

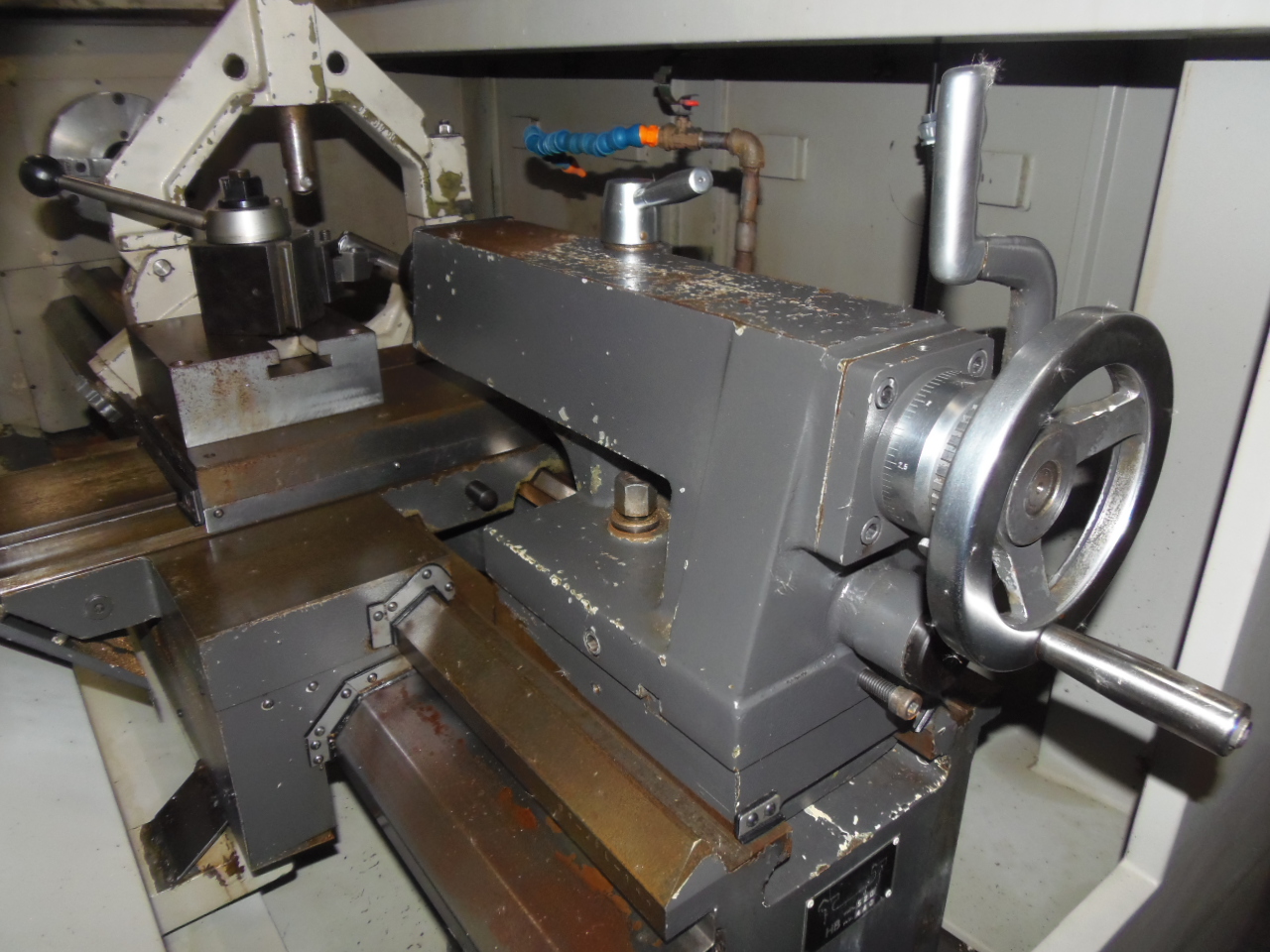

TAILSTOCK
COOLANT
OPERATORS MANUAL
SPECIFICATIONS SUBJECT TO VERIFICATION
