GENERAL SPECIFICATIONS:

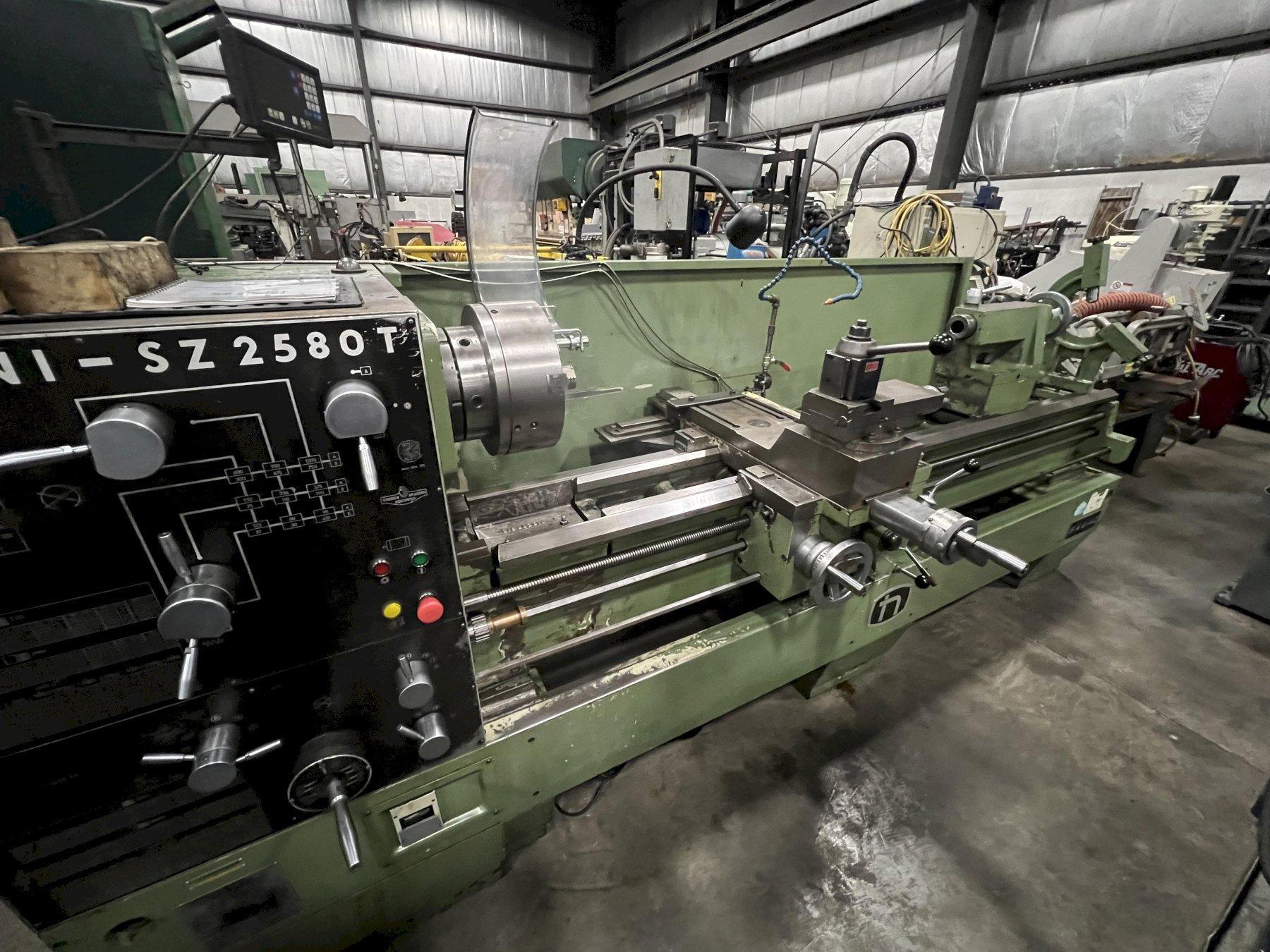

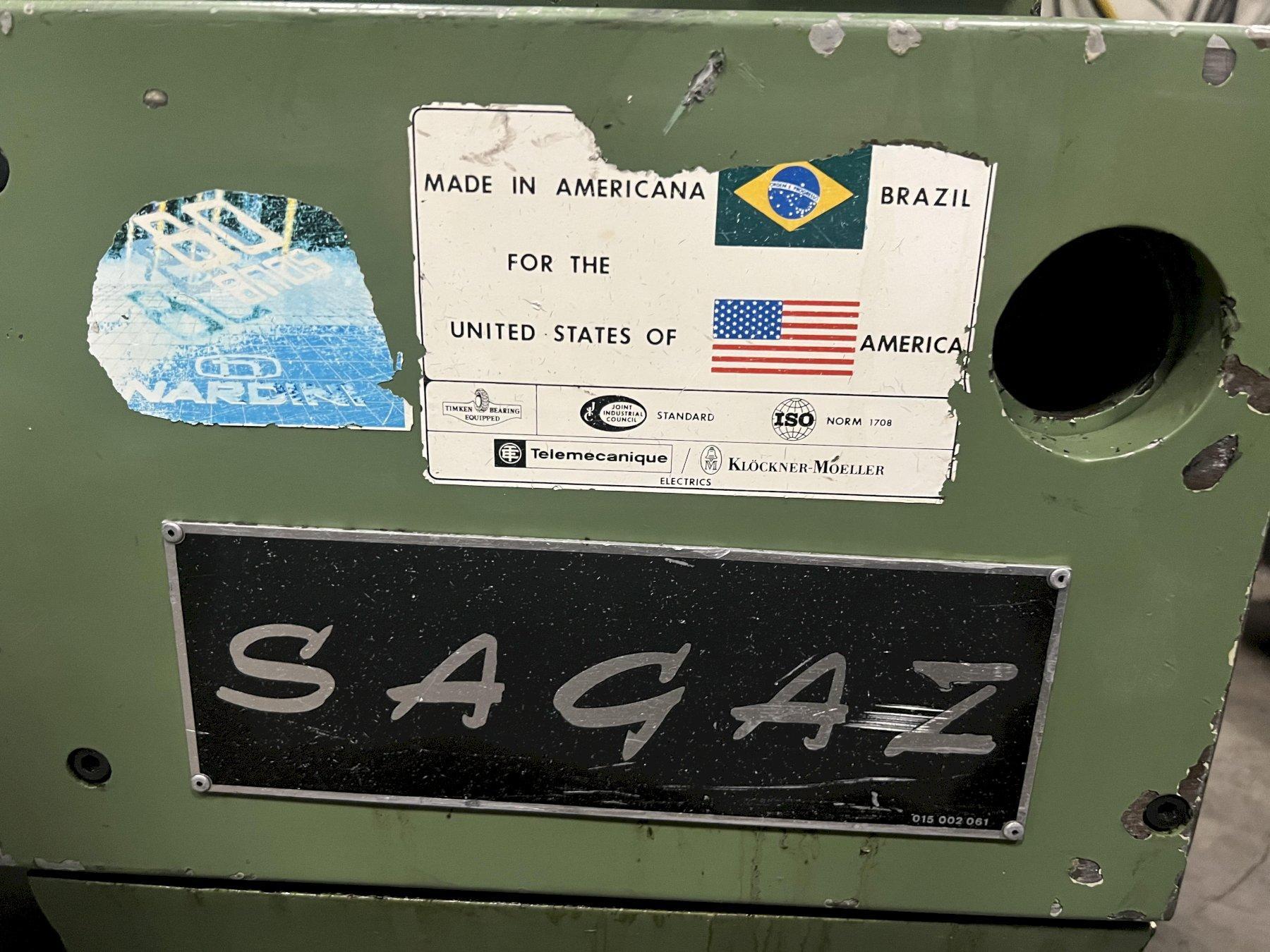

MANUFACTURER................... NARDINI
MODEL.......................... SZ-2580T

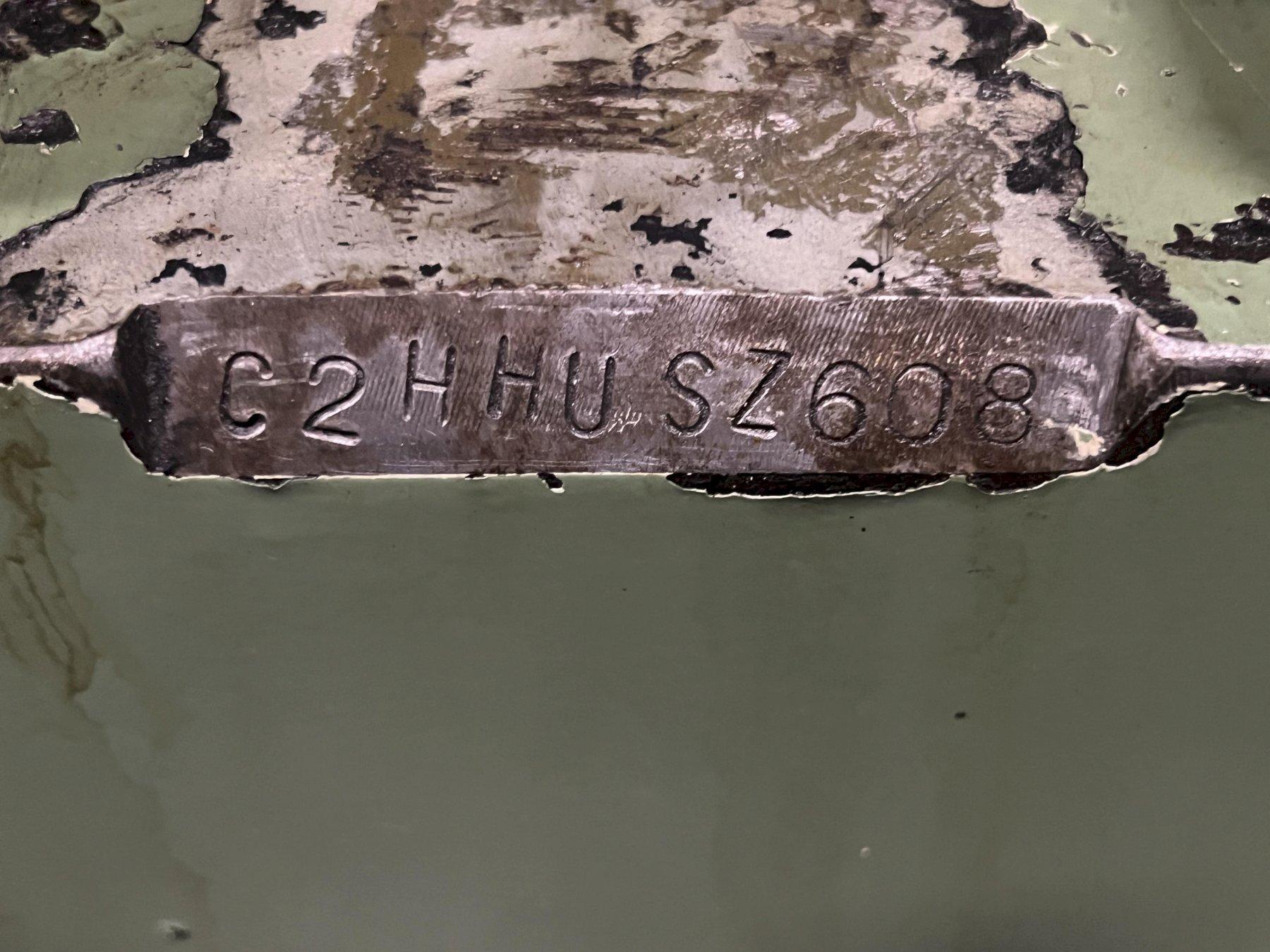

SERIAL #....................... C2HHUSZ608
AGE (YEAR) APPROX.............. 1999
SWING.......................... 25"
SWING OVER C.S................. 18"
SWING IN GAP................... 34"
DISTANCE BETWEEN CENTERS....... 80"

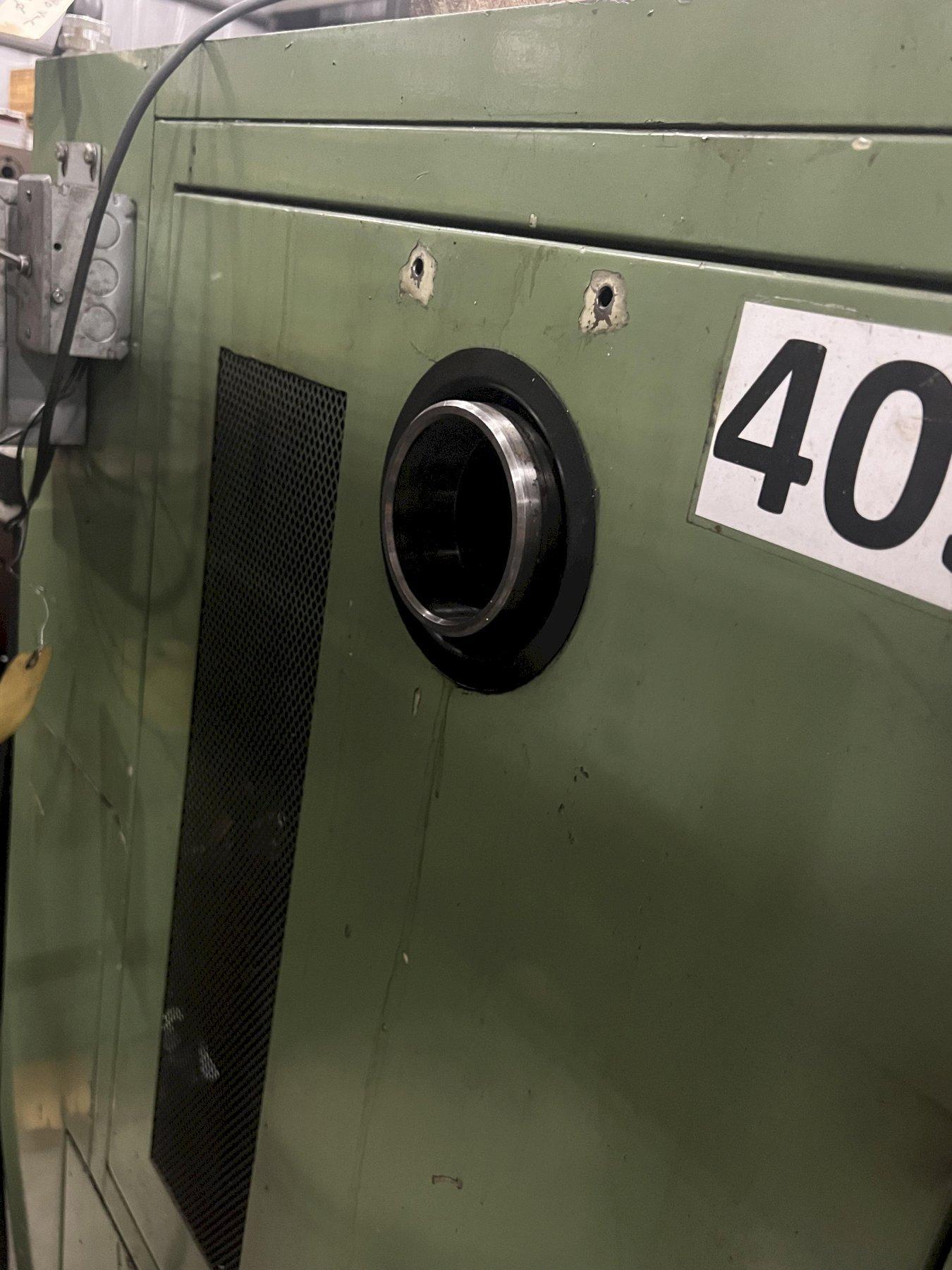

SPINDLE BORE................... 3.125"

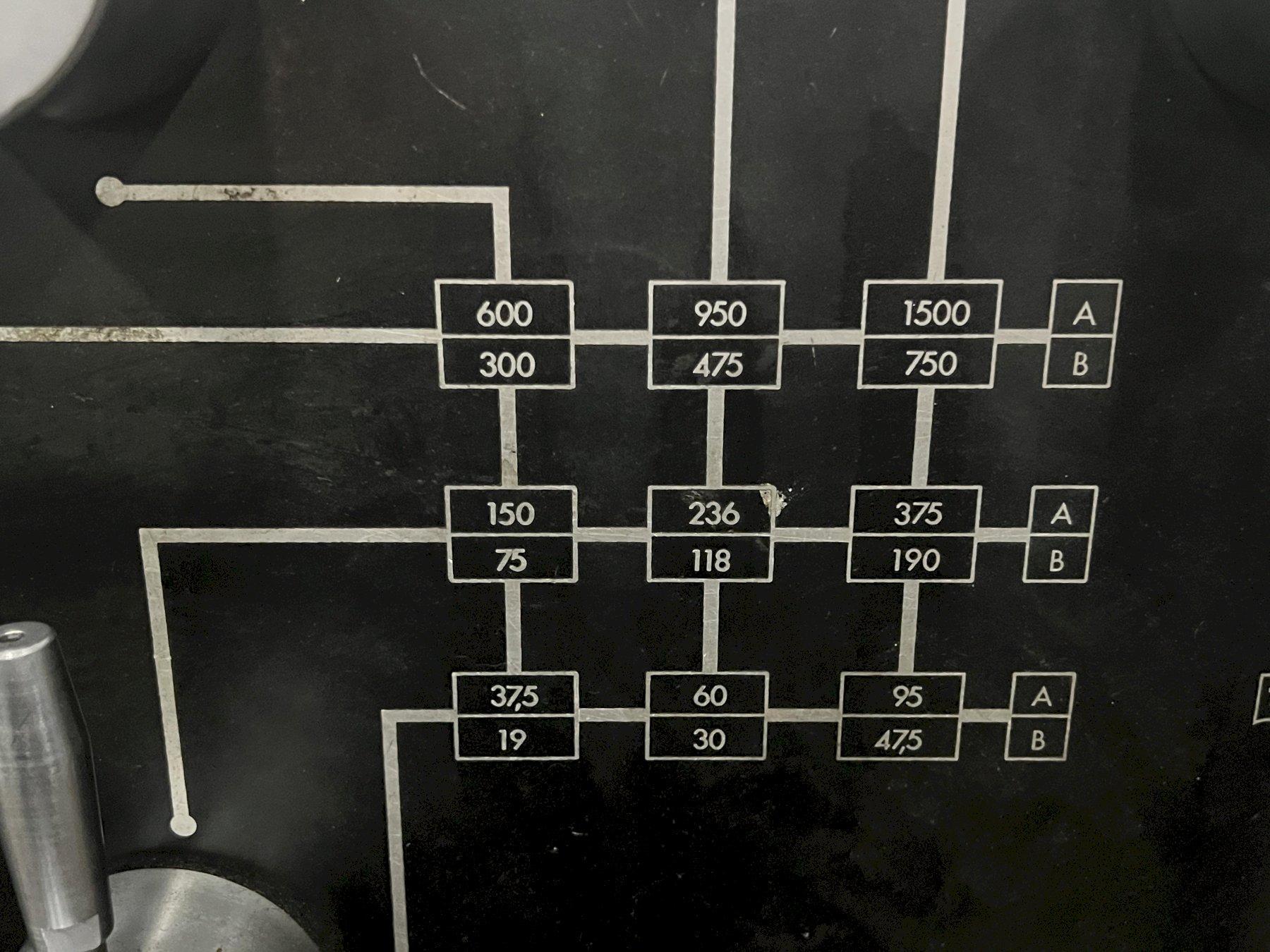

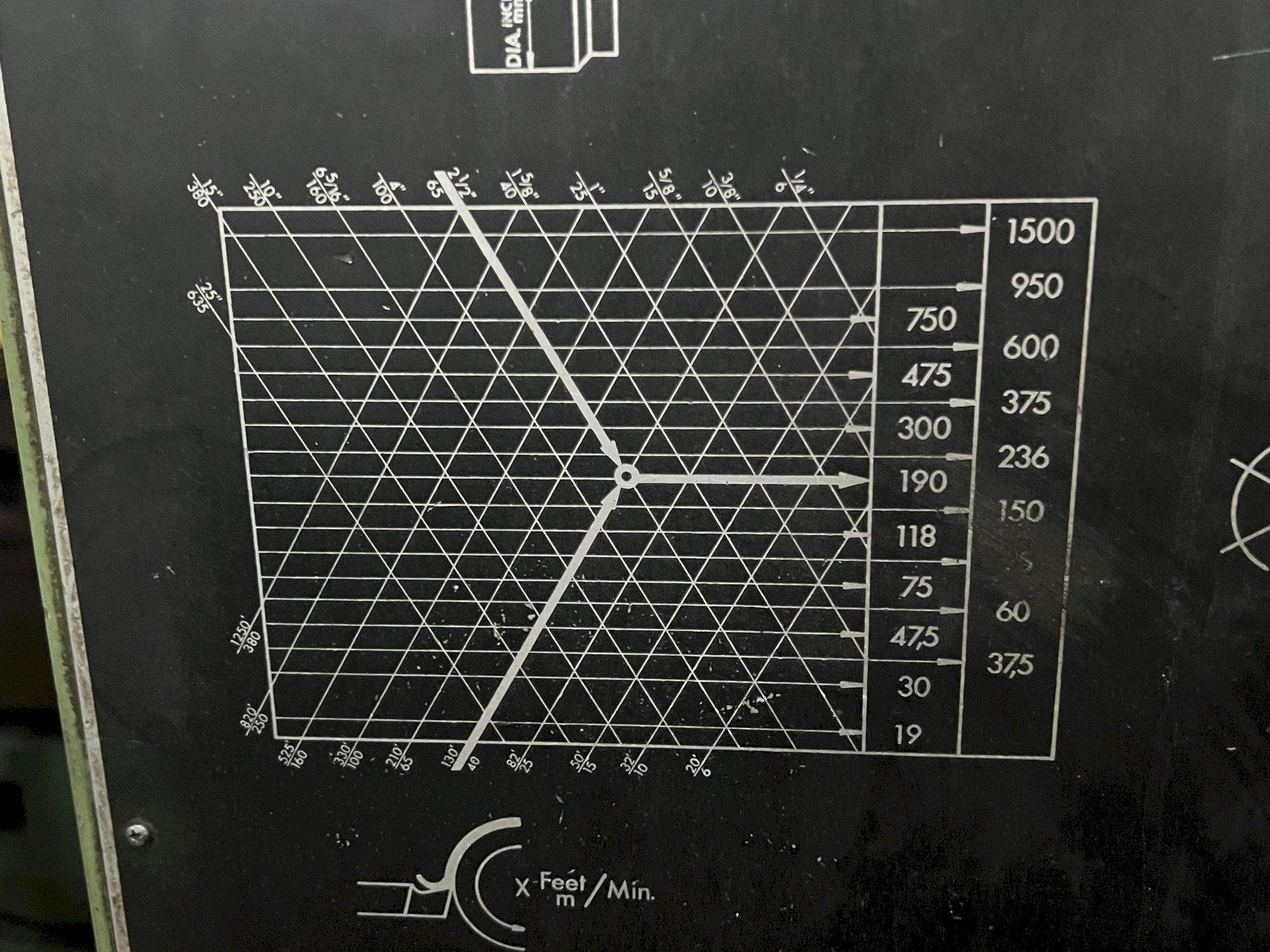

SPINDLE SPEEDS................. 19 -1500 RPM
LONGITUDINAL FEEDS............. .0019 - .1211 IPR
CROSS FEEDS.................... .0009 - .0605 IPR

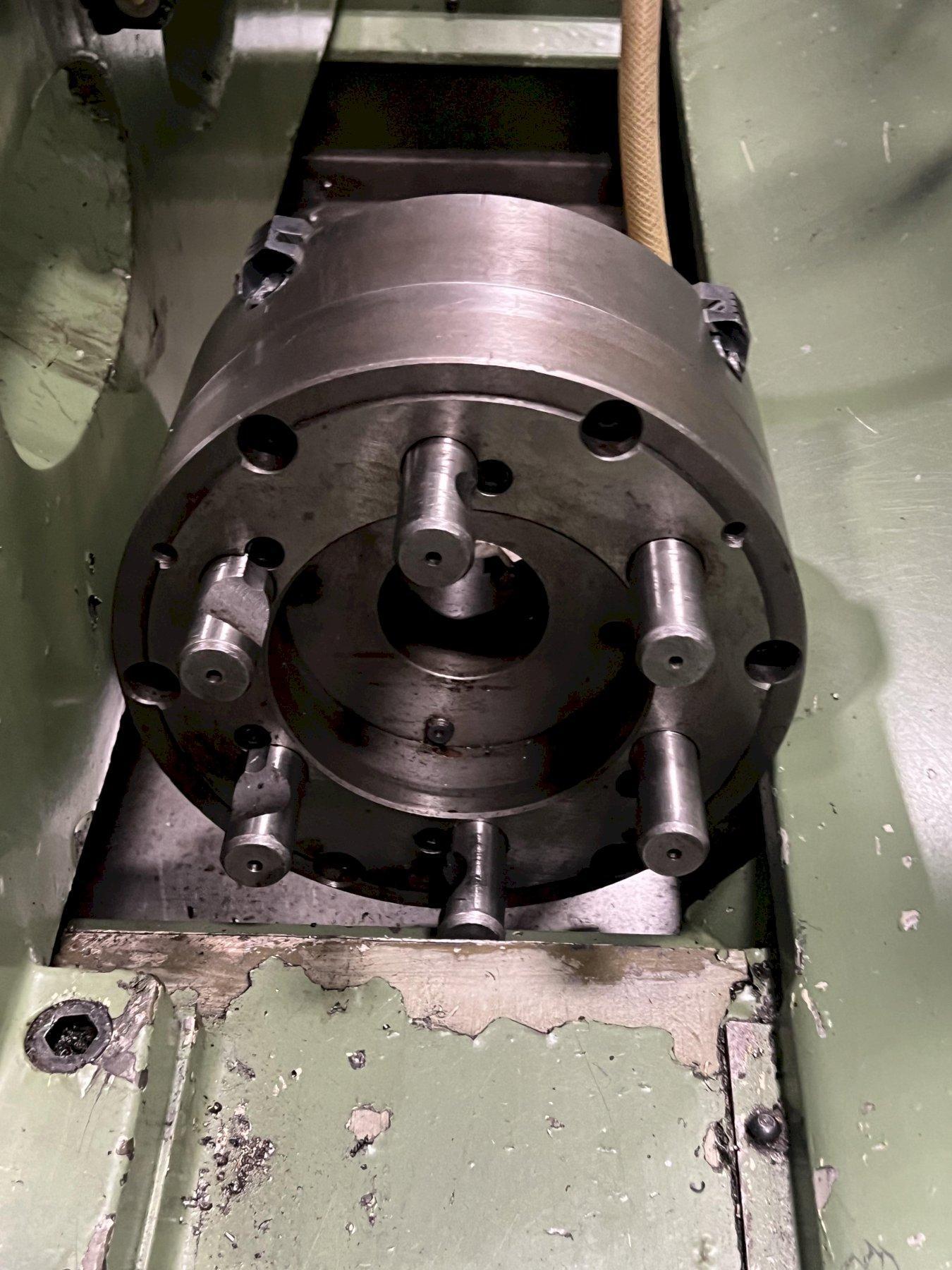

SPINDLE NOSE................... D1-8 CAMLOCK
OVERALL DIMENSIONS............. 140" L x 54" W x 72" H
WEIGHT (APPROX)................ 8500 LBS.
ELECTRICS...................... 440 VOLTS / 3 PHASE
TOTAL POWER INSTALLED.......... 15.7 KW
MAIN MOTOR..................... 12 HP
EQUIPPED WITH:

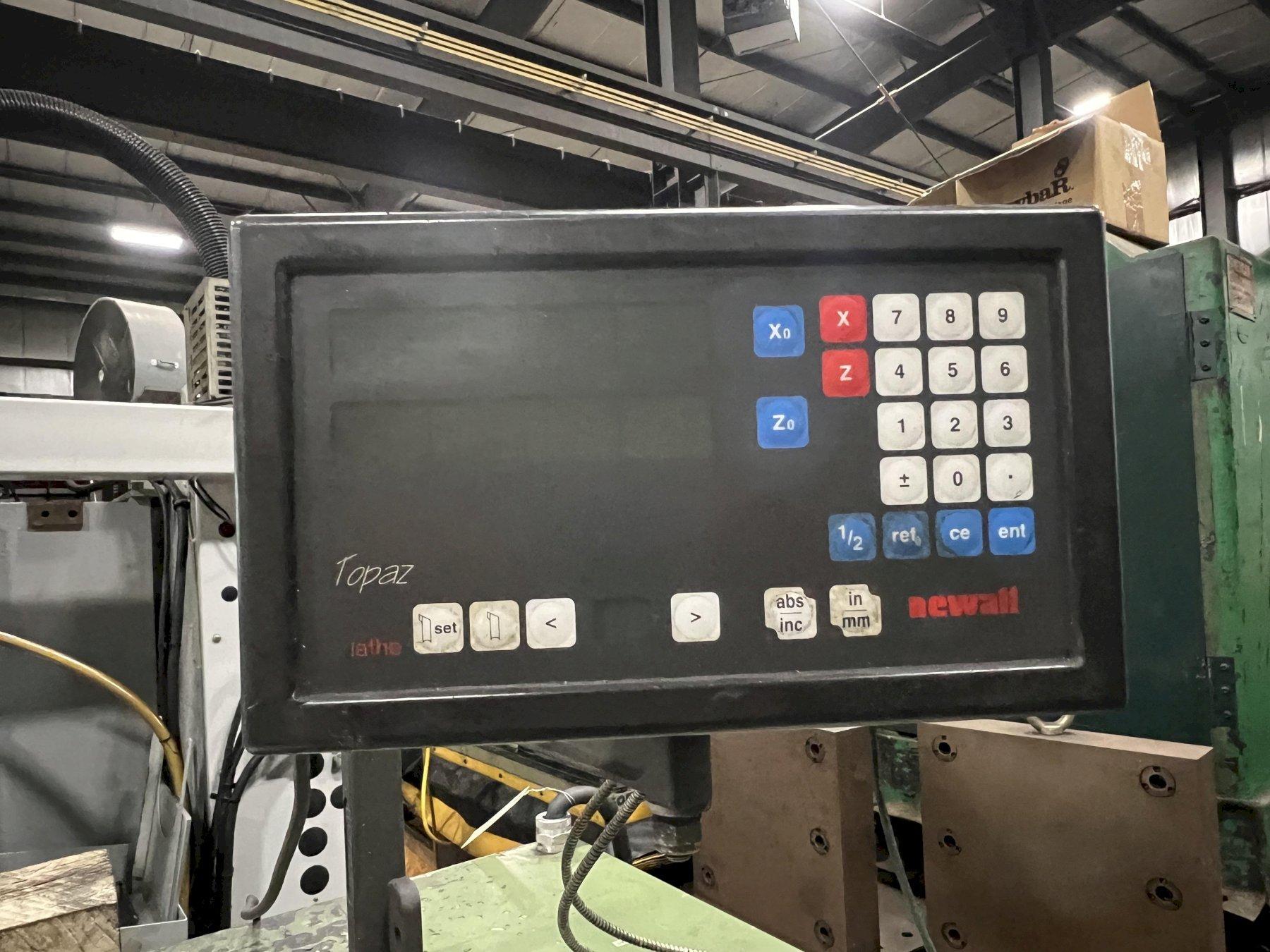

NEWELL 2 AXIS DIGITAL READOUT

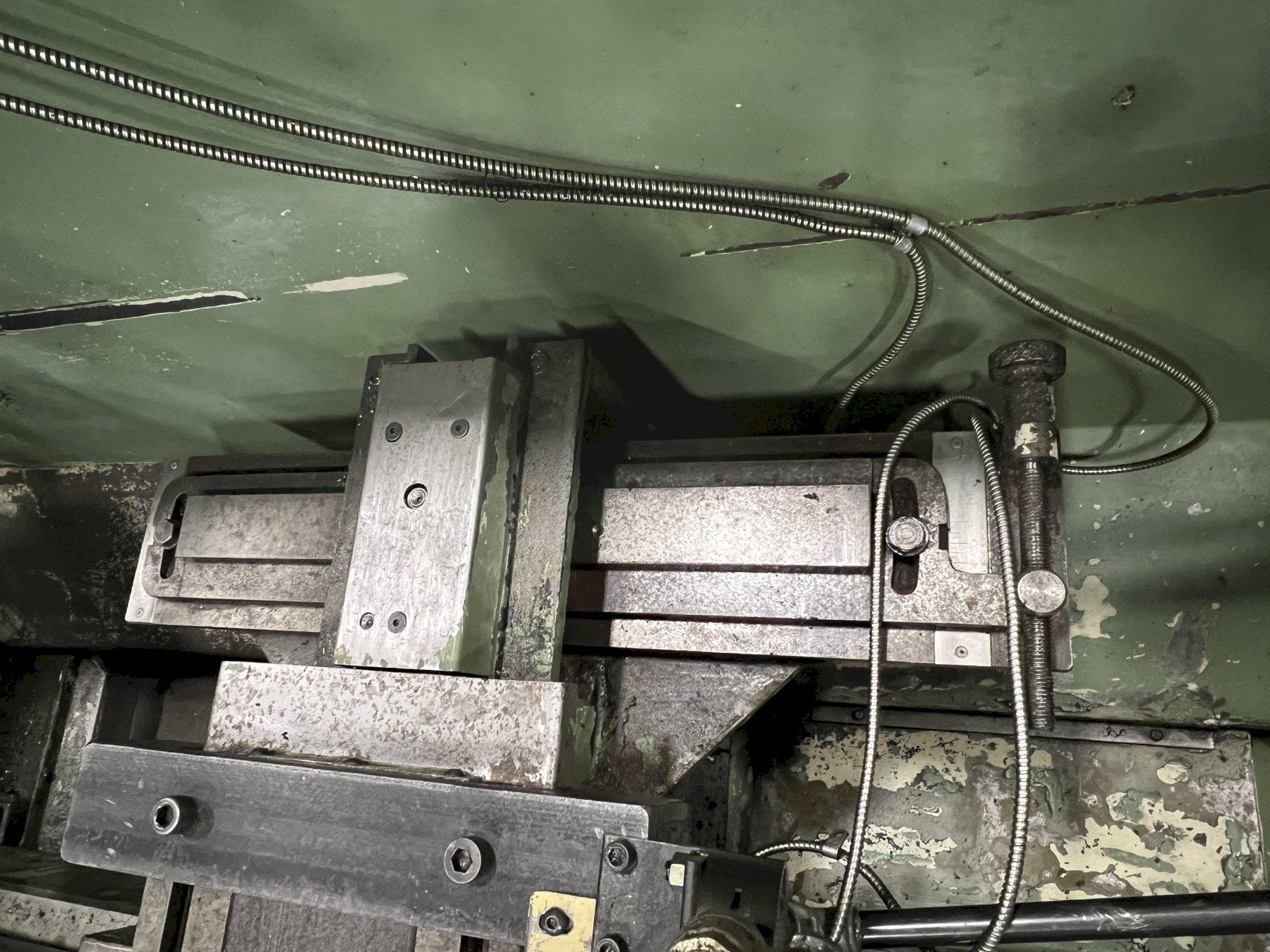

TAPER ATTACHMENT

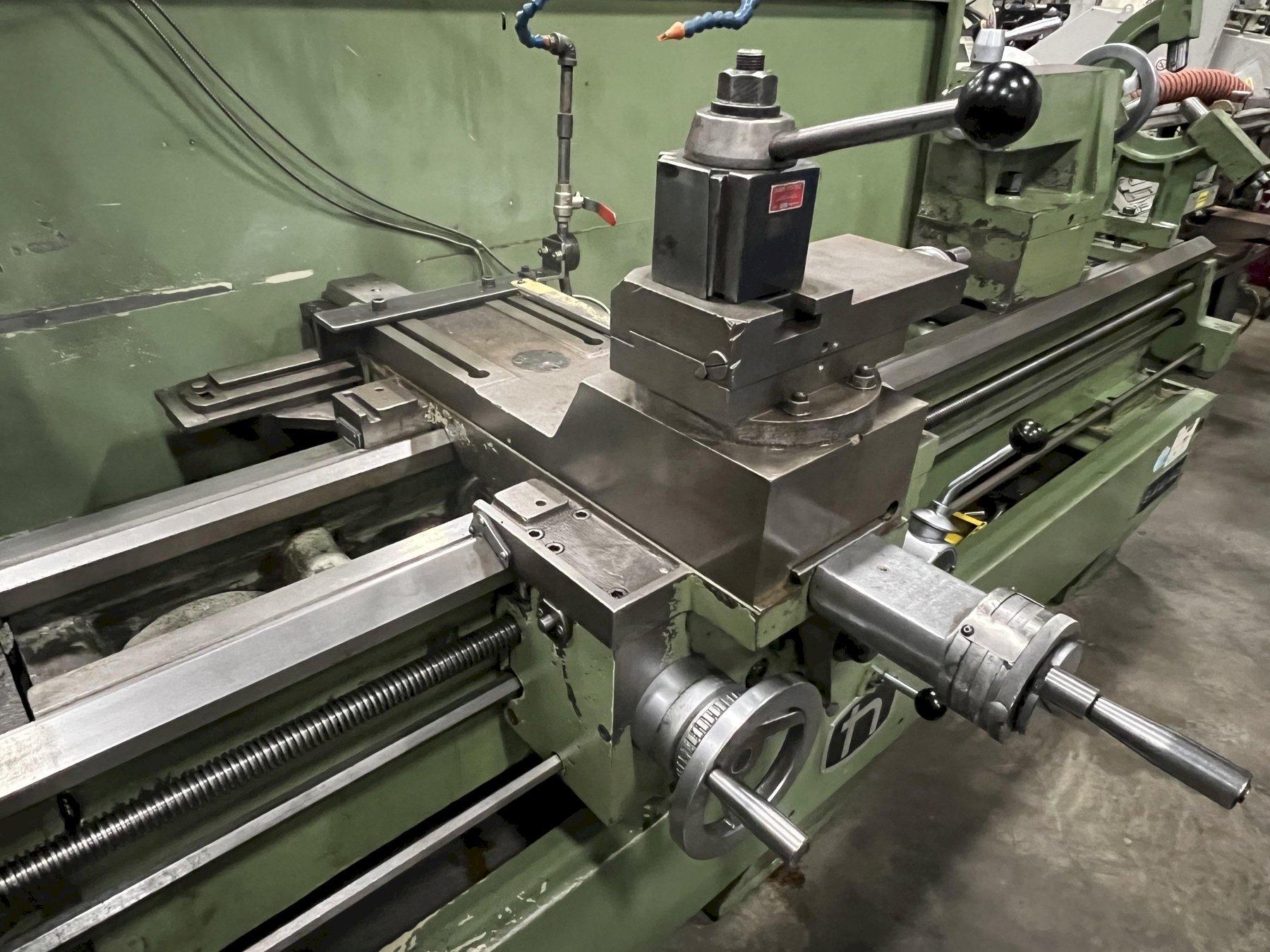

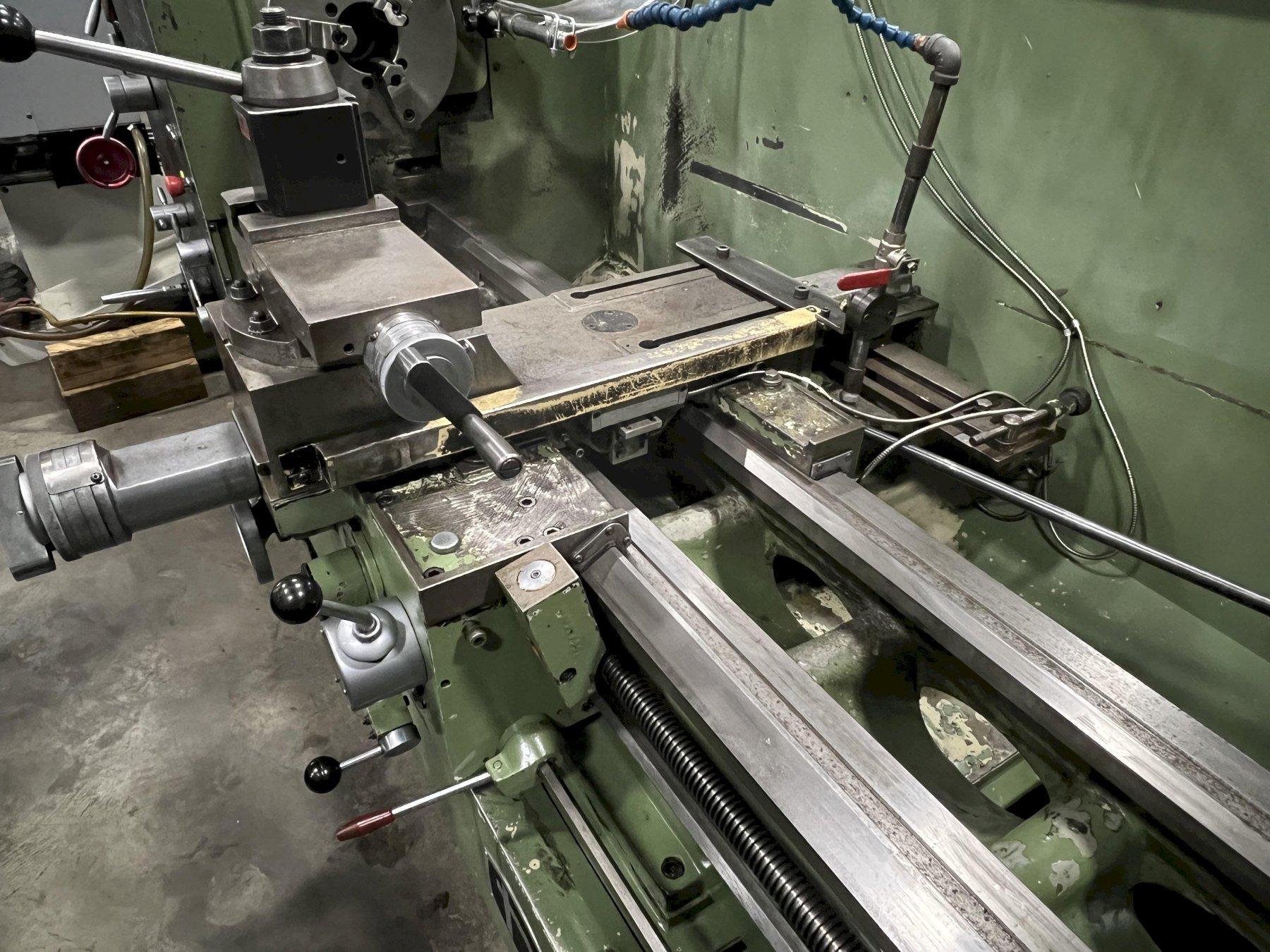

ALORIS QUICK CHANGE TOOLPOST

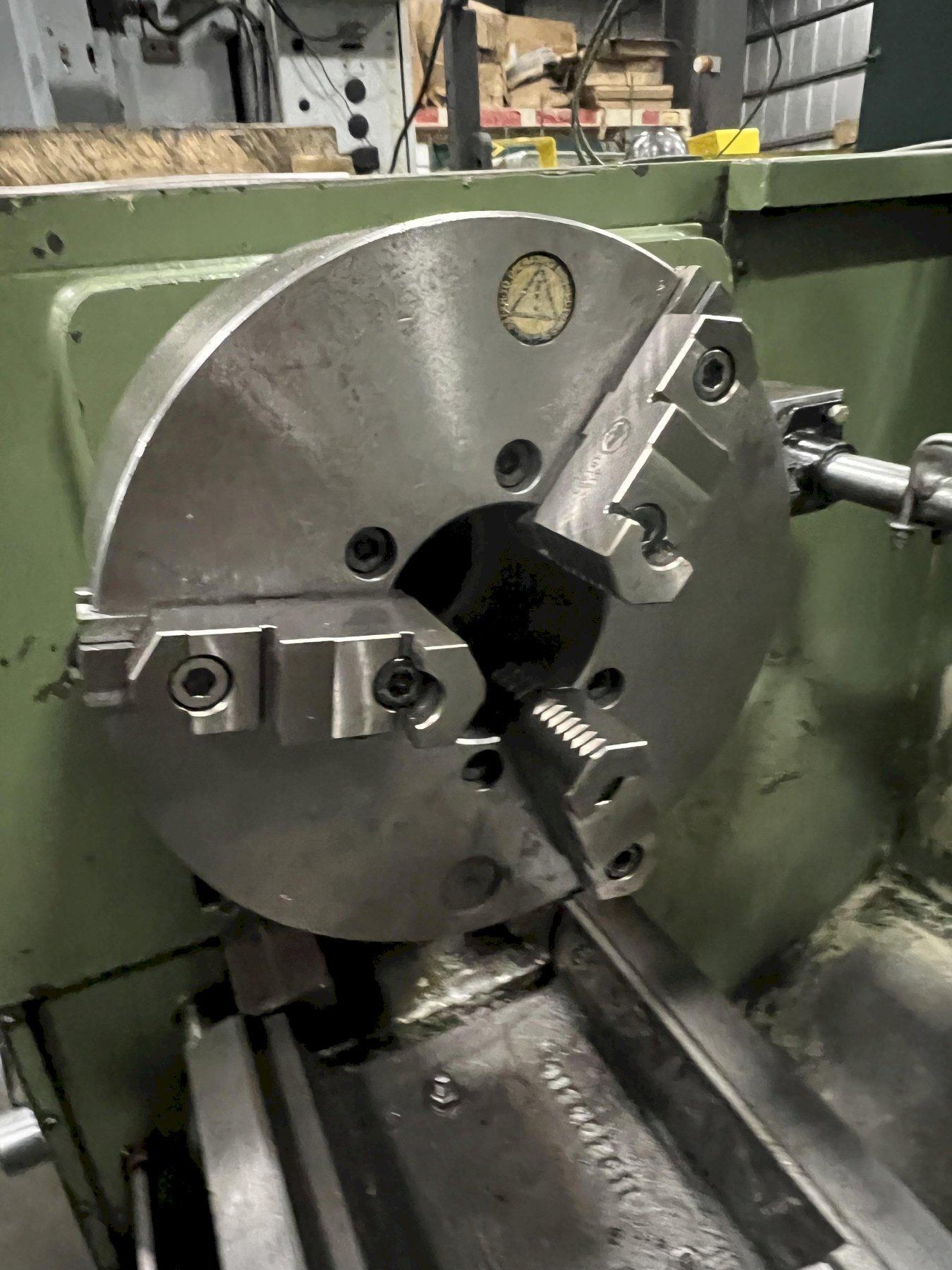

12" - 3 JAW CHUCK

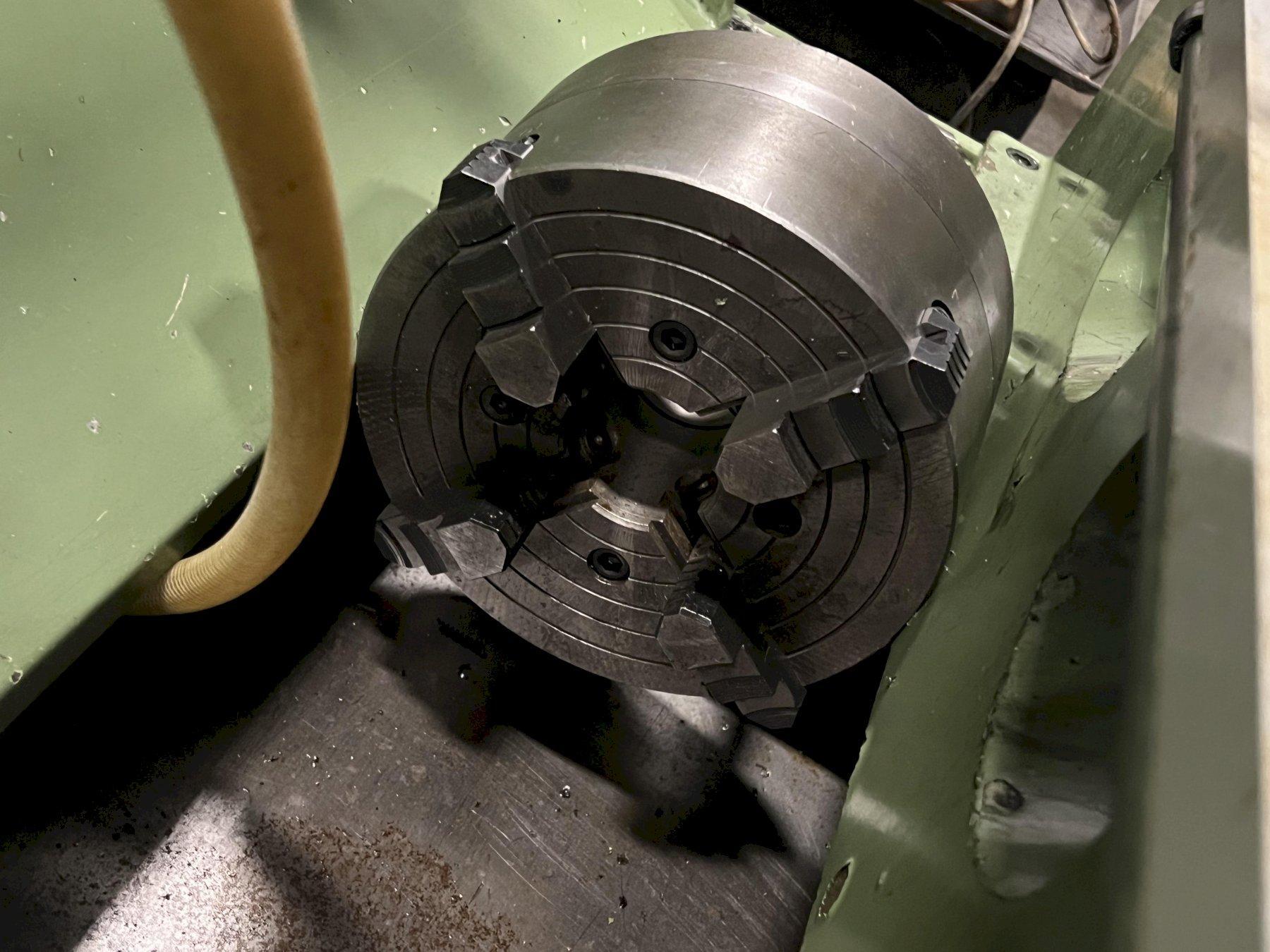

10" - 4 JAW CHUCK

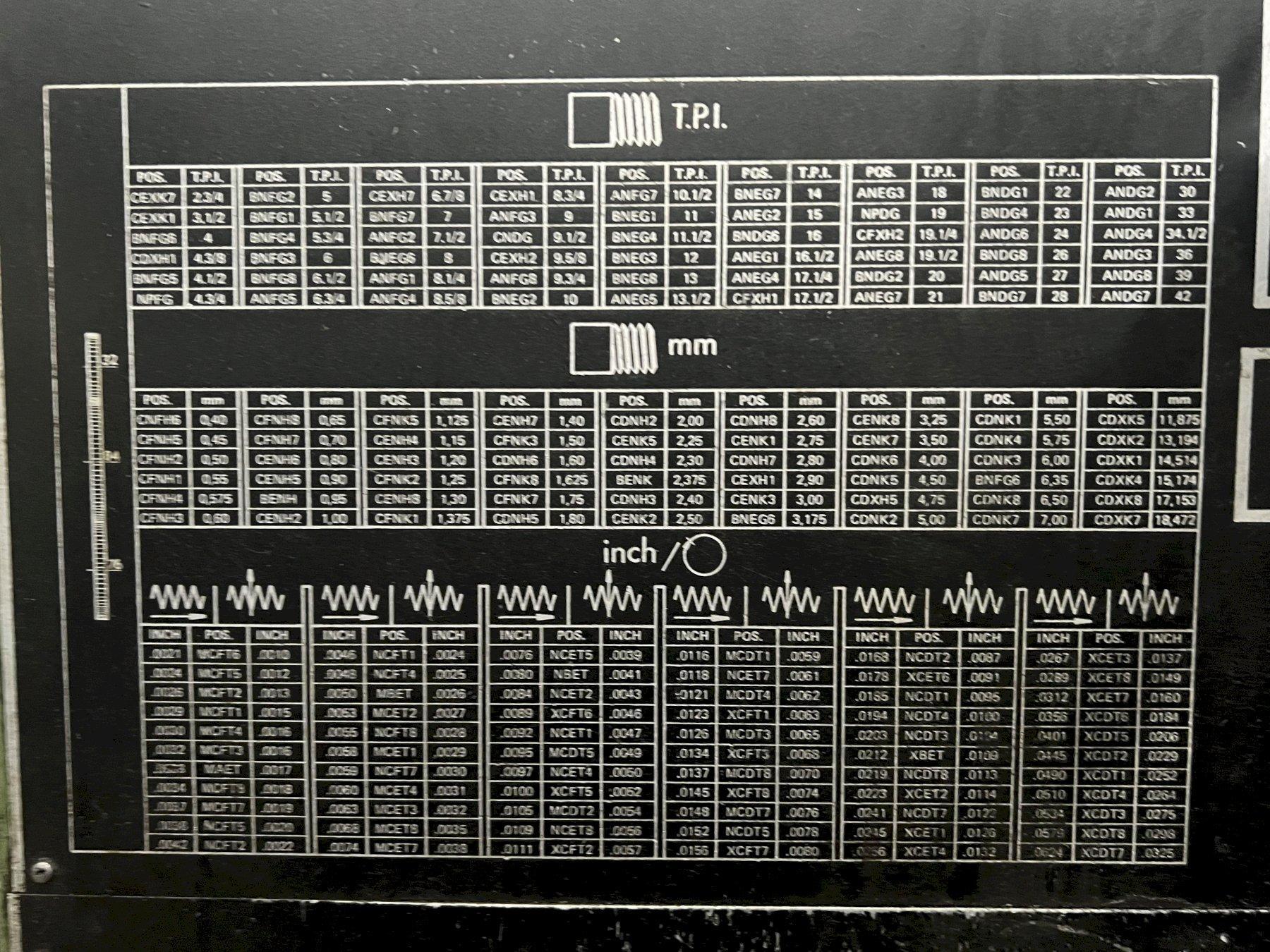

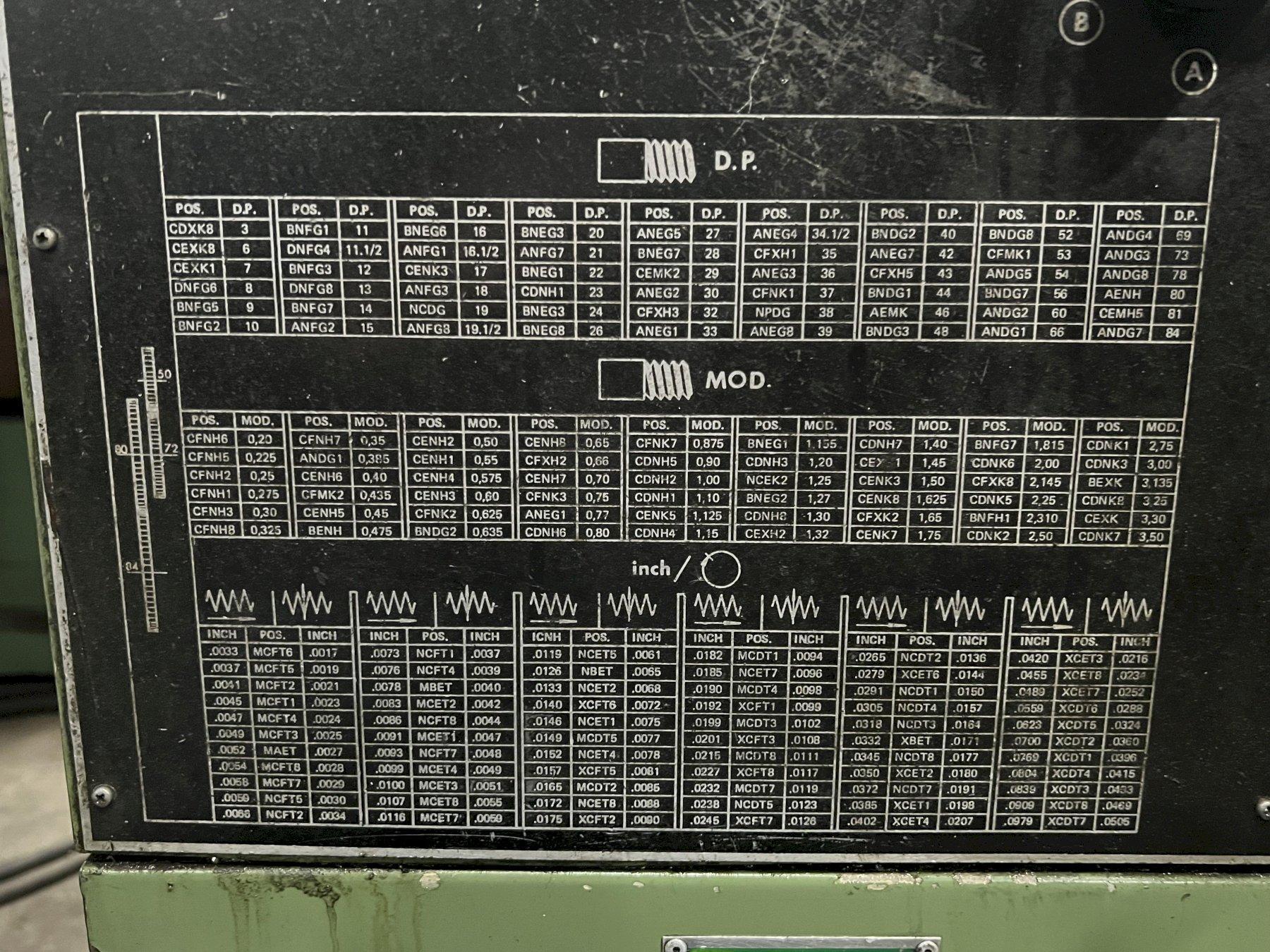

INCH/METRIC THREADING

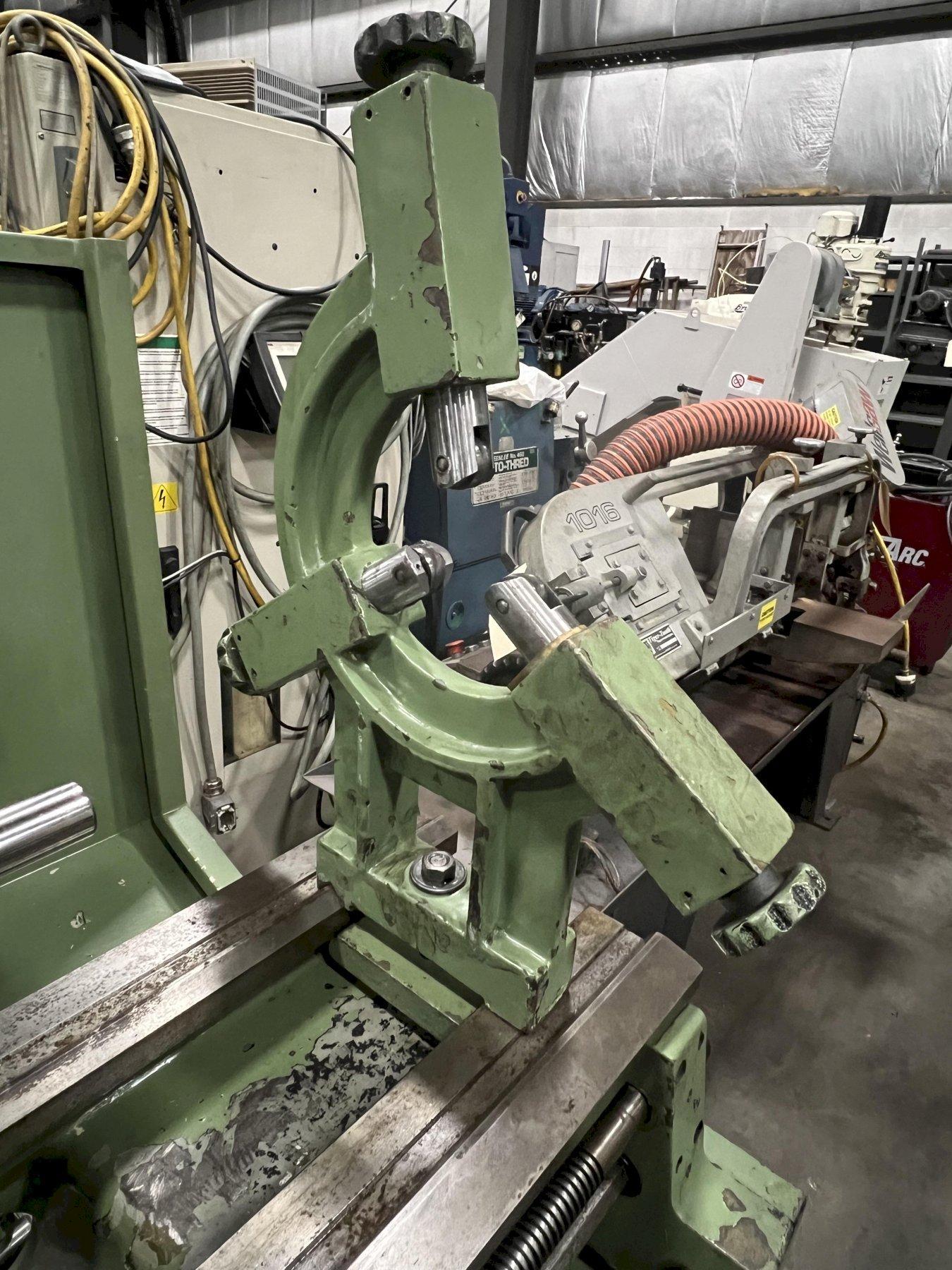

FOLLOW REST
COOLANT PUMP

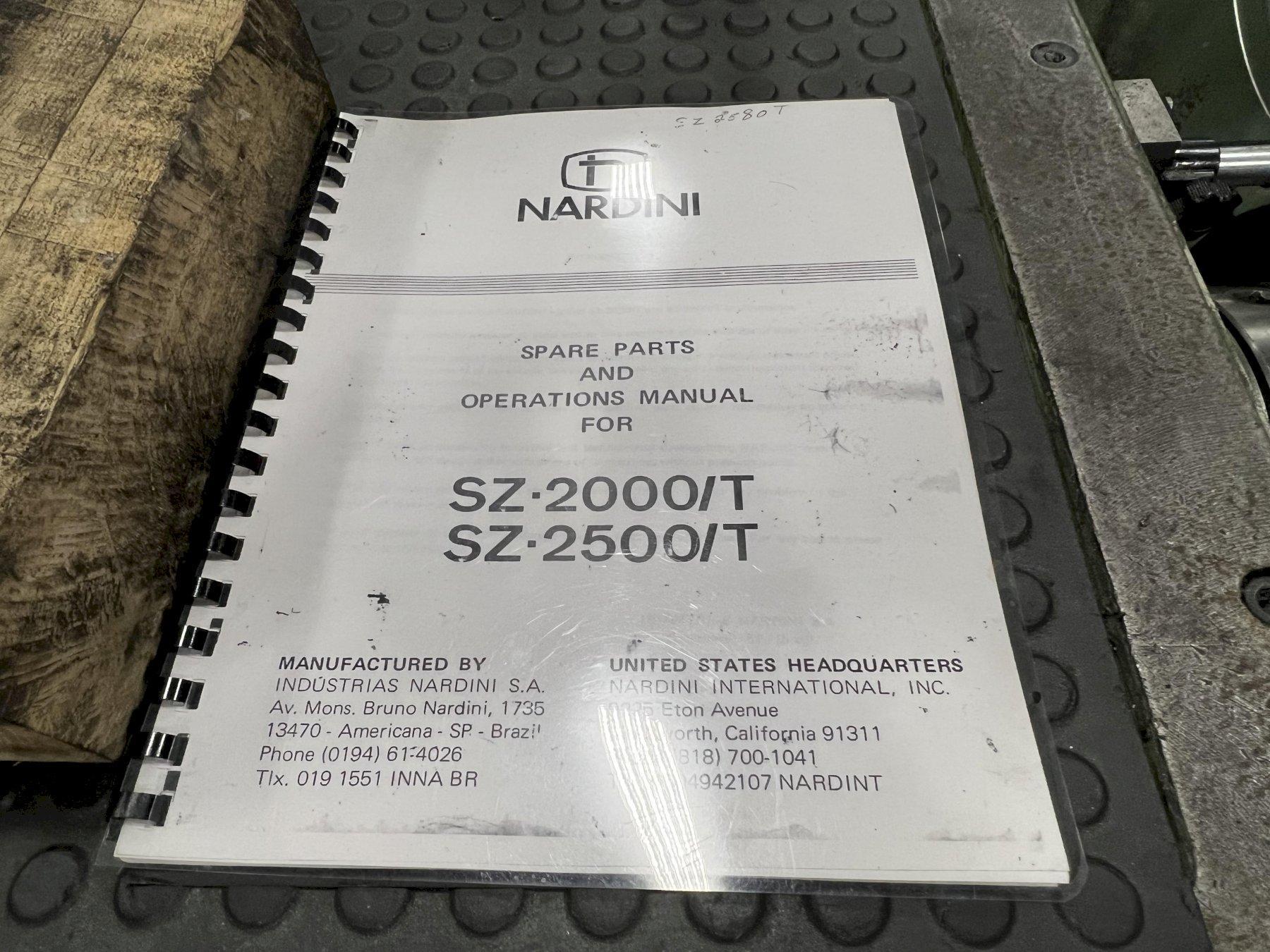

MISC. MANUALS
