Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 15.75"
MAXIMUM TURNING DIAMETER 10.63"
MAXIMUM TURNING LENGTH (SHAFT WORK) 11.81"
X AXIS TRAVEL 6.4"
Z AXIS TRAVEL 13.39"
RAPID TRAVERSE RATE X AXIS 630 IPM
RAPID TRAVERSE RATE Z AXIS 944 IPM
SPINDLE NOSE A2-5
SPINDLE BORE 2.44"
SPINDLE SPEEDS (FOR 10" CHUCK) 50 - 4,500 RPM
SPINDLE MOTOR 15 HP AC

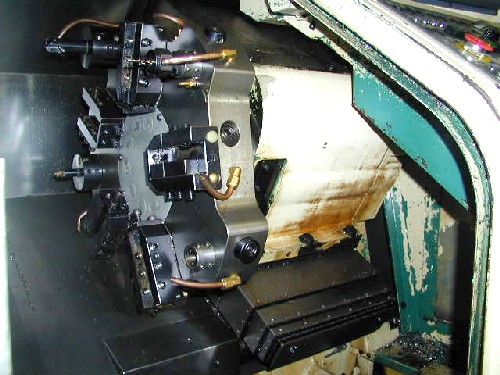

TURRET CAPACITY 10 STATION VDI TURRET
TURRET INDEX TIME (1 STATION) 0.2 SECONDS
EQUIPPED WITH:
FANUC 18TA CNC CONTROL WITH 9" CRT & RS-232C PORT

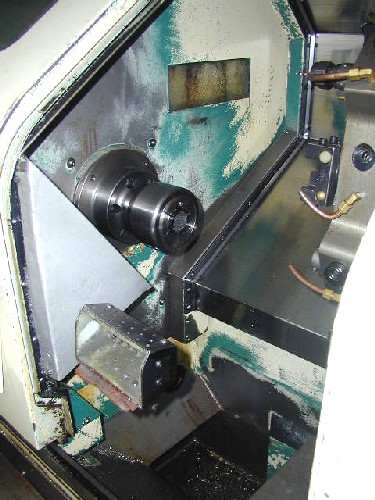

HARDINGE S20 COLLET CLOSER WITH ALL AVAILABLE COLLET PADS

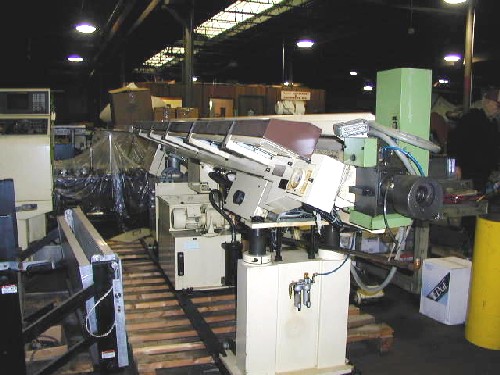

IEMCA TAL-65 FULL LENGTH 12' MAGAZINE BAR LOADER
AUTOMATIC PARTS CATCHER, STANDARD COOLANT SYSTEM
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
