Specifications
Equipped With
GENERAL SPECIFICATIONS:

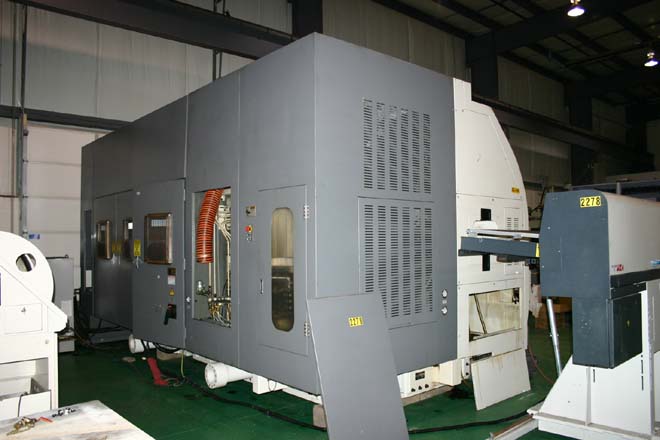

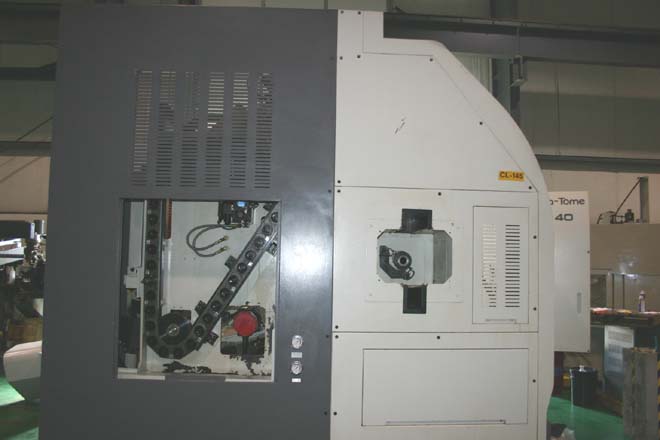

MANUFACTURER NAKAMURE TOME
MODEL STS-40
SERIAL # V400 301
NEW (APPROX.) 2000
MAX SWING OVER CROSS SLIDES 18.5"
MAX. TURNING DIA. 22.44"

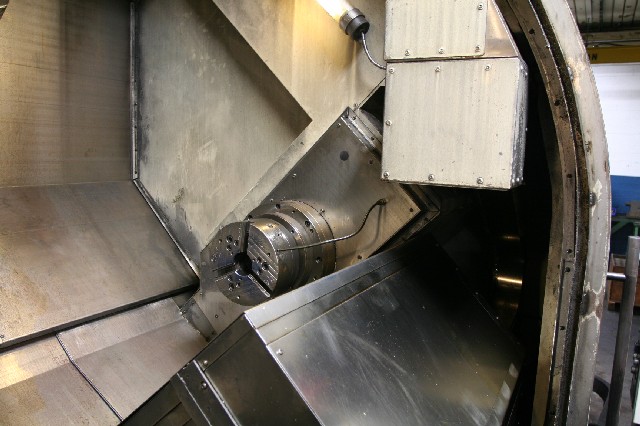

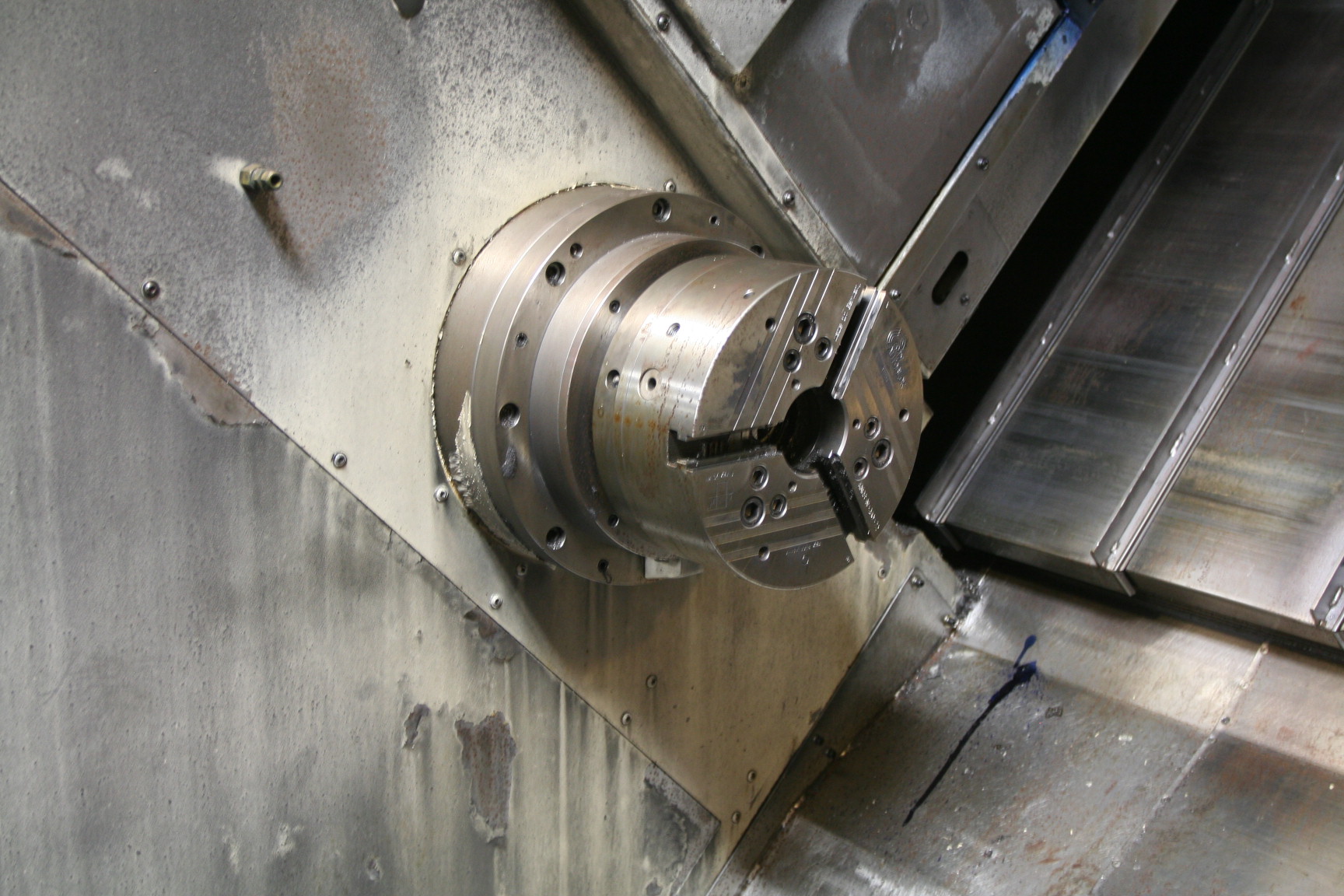

CHUCK SIZES 10"
SPINDLE NOSE BOTH SPINDLES A1-8

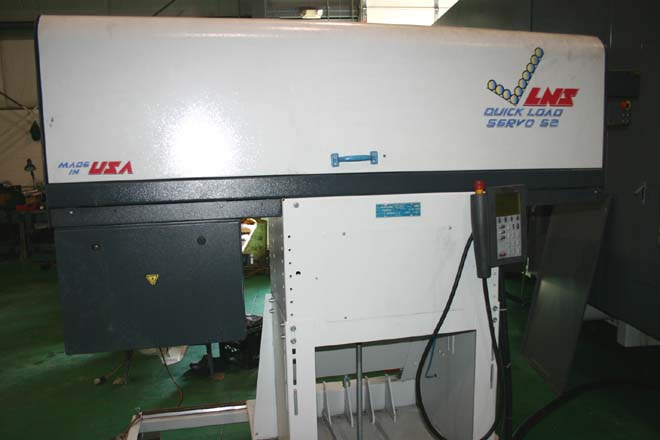

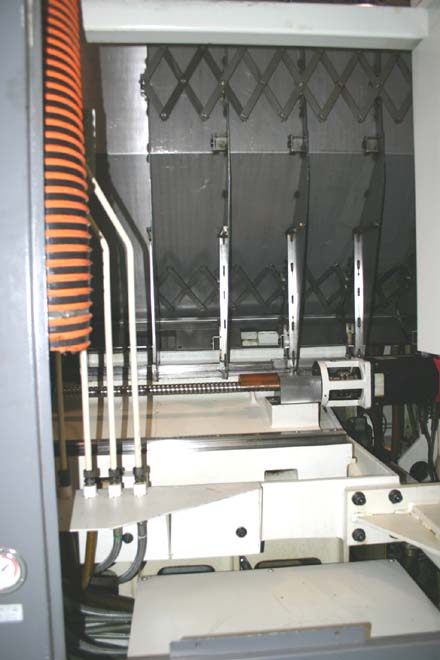

BAR CAPACITY 2.75"
DISTANCE BETWEEN SPINDLES 74.8"
MAX. TURNING LENGTH 59.06"
RAPID TRAVERSE RATE X-1 984 IPM
Z-1 1181 IPM
MAX RPM FOR BOTH SPINDLES 3500 RPM (STEPLESS)

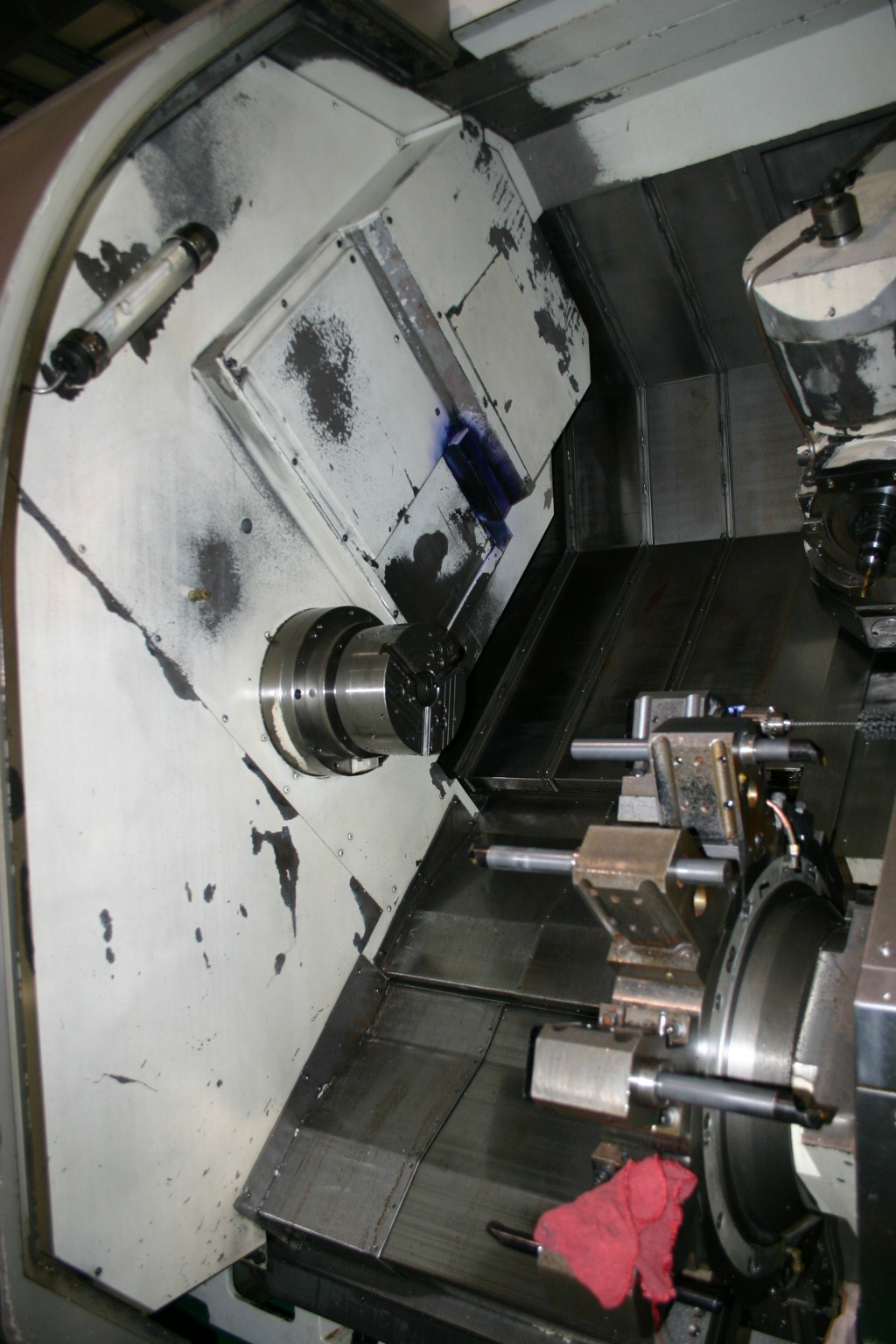

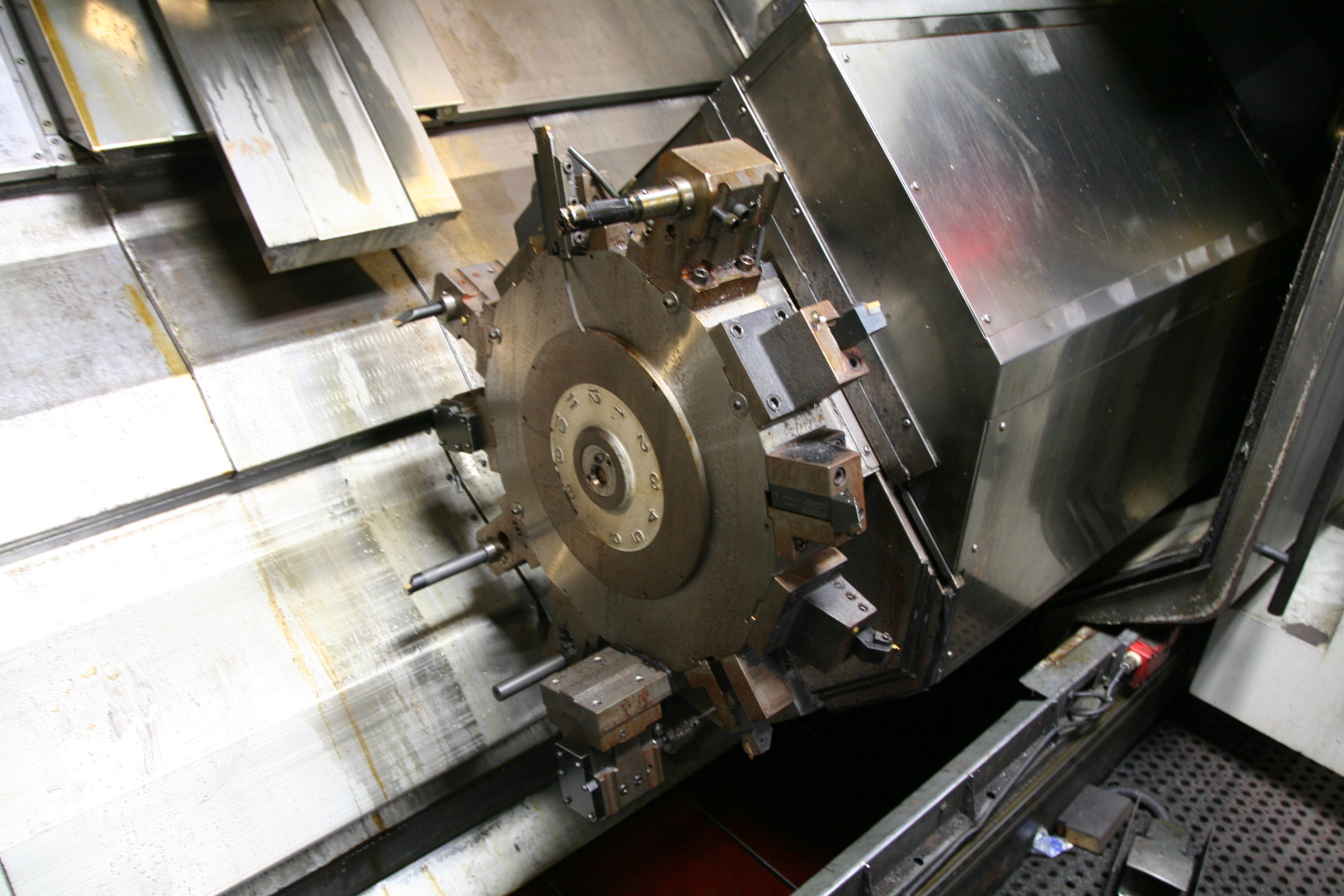

TURRET POSITIONS ALL LIVE CAPABLE 12 STATION
TURRET SPEED 3600 RPM

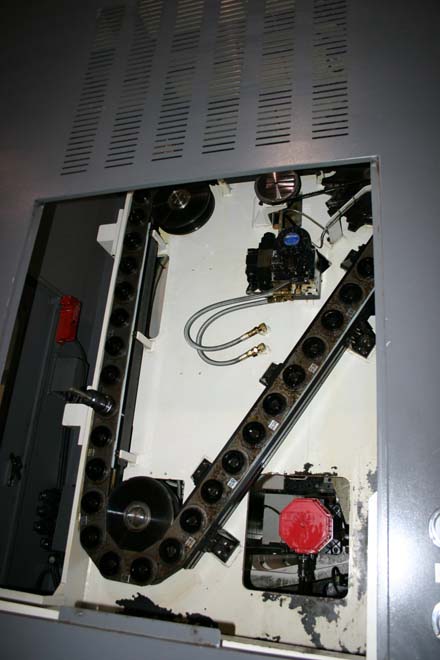

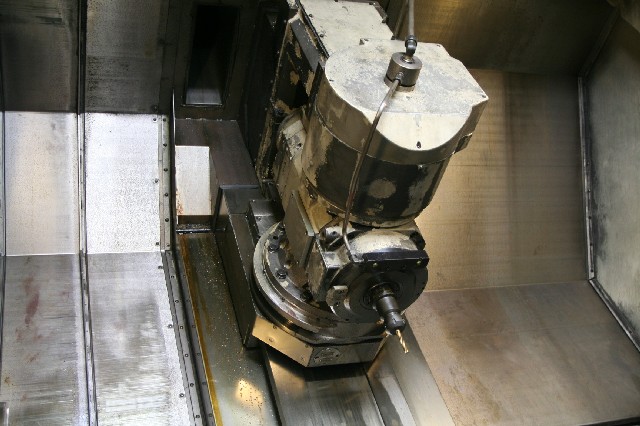

AUTOMATIC TOOL CHANGER
POSITIONS 40
SPEED 6000 RPM
Y AXIS TRAVEL 7.87" (+4.33/-3.54")
FACE MILL 4" MAX
END MILL 1.25"
DRILL 1 11/64"
TAP 7/8"
C-AXIS ON BOTH SPINDLES .0001 DEGREE

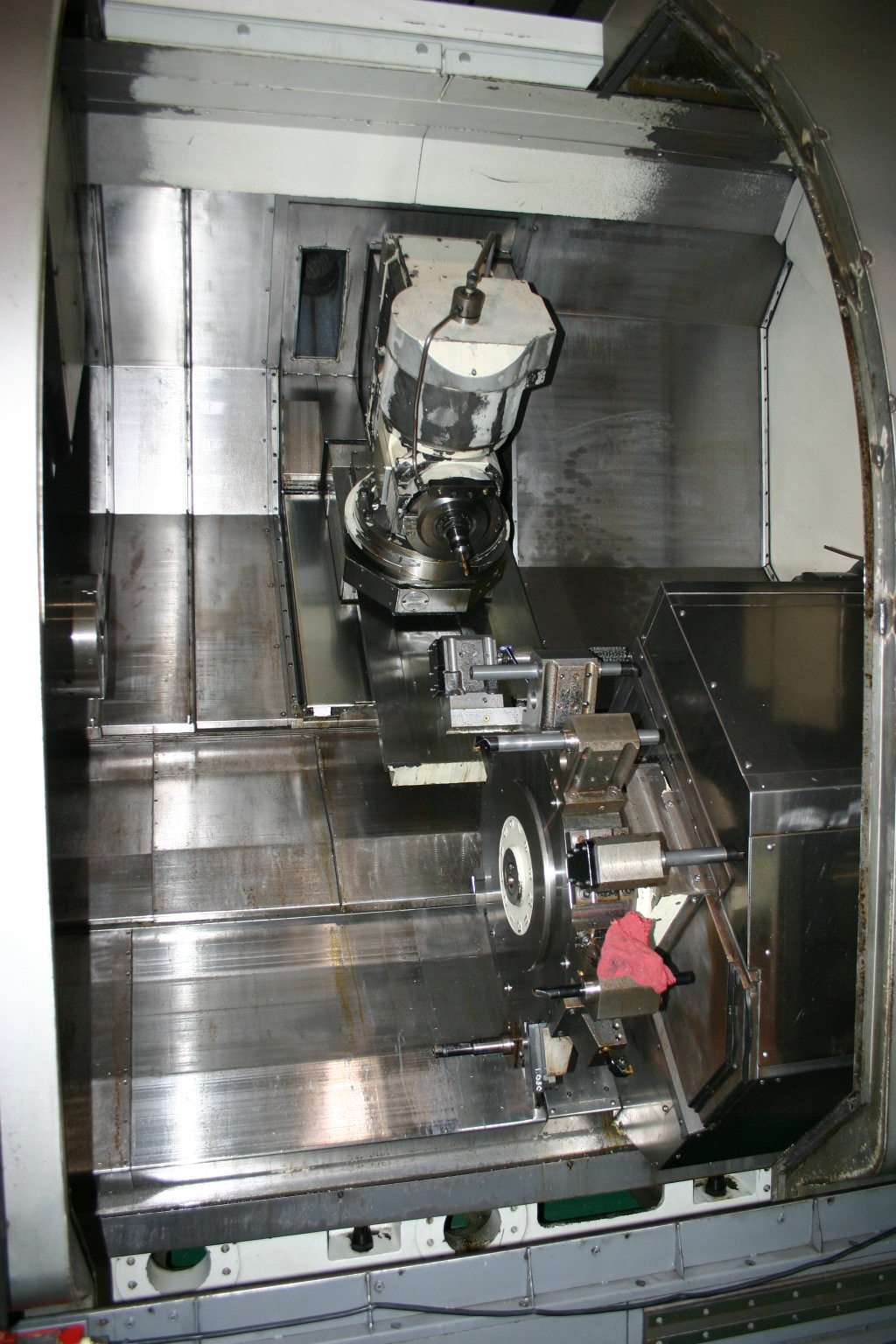

TRAVELS
TOOL SPINDLE-X 24.41"
Z 63"
Y 7.87"
TURRET-X 10.83"
Z 63"
RIGHT SPINDLE 63"

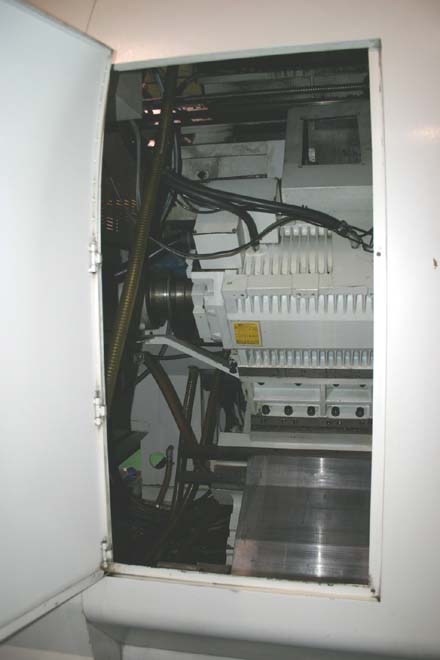

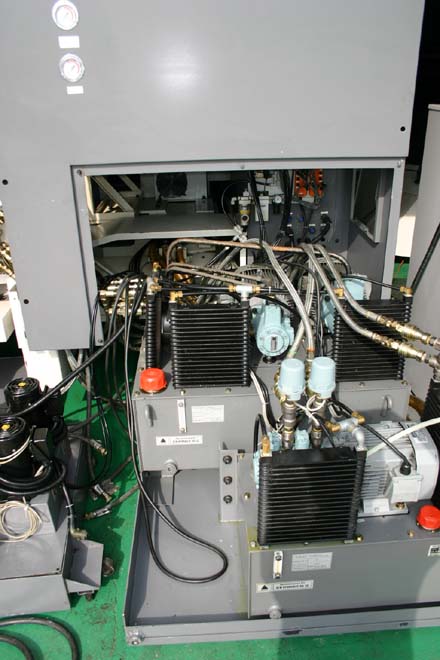

MOTORS
LEFT & RIGHT SPINDLE 30 HP
ROTATING TOOL SPINDLE
TOOL SPINDLE 20 HP
LOWER TURRET 7.5 HP
TOOLING TYPE KM 63
EQUIPPED WITH:
LESS THAN 3000 HOURS CUTTING TIME
PRE SETTER

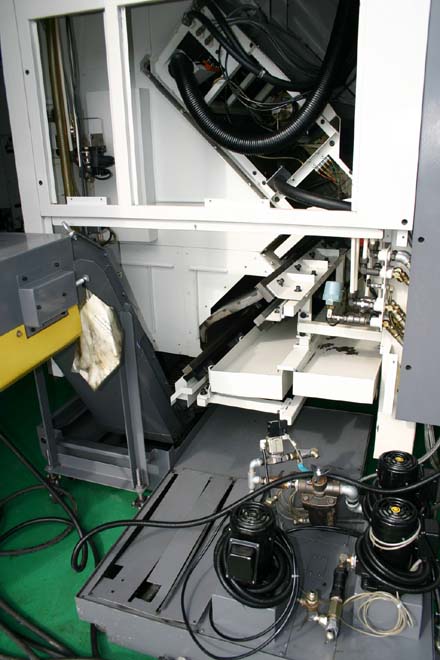

CHIP CONVEYOR

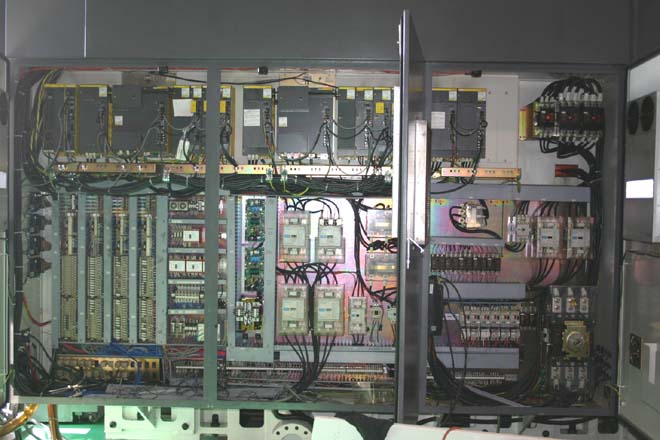

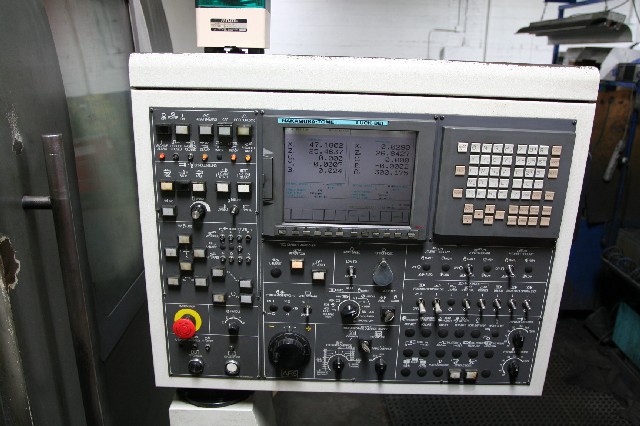

FANUC 18i-TA
APPROX. WEIGHT 55,000 LB
