NAKAMURA TOME SLANT 1, 21.65" SW, 20.86" BC, 2.16" HOLE, 15 HP, 12 POSITIONS, FANUC 11TA CTRL, 1985

GENERAL SPECIFICATIONS:
MANUFACTURER NAKAMURA TOME
MODEL SLANT 1
NEW (APPROX.) 1985
SWING OVER SLIDE 21.65"
DISTANCE BETWEEN CENTERS 20.86"
HOLE THRU SPINDLE 2.16"
SPINDLE MOTOR 15 HP
SPINDLE SPEEDS (LOW) 13 - 1230 RPM
SPINDLE SPEEDS (HIGH) 45 - 4500 RPM
RAPID TRAVERSE X 236 IPM
RAPID TRAVERSE Z 560 IPM

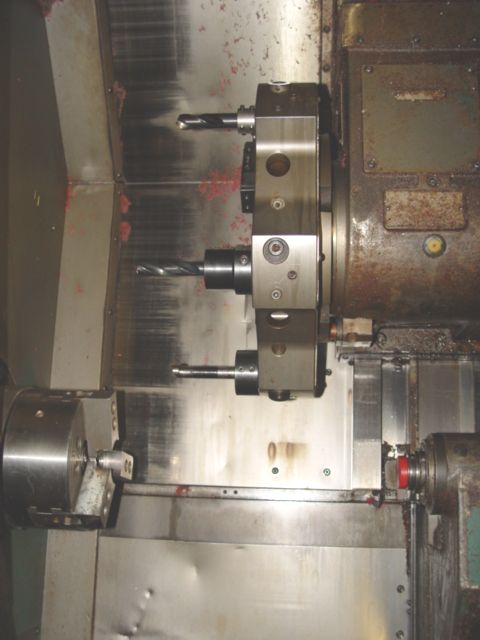

TURRET POSITIONS 12
DIMENSIONS (APPROX.) 10' x 5' x 6'
WEIGHT (APPROX.) 9,790 LBS.

EQUIPPED WITH:

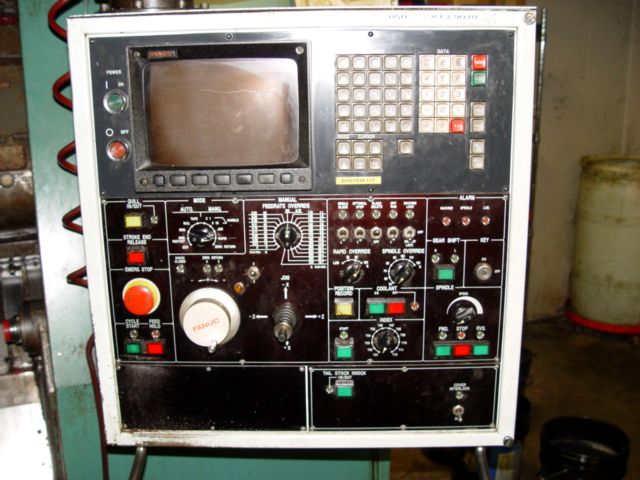

FANUC 11TA CONTROL
16c COLLET NOSE
6" CHUCK
MISC. VDI TOOLING TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
