Specifications
Equipped With
Specification Description
Maximum Swing Over Door: 22.05"
Maximum Swing Over Slide Cover: 27.17"
Maximum Swing Over Bed: 31.1"
Maximum Swing Over Cross Slide: 18.9"
Maximum Turning Diameter: 15.75"
Maximum Turning Length: 21.26"
Distance Between Spindle Nose and Turret Face: 7.48" - 30.31"
Hole Thru Spindle: 3.15"
Spindle Nose: A1-8
Hole Thru Draw Tube: 2.56"
Round Collet Capacity: 2.50"
Spindle Speed Range: 10-3500 RPM
X Axis Travel: 10.83"
Z Axis Travel: 22.83"
X Axis Rapid Traverse Rate: 395 IPM
Z Axis Rapid Traverse Rate: 590 IPM
Tailstock Quill Center Size: #3MT
Tailstock Quill Stroke: 3.94"
Tailstock Qull Diameter: 3.54"
Equipped With:

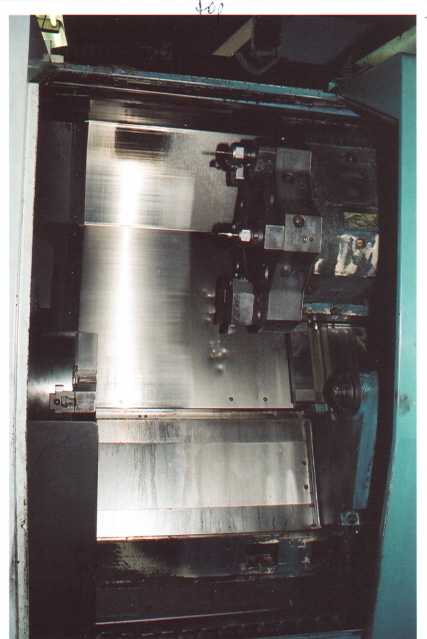

12" Dia. 3-Jaw Power Chuck, Tailstock with Built-in Live Center, 12-Station Turret with Large Amount of Holders, Tool Eye Arm, Automatic Chip Conveyor, Work Light, Flood Coolant System, 25 H.P. Spindle Drive Motor, Fanuc 11T-A Control, Swivel Pendant Mount, Color CRT, RS232 Port, Approx. weight: 12,500 lbs, Dimensions: 13'L x 74.4"W x 83.5"High
