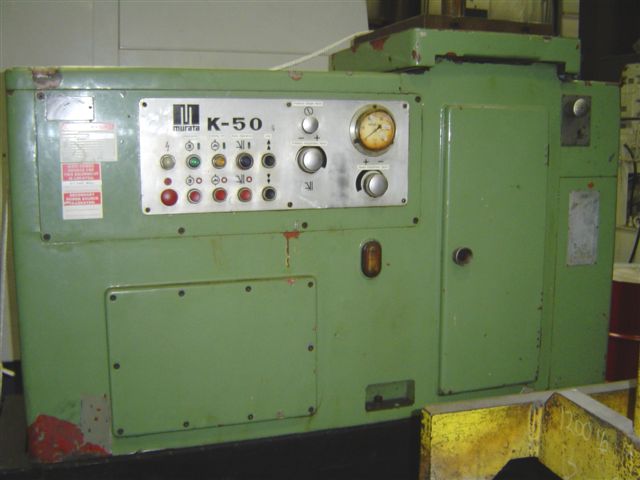

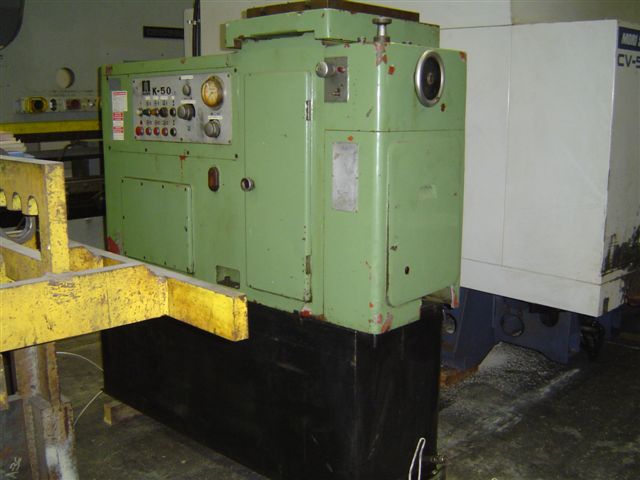

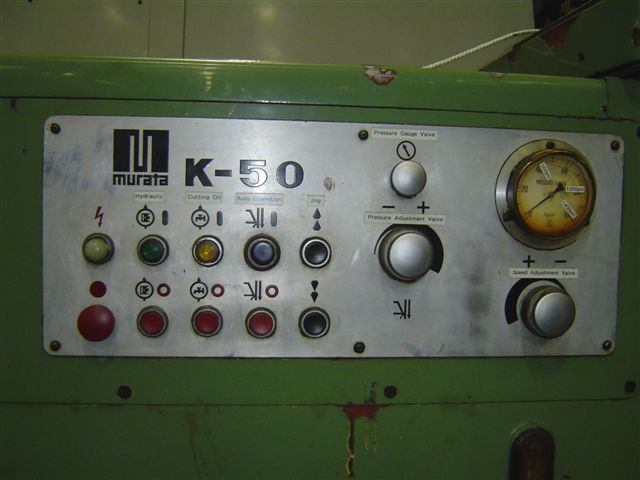

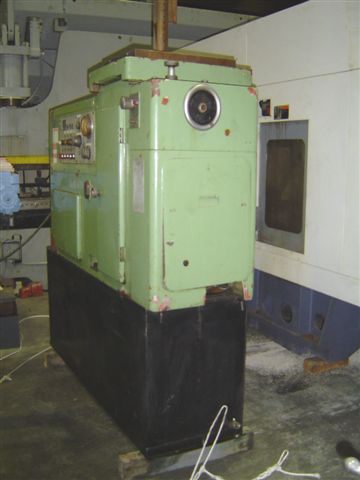

MURATA K50 HYDRAULIC KEYSEATER, 5HP, 21.65" STROKE, 1.97 MAX KEYWAY WIDTH

GENERAL SPECIFICATIONS:
MANUFACTURER MURATA
MODEL K-50
SERIAL# 1329
MAX WIDTH OF KEYWAY 1.97"
MAX LENGTH OF KEYWAY 19.69"
STROKE 21.65"
RANGE OF BORE DIAMETER .6" TO 9.1"
CUTTING SPEED 511 IPM
RETURN SPEED 866 IPM
TABLE SIZE 23.62" X 15.75"
FEEDS .0004" TO .0047"
HEIGHT OF TABLE 42"
MAIN DRIVE MOTOR 5 HP
APPROXIMATE MACHINE WEIGHT 3200 LBS
APPROXIMATE MACHINE DIMENSIONS 66"L-R X 20"F-B X 96"H

EQUIPPED WITH:
COOLANT
