Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER MOTCH
MODEL MVSL-315
SERIAL # 2974798
NEW (APPROX.) 1998
MAX. TURNING DIA. 15.75" (400 MM)
MAX. CHUCK DIA. 15" (381 MM)
CHUCK ON MACHINE 12" SMW AUTOBLOCK
SPINDLE DIA. 8.66"
Z AXIS STROKE 11.02"
MAX RPM 3600
SPINDLE DRIVE (CONT) 45 HP
X AXIS TRAVEL (WORK AREA) 12.20"
X AXIS TRAVEL (LOAD/UNLOAD AREA) 33.46"
RAPID TRAVERSE LOAD/UNLOAD AREA 1575 IPM
X/Z RAPIDS IN WORK AREA 945 IPM

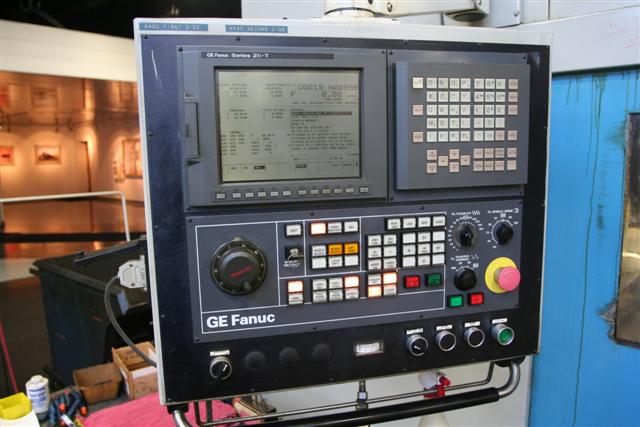

CONTROL FANUC 21i-T

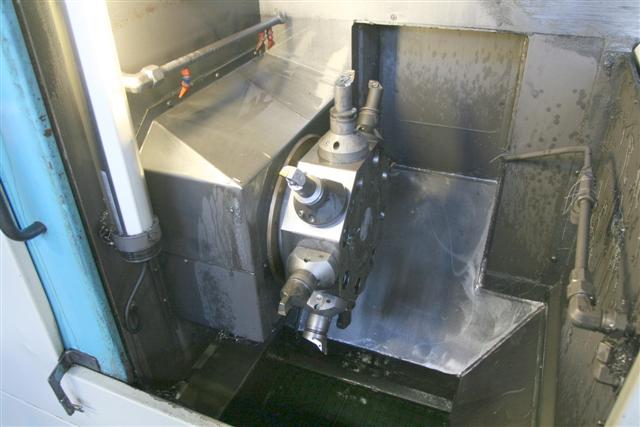

TURRET POSITIONS 8
COOLANT SYSTEM YES

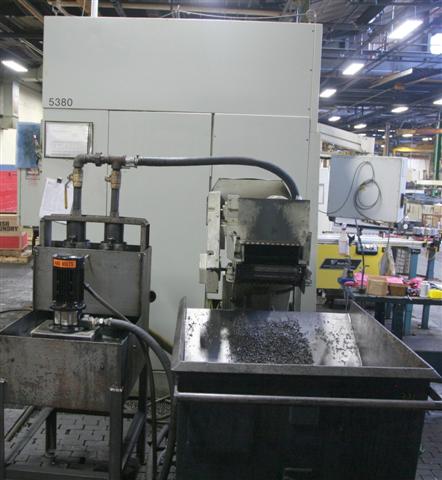

CHIP CONVEYOR YES
NOTE:2 IDENTICAL MACHINES ARE AVAILABLE
The Self Loading Design Of The Motch Model MVSL315 Eliminates The Need For A Robot. The Inverted Spindle Picks Up The Part And Moves It To The Work Area For Machining. After Machining The Spindle Unloads And Repeats.

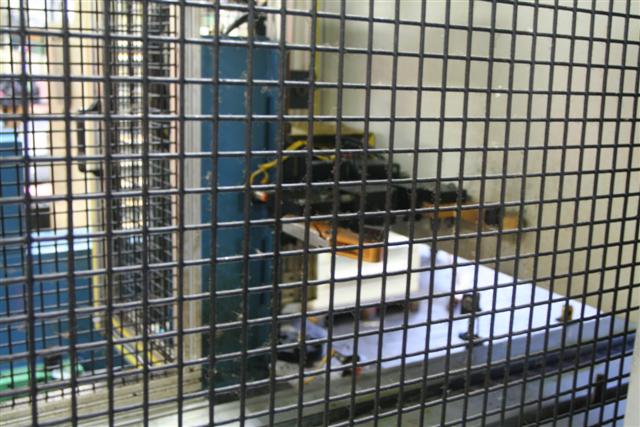

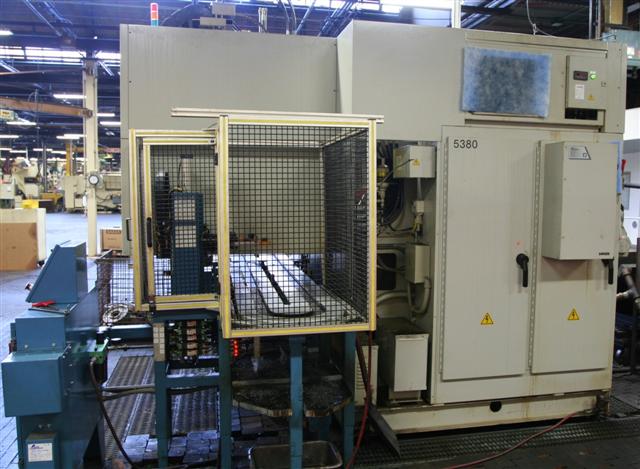

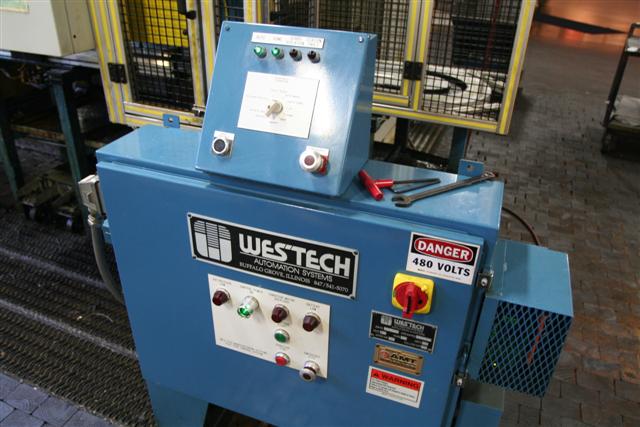

Wes-Tech Automated Systems "Tech-Trak" Pallet Transfer System With A Part Turnover Station. Approximately (12) 9" X 9.5" Pallets.
