Specifications
Equipped With
MACHINE SPECIFICATIONS:

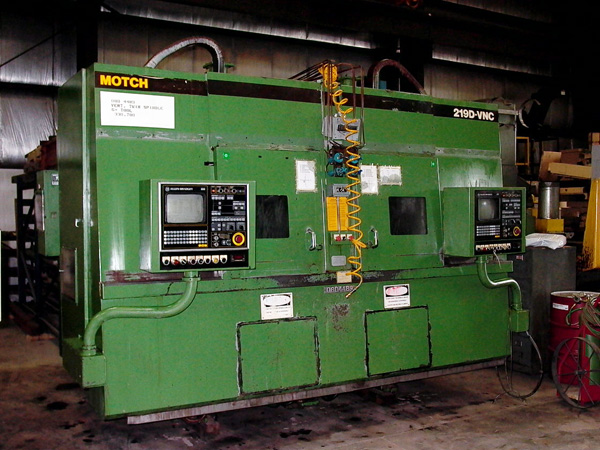

MANUFACTURER: .............................MOTCH
MODEL: ....................................219D-VNC
SERIAL #: .................................146885
AGE (YEAR): ...............................1985
SWING: ................................... 19"
SPINDLE: ................................. A2-11
MAX SPINDLE SPEED: ........................3000 RPM

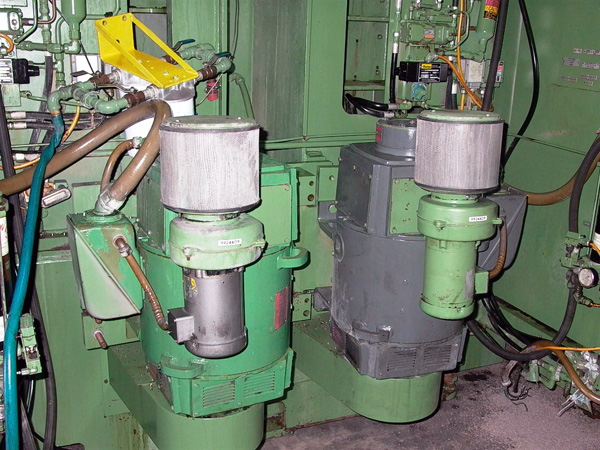

SPINDLE DRIVE: ............................50 HP PER SPINDLE
X-AXIS STROKE:.............................12.5"
Z-AXIS STROKE: ........................... 17"
MAX. FEED RATE: ...........................125 IPM
MAX TRAVERSE RATE:.........................300 IPM

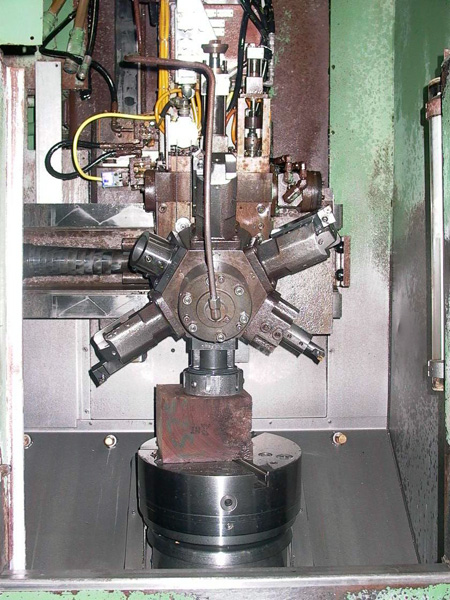

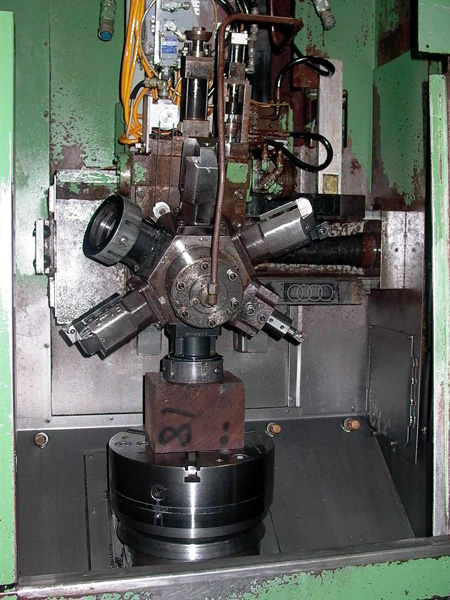

TURRETS: ..................................6 STATION PER SPINDLE
WEIGHT (APPROX.):......................... 24,000 LBS.
MACHINE DIMENSIONS (APPROX.):..............10' X 12' X 11' 4"
SHIPPING DIMENSIONS........................12'6" X 8' 11" X 9' 4"
ELECTRICS................................. 440 V
EQUIPPED WITH:
(2) SMW HYDRAULIC 3 JAW 16" CHUCKS

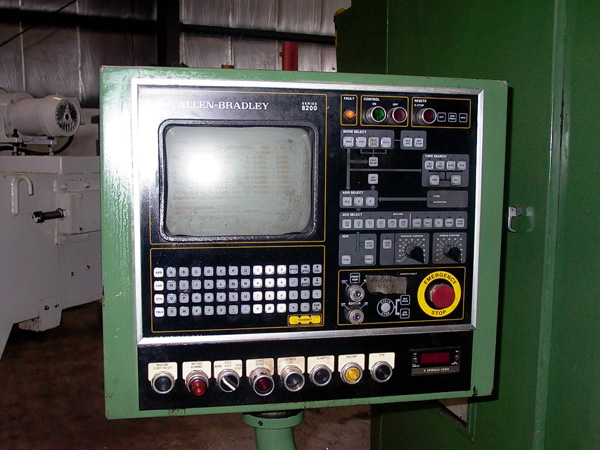

ALLEN BRADLEY 8200 CNC CONTROLS CONTROLS WITH CRT, CANNED CYCLES, AND RS-232 INTERFACE
OIL COOLER
ELEVATING CHIP CONVEYOR
PENDENT CONTROL
2-20 GALLON HYDRAULIC TANKS
