Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 26.8" / 20.1"
STANDARD TURNING DIAMETER / LENGTH 15.3" / 16.7"
MAXIMUM DISTANCE BETWEEN SPINDLES 29.6"
X AXIS TRAVEL (UPPER / LOWER TURRET) 9.3" / 6.9"
Z AXIS TRAVEL (UPPER / LOWER TURRET) 20.5" / 19.3"
C AXIS INDEXING (MAIN & SUB SPINDLE) 0.001º
RAPID TRAVERSE RATE X AXIS 708 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE NOSE (MAIN / SUB SPINDLE) A2-6/A2-5
SPINDLE BORE (MAIN / SUB SPINDLE) 2.4" / 1.8"
SPINDLE SPEEDS (MAIN SPINDLE) 40 - 4,000 RPM
SPINDLE SPEEDS (SUB SPINDLE) 60 - 6,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 15/10 HP AC

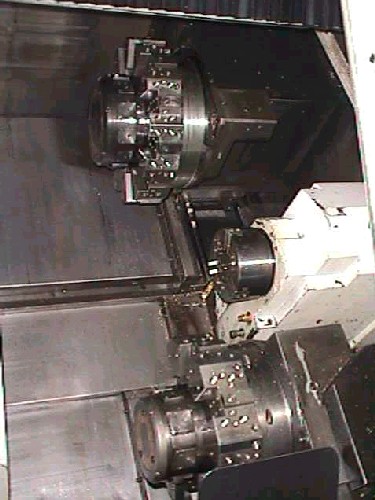

TURRET CAPACITY (UPPER / LOWER TURRET) 12 / 8 STATIONS
LIVE TOOLING MOTOR (UPPER / LOWER) 8.7 HP / 2.5 HP
LIVE TOOLING SPEEDS 3,000 RPM
EQUIPPED WITH:
FANUC 18iT CNC CONTROL WITH 9" CRT & RS-232C PORT
8" CHUCK ON MAIN, 5" CHUCK ON SUB SPINDLE
OVERHEAD GANTRY STYLE AUTOMATIC PARTS CATCHER
TWIN C-AXES, UNIVERSAL BARFEED INTERFACE
ALL AVAILABLE TOOL HOLDERS & MANUALS
