Specifications
Equipped With
GENERAL SPECIFICATIONS:

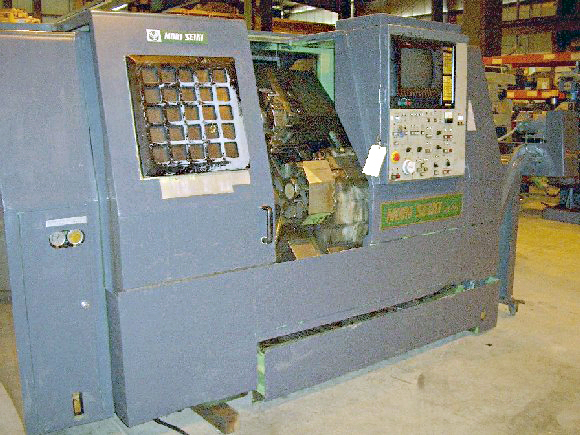

MANUFACTURER MORI SEIKI
MODEL ZL-15
SERIAL # 81
NEW (APPROX.) 1989
SWING OVER BED 18.9"
SWING OVER CROSS SLIDE 14.6"
DISTANCE BETWEEN CENTERS 23.4"
MACHINING DIAMETER MAX. 6.3"
MACHINING LENGTH MAX. 20.7"
HOLE THRU SPINDLE 1.6"
X AXIS TRAVEL UPPER 5.3"
X AXIS TRAVEL LOWER 3.9"
Z AXIS TRAVEL UPPER 22"
Z AXIS TRAVEL LOWER 22"
SPINDLE SPEED 50 - 5000 RPM
# OF TOOL POSITIONS UPPER 12
# OF TOOL POSITIONS LOWER 8
MAIN MOTOR 11 HP
EQUIPPED WITH:
FANUC 11TT 4-AXIS CONTROL
7" 3-JAW CHUCK
CHIP CONVEYOR
TAILSTOCK
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
