Specifications
Equipped With
SPECIFICATIONS:

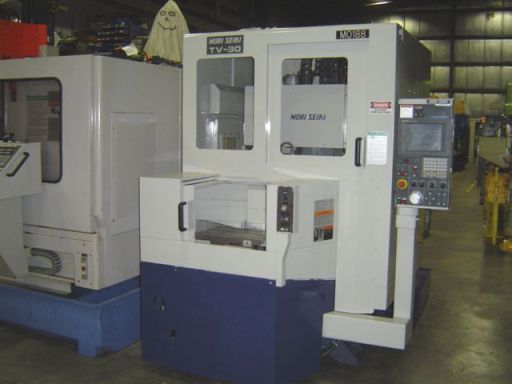

MANUFACTURER................................ MORI SEIKI
MODEL....................................... TV-30
YEAR NEW.................................... 1997
S.N. ....................................... TV30-570
TRAVELS (X)................................. 16.5" (419 MM)
(Y)................................. 11.8" + 2.4" (300MM + 61 MM)
(Z)................................. 9.8" 249 MM)
TABLE SURFACE............................... 23.6" x 13.4"
TABLE LOAD CAPACITY......................... 330 LBS
RAPID TRAVERSE...............................1890 IPM
FEEDRATE.....................................472.4 IPM
JOG FEEDRATE.................................0-50 IPM
SPINDLE MOTOR............................... 5 HP / 7.5 HP.
SPINDLE SPEED............................... 8000 RPM
SPINDLE TAPER............................... BT-30
TOOLCHANGER................................. 10 ATC
TOOL CHANGE TIME............................ 1.4 SEC(TOOL TO TOOL)
EQUIPPED WITH:
MORI SEIKI MSC-803 CNC CONTROL

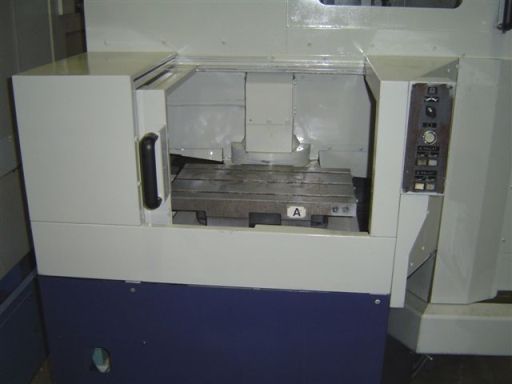

ROTARY PALLETS

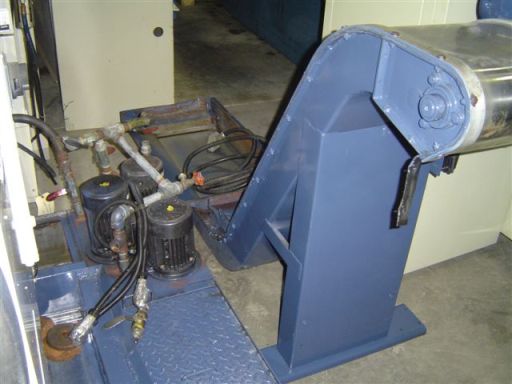

COOLANT TANK
