Specifications
Equipped With
GENERAL SPECIFICATIONS:

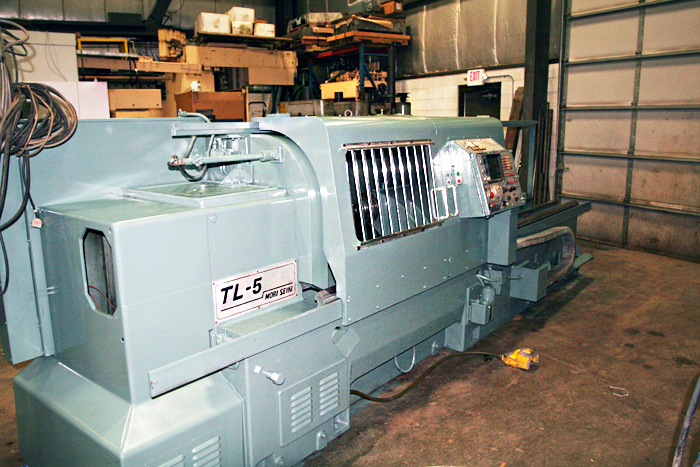

MODEL: TL-5A
SERIAL #: 799
AGE: 1980
MAX SWING: 18" (450 MM)
SWING OVER CARRIAGE: 14.9" (380 MM)
BETWEEN CENTERS: 122" (3100 MM)
MAX. LONGITUDINAL TRAVEL: 116" (2950 MM)
MAX. CROSS TRAVEL: 9 1/4" (235 MM)
HEIGHT FROM FLOOR TO CENTER LINE: 43.3" (1100 MM)
SPINDLE NOSE: A2-8
SPINDLE TAPER: M.T.-7
HOLE THRU SPINDLE: 3" (77 MM)
SPINDLE BEARING: 4.7" (120 MM)
SPINDLE SPEED RANGE: 17 - 2000 RPM

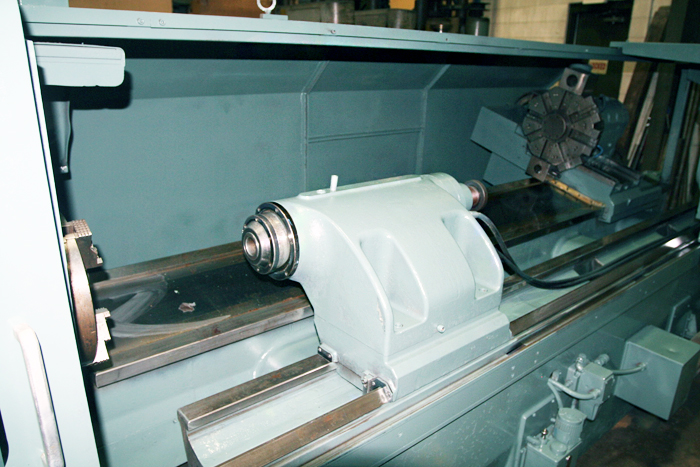

TAIL STOCK QUILL DIA: 4.33" (110 MM)
TAIL STOCK QUILL TAPER: M.T.-4
TAIL STOCK QUILL STROKE: 4" (100 MM)

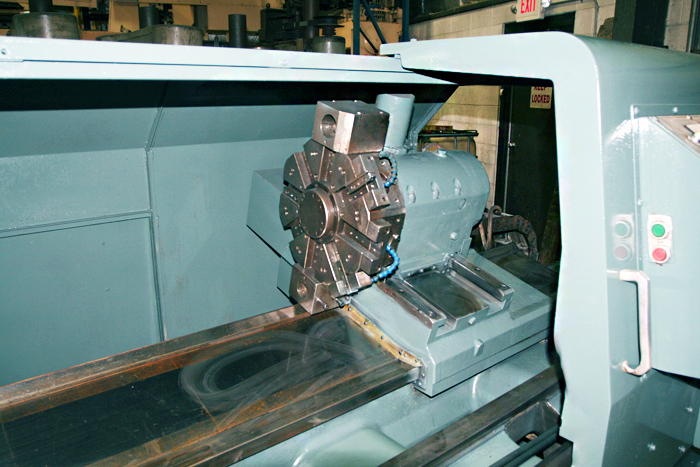

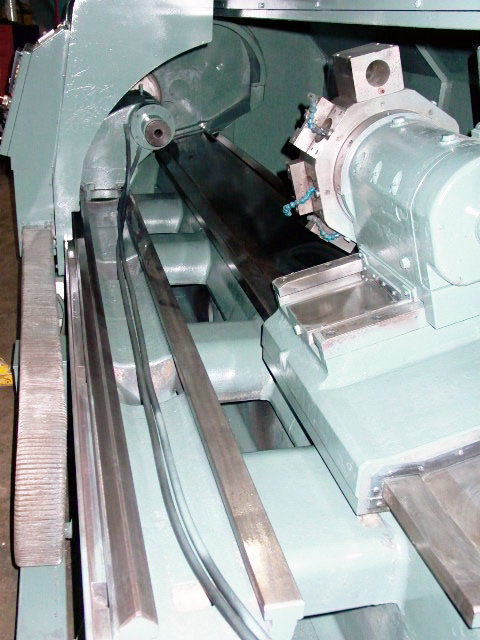

TURRET INDEXING STATIONS: 8
TURRET TOOL POSITIONS: 8
STANDARD CUTTING TOOL DIMENSIONS: 1" (25 MM)
CURVIC COUPLING DIA: 10" (250 MM)
MAIN MOTOR: DC 18.5 KW
WEIGHT: 16,500 LBS (7500 KG)

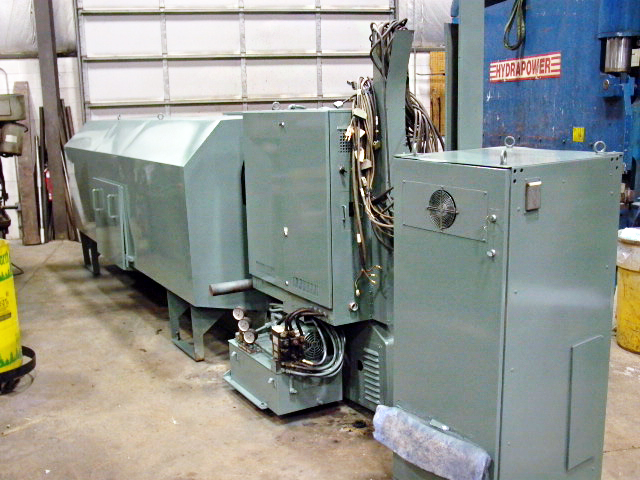

ELECTRICS: 3 PHASE
3 WIRE
220 VOLTS
CYCLE: 60 HZ
LOAD: 44 KVA
EQUIPPED WITH:

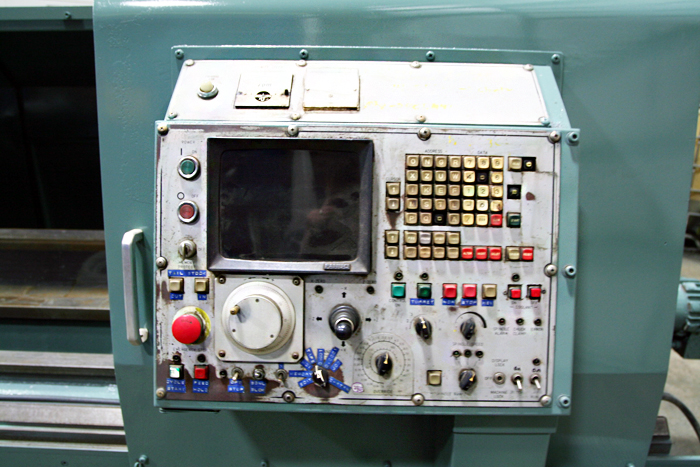

FANUC CONTROLS 6T

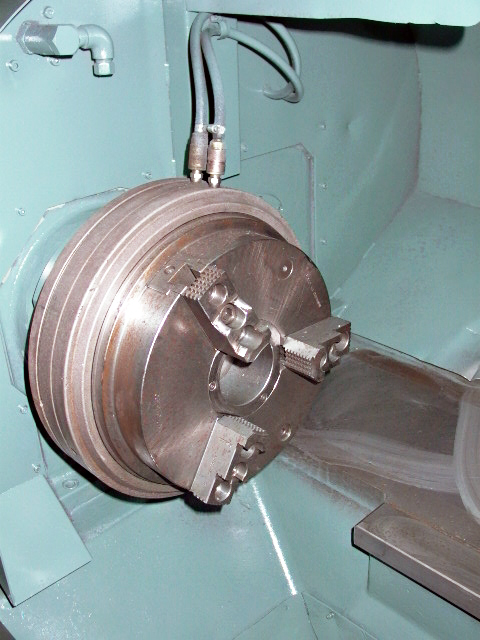

12" PNEUMATIC 3 JAW CHUCK

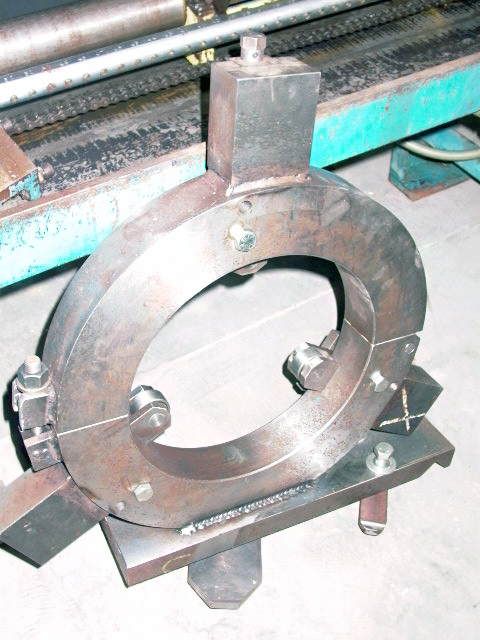

12" STEADY REST
ASSORTED CHUCK JAWS
CHIP CONVEYOR
