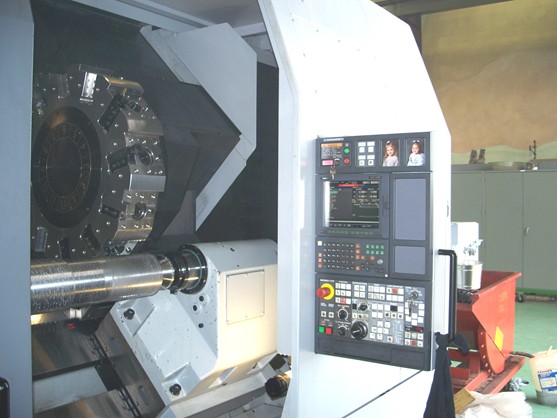

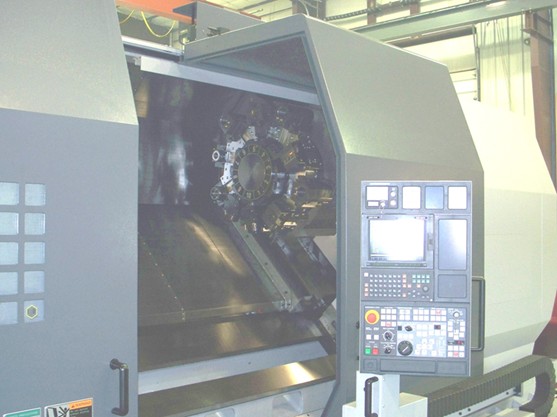

MORI SEIKI SL603D/1000, 35" SWING, 50" CENTERS, 14.5" HOLE, FANUC 18iTA CONTROL, 2-32" 4 JAW CHUCKS WITH 15" HOLES

SPECIFICATIONS:

Maximum Turning Diameter ........................... 35.4"
Between Centers .................................... 51.2"
Spindle Bore ....................................... 14.6"
FANUC 18iTA Controller
Main Spindle (3 Speed) ............................. 50 HP, 700 RPM
12 Station Turret
Built in Manual Tool Presetter
Complete Coolant System
Halogen Worklight
Completely Enclosing Covers
Chip Conveyor Interface and Cover
Toolholder Set

EQUIPPED WITH:

Side Discharge Hinge Type Chip Conveyor "SCA" 32" 4-Jaw Manual Chuck, 15" Through Hole Front Side "SCA" 32" 4-Jaw Manual Chuck, 15" Through Hole Rear Side TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
