Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.................... MORI SEIKI
MODEL........................... SL-303A/700
SERIAL NUMBER................... 871
NEW............................. 2001
SWING OVER BED.................. 19.69"
MAX. TURNING DIAMETER........... 16.53"
MAX. TURNING LENGTH............. 28.27"
DISTANCE BETWEEN CENTERS........ 35"
BAR CAPACITY.................... 2"
SPINDLE HOLE.................... 3.38"
SPINDLE TAPER................... A2-8
X AXIS TRAVEL................... 9.84"
Z AXIS TRAVEL................... 31.5"
RAPID TRAVERSE X................ 590 IPM
RAPID TRAVERSE Z................ 945 IPM
SPINDLE SPEED................... 35 - 3500 RPM
SPINDLE MOTOR................... 20/25 HP

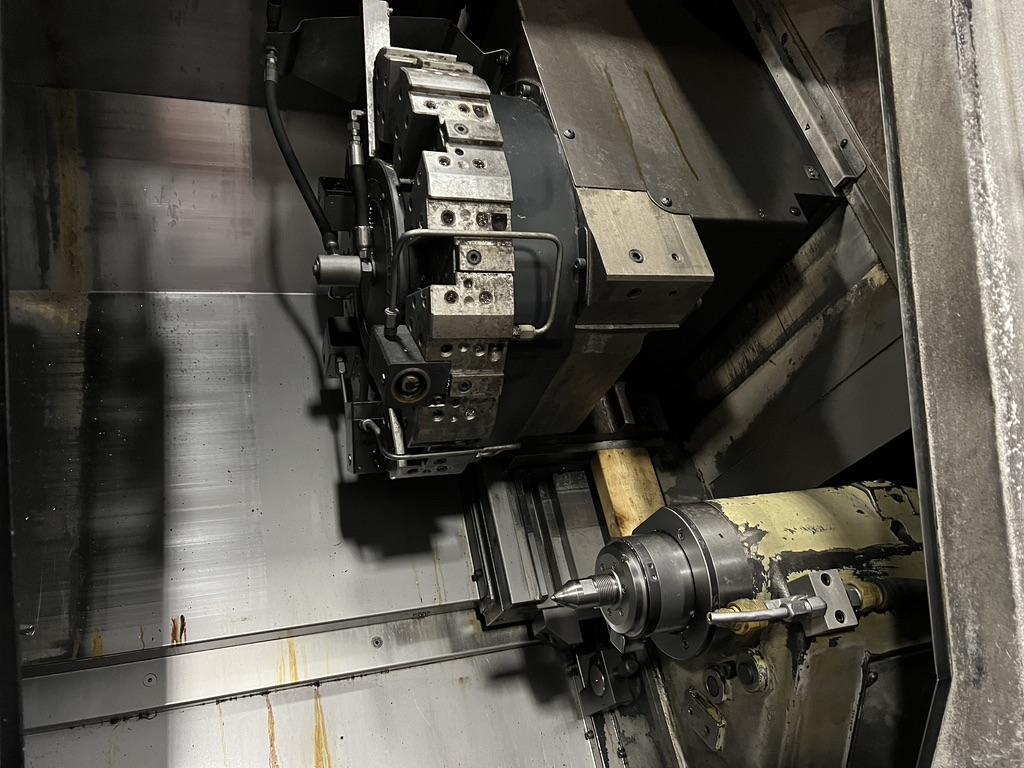

TURRET POSITIONS................ 12
TAILSTOCK QUILL TAPER........... MT #5
APPROXIMATE WEIGHT.............. 15,000
APPROXIMATE DIMENSIONS.......... 108" X 74"
EQUIPPED WITH:

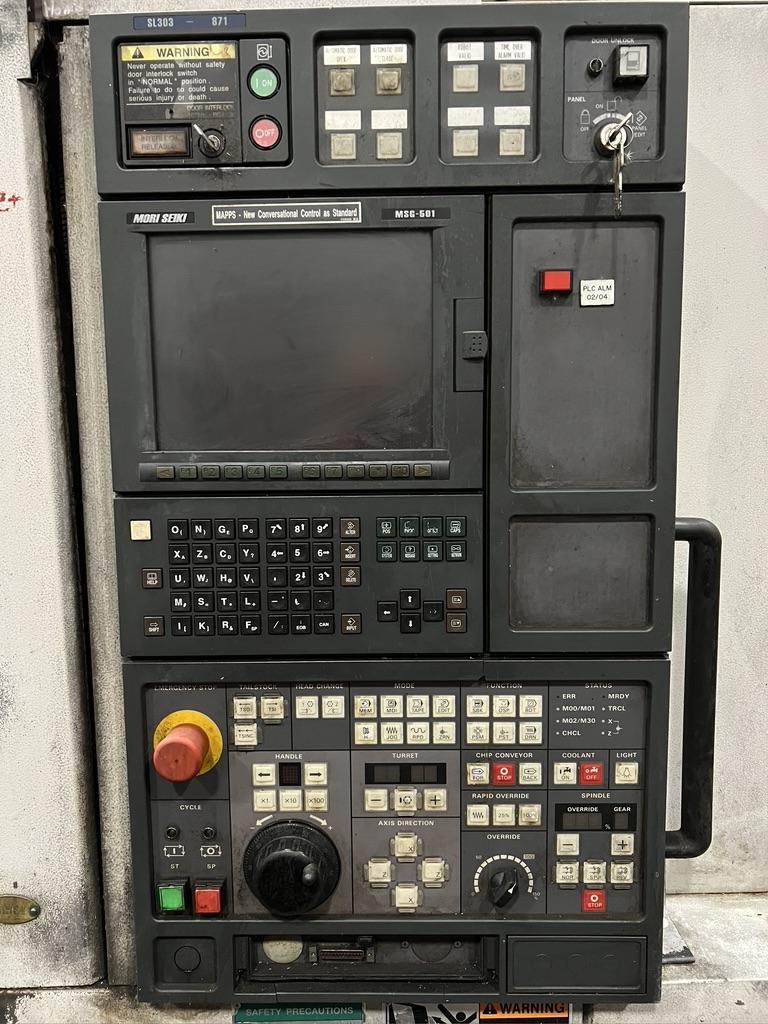

MSG-501 (FANUC 18i-TA) CNC CONTROL WITH MAPPS CONVERSATIONAL SOFTWARE

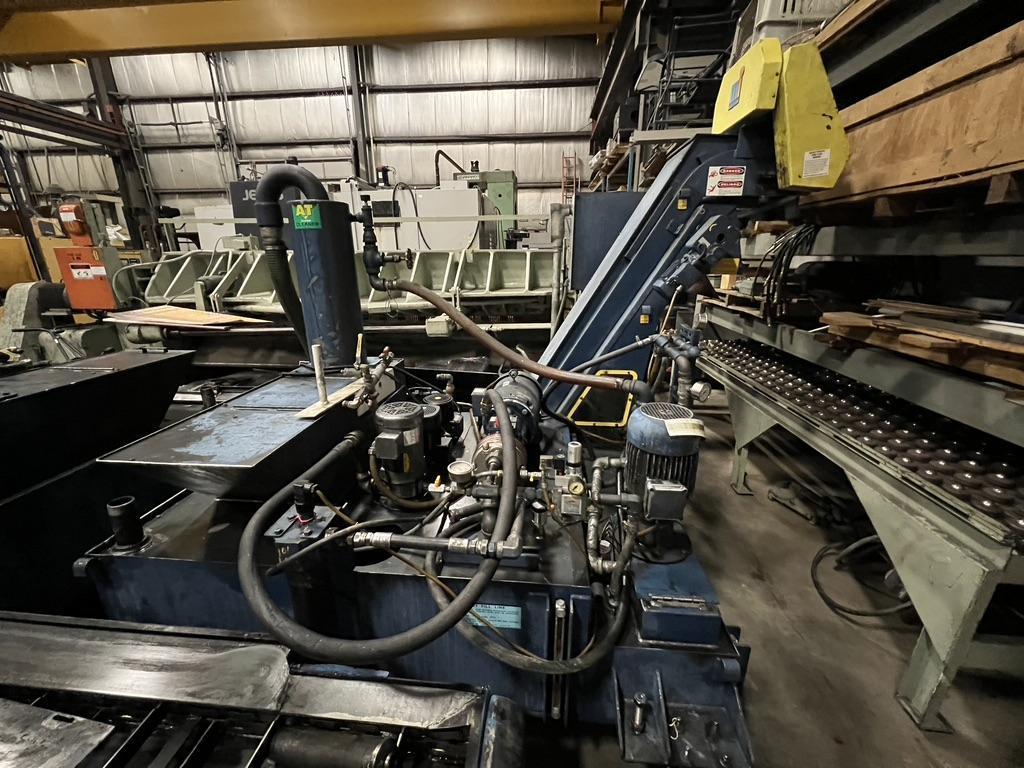

CHIP CONVEYOR/COOLANT SYSTEM WITH CHIP DRY TECHNOLOGY
TOOL SETTER

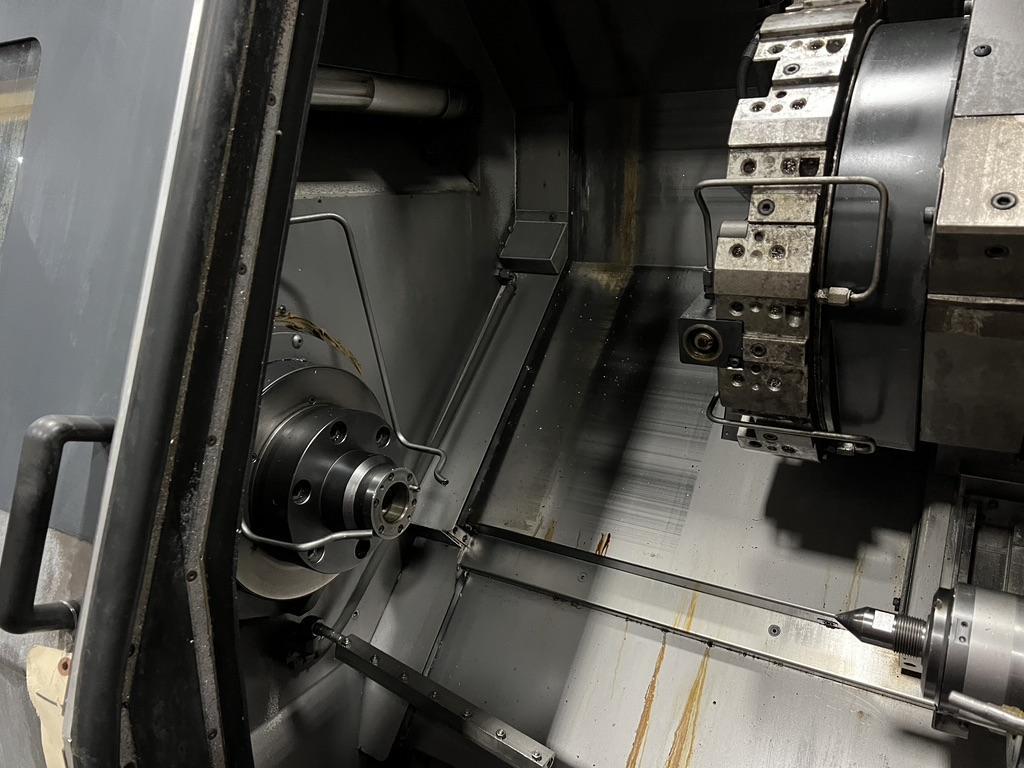

PROGRAMMABLE TAILSTOCK WITH LIVE SPINDLE CENTER
MISC. TOOLING AND MANUALS
220/440 TRANSFORMER
