Specifications
Equipped With
GENERAL SPECIFICATIONS

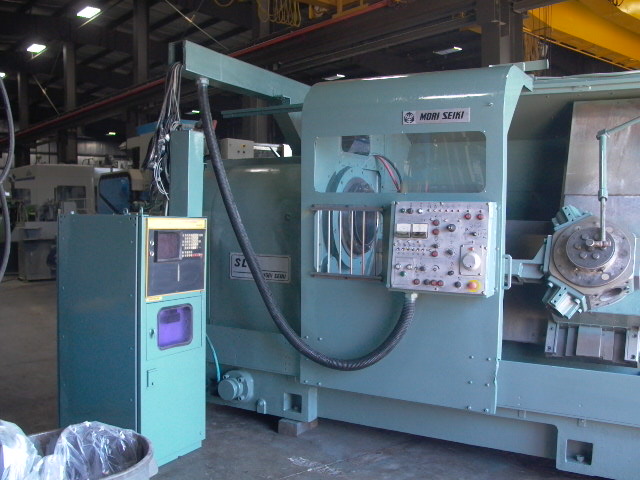

MANUFACTURER..........................MORI SEIKI
MODEL.................................SL-8C
NEW...................................1981
SWING OVER BED........................39.3"
SWING OVER CARRIAGE...................35.4”
MAX. MACHINING DIAMETER...............35.4”
MAX. LONGITUDINAL TRAVEL..............43.3”
MAX. CROSS TRAVEL.....................16.5”
SPEED RANGE...........................6 - 370 RPM
SPINDLE NOSE..........................A2-20
SPINDLE BORE..........................14.5”
BED’S SLANT...........................60 degrees

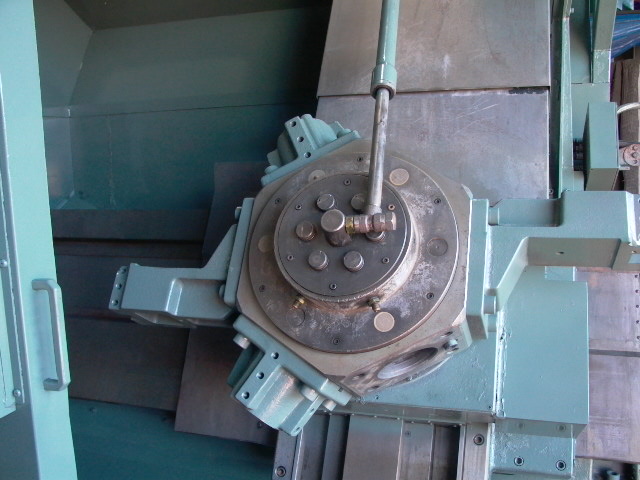

TURRET STATIONS.......................6
MAIN MOTOR............................60 HP
MACHINE WEIGHT........................35,200 LBS
EQUIPPED WITH:

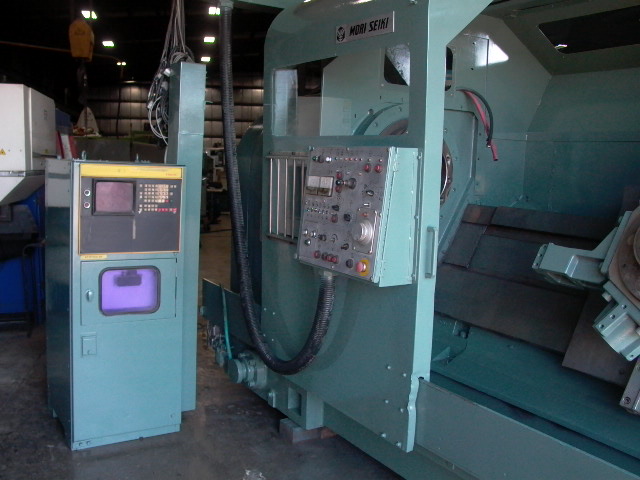

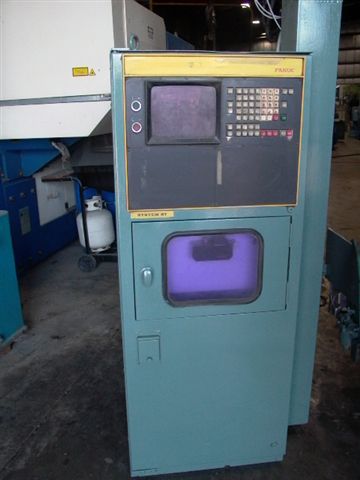

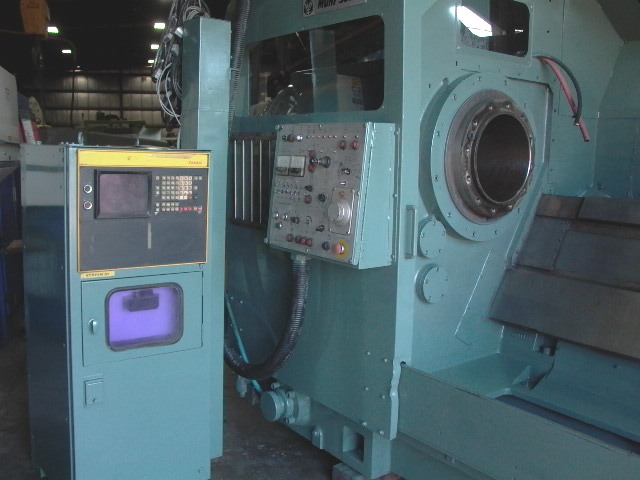

FANUC 6TB CONTROL WITH CRT

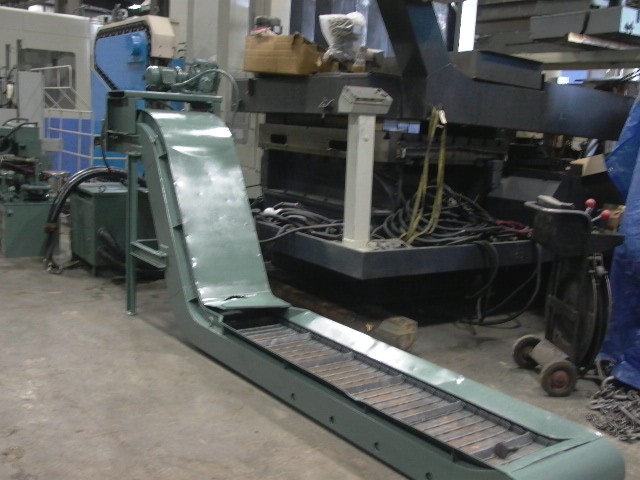

CHIP CONVEYOR
3 OD TOOLHOLDERS
3 ID TOOLHOLDERS
CHIP CONVEYOR
