Specifications
Equipped With

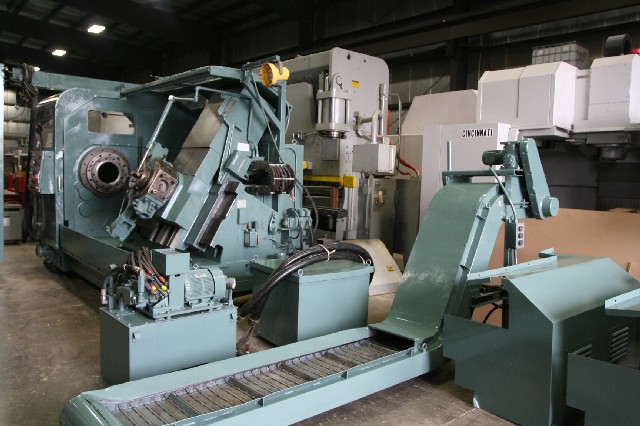

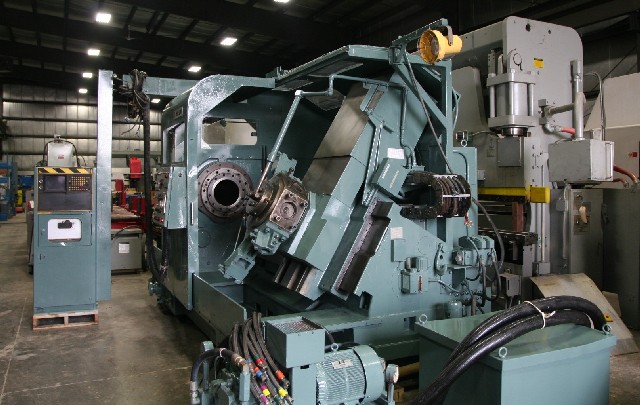

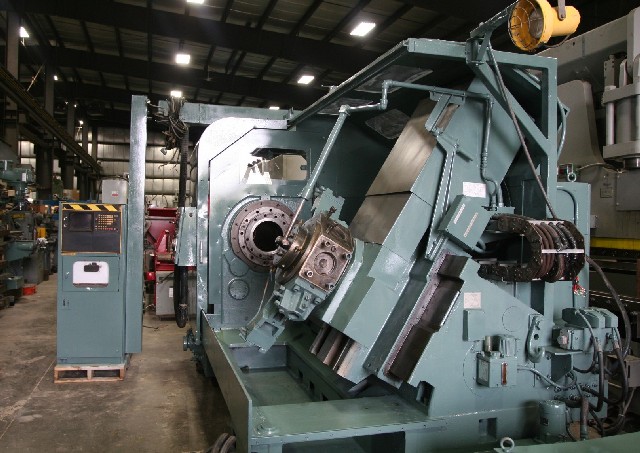

GENERAL SPECIFICATIONS:
MANUFACTURER MORI SEIKI
MODEL SL-8B
SERIAL NUMBER 47
AGE APPROXIMATELY 1980
SWING OVER BED 39.3"
SWING OVER CARRIAGE 35.4"
MAX MACHINING DIAMETER 35.4"
MAX LONGITUDINAL TRAVEL 43.3"
MAX CROSS TRAVEL 16.5"
SPEED RANGE 10 TO 550 RPM
SPINDLE NOSE A1-20
SPINDLE BORE 10.5"
BED'S SLANT 60 DEGREES
TURRET STATIONS 6
MASIN MOTOR 60 HP
MACHINE WEIGHT 35,200
EQUIPPED WITH:

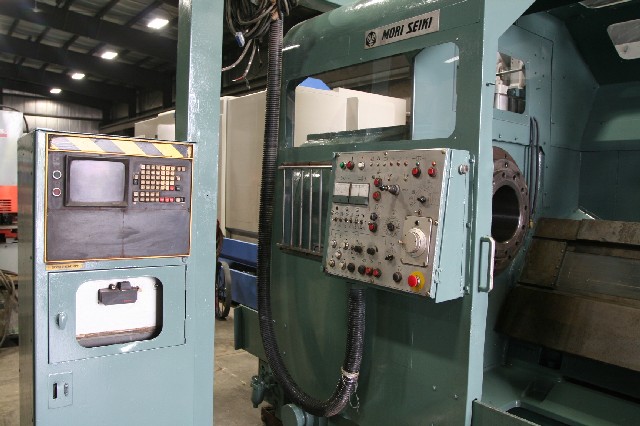

FANUC 6T CONTROL WITH CRT
CHIP CONVEYOR
3 OUTSIDE DIAMETER TOOLHOLDERS
3 INSIDE DIAMETER TOOLHOLDERS

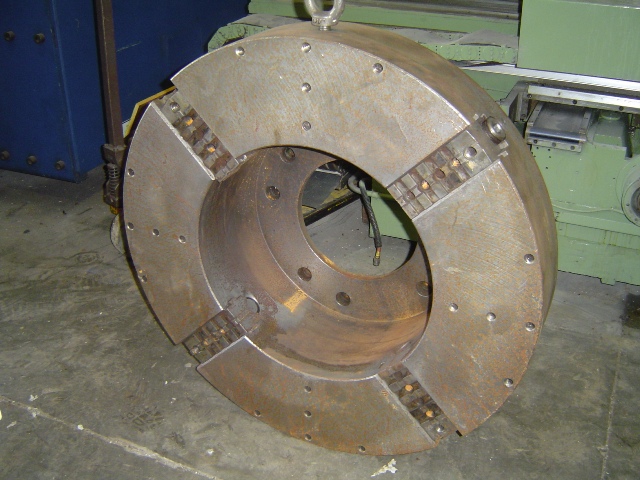

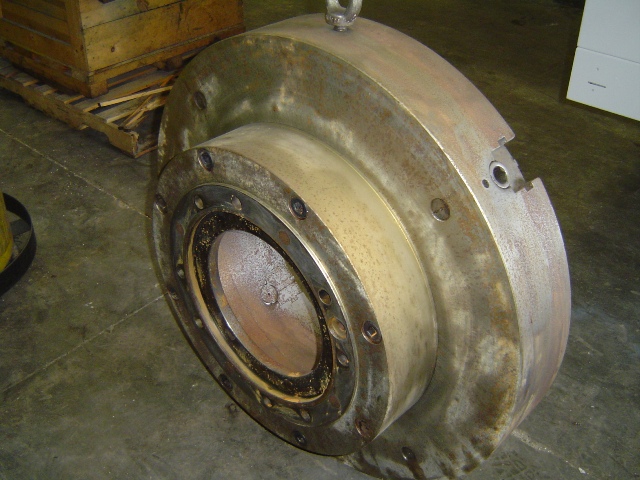

39" MANUAL 4 JAW CHUCK WITH A 22" HOLE WITH AN ADAPTER WITH A 12" HOLE TO FIT THIS MACHINE IS AVAILABLE FOR $7,500 ADDITIONAL
ALSO

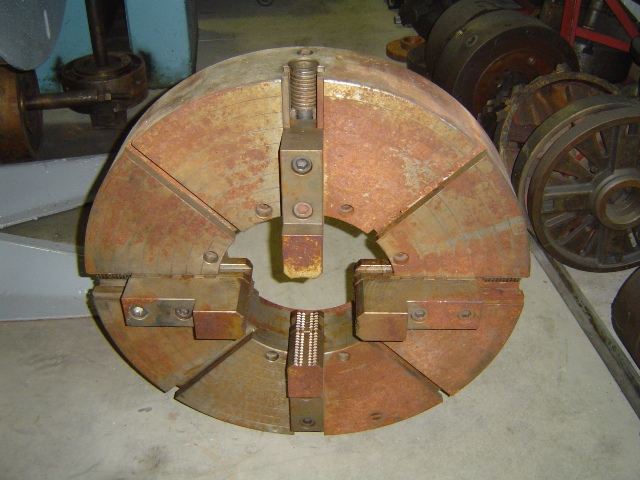

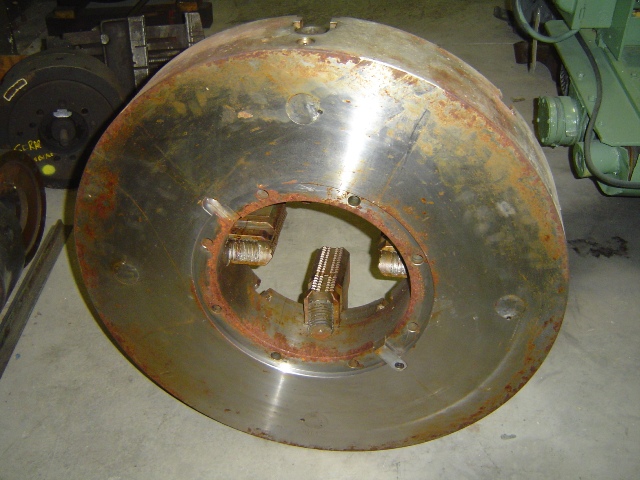

30" MANUAL 4 JAW CHUCK WITH A 12" HOLE THIS CHUCK WOULD NEED AN ADAPTER FOR MOUNTING TO THE MACHINE. CHUCK IS AVAILABLE FOR AN ADDITIONAL $4500.00.
