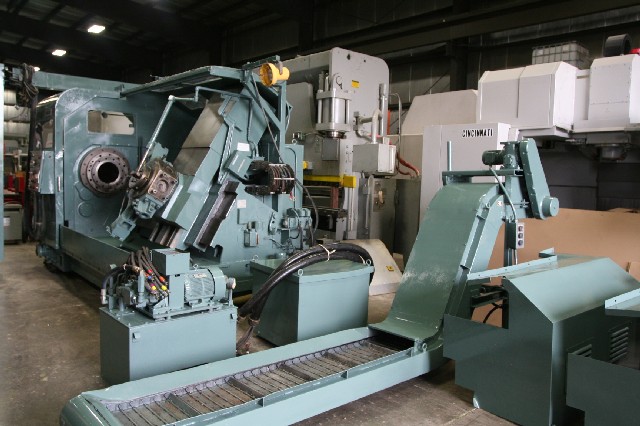

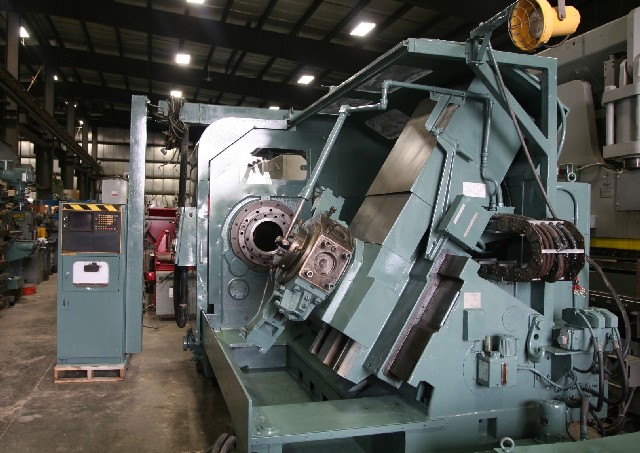

MORI SEIKI SL-8B, 10.5" SPINDLE BORE, FANUC 6T CNC CONTROL, 6 POSITION TURRET

GENERAL SPECIFICATIONS
MANUFACTURER..........................MORI SEIKI
MODEL.................................SL-8B
SERIAL NUMBER.........................47
AGE...................................1980
SWING OVER BED........................39.3”
SWING OVER CARRIAGE...................35.4”
MAX. MACHINING DIAMETER...............35.4”
MAX. LONGITUDINAL TRAVEL..............43.3”
MAX. CROSS TRAVEL.....................16.5”
SPEED RANGE...........................10 - 550 RPM
SPINDLE NOSE..........................A1-20
SPINDLE BORE..........................10.2”
BED’S SLANT...........................60 degrees
TURRET STATIONS.......................6
MAIN MOTOR............................60 HP
MACHINE WEIGHT........................35,200 LBS

EQUIPPED WITH:

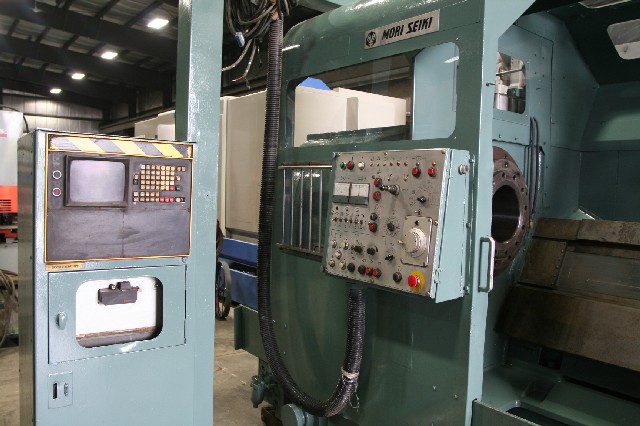

FANUC 6T CONTROL WITH CRT
CHIP CONVEYOR
3 OUTSIDE DIAMETER TOOLHOLDERS
3 INSIDED DIAMETER TOOLHOLDERS
