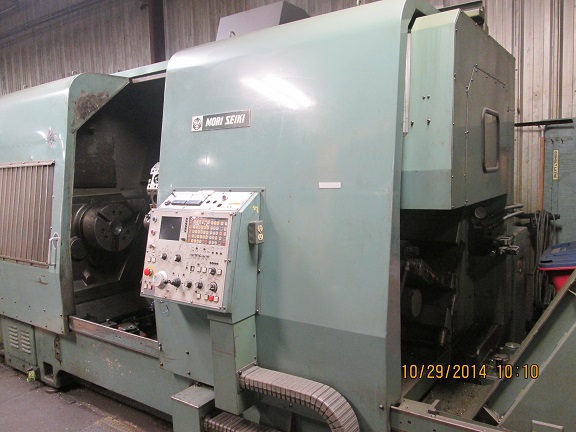

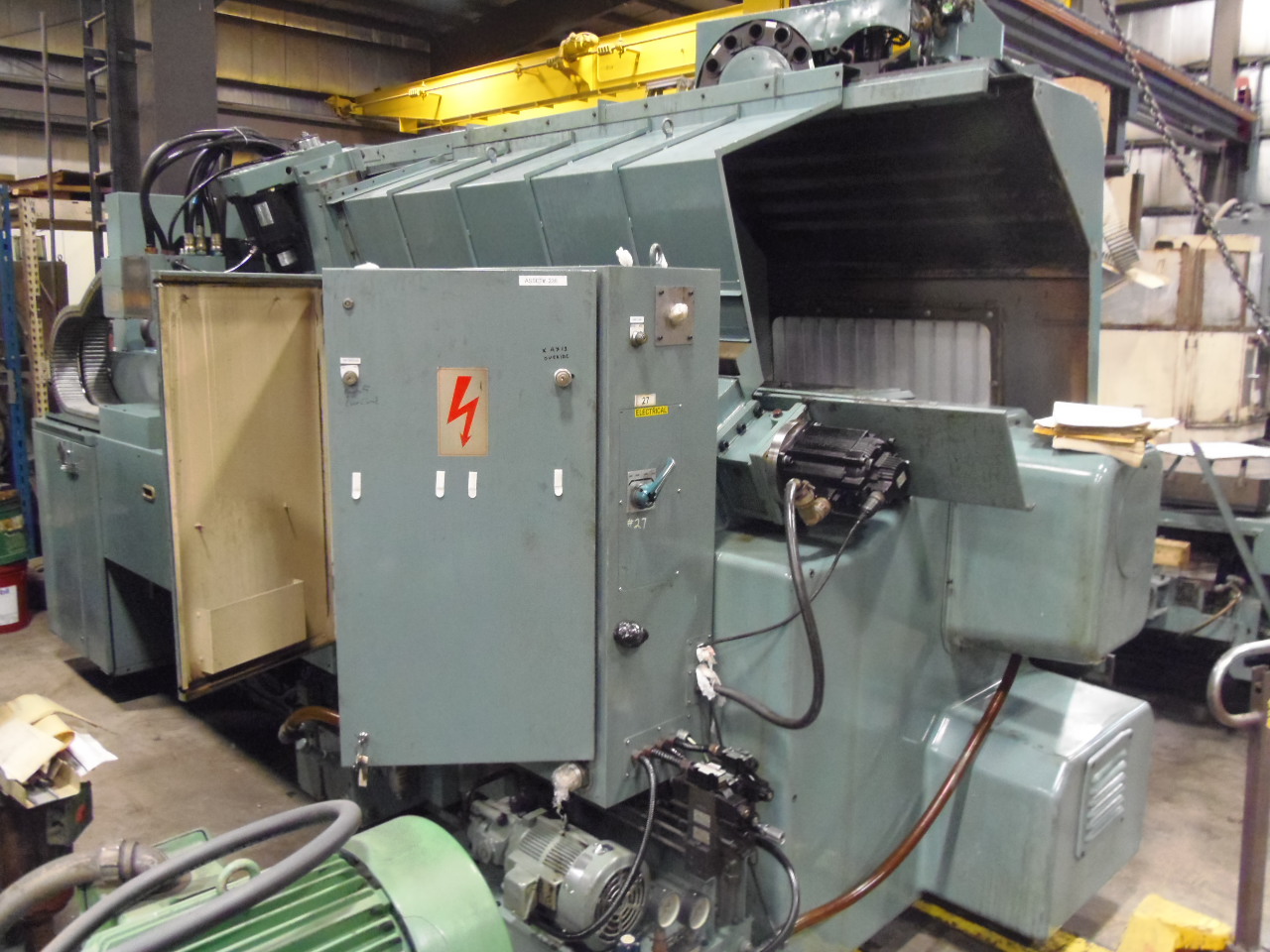

GENERAL SPECIFICATIONS
MAKE........................................ MORI SEIKI
MODEL....................................... SL-7A
MAX SWING OVER THE BED...................... 35.8"
MAX SWING OVER THE CARRIAGE................. 22.8"
MAX CROSS TRAVEL (X-AXIS)................... 15.75"
MAX LONGITUDINAL TRAVEL (Z-AXIS)............ 61.0"
MAX BETWEEN CENTERS......................... 68.8"
SPINDLE NOSE................................ A-1-11
HOLE THROUGH SPINDLE........................ -- "
PROGRAMMABLE SPINDLE SPEED.................. 10-1,800 R.P.M.
SPINDLE INSIDE TAPER........................ 4.44" DIA. 1/20 TAPER
SPINDLE BEARING DIAMETER.................... 6.7"
MAIN SPINDLE MOTOR (30 MIN./CONT.).......... D.C. 50 HP/D.C. 40 HP
BEDWAYS OVERALL WIDTH (60 SLANT)............ 39.15"
X-AXIS BALL SCREW DIAMETER.................. 1.42"
Z-AXIS BALL SCREW DIAMETER.................. 2.36"
TAILSTOCK QUIL DIAMETER..................... 6.3"
TAILSTOCK QUIL TAPER(BUILT-IN LIVE CENTER).. M.T. NO. 5
TAILSTOCK QUIL STROKE (PROGRAMMABLE)........ 5.9"
TAILSTOCK STROKE BASE STROKE(PROGRAMMABLE).. 59"
TAILSTOCK QUIL THRUST....................... 6,600 LBS

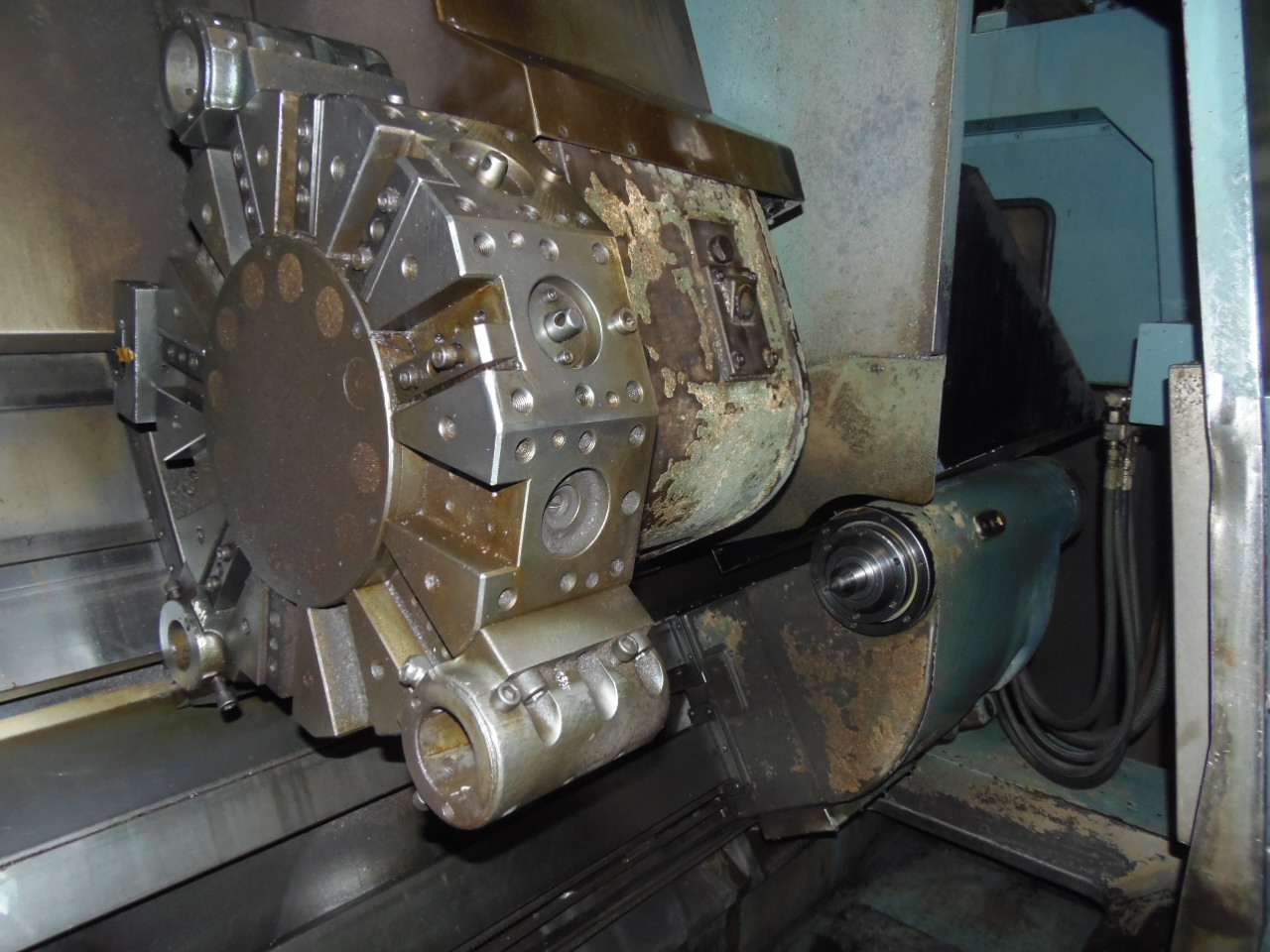

CURVIC COUPLING DIAMETER.................... 12.6"
TURRET TOOL POSITIONS....................... 12 TOOLS
TURRET INDEXING SYSTEM...................... BI-DIRECTIONAL (RANDOM)
TOOL POST CLAMPING FORCE.................... 26,400 LBS
STANDARD SIZE OF CUTTING TOOLS.............. 1-1/4" SQ
POWER CONSUMPTION........................... 80 KVA
FLOOR SPACE REQUIREMENT..................... 234"(L)X113"(W)
MACHINE NET WEIGHT.......................... 26,400 LBS
EQUIPPED WITH:

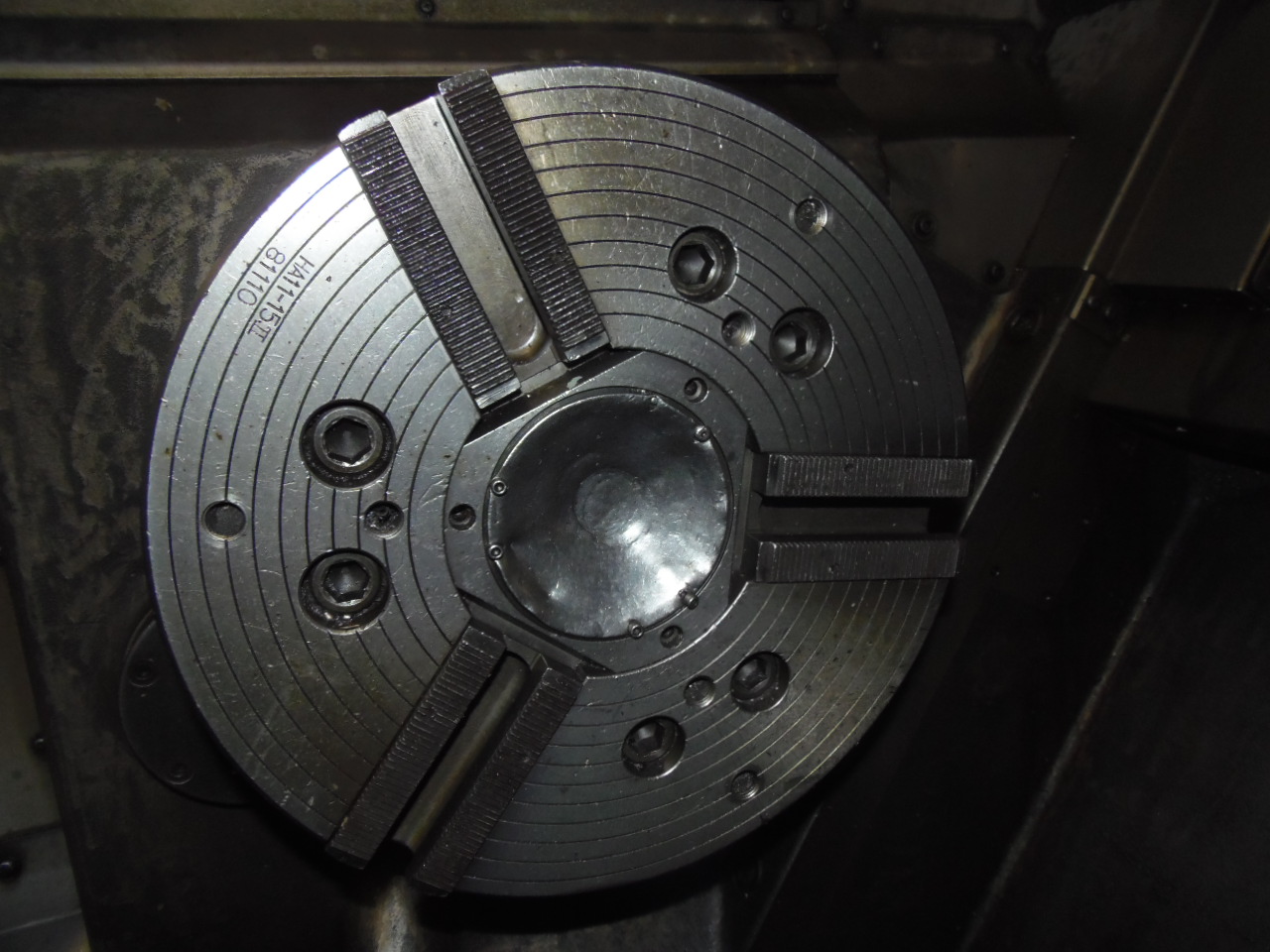

15" HYDRAULIC CHUCK

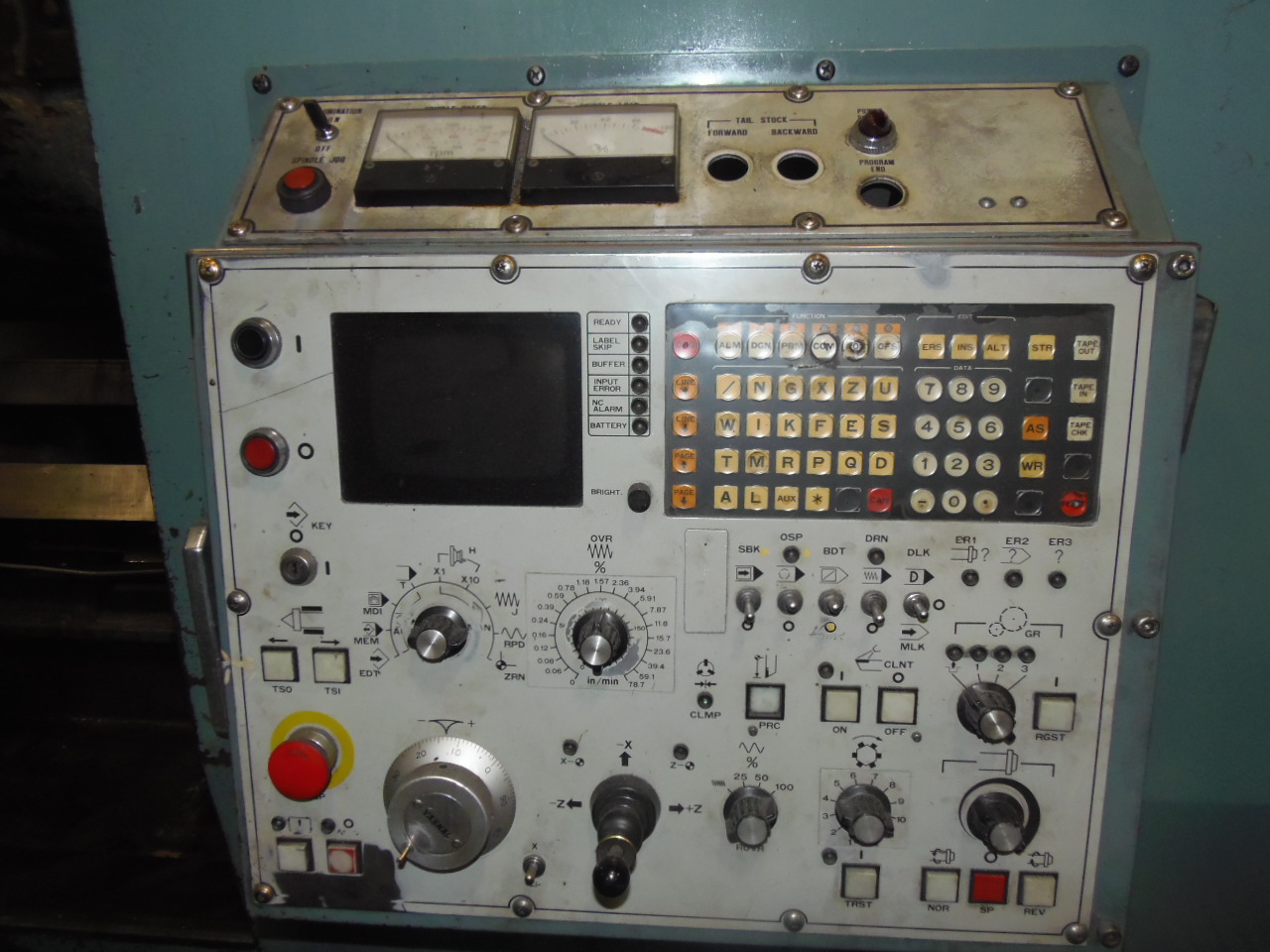

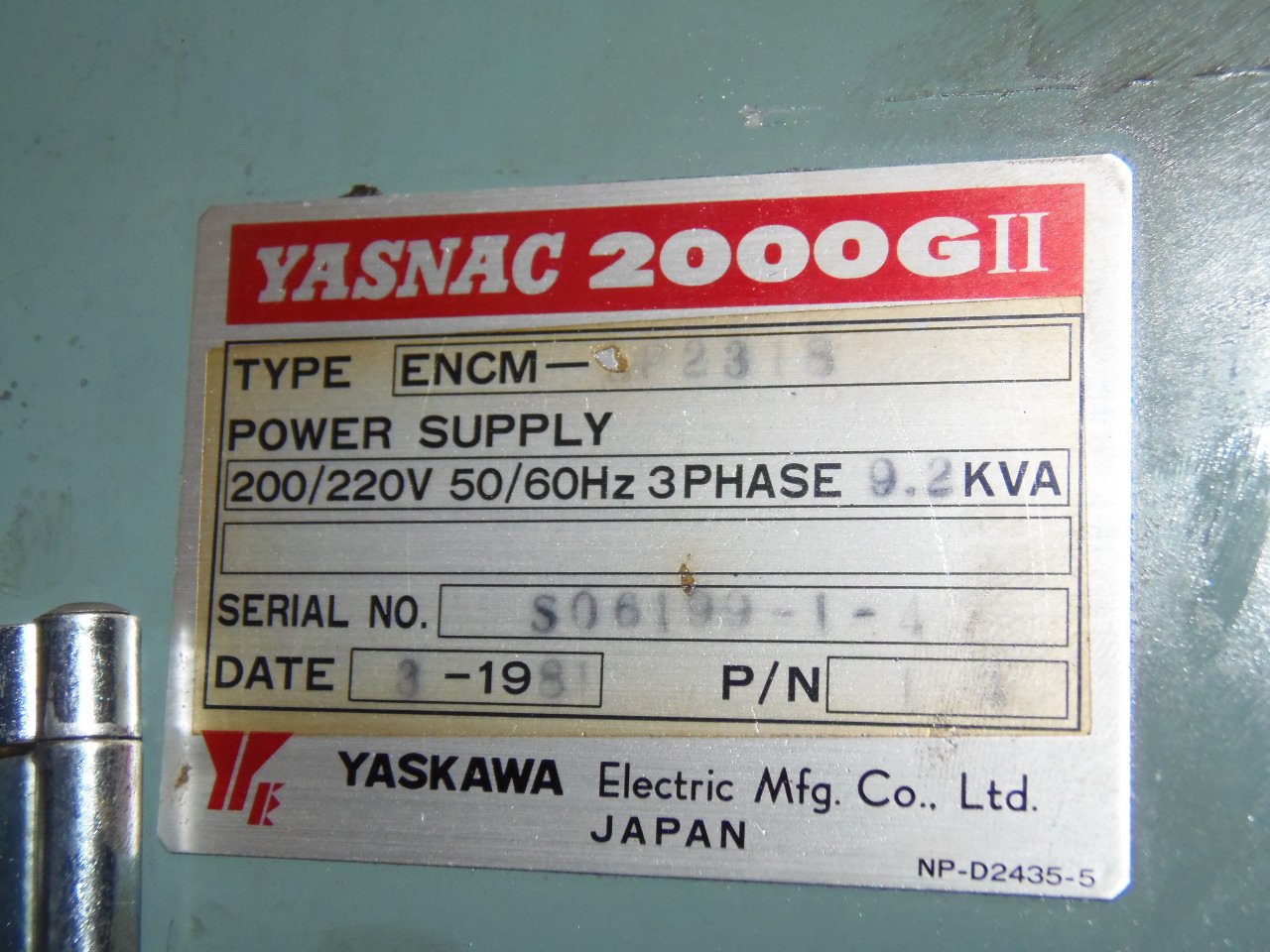

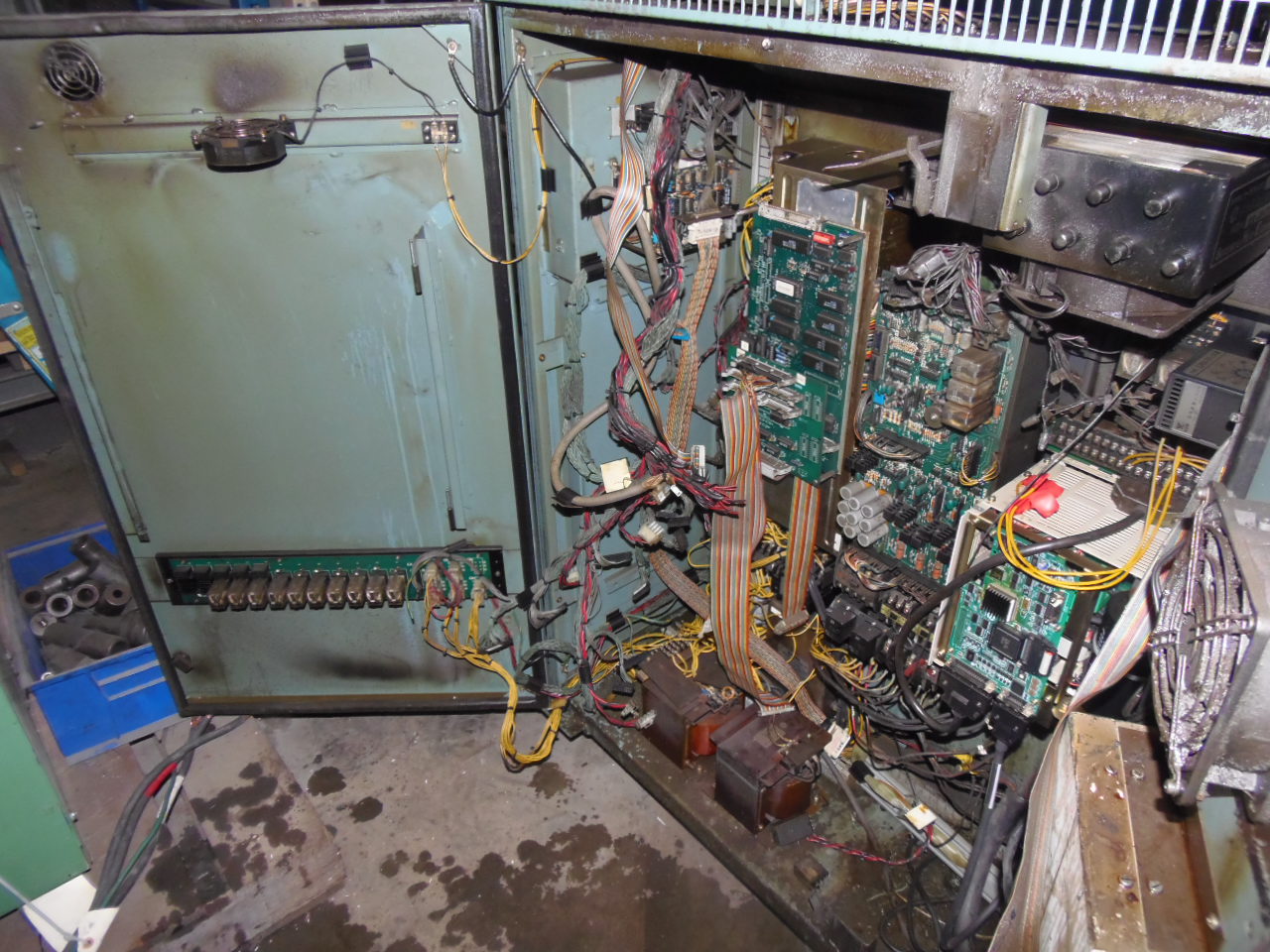

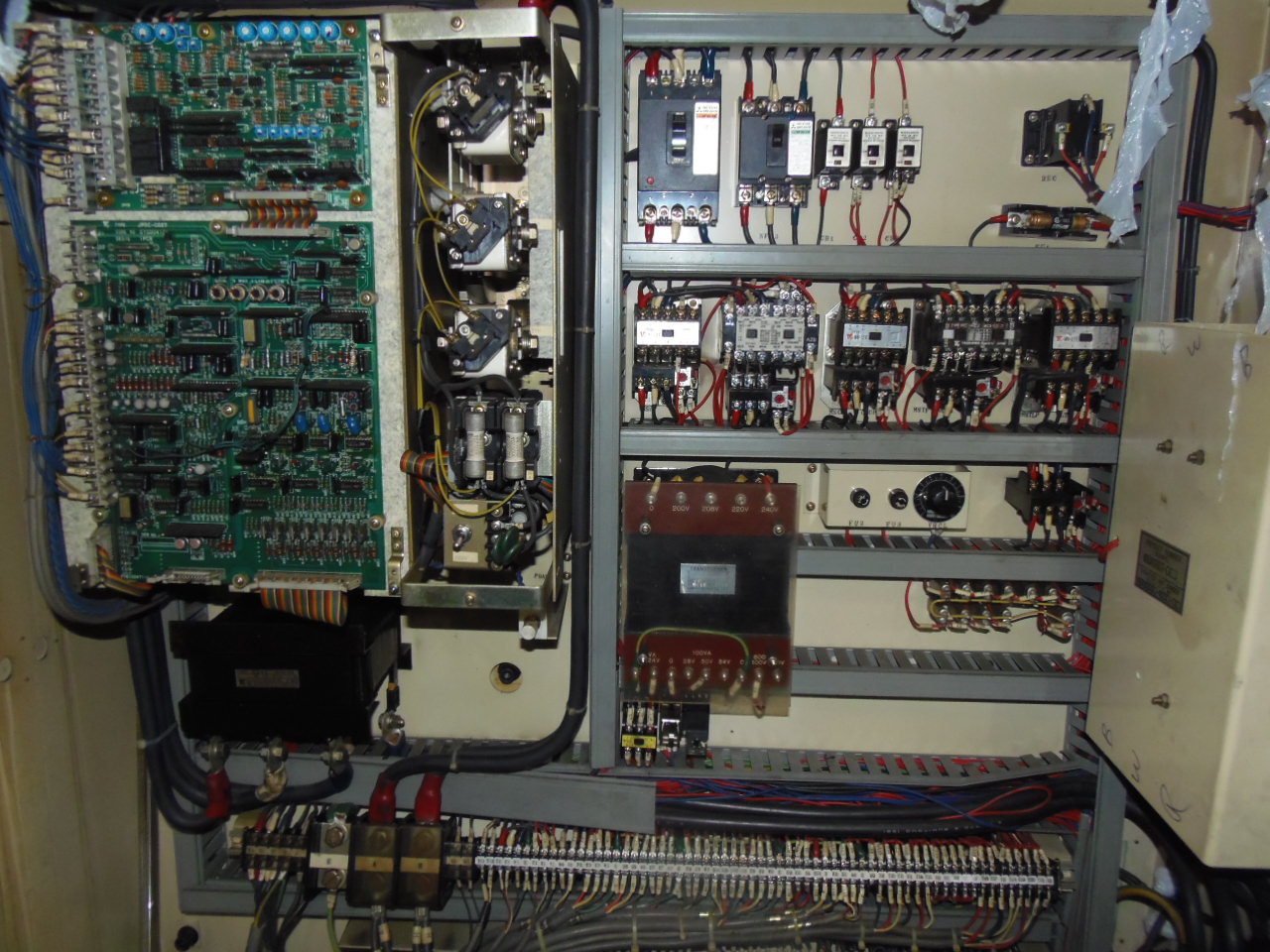

YASNAC 2000 CONTROL

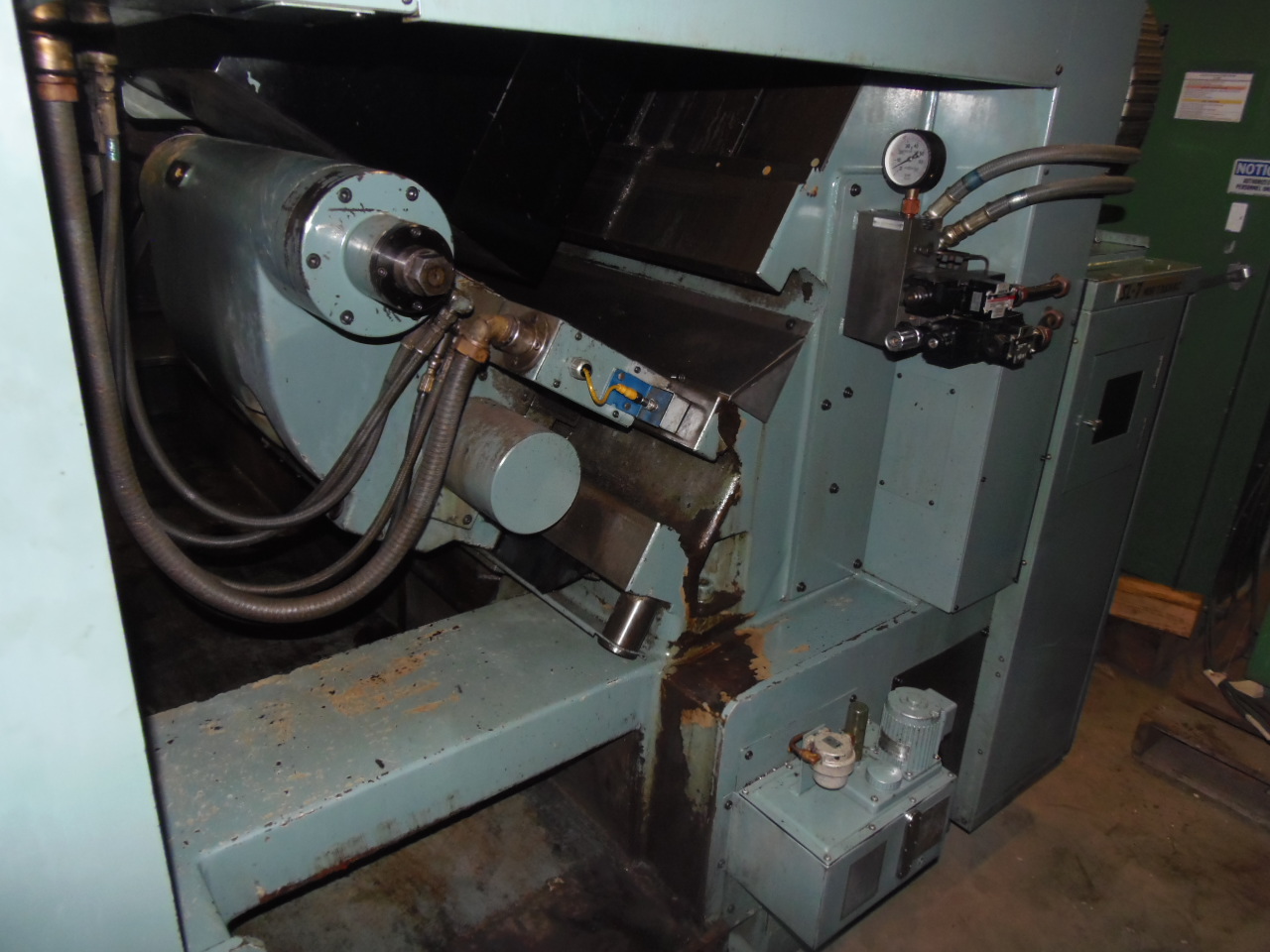

HYDRAULIC TAILSTOCK
SPECIFICATIONS SUBJECT TO VERIFICATION
