Specifications
Equipped With
GENERAL SPECIFICATIONS:

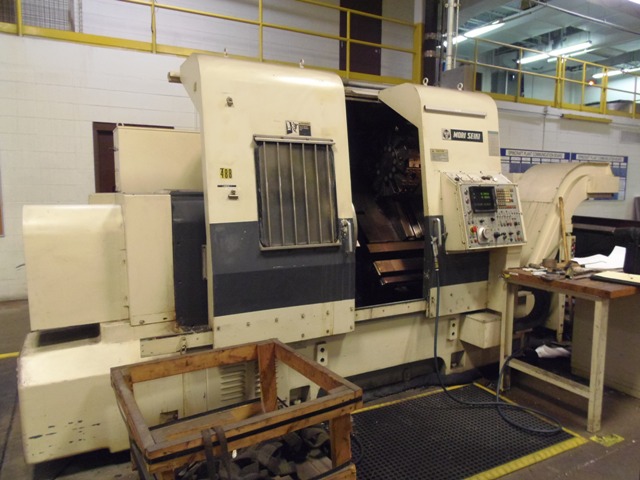

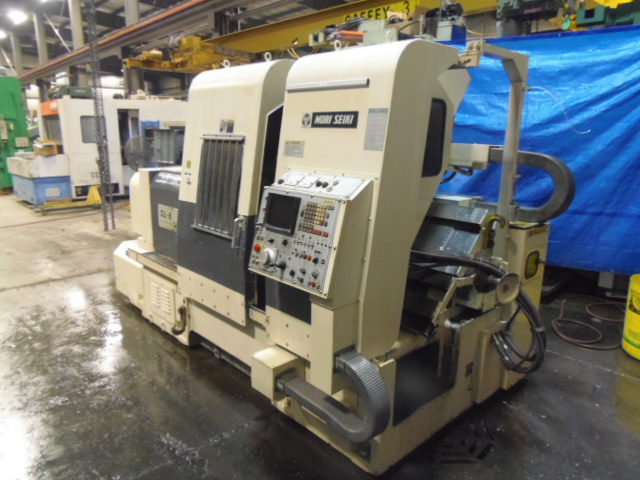

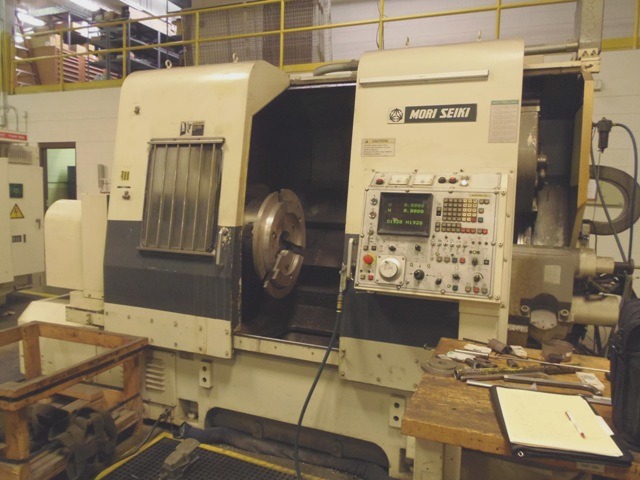

MANUFACTURER.......................... MORI SEIKI
MODEL................................. SL-6B

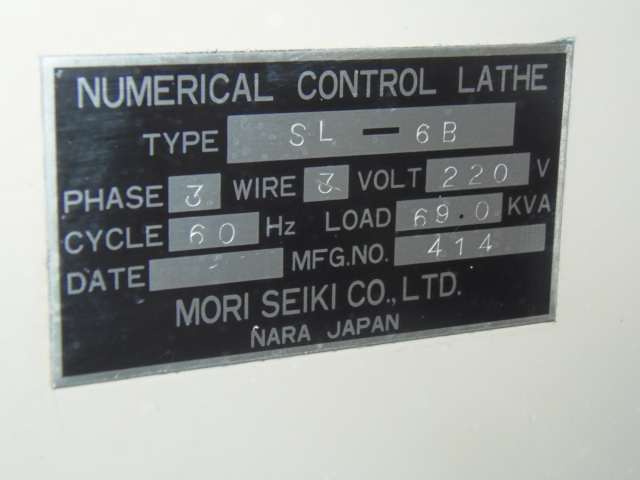

SERIAL NUMBER......................... 414
NEW (APPROX.)......................... 1985
SWING OVER BED........................ 35.0"
SWING OVER CROSS SLIDE................ 22"

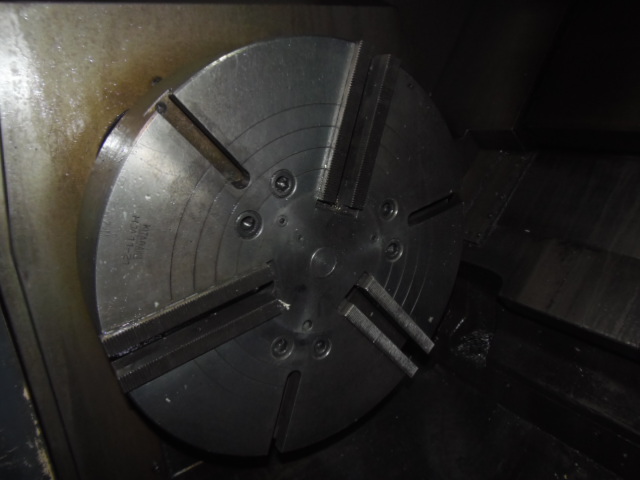

KITAGAWA CHUCK........................ 21" 3 JAW HYD. (HJA11-21)
MAXIMUM TURNING LENGTH................ 33.86"
MAX DISTANCE BETWEEN CENTERS.......... 35.43"
X AXIS TRAVEL......................... 13.78"
Z AXIS TRAVEL......................... 33.86"
SPINDLE NOSE.......................... A1-11
SPINDLE BORE.......................... 6.3"
SPINDLE SPEEDS........................ 6-1010 RPM
SPINDLE MOTOR......................... 50 HP AC

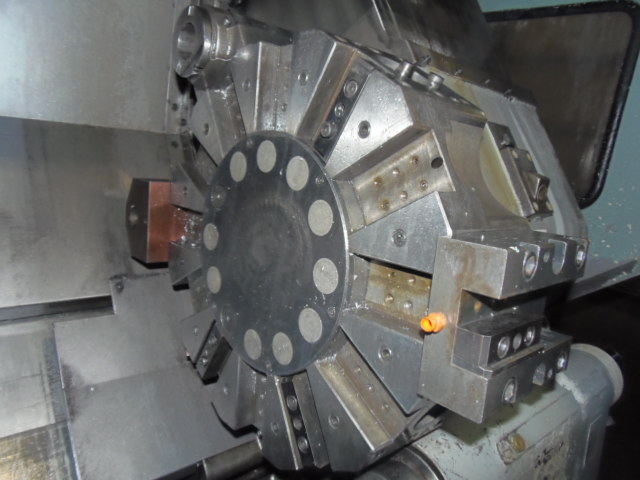

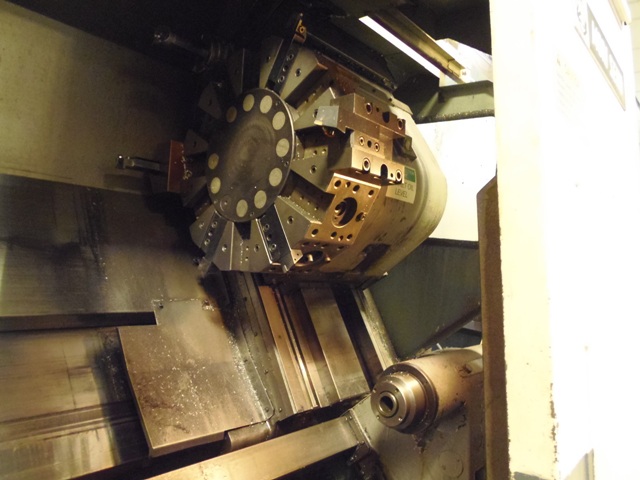

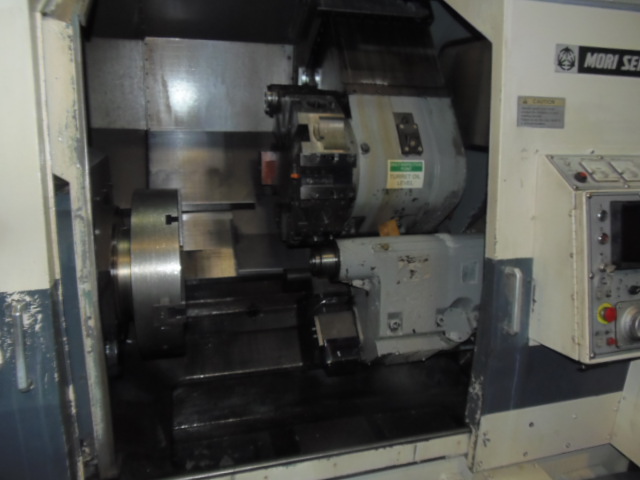

TURRET CAPACITY....................... 12 STATION TURRET

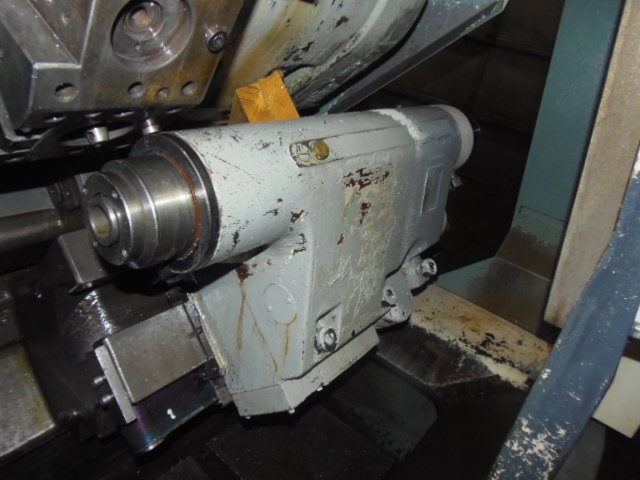

TAILSTOCK BODY TRAVEL................. 26.8"
TAILSTOCK QUILL TAPER................. MT #4
TAILSTOCK QUILL TRAVEL................ 3.9"
EQUIPPED WITH:

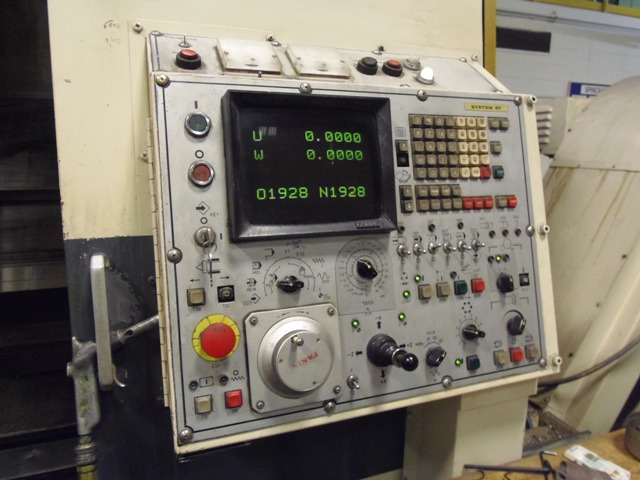

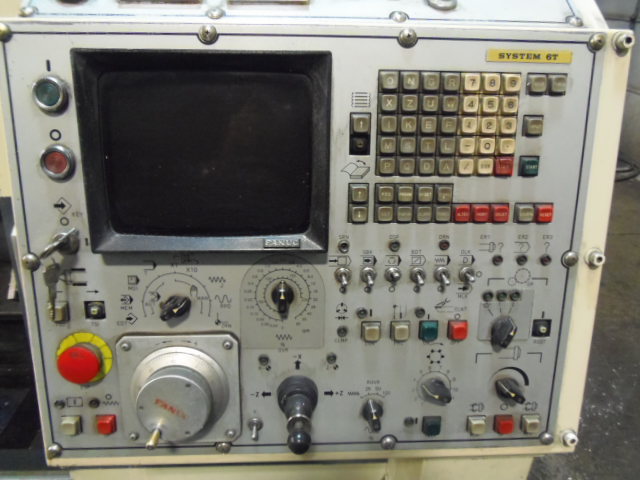

FANUC 6TB CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING

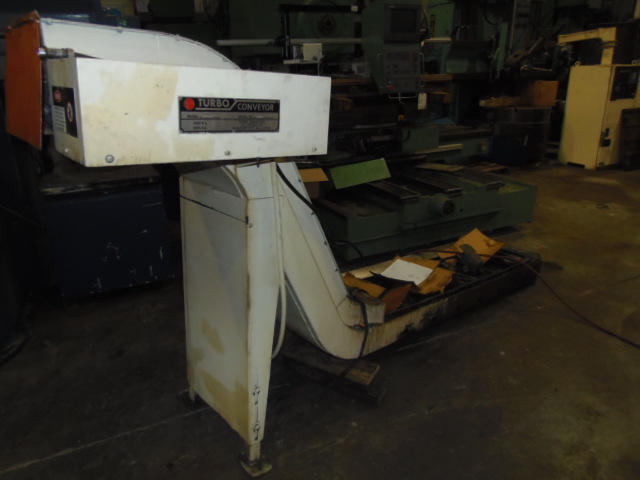

RIGHT HAND DISCHARGE CHIP CONVEYOR
