Specifications
Equipped With
GENERAL SPECIFICATIONS:

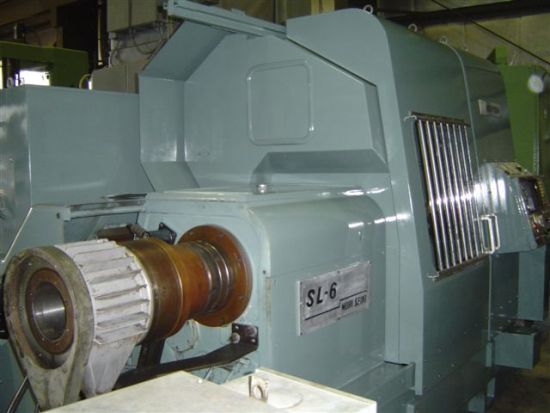

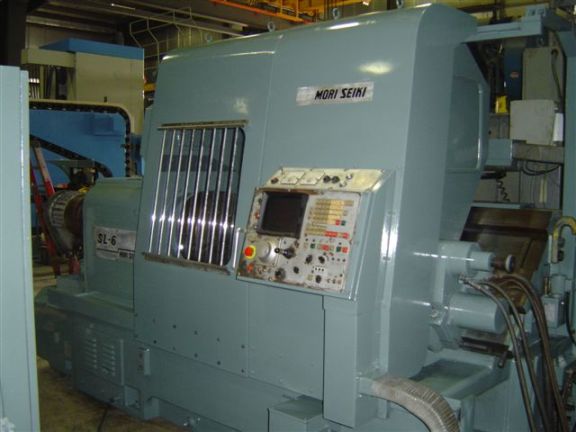

MANUFACTURER MORI SEIKI
MODEL SL-6B
SERIAL # 630
NEW (APPROX.) 1980
SWING OVER BED 35.0"
SWING OVER CROSS SLIDE 22"
MAXIMUM TURNING LENGTH 33.86"
MAX DISTANCE BETWEEN CENTERS 35.43"
X AXIS TRAVEL 13.78"
Z AXIS TRAVEL 33.86"
CHUCK SIZE 18" HYD 3 JAW
HOLE THRU CHUCK AND DRAW TUBE 5.25"
SPINDLE NOSE A1-11
SPINDLE BORE 6.3"
SPINDLE SPEEDS 6-1010 RPM
SPINDLE MOTOR 50 HP AC

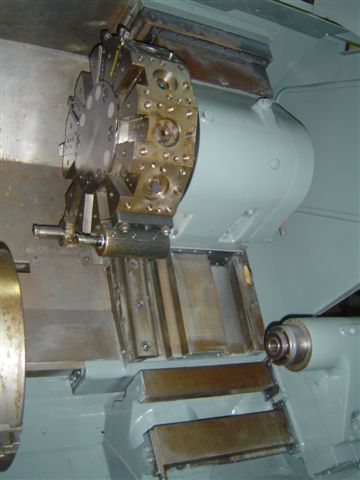

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK BODY TRAVEL 26.8"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 3.9"
EQUIPPED WITH:

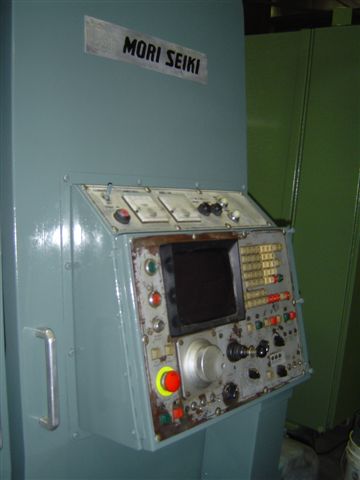

FANUC 6TB CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCKS, HOLDERS & MANUALS
