Specifications
Equipped With
GENERAL SPECIFICATIONS:

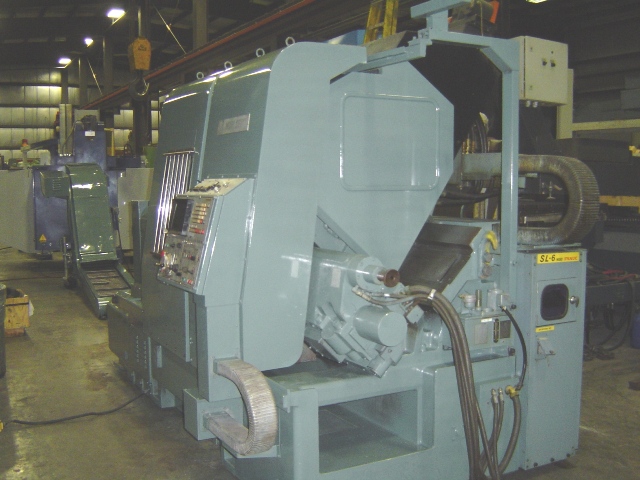

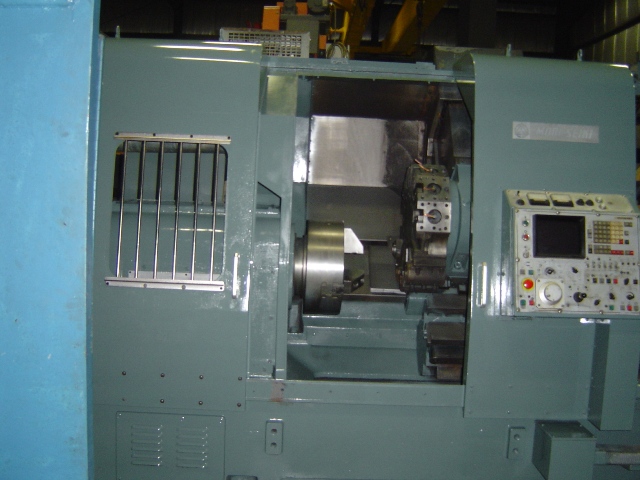

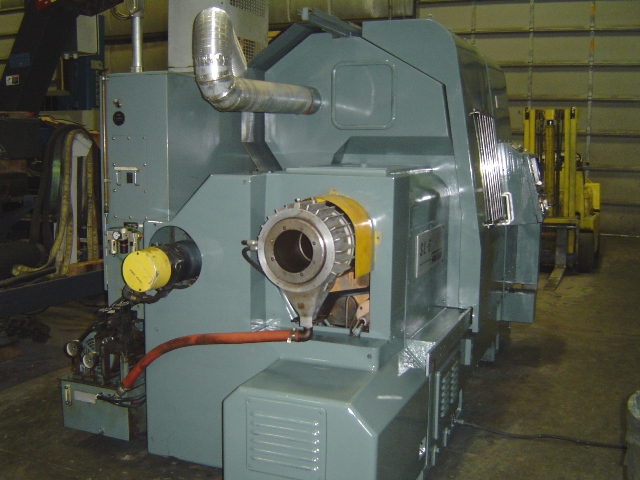

MANUFACTURER MORI SEIKI
MODEL SL-6B
SERIAL NUMBER 369
NEW (APPROX.) 1982
SWING OVER BED 35.0"
SWING OVER CROSS SLIDE 22"

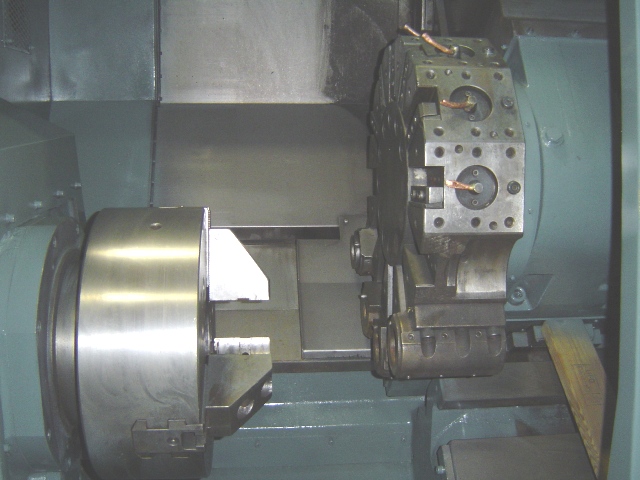

CHUCK SIZE (3 JAW) 18"
HOLE THRU CHUCK 6.3"

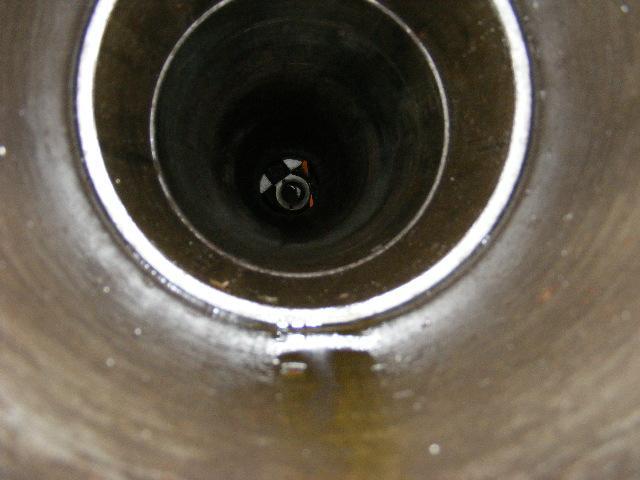

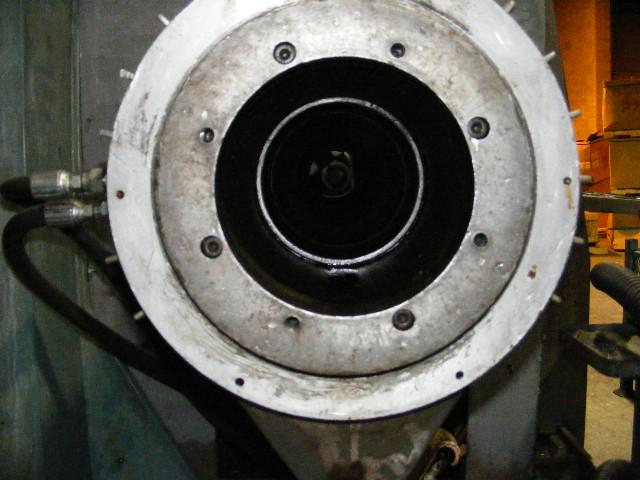

HOLE THRU SPINDLE 6.3"
MAXIMUM TURNING LENGTH 33.86"
MAX DISTANCE BETWEEN CENTERS 35.43"
X AXIS TRAVEL 13.78"
Z AXIS TRAVEL 33.86"
SPINDLE NOSE A1-11
SPINDLE SPEEDS 6-1010 RPM
SPINDLE MOTOR 50 HP

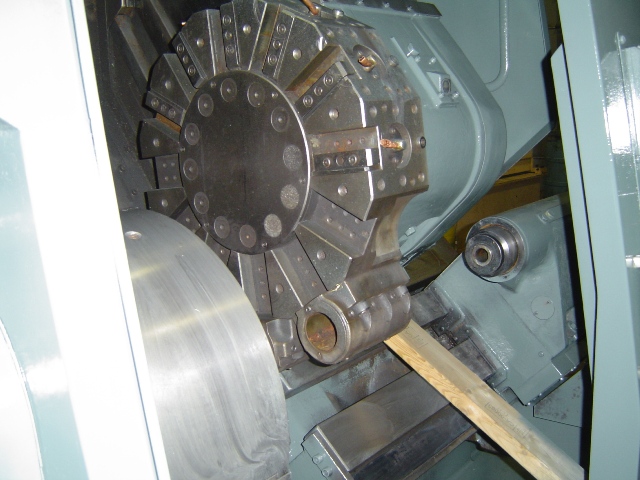

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK BODY TRAVEL 26.8"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 3.9"
EQUIPPED WITH:

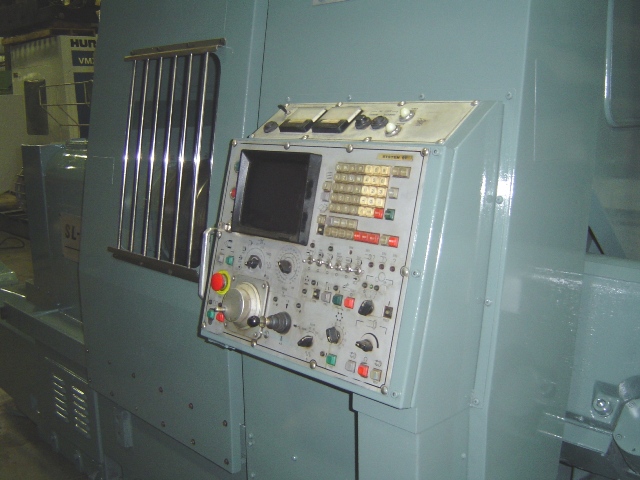

FANUC 6T CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP

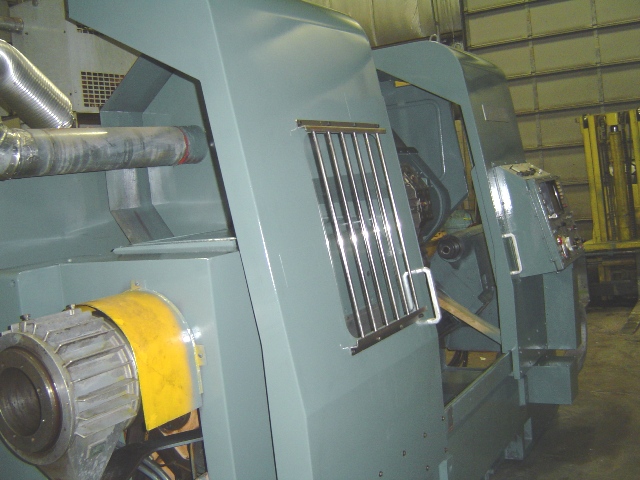

FULLY ENCLOSED SPLASH GUARDING
RIGHT HAND DISCHARGE CHIP CONVEYOR
MISC TOOLHOLDERS
TAILSTOCK
