Specifications
Equipped With
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS:

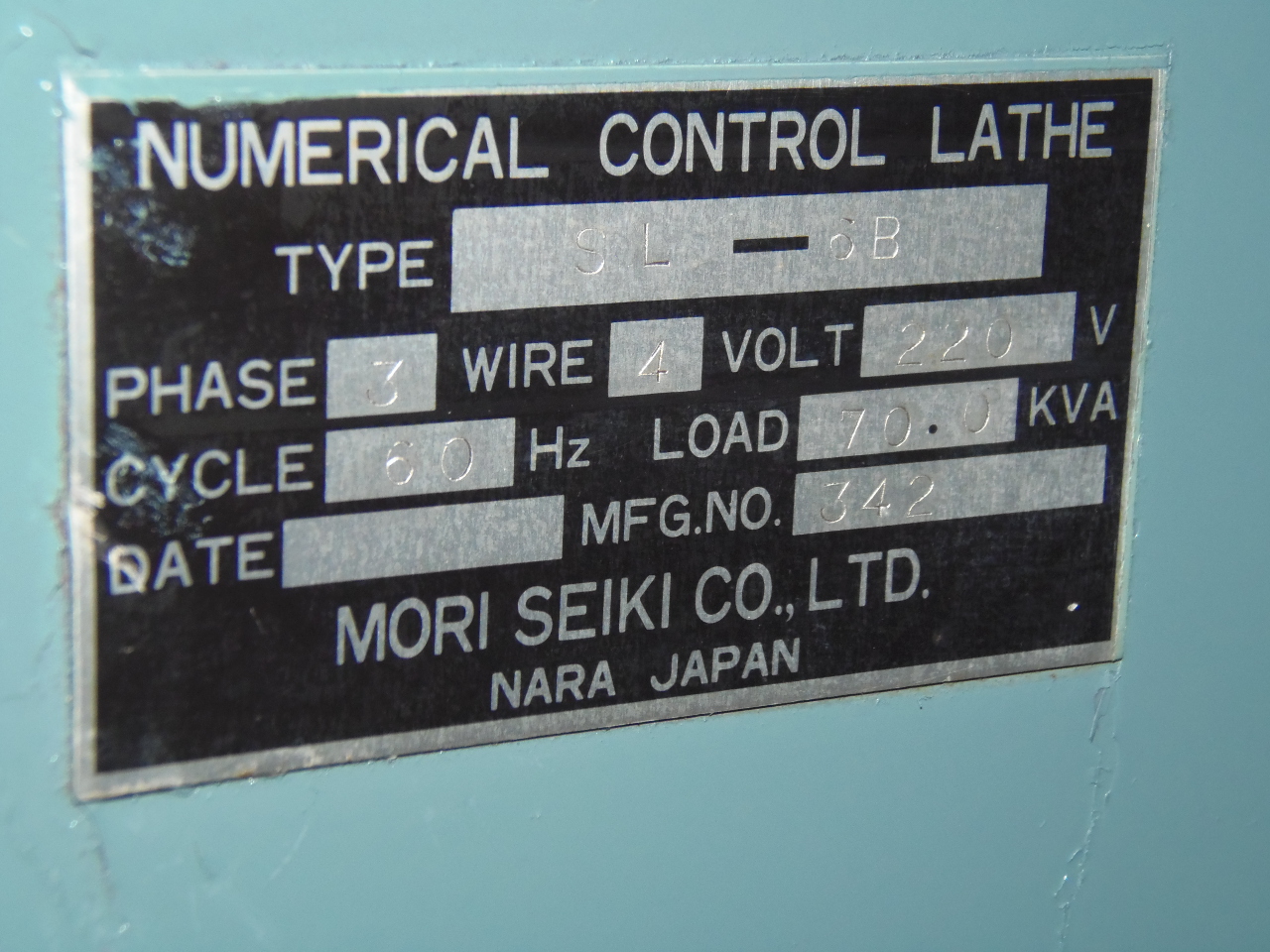

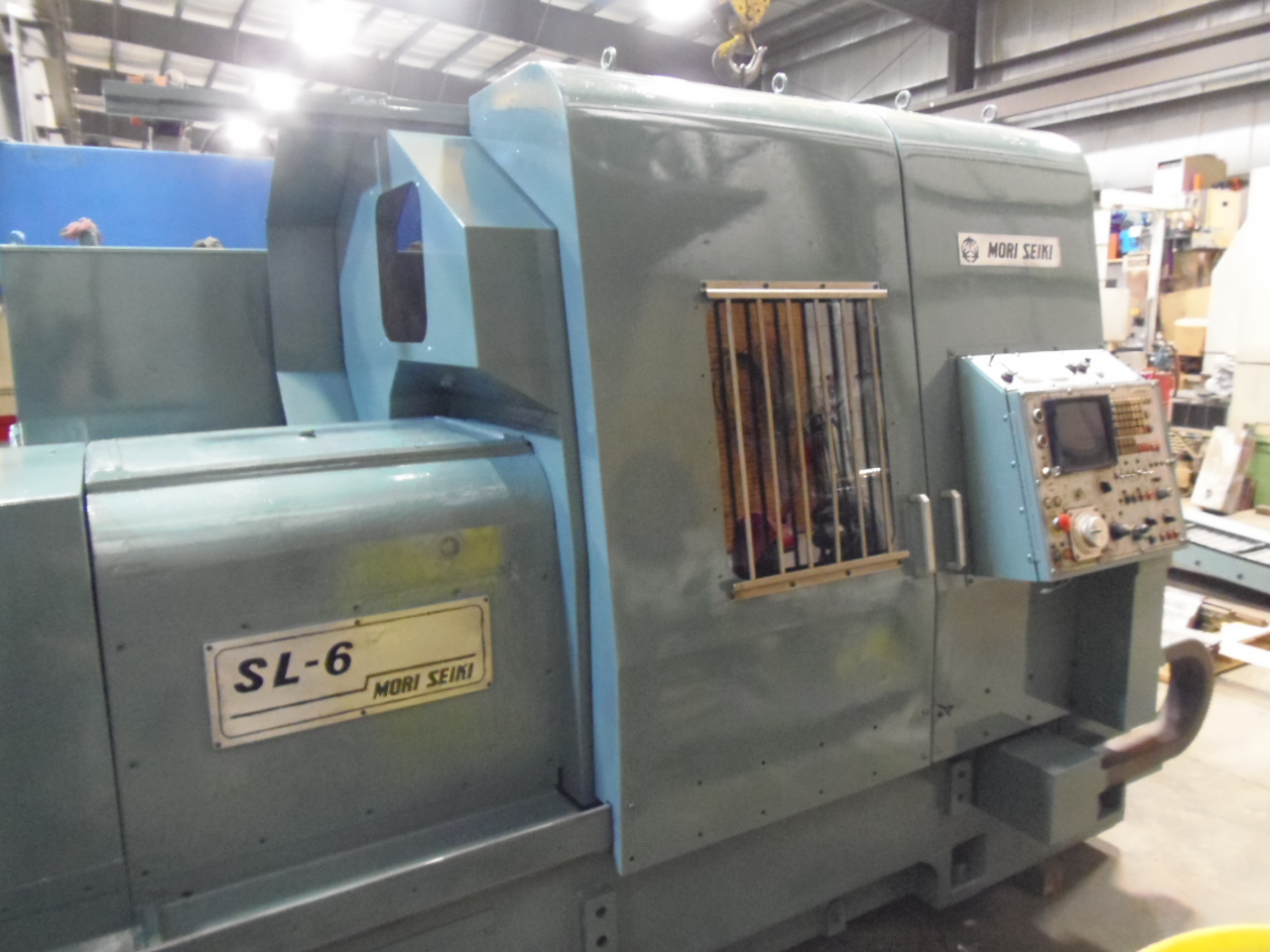

MANUFACTURER...................... MORI SEIKI

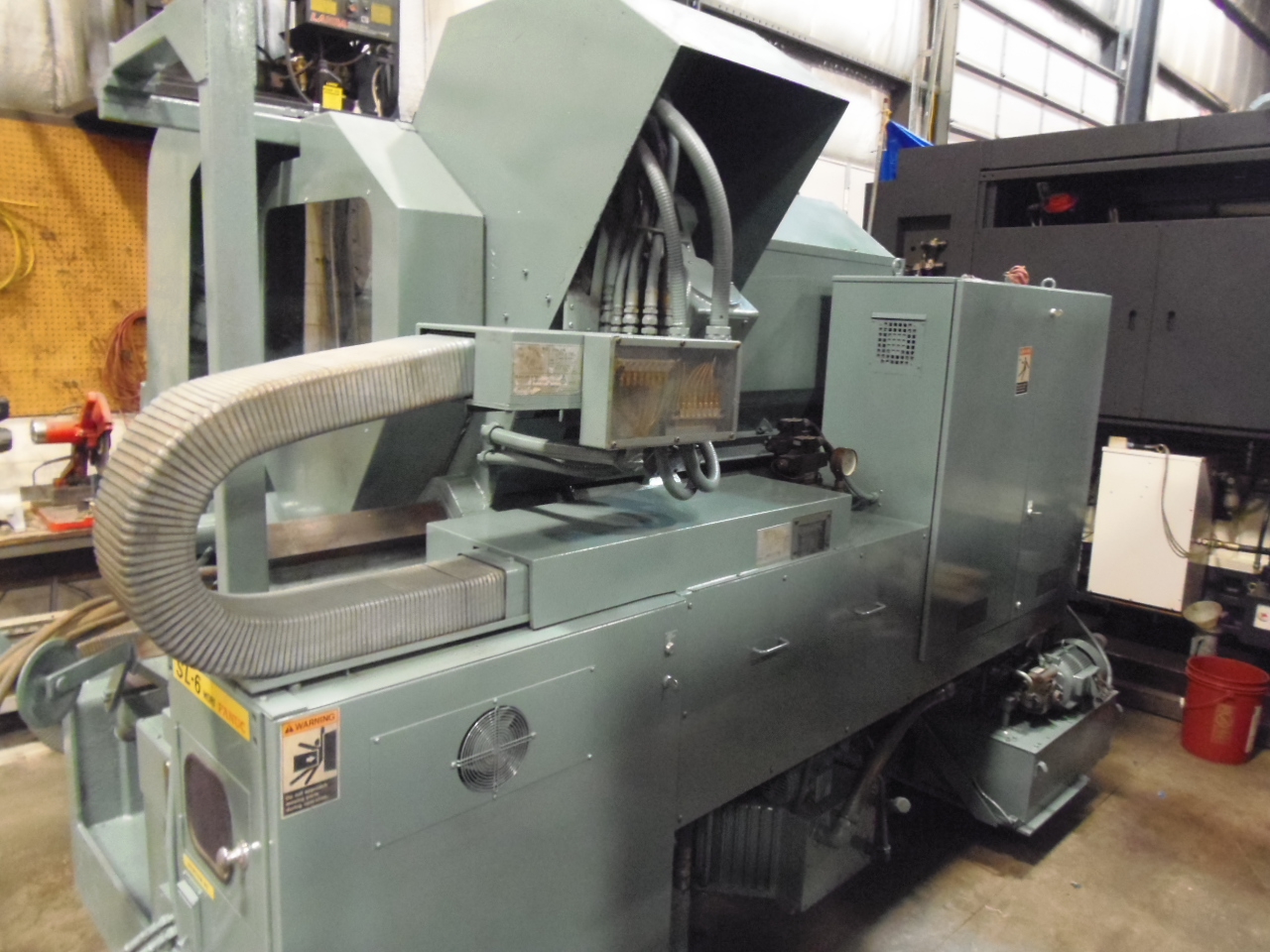

MODEL............................. SL-6B
SERIAL............................ 342
NEW (APPROX.)..................... 1980
SWING OVER BED ................... 35.0"
SWING OVER CROSS SLIDE............ 22"
MAXIMUM TURNING LENGTH............ 33.86"
MAX DISTANCE BETWEEN CENTERS...... 35.43"
X AXIS TRAVEL..................... 13.78"
Z AXIS TRAVEL..................... 33.86"
SPINDLE NOSE...................... A1-11
SPINDLE BORE...................... 6.3"
HOLE THRU CHUCK................... 5"
SPINDLE SPEEDS.................... 6-1010 RPM
SPINDLE MOTOR..................... 50 HP AC

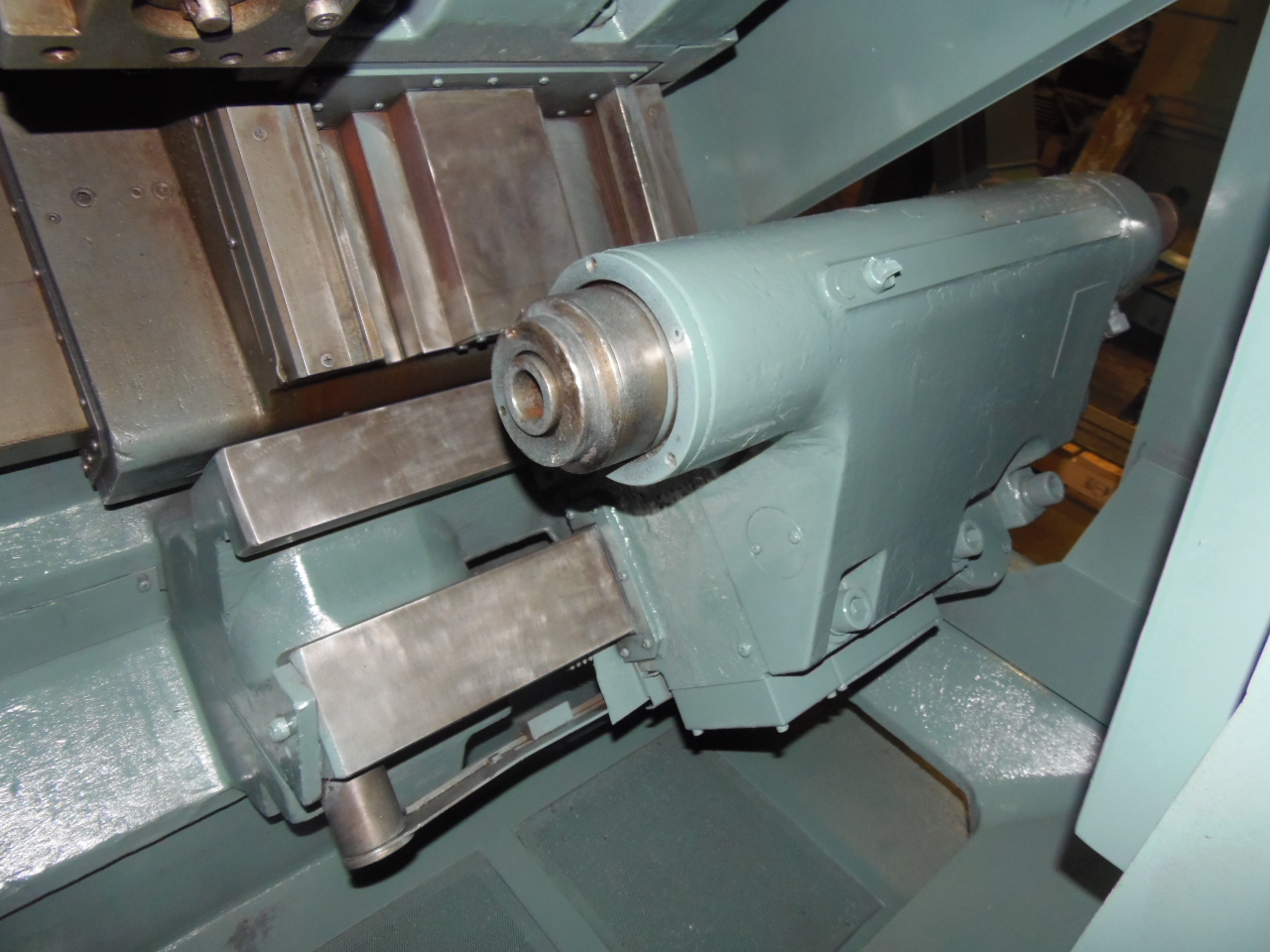

TAILSTOCK BODY TRAVEL............. 26.8"
TAILSTOCK QUILL TAPER............. MT #4
TAILSTOCK QUILL TRAVEL............ 3.9"
EQUIPPED WITH:

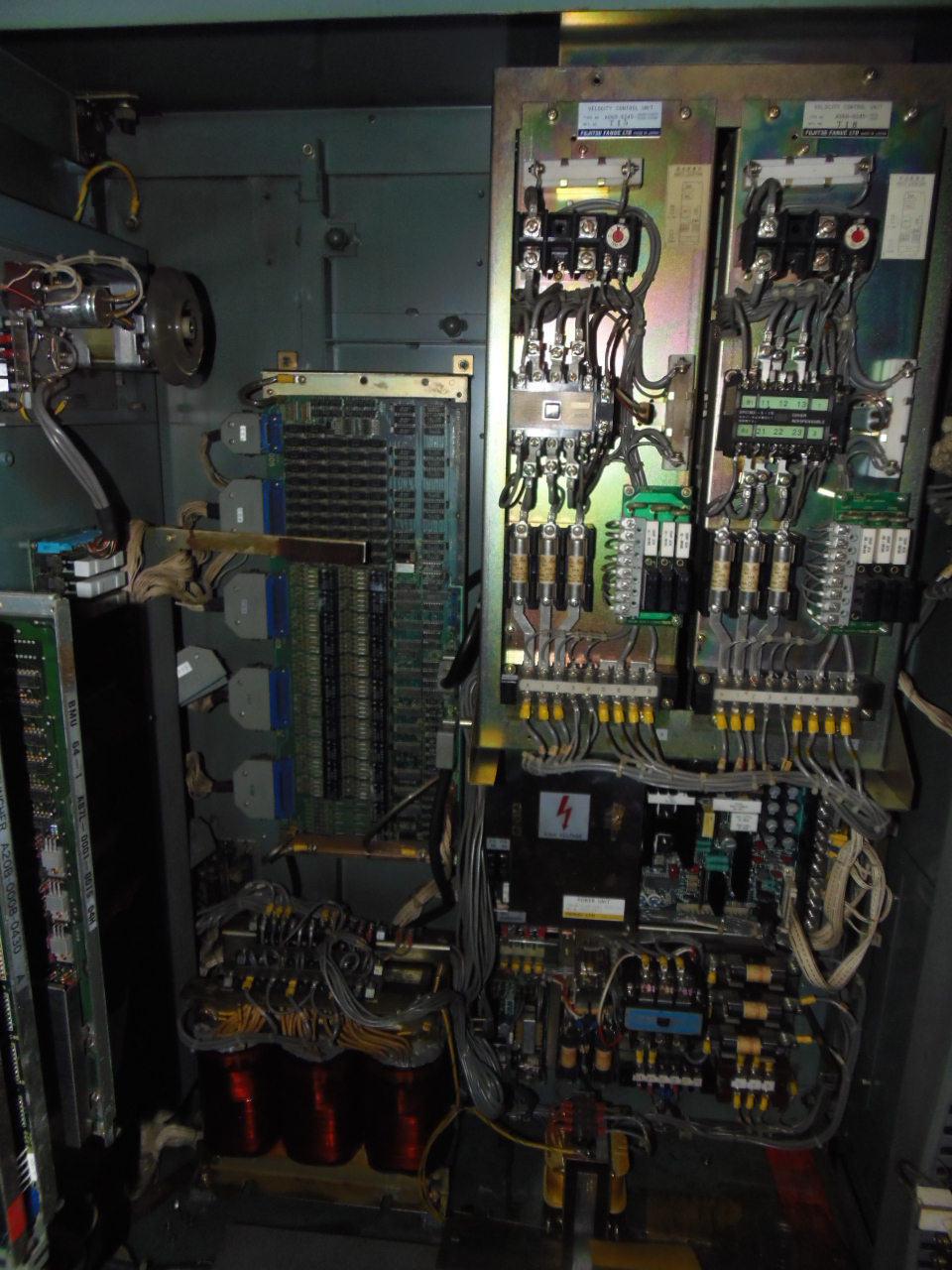

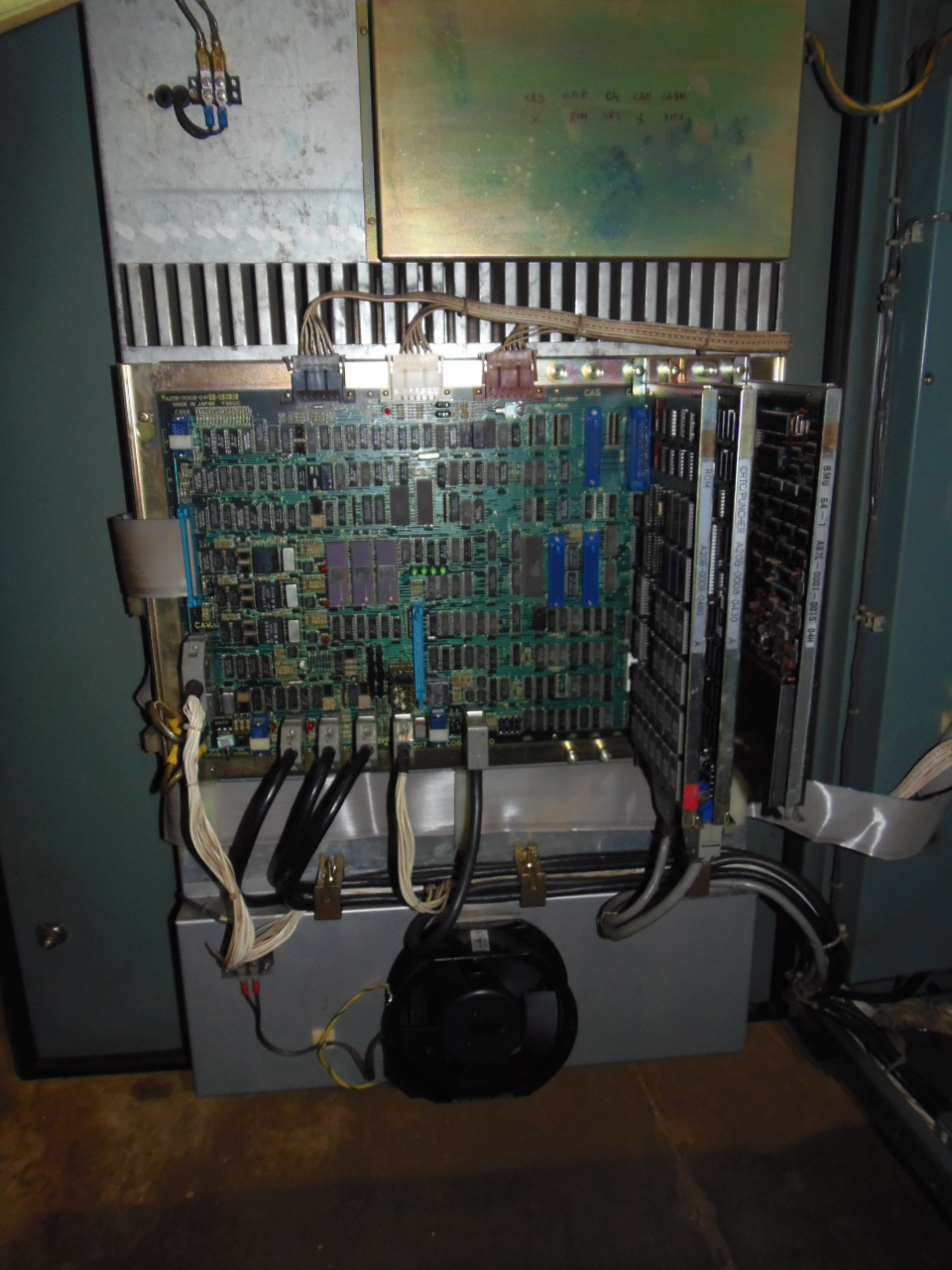

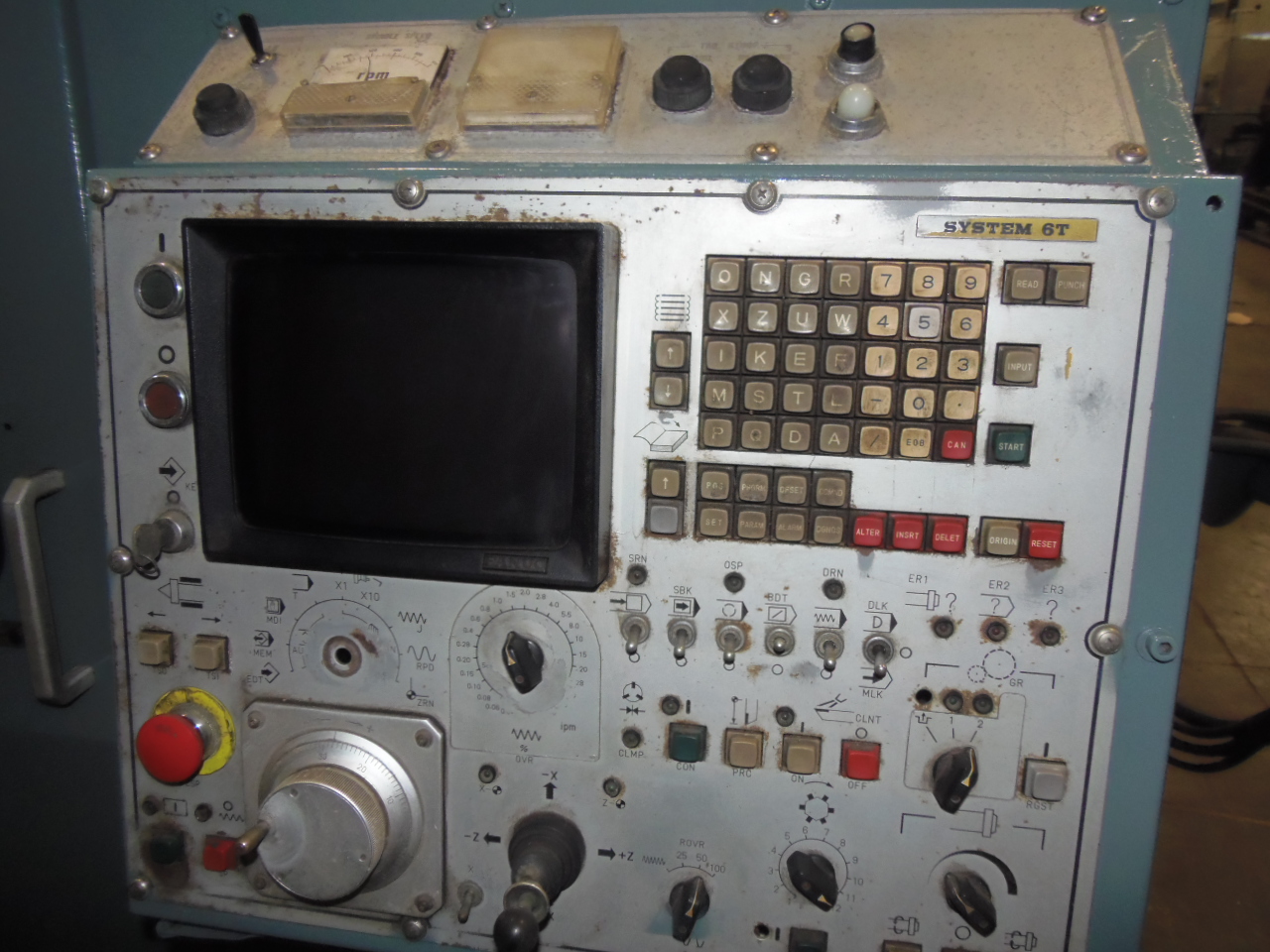

FANUC 6T CNC CONTROL WITH CRT

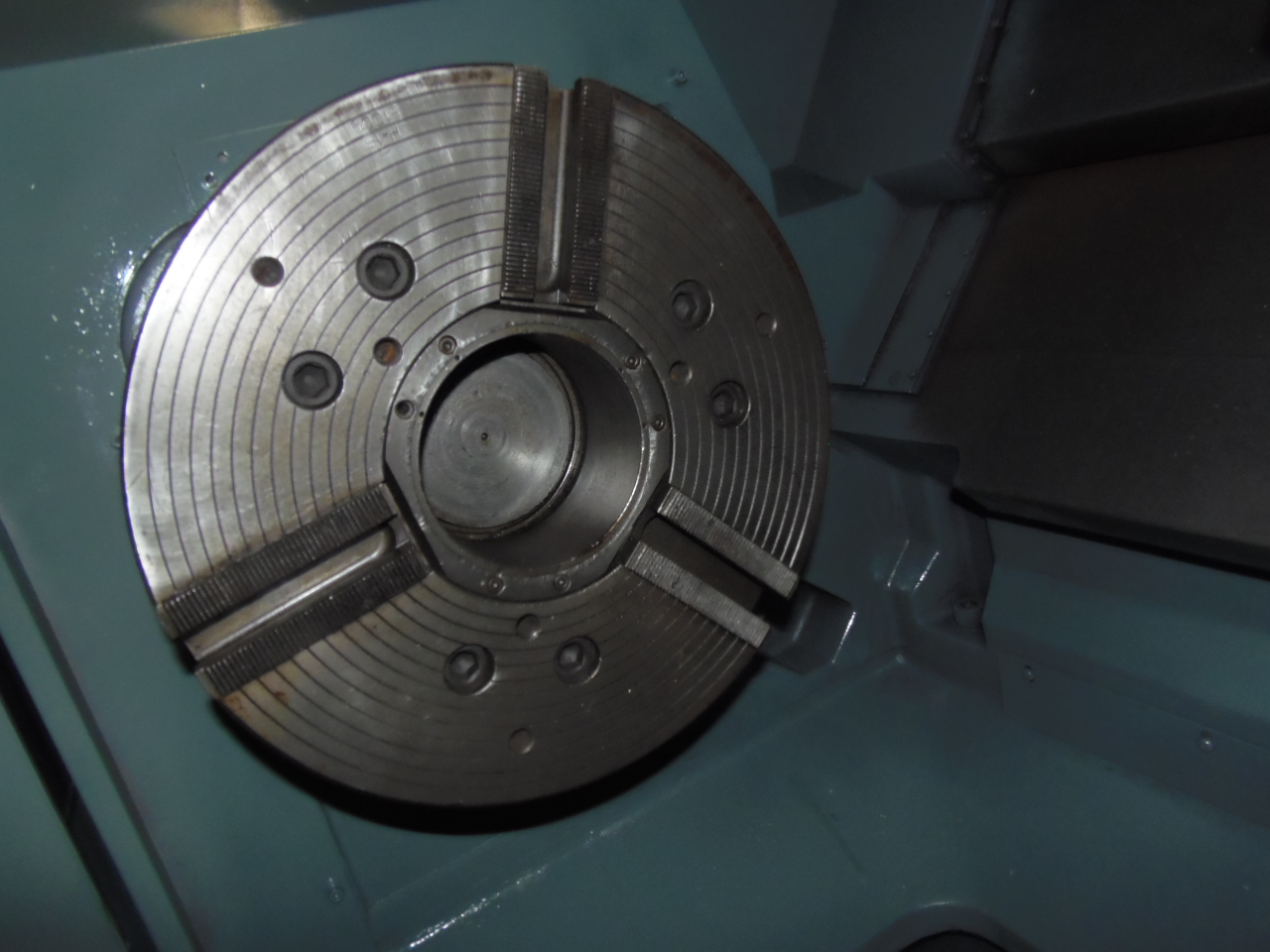

18" 3-JAW HYDRAULIC CHUCK
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
SPECIFICATIONS SUBJECT TO VERIFICATION
