GENERAL SPECIFICATIONS:

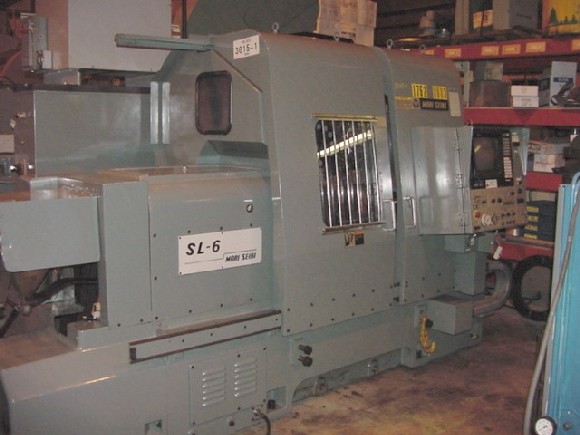

MANUFACTURER MORI SEIKI
MODEL SL-6B
SERIAL # 630
NEW (APPROX.) 1987
SWING OVER BED 35.0"
SWING OVER CROSS SLIDE 22"
MAXIMUM TURNING LENGTH 33.86"
MAX DISTANCE BETWEEN CENTERS 35.43"
X AXIS TRAVEL 13.78"
Z AXIS TRAVEL 33.86"
SPINDLE NOSE A1-11
SPINDLE BORE 6.3"
SPINDLE SPEEDS 6-1010 RPM
SPINDLE MOTOR 50 HP AC

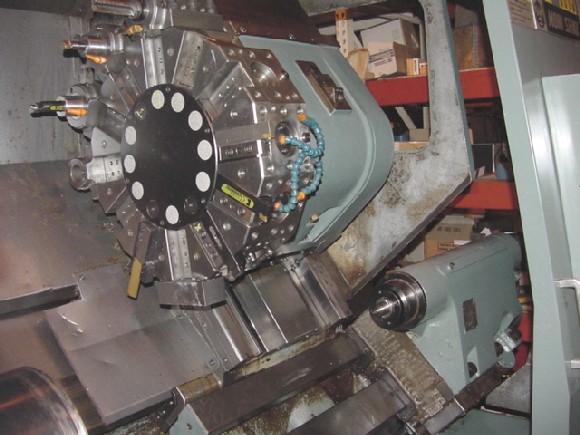

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK BODY TRAVEL 26.8"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 3.9"
EQUIPPED WITH:

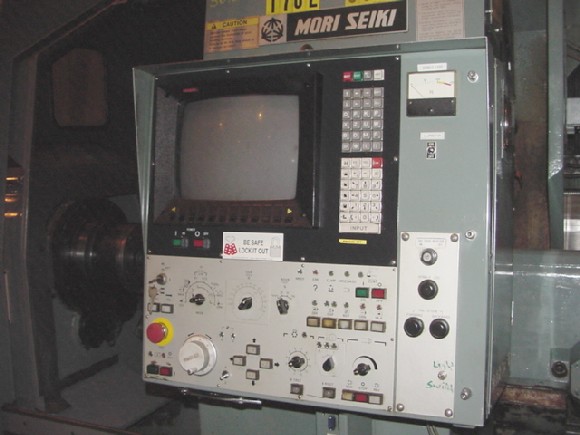

FANUC 10T CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

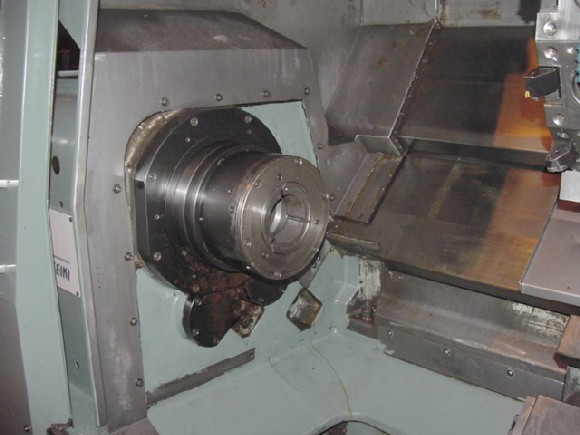

SUPERIOR CINCINNAT 4.5" COLLET CHUCK
LNS 4.5" HYDROSTATIC BARFEED MODEL HYS 7, 114-5.6 NEW 1995
7 SPINDLE LINERS
LNS BAR END CHAMFERING MACHINE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCKS, HOLDERS & MANUALS
