Specifications
Equipped With
SPECIFICATIONS:
Maximum Turning Diameter ........................... 36.6"
Between Centers .................................... 78.7"
Spindle Bore ....................................... 10.8"

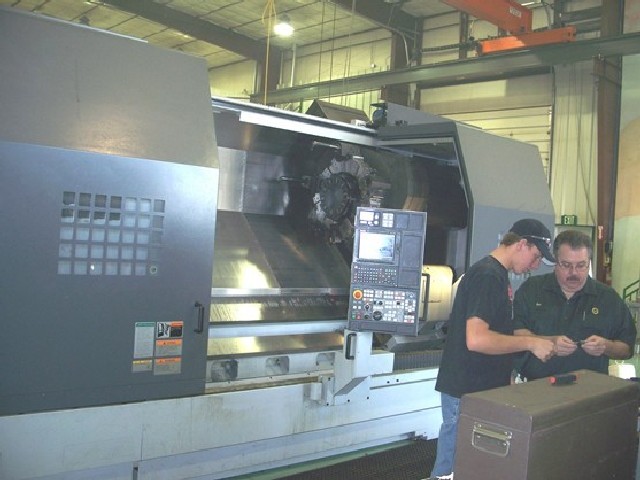

FANUC 18iTA Controller
Main Spindle (3-Speed) ............................. 50 HP, 700 RPM 10 Station Turret Direct Drive Milling, Drilling and Tapping from all 10 Turret Stations Rotary Tool Oil Hole Drill Coolant System
12 HP Drive for Milling Holders, 3,000 RPM Main Spindle Heat Exchanger Complete Coolant System Halogen Worklight Completely Enclosing Covers Chip Conveyor Interface and Cover Toolholder Set
EQUIPPED WITH:

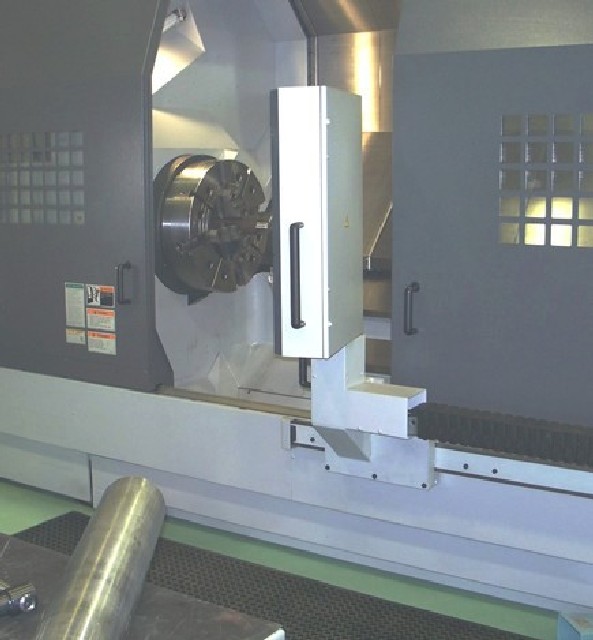

Side Discharge Hinge Type Chip Conveyor "SCA" 24" 4-Jaw Manual Chuck, 12.5" Through Hole Front Side "SCA" 24" 4-Jaw Manual Chuck, 12.5" Through Hole Rear Side Live Tool Holder T32247, ER50 Quantity = 2 Live Tool Holder T32332, CT40 Quantity = 2 TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
