Specifications
Equipped With
GENERAL SPECIFICATIONS:

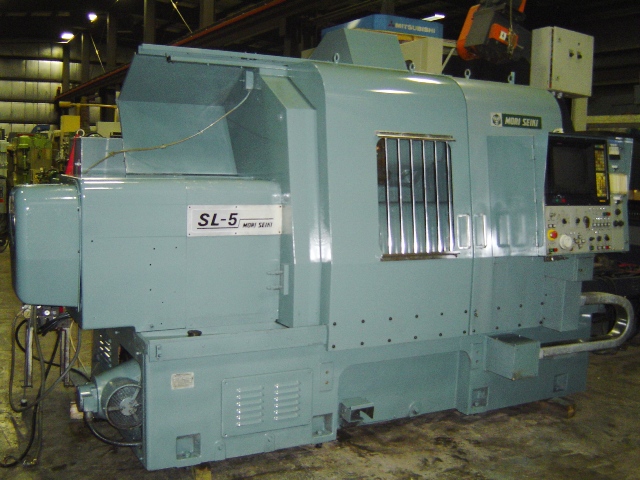

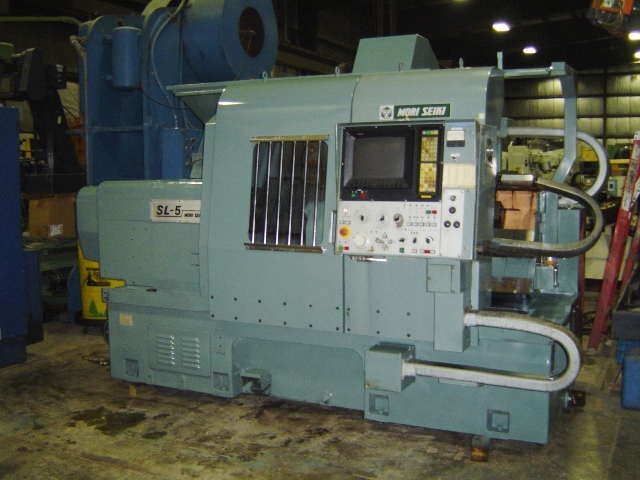

MAKE MORI SEIKI
MODEL SL-5C
SERIAL NUMBER 1067
AGE 1988
SWING OVER BED 24.4"
MAX. TURNING DIAMETER 15.7"
MAXIMUM TURNING LENGTH (SHAFT WORK) 36.3"
X AXIS TRAVEL 12.2"
Z AXIS TRAVEL 41.3"
SPINDLE NOSE A2-8
SPINDLE BORE 4.1"
HOLE THRU DRAW TUBE 3"
SPINDLE SPEEDS 20-2000 RPM
SPINDLE MOTOR 29 HP AC
TURRET CAPACITY 10 STATION TURRET
TAILSTOCK BODY TRAVEL 31.49"
TAILSTOCK QUILL TRAVEL / DIAMETER 3.93" / 3.93"
EQUIPPED WITH:

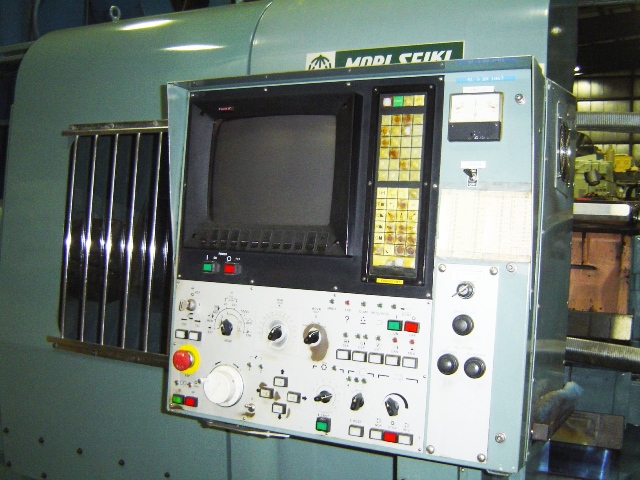

FANUC 10T CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

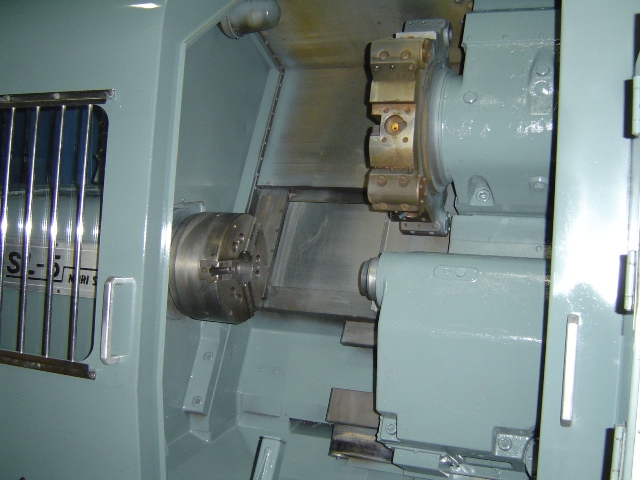

12" 3-JAW HYDRAULIC CHUCK WITH 3.1" THRU HOLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
