Specifications
Equipped With
GENERAL SPECIFICATIONS:
AGE 1985
SWING OVER BED 24.4"
SWING OVER CARRIAGE 21.2"
MAXIMUM TURNING LENGTH (SHAFT WORK) 42.1"
X AXIS TRAVEL 12.2"
Z AXIS TRAVEL 41.3"
SPINDLE NOSE A2-8
SPINDLE BORE 3.03"
SPINDLE SPEEDS 25-2500 RPM
SPINDLE MOTOR 22 HP AC

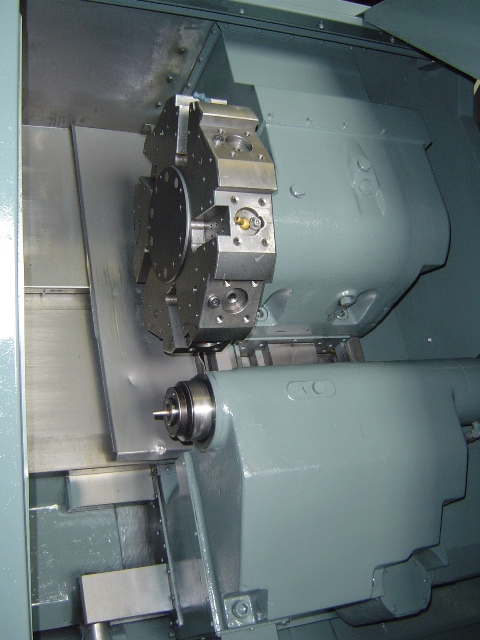

TURRET CAPACITY 10 STATION TURRET
TAILSTOCK BODY TRAVEL 31.49"
TAILSTOCK QUILL TRAVEL 3.93"
EQUIPPED WITH:

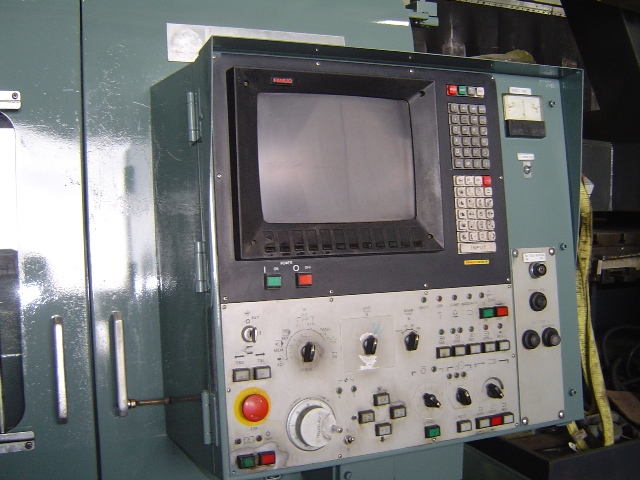

FANUC 10E CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

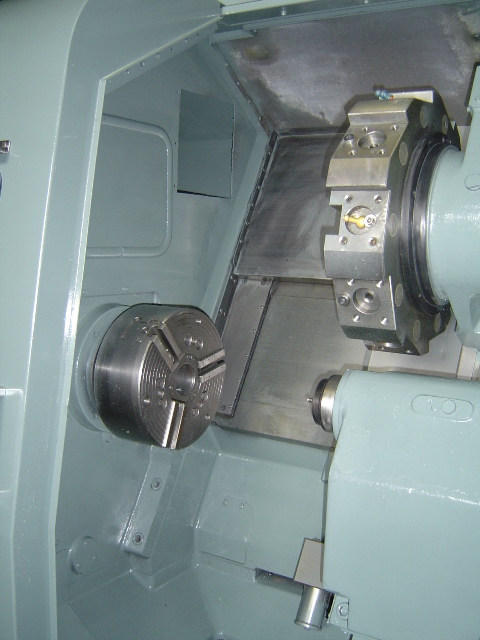

13" THRU HOLE 3-JAW HYDRAULIC CHUCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP

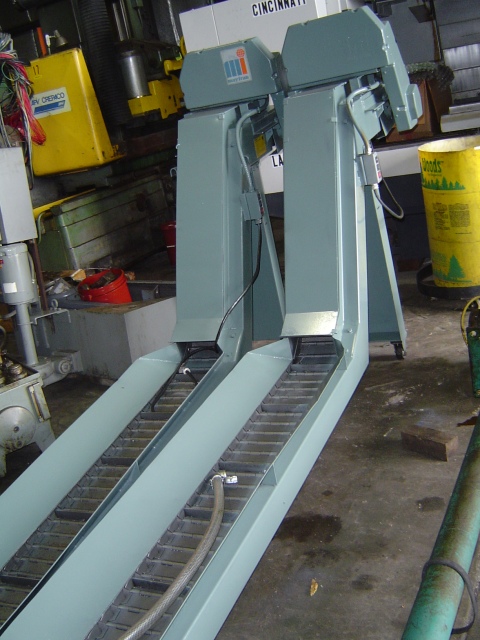

RIGHT HAND DISCHARGE CHIP CONVEYOR

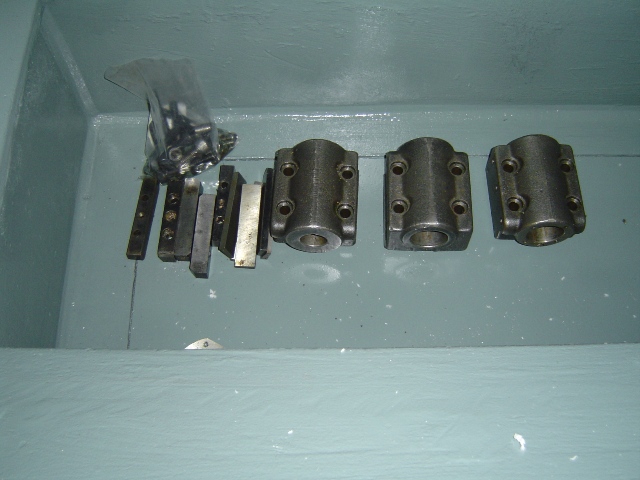

ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
