GENERAL SPECIFICATIONS:
MANUFACTURER MORI SEIKI
MODEL SL-4A
SERIAL # 1665
NEW (APPROX.) 1990'S
SWING OVER BED 25.5"
SWING OVER CROSS SLIDE 23.6"
DISTANCE BETWEEN CENTERS 24"
MAX MACHINING DIAMETER 16.5"
SPINDLE CENTER HEIGHT FROM FLOOR 44.4"
SPINDLE SPEED 30-3000 RPM
SPINDLE NOSE A2-8
HOLE THRU SPINDLE 3.03"
SPINDEL TAPER MT 7
TAILSTOCK QUILL DIA. 4.33"
TAILSTOCK QUILL TAPER MT 4
TAILSTOCK BASE STROKE 3.93"
BED WIDTH OVERALL WIDTH 24.6"
BED WIDTH CARRIAGE 15.7"
BED WIDTH TAILSTOCK 8.2"
MAIN MOTOR 25 HP
WEIGHT (APPROX.) 13,000 LBS.
EQUIPPED WITH:

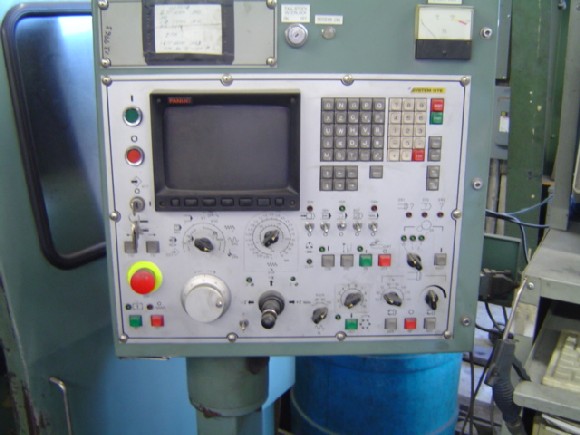

FANUC 11TE CONTROL
10" 3-JAW CHUCK
TAILSTOCK
COOLANT SYSTEM
BUILT IN WORKLIGHT
SPLASH GUARD
