Specifications
Equipped With
GENERAL SPECIFICATIONS:

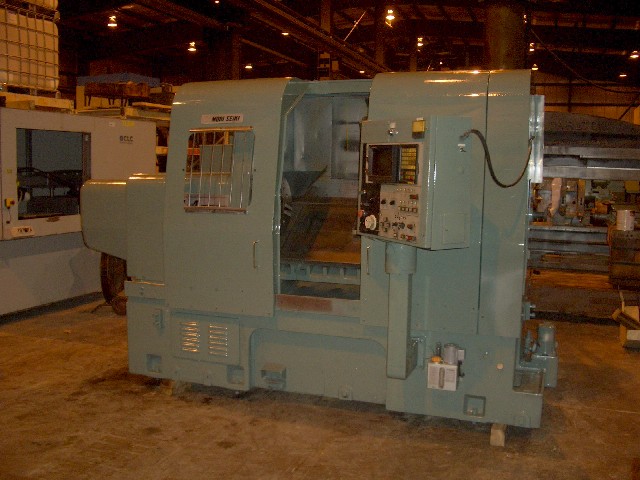

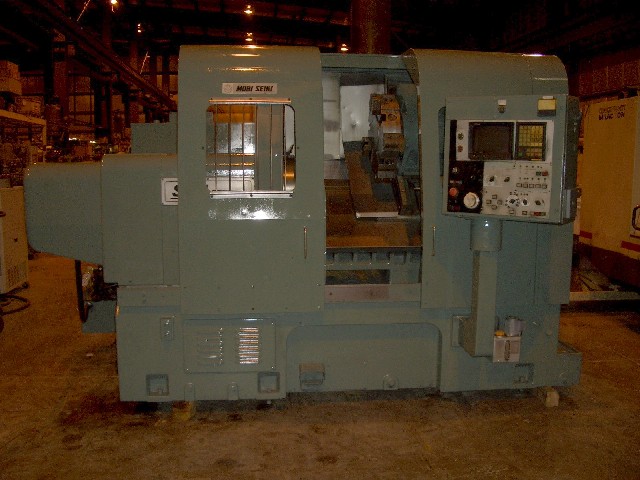

MANUFACTURER MORI SEIKI
MODEL SL-4A
SERIAL NUMBER 1913
NEW (APPROX.) 1987
SWING OVER BED 25.5"
SWING OVER CROSS SLIDE 23.6"

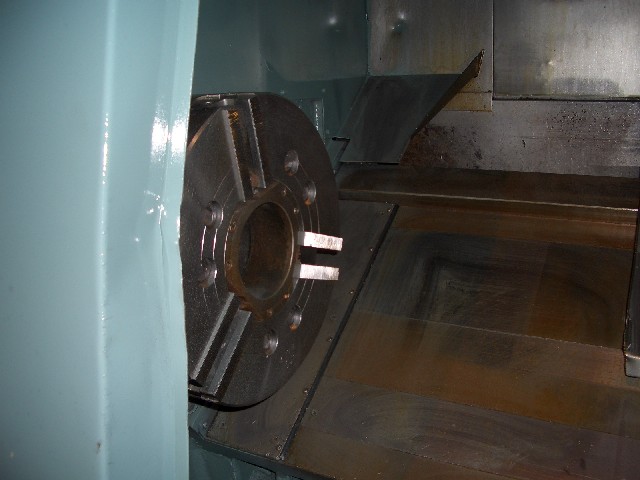

CHUCK SIZE 15"
HOLE THRU CHUCK 4"
HOLE THRU SPINDLE 3.03"
DISTANCE BETWEEN CENTERS 30.1"
STROKE 16.5"
LONGITUDINAL TRAVEL 24.8"
CROSS TRAVEL 9.6"
SPINDLE CENTER HEIGHT FROM FLOOR 44.4"
SPINDLE SPEED 30 - 3000 RPM
SPINDLE NOSE A2-8
SPINDEL TAPER MT 7
TAILSTOCK QUILL DIA. 4.33"
TAILSTOCK QUILL TAPER MT 4
TAILSTOCK BASE STROKE 3.93"
BED WIDTH OVERALL WIDTH 24.6"
BED WIDTH CARRIAGE 15.7"
BED WIDTH TAILSTOCK 8.2"
MAIN MOTOR 25 HP
WEIGHT (APPROX.) 12,100 LBS.
EQUIPPED WITH:

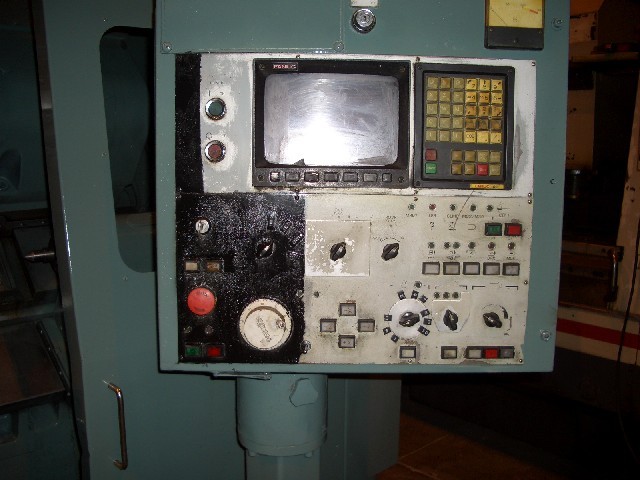

FANUC 10-T CONTROL
CHIP CONVEYOR

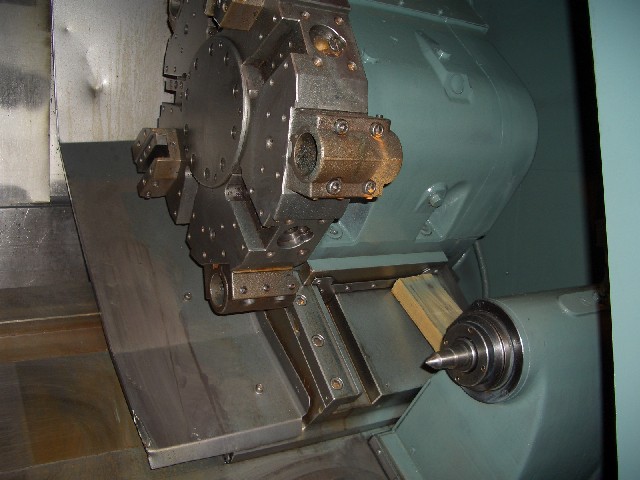

TAILSTOCK
COOLANT SYSTEM
SPLASH GUARD
15" KITAGAWA BT-15 CHUCK TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
