Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 28.0" / 29.1"
MAXIMUM TURNING DIAMETER / LENGTH 24.4" / 37.7"
DISTANCE BETWEEN CENTERS 44.3"
X AXIS TRAVEL 13.6"
Z AXIS TRAVEL 39.2"
RAPID TRAVERSE RATE X AXIS 787 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 5.1"
SPINDLE SPEEDS 20 - 2,400 RPM
SPINDLE MOTOR 40 HP AC

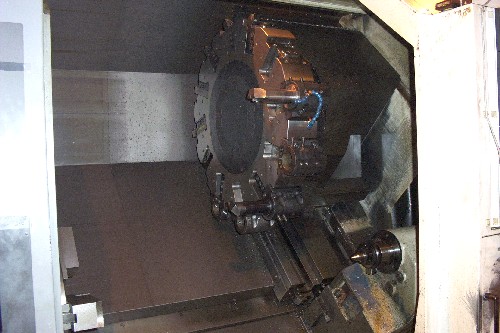

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK BODY TRAVEL 33.5"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL / DIAMETER 5.9" / 4.3"
EQUIPPED WITH:
MORI MSC-501 CNC CONTROL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION

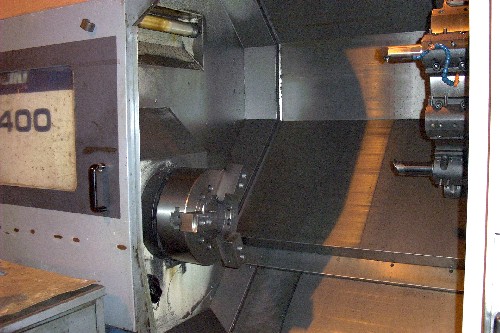

15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS
REMOVEABLE IN-MACHINE TYPE MANUAL TOOL PRESTTER ARM
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANUALS
