Specifications
Equipped With
GENERAL SPECIFICATIONS:

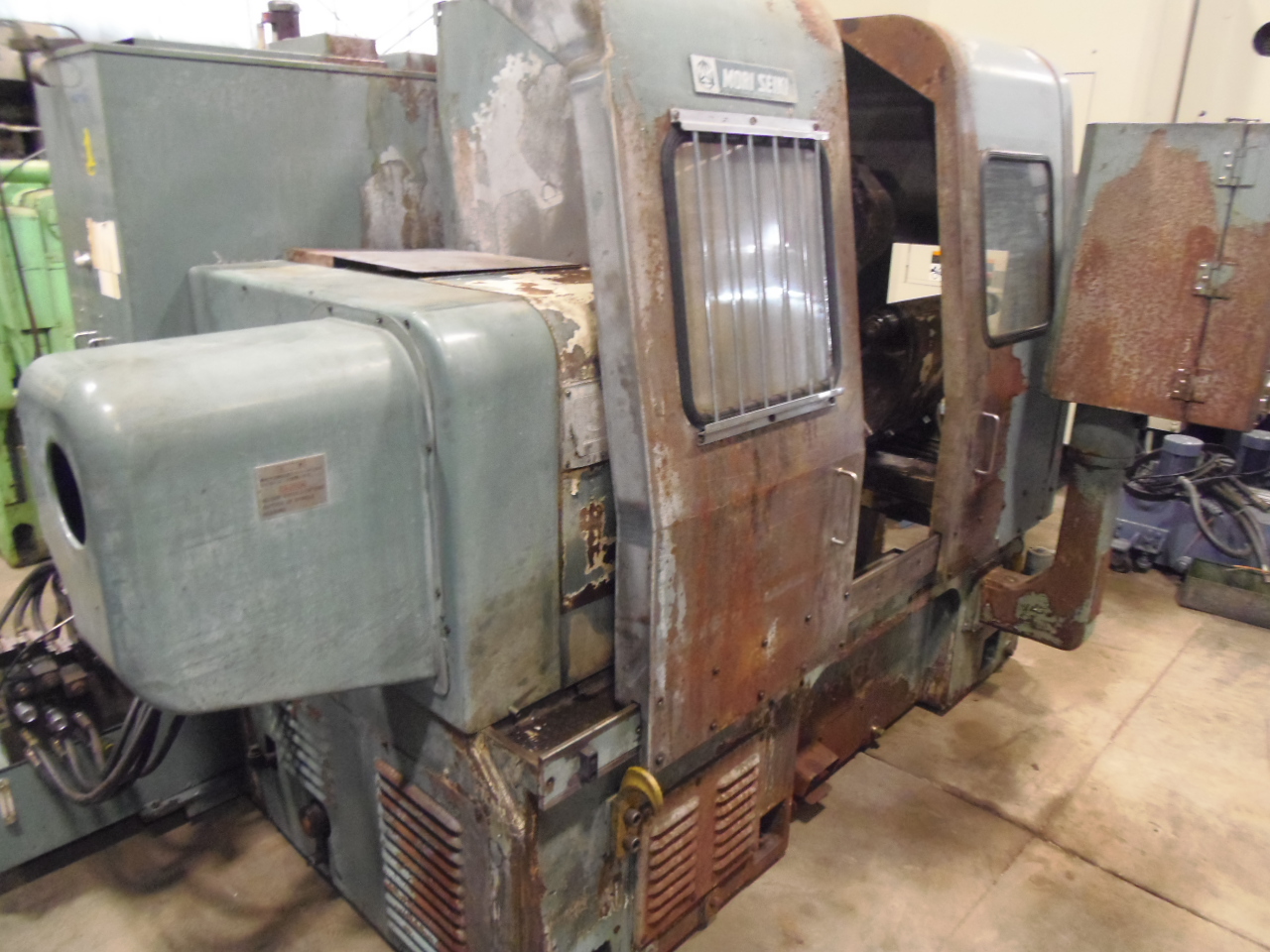

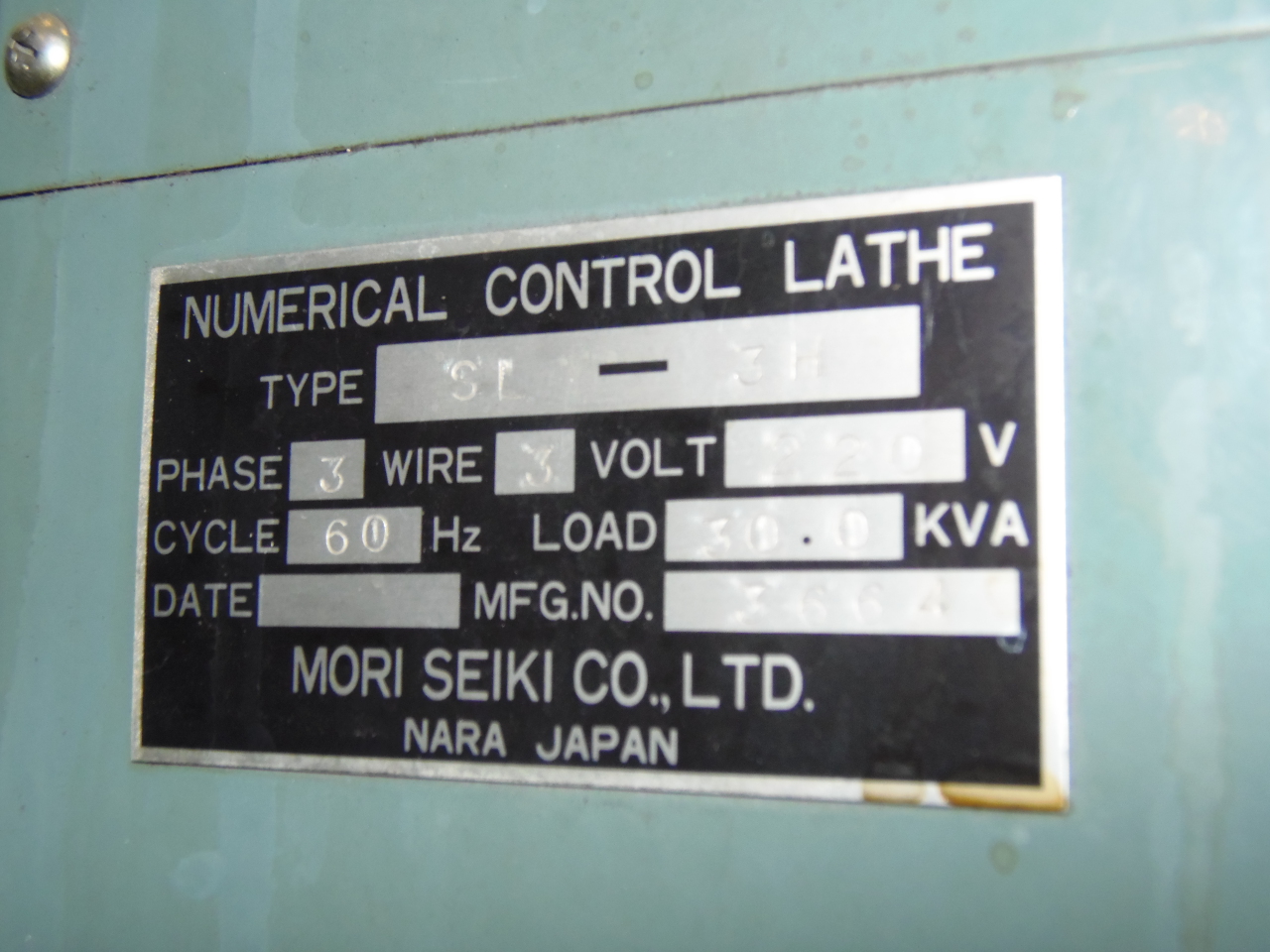

MANUFACTURER....................... MORI SEIKI

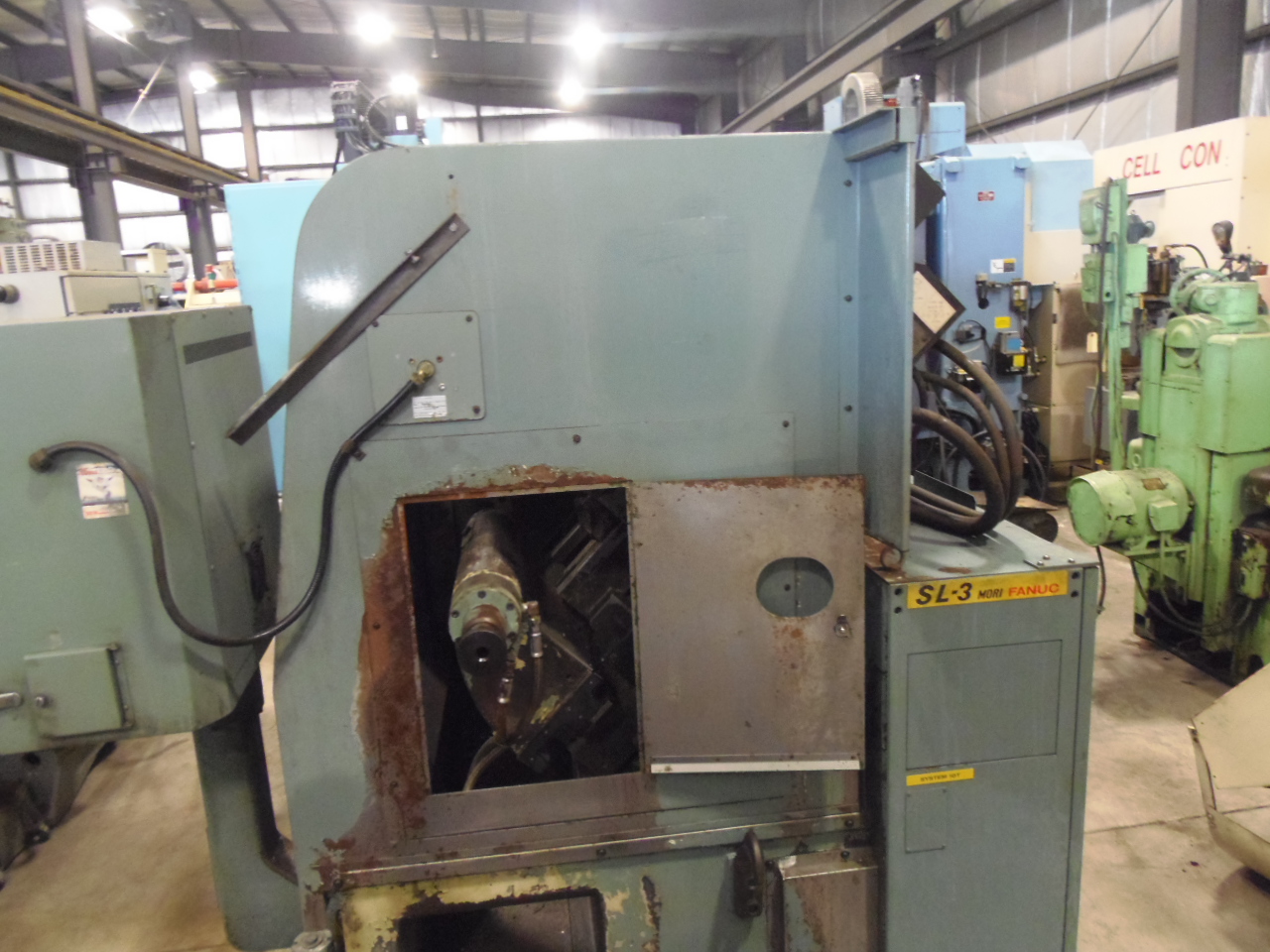

MODEL.............................. SL 3H
SERIAL#............................ 3664
AGE (YEAR)......................... 1984
SWING OVER BED..................... 22.4"
MAX REC. WORK PIECE DIAMETER....... 8.0"
MAX CROSS TRAVEL (X)............... 6.3"
DISTANCE BETWEEN CENTERS........... 24"
MAX MACHINING LENGTH............... 21.6"
MAX LONGITUDINAL TRAVEL (Z-AXIS)... 22"
SPINDLE NOSE....................... A2-6
SPINDLE SPEED...................... 40 TO 4000 RPM
MAIN SPINDLE MOTOR................. 20HP / 15 HP
TAILSTOCK TAPER.................... #3 MT

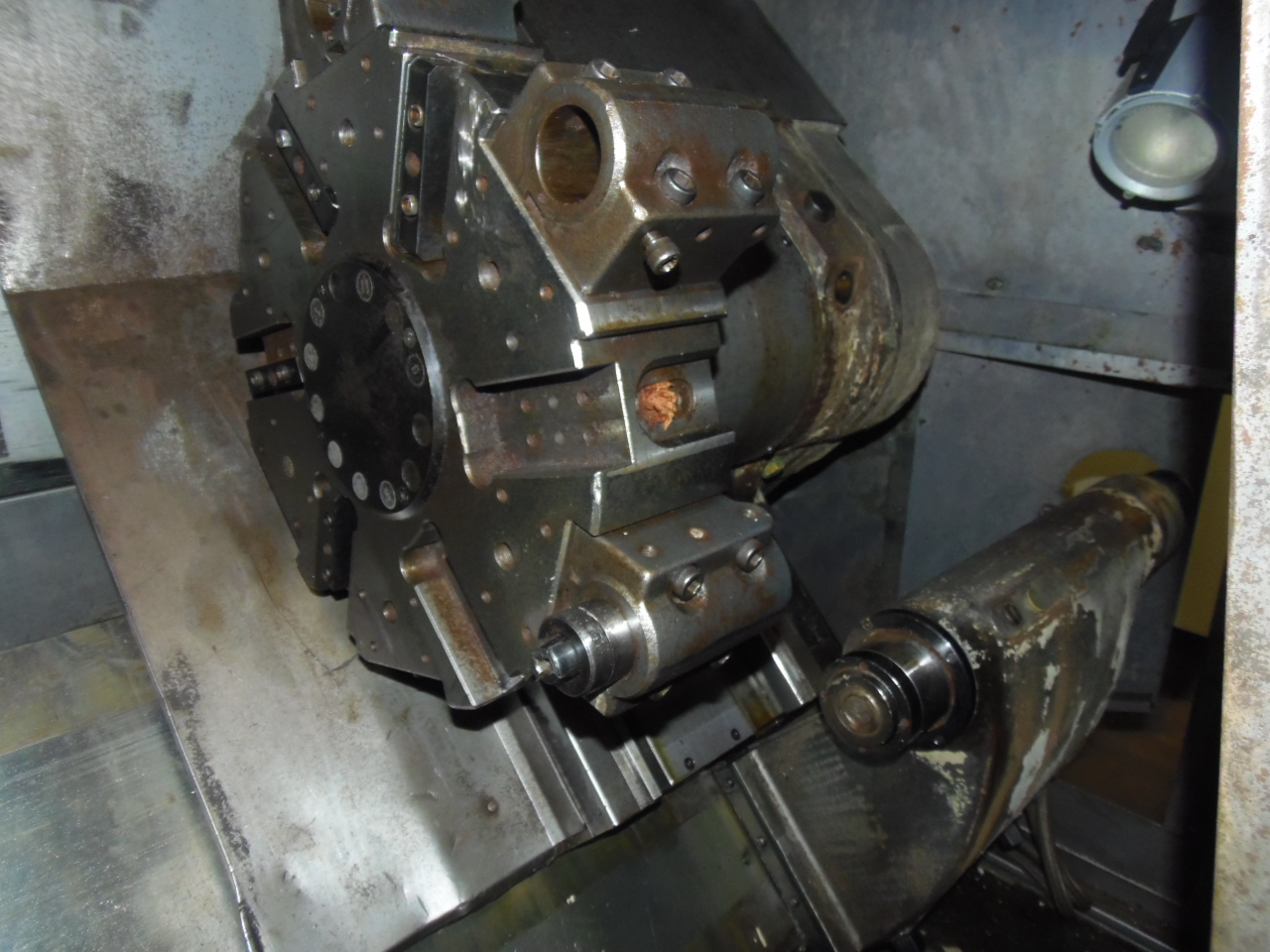

TURRET TOOLS....................... 12
FLOOR SPACE........................ 145" X 100"
MACHINE WEIGHT..................... 8000 LBS.
EQUIPPED WITH:

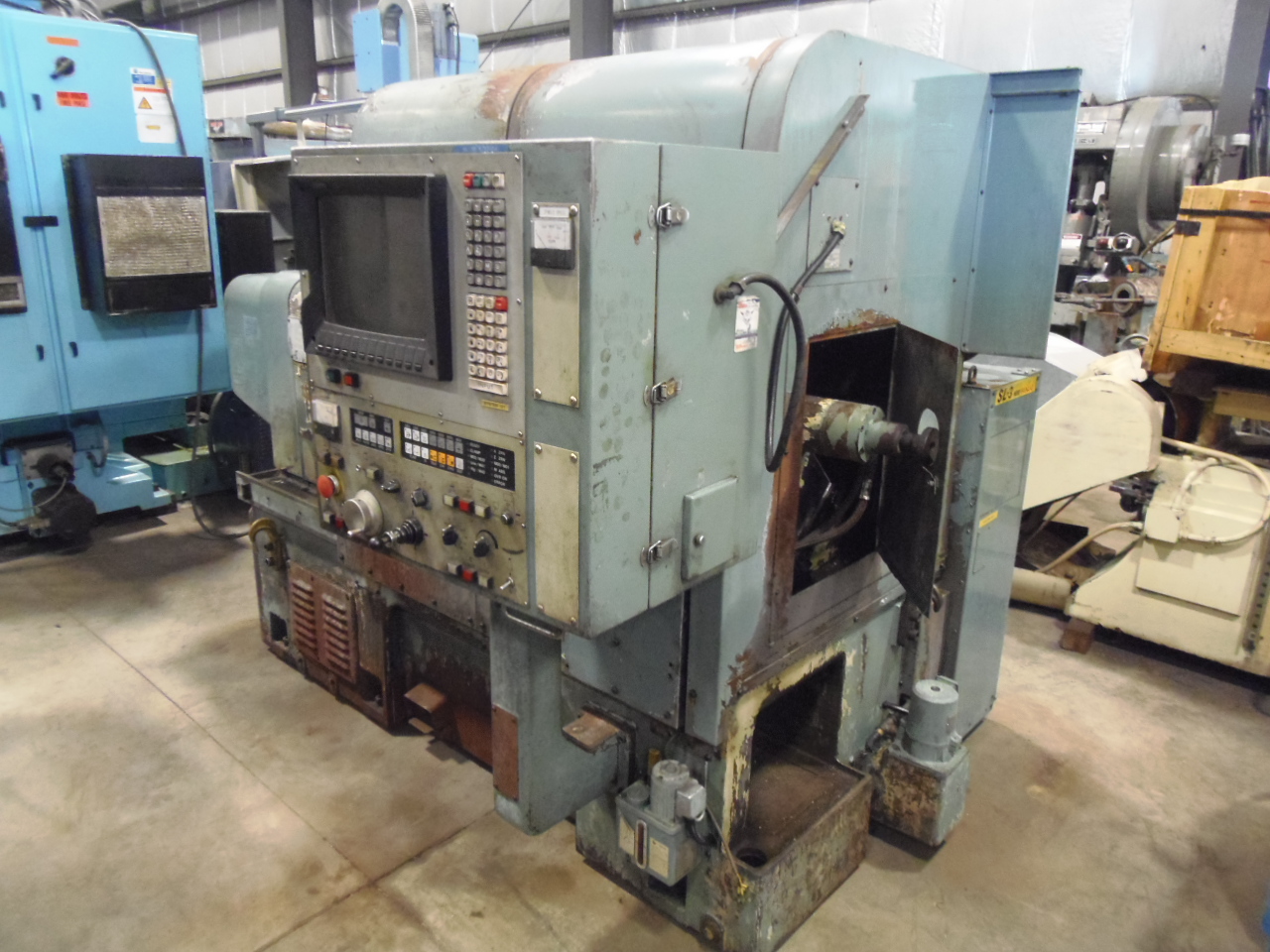

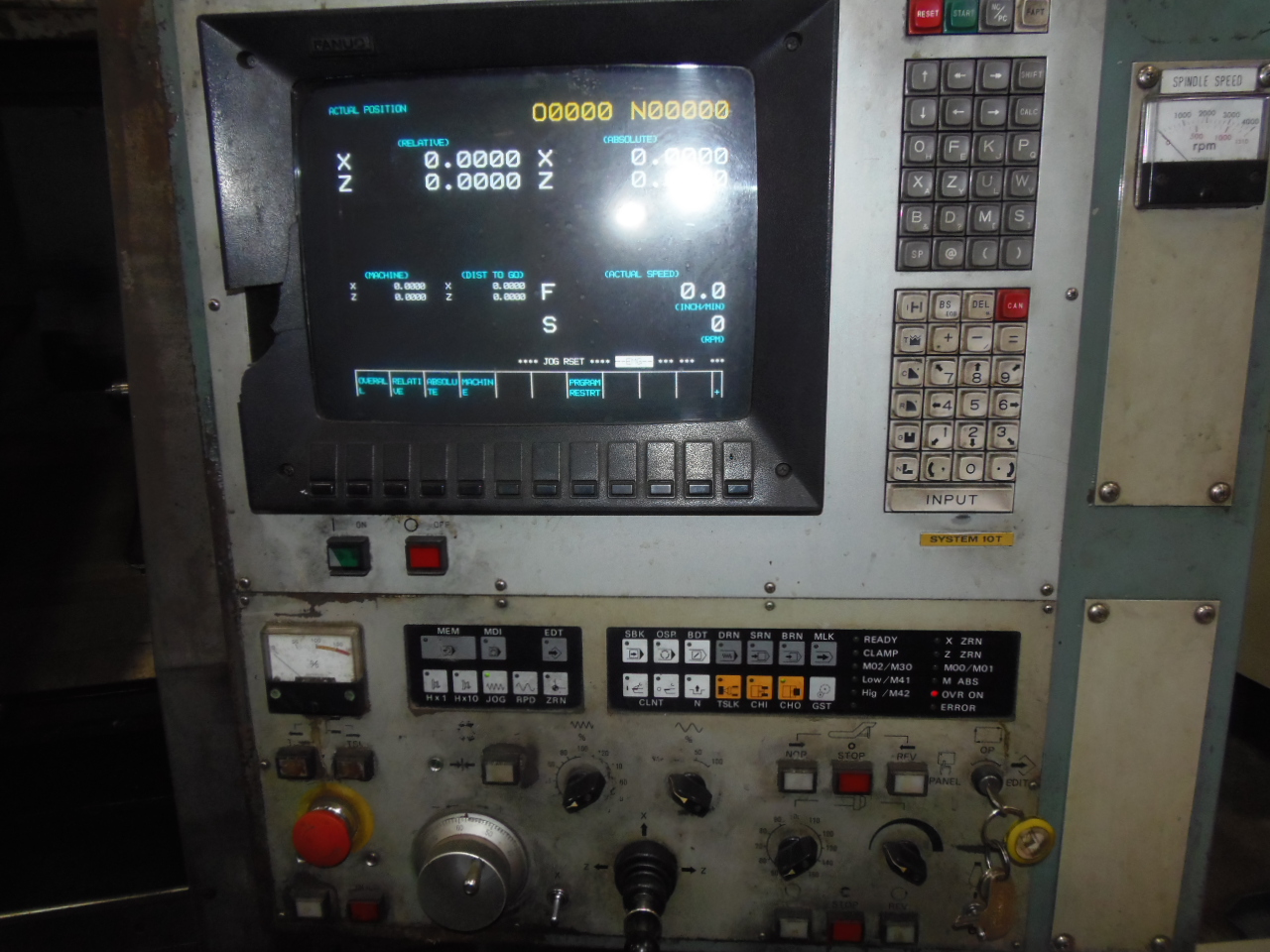

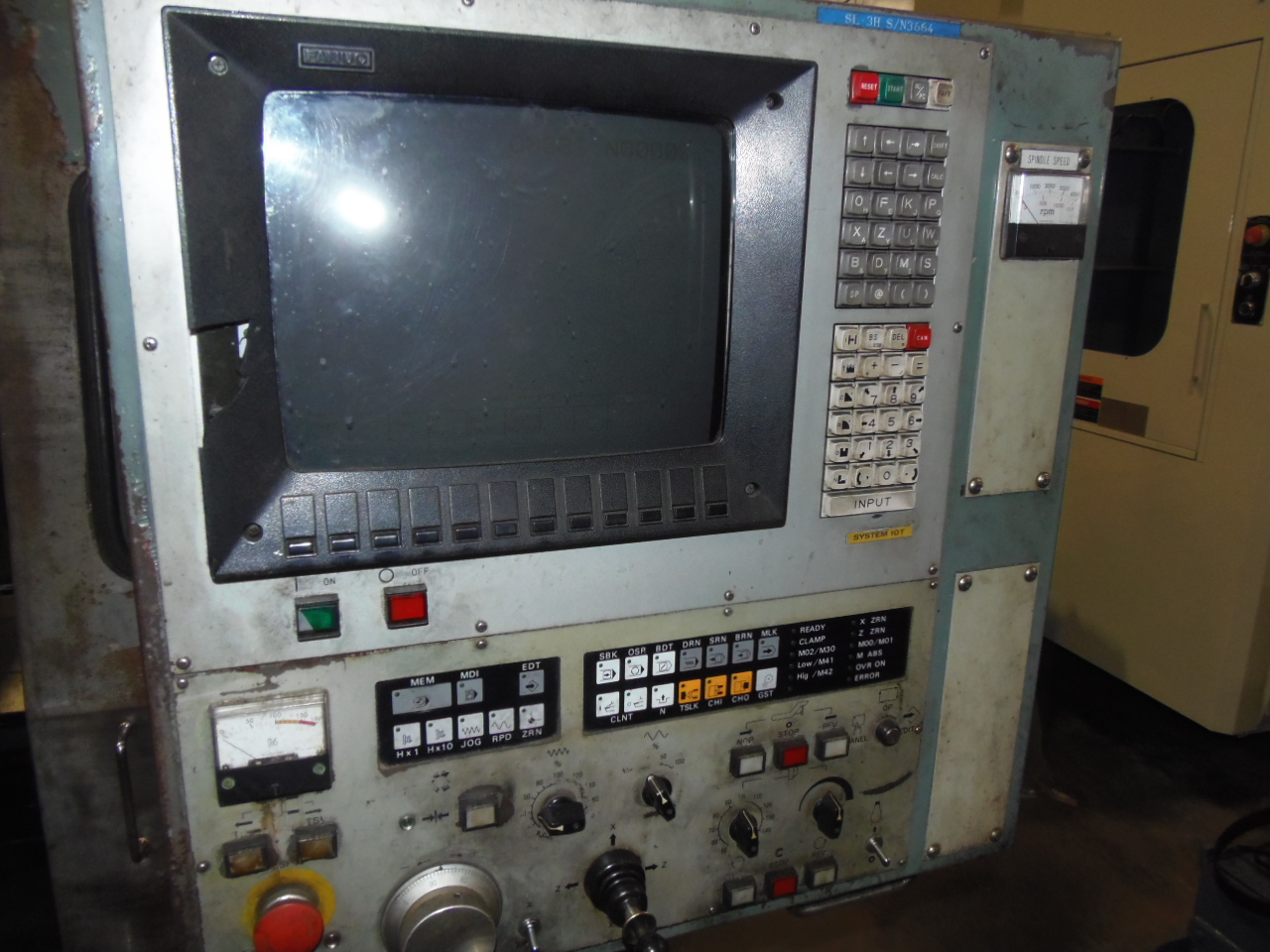

FANUC OT CONTROL

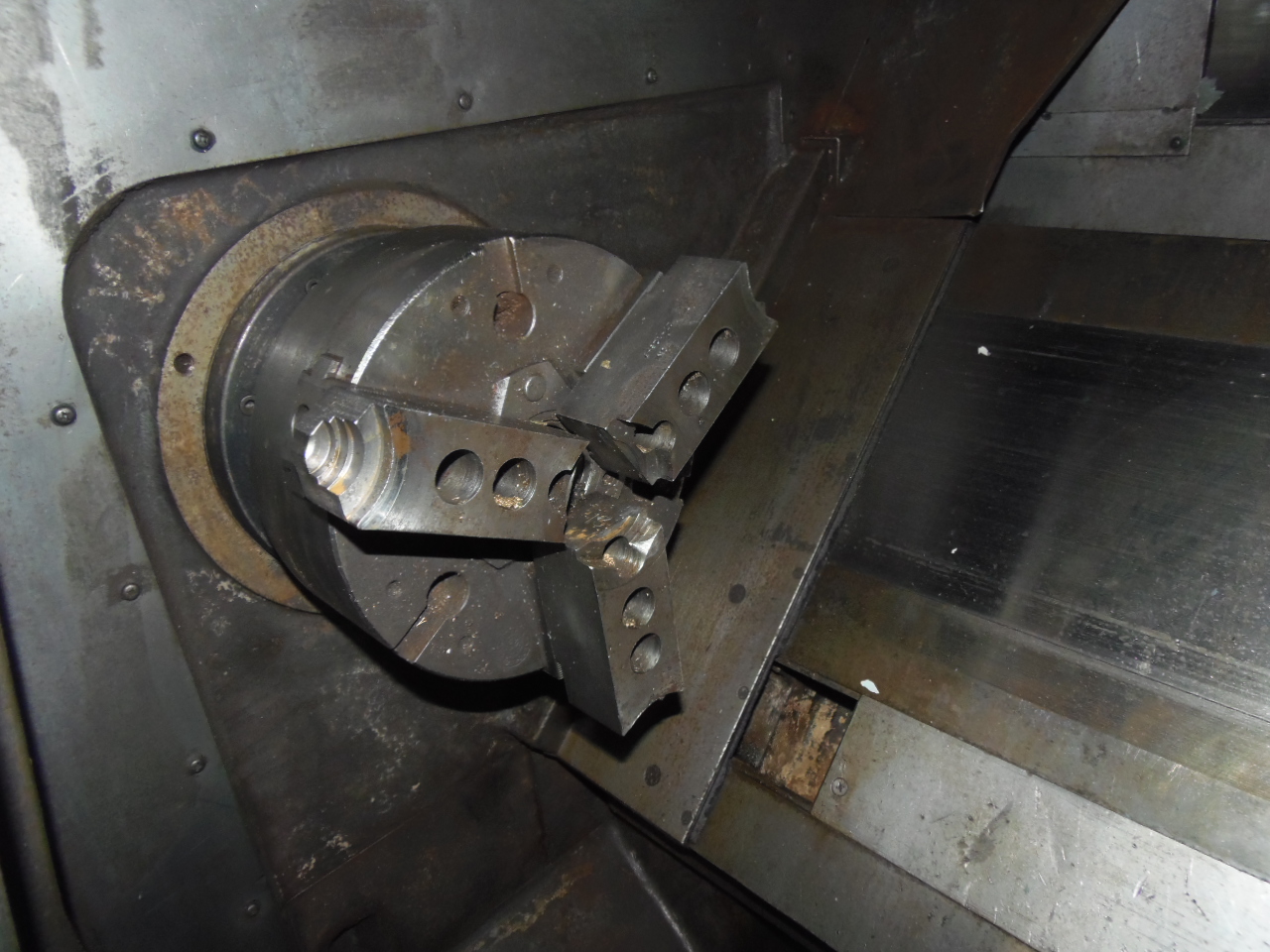

10" 3-JAW CHUCK
TAILSTOCK

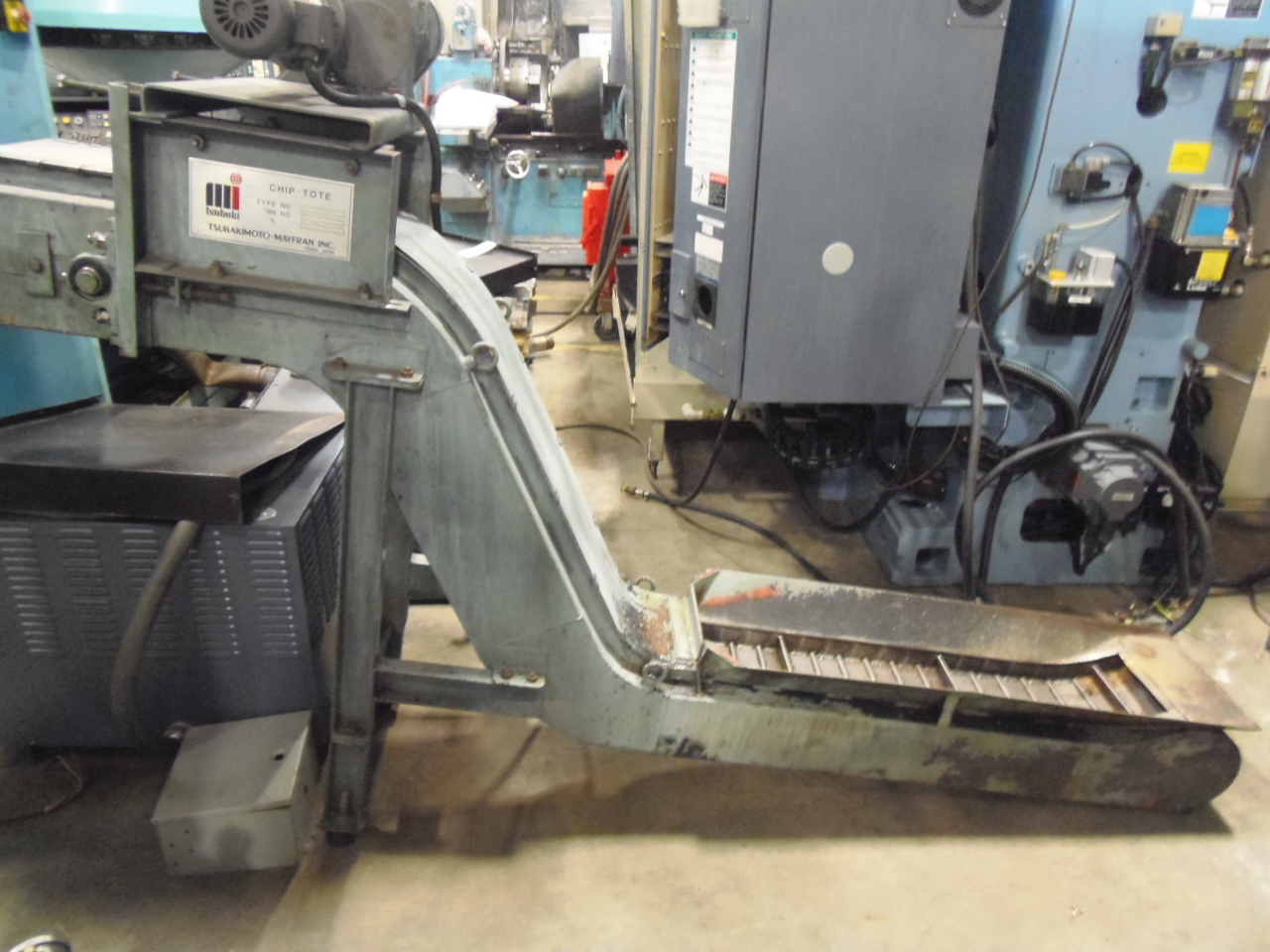

CHIP CONVEYOR

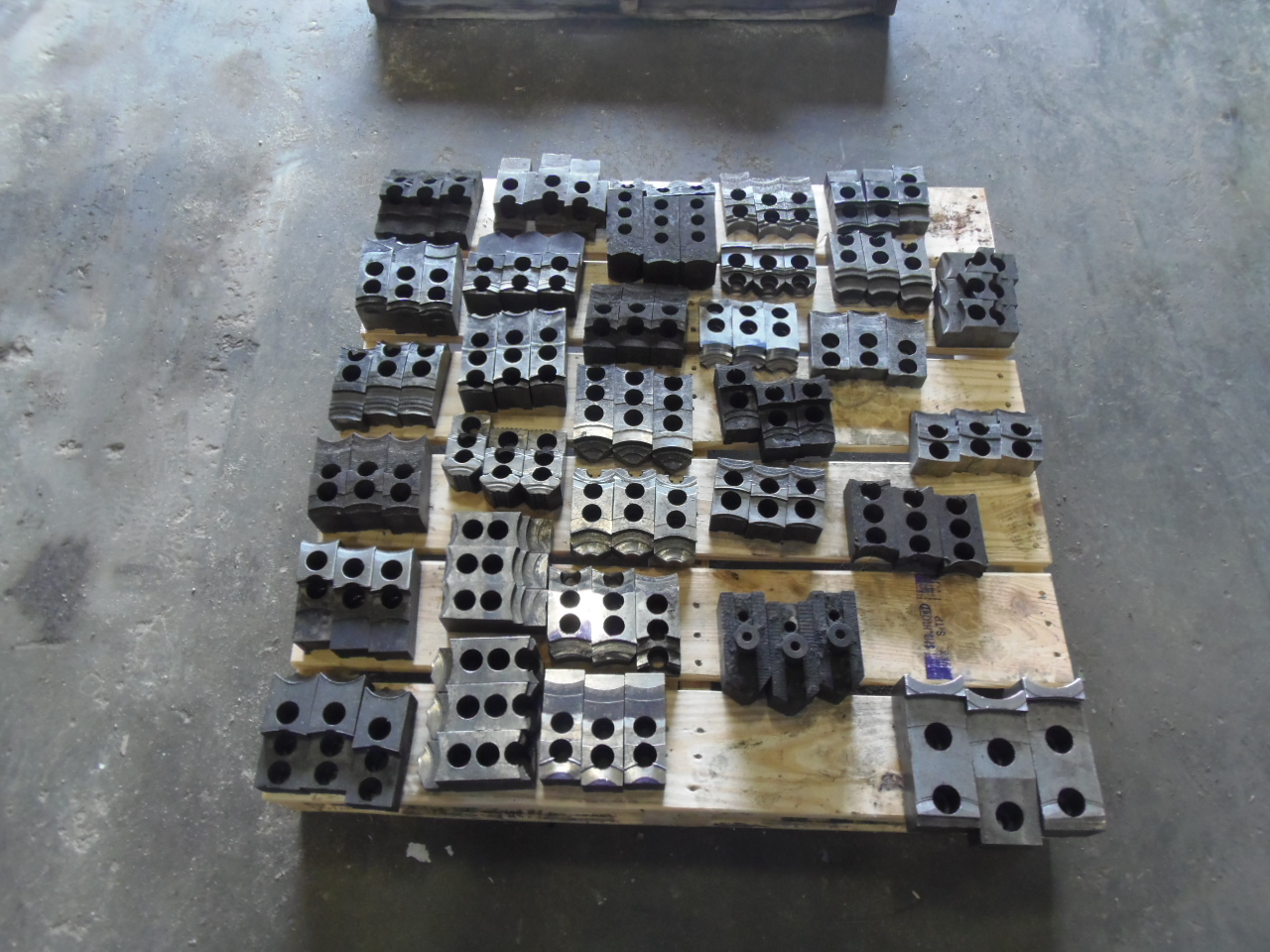

LOTS OF FACE PLATES AND JAWS
** FOR PARTS, NOT WORKING **
SPECIFICATIONS SUBJECT TO VERIFICATION
