Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE............................ MORI SEIKI
MODEL........................... SL-35B
SERIAL NUMBER................... 1660
AGE (YEAR)...................... 1996
SWING OVER BED.................. 23.6"
MAX. TURNING DIAMETER........... 16.5"
MAX. TURNING LENGTH............. 30.7"
DISTANCE BETWEEN CENTERS........ 35"
HOLE THRU SPINDLE................. 4"
BAR CAPACITY.................... 3.6"
X AXIS TRAVEL................... 9.4"
Z AXIS TRAVEL................... 33.7"
SPINDLE MOTOR..................... 30/40 HP
SPINDLE SPEED................... 20 - 2500 RPM

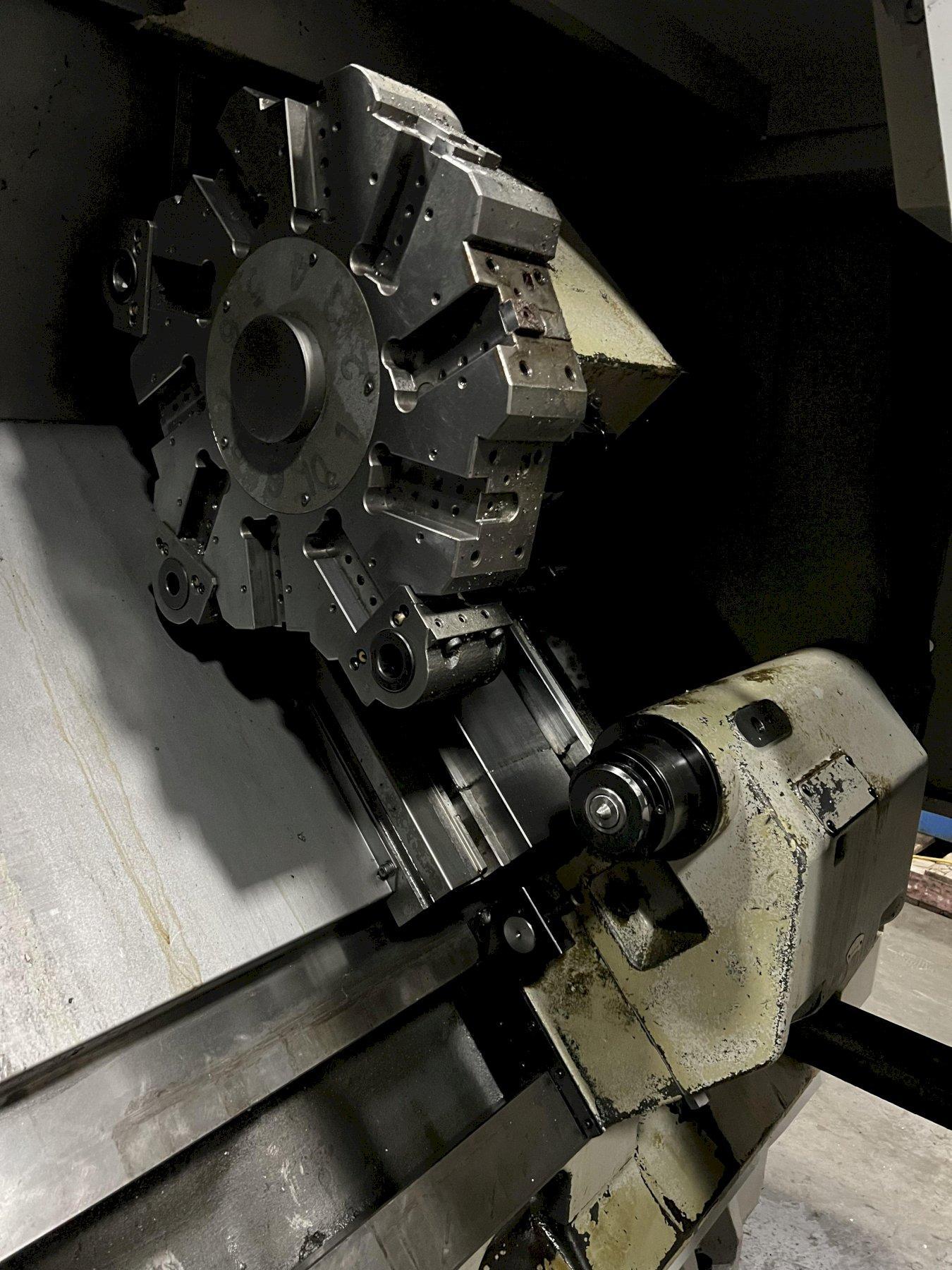

TURRET POSITIONS................ 10
TAILSTOCK QUILL TAPER........... MT #4
APPROXIMATE WEIGHT.............. 18,000
APPROXIMATE DIMENSIONS.......... 180" X 76" X 82" TALL

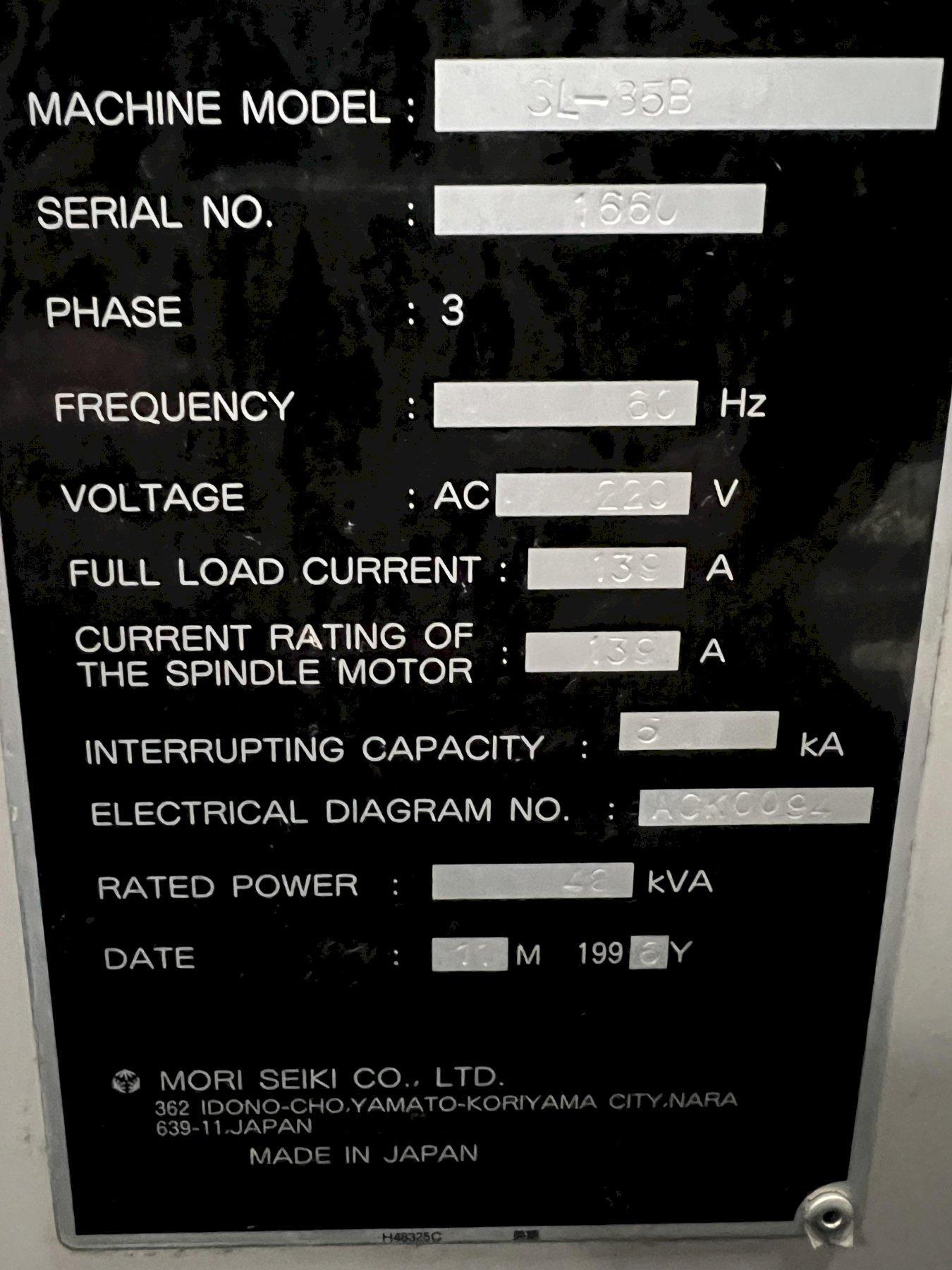

VOLTAGE......................... 220V/3/60
EQUIPPED WITH:

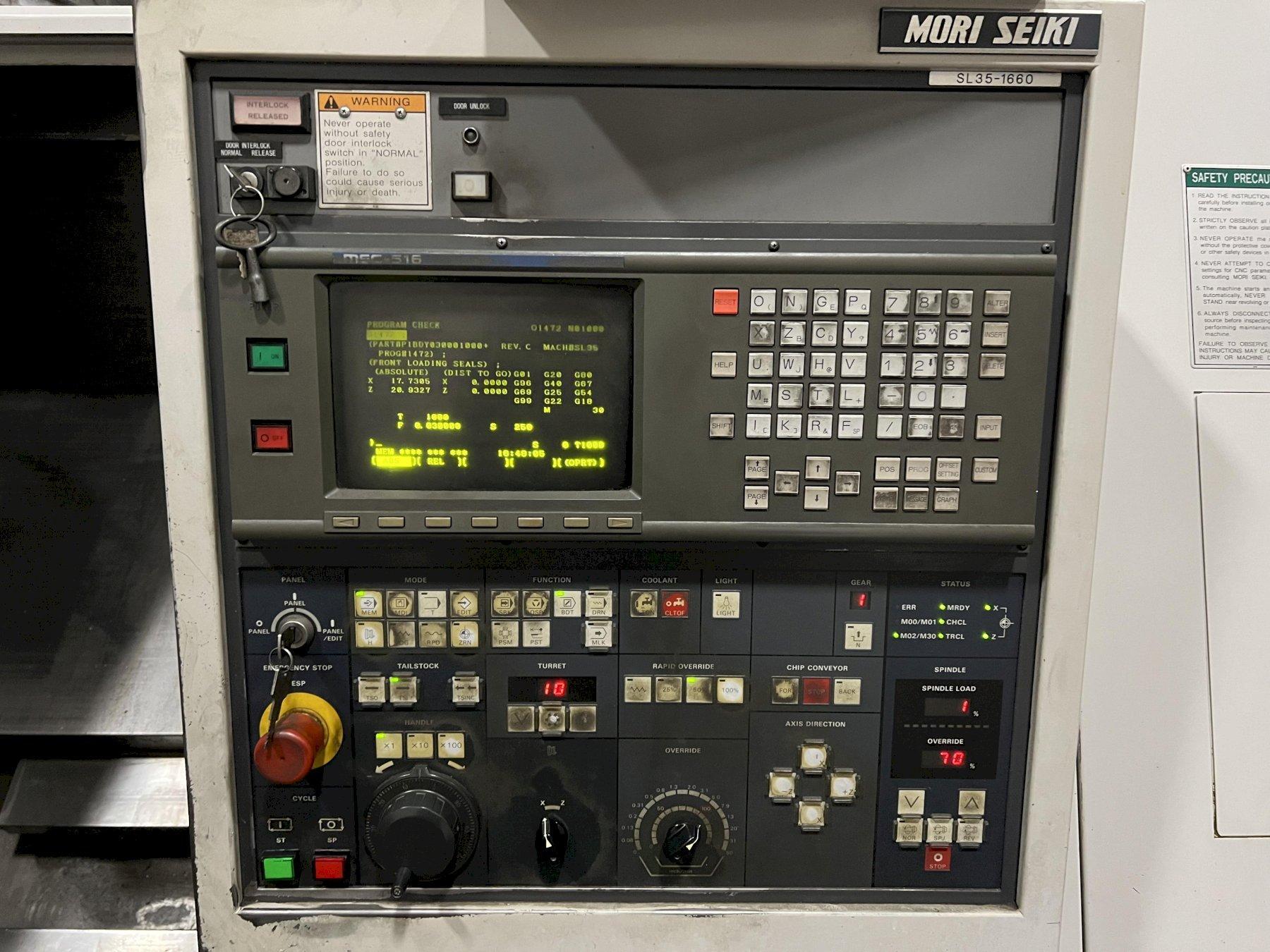

FANUC 16T MF-T6) CNC CONTROL

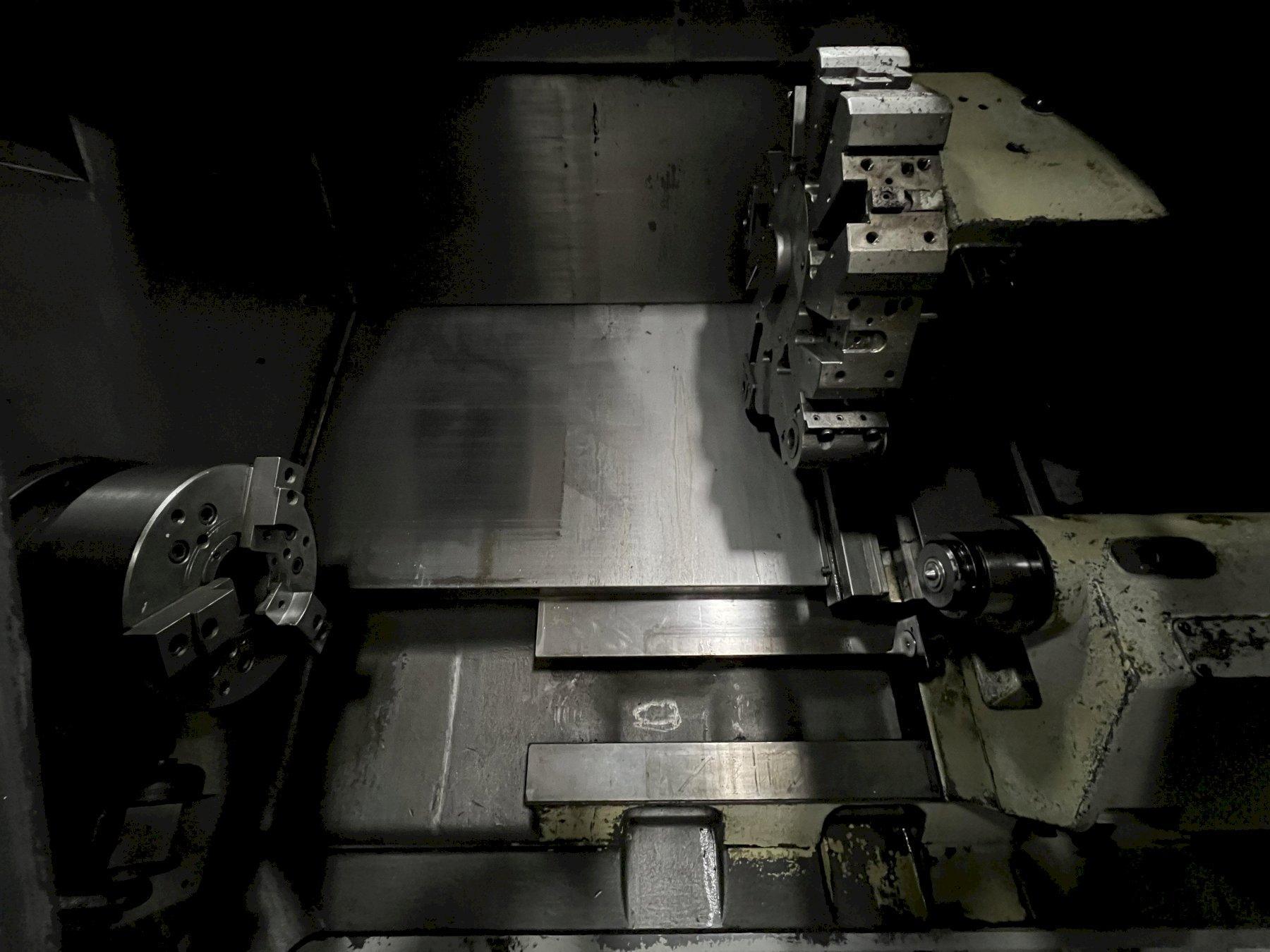

12" MMK 3 JAW HYDRAULIC CHUCK
TOOL SETTING ARM
COOLANT SYSTEM

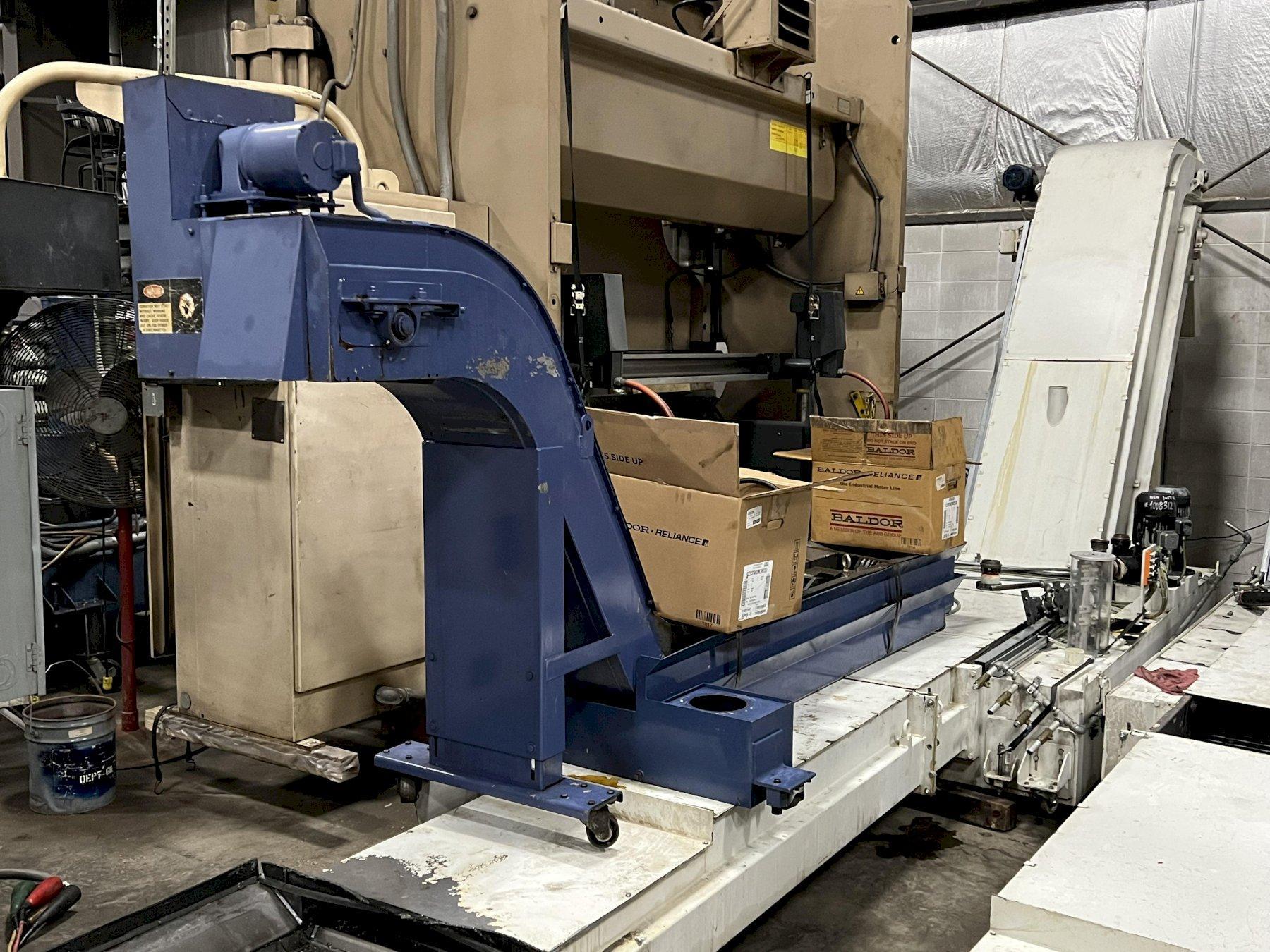

CHIP CONVEYOR
TAILSTOCK WITH LIVE SPINDLE CENTER
MISC. TOOLING
