Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED.................. 23.6"
MAX. TURNING DIAMETER........... 16.5"
MAX. TURNING LENGTH............. 30.7"
DISTANCE BETWEEN CENTERS........ 35"
BAR CAPACITY.................... 4.1"
HOLE THRU CHUCK................. 4.72"
X AXIS TRAVEL................... 9.4"
Z AXIS TRAVEL................... 33.7"
SPINDLE SPEED................... 20 - 2500 RPM
SPINDLE MOTOR................... 30/40 HP
TURRET POSITIONS................ 10
TAILSTOCK QUILL TAPER........... MT #4
APPROXIMATE WEIGHT.............. 18,000
APPROXIMATE DIMENSIONS.......... 180" X 76" X 82" TALL
EQUIPPED WITH:

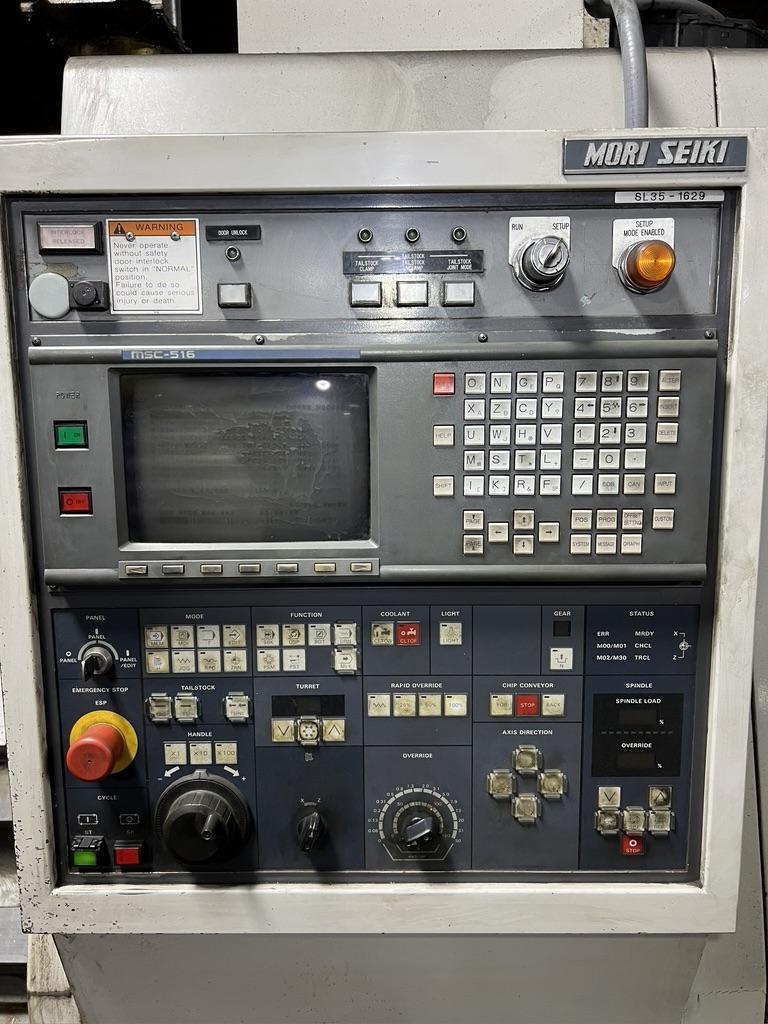

MF-T6 (FANUC 16T) CNC CONTROL

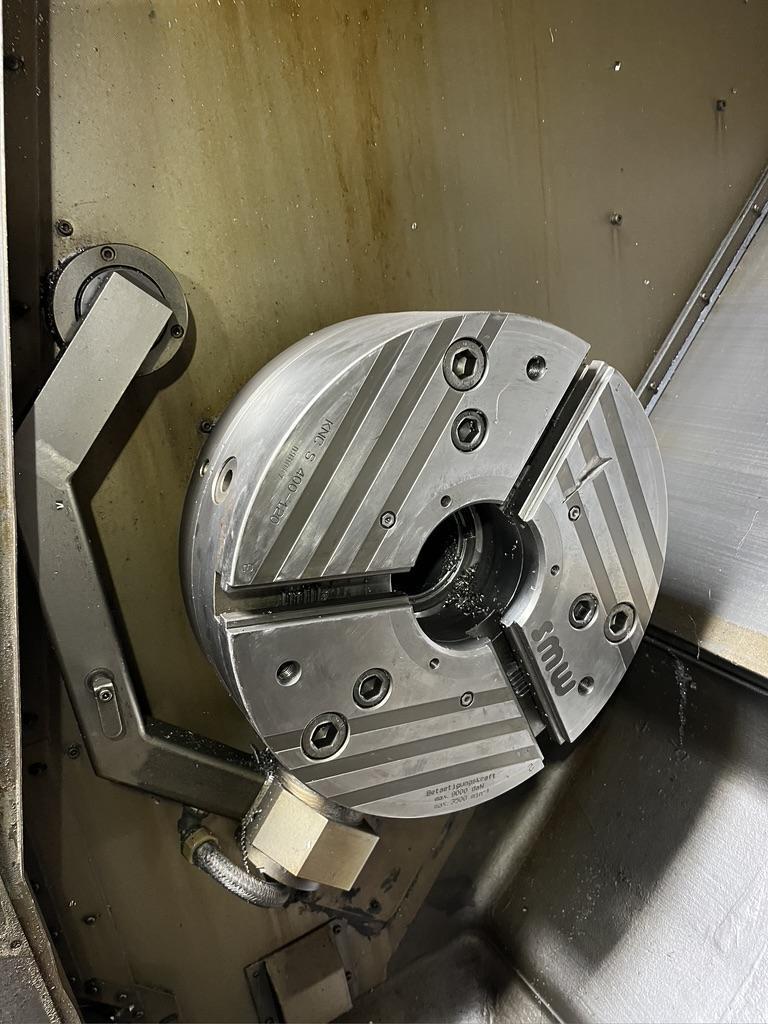

15" SMW MODEL KNC S 400-120 BIG BORE CHUCK
CHIP CONVEYOR
TOOL SETTER
TAILSTOCK WITH LIVE SPINDLE CENTER
MISC. TOOLING AND MANUALS
220/440 TRANSFORMER
